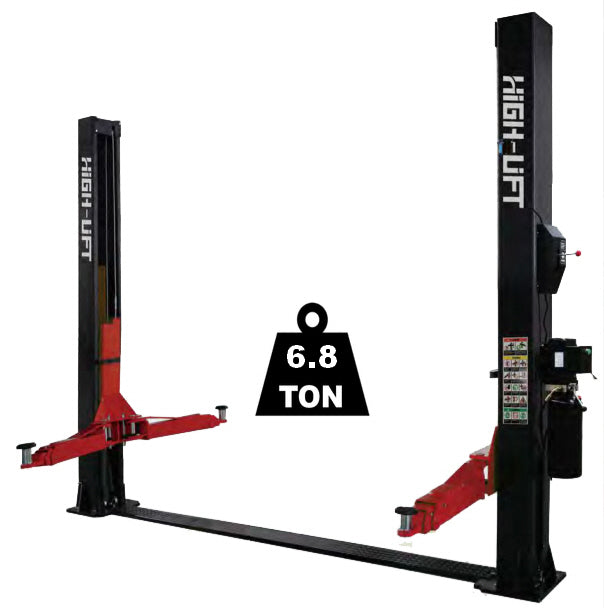

YL-268 Base Plate Car Truck Hoist 6.8 Tonne Single Point Release, 3 Stage Lifting Arms

$5,600.00

$6,000.00

Sold out

All Our Car Hoists Come With 3 Year Structual Warranty

This Car Hoist Is Rated At 6800kg, It Is Suitable For Heavier Vehicles Such As F350 etc

Heavy duty two post car lift is with extra thick columns, heavy-duty inside carriage and 3 arm extension arm design. This Aussie Car Hoist comes with twin Hydraulic+chain drive system, single lock release system & 3 Stage Lifting Arms

Features:

Suitable For Garages or workshops with low ceiling height
Extra Thick Columns
Comes with double hydraulic rams with control equalization cables for double the safety
Low cable cover plate design, convenient for driving in and out.
Dual-cylinder lifting system, more stable and faster.Cable-equalization system
Chain-driven system, faster lifting speed.
Single lock release system, safe and reliable.
Wear-resistant, heat-resistant and high strength macro molecular polyethylene slide blocks
Pass 120% capacity dynamic load test and 150% capacity static load test.
Aussie Car Hoists Are Manufactured & Designed To Aust Standards EN1493-2010, BS EN
Aussie Car Hoists Are Work Safe Approved
Adjustable high quality screw type lift pads

Specifications:

Hydraulic fluid required for hoist is standard AW46 grade
Powder Coated Finish
Available In Both 3 Phase & Single Phase Will come Standard With Single Phase Pump Unless Otherwise Stating You Want 3 Phase
Power : 240V OR 415V
Motor 3Kw

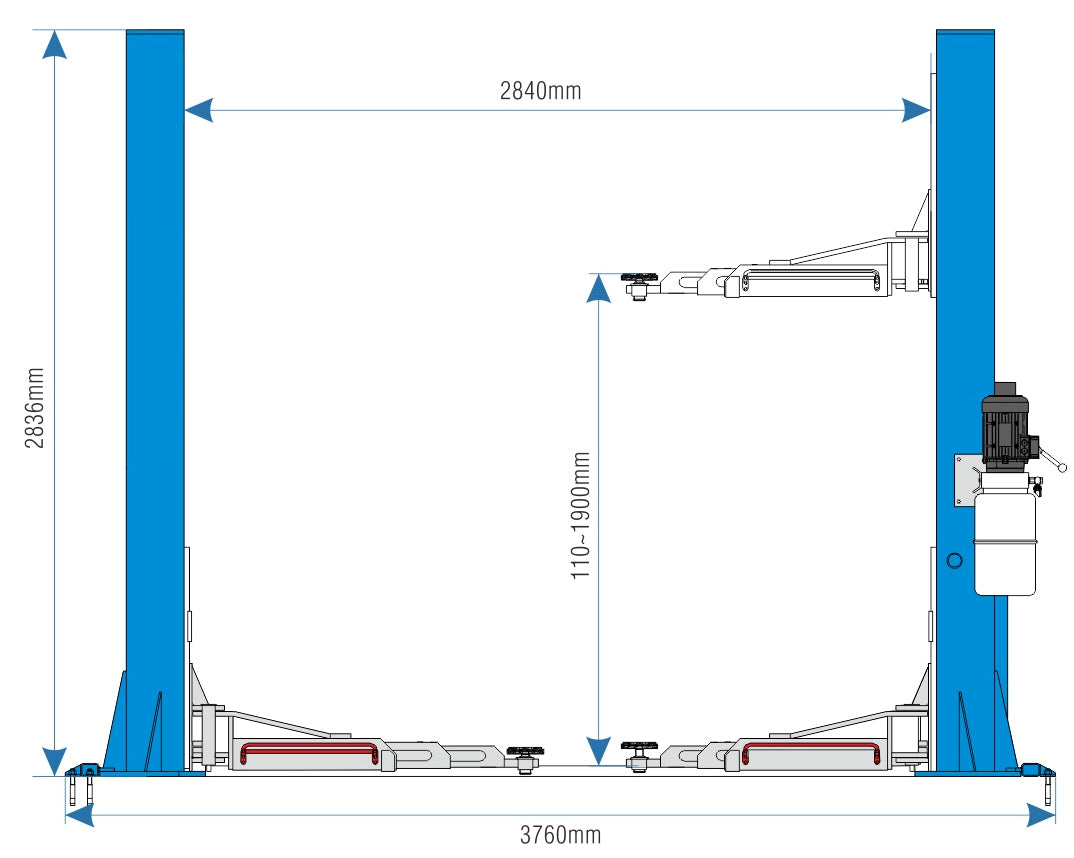

Lifting capacity : 6800kg
Maximum lifting height : 1900mm
Minimum Pad Height : 110mm
Clearance between posts : 2840mm
Drive through clearance : 2750mm
Overall height : 2836mm
Overall width : 3760mm

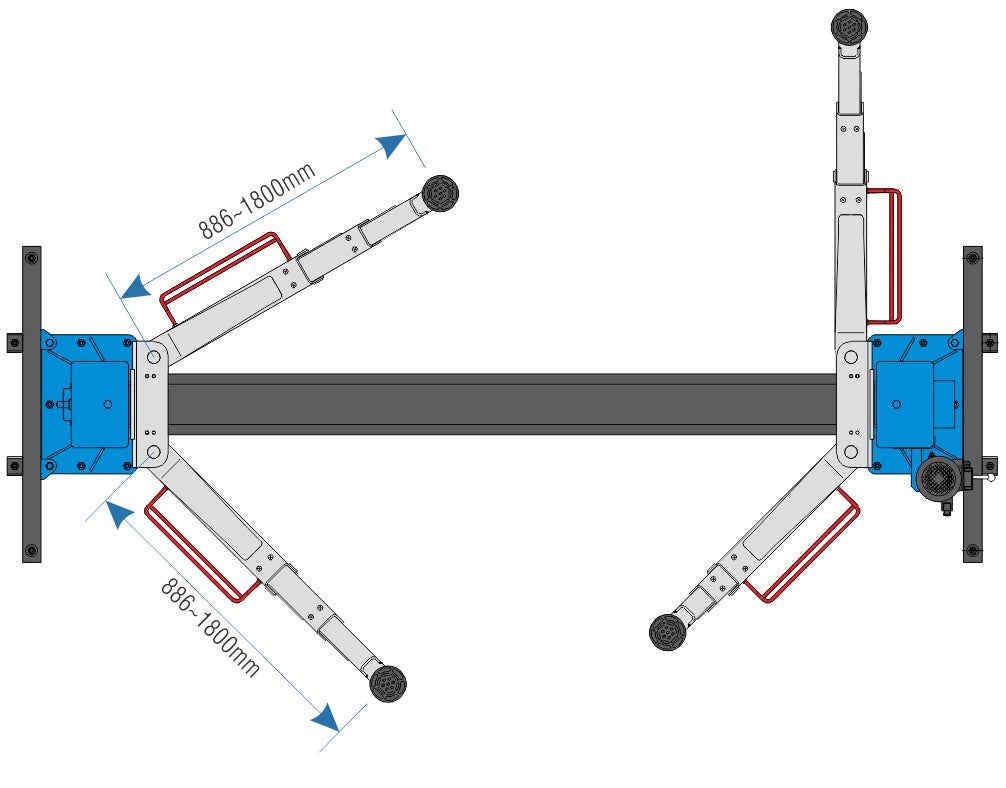

Long arm maximum length : 1800mm
Long arm minimum length : 880mm
Short arm maximum length : 1800mm
Short arm minimum length : 880mm
Lifting time : less than or equal to 60 sec
Oil tank capacity : 10L
Lock : Manual single
Hydraulic fluid required for hoist is standard AW32 grade
Elevating system : Chain type
Minimum concrete thickness is 5 inches, if you don”t have this you will need to add a large plate under uprights (suggest 10mm x 800 x 800mm)
Must be minimum of 6 inches away from edge of concrete

* Item is subject to minor modification on appearance and specifications, for improvement of product, without prior notice. Please check before order.
