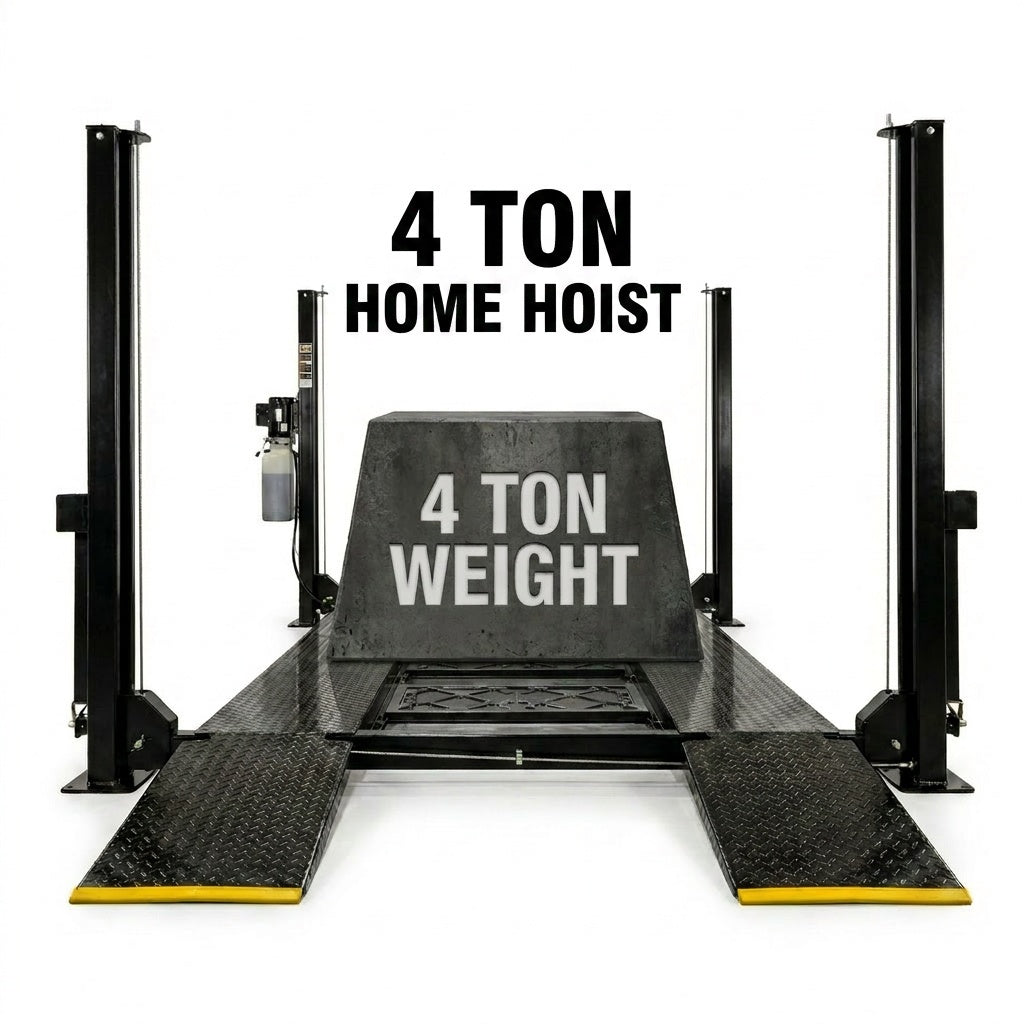

Highlift AYL4000 4 Post Car Storage Workshop Storage Hoist 4 tonne

$3,900.00
$4,050.00

In stock

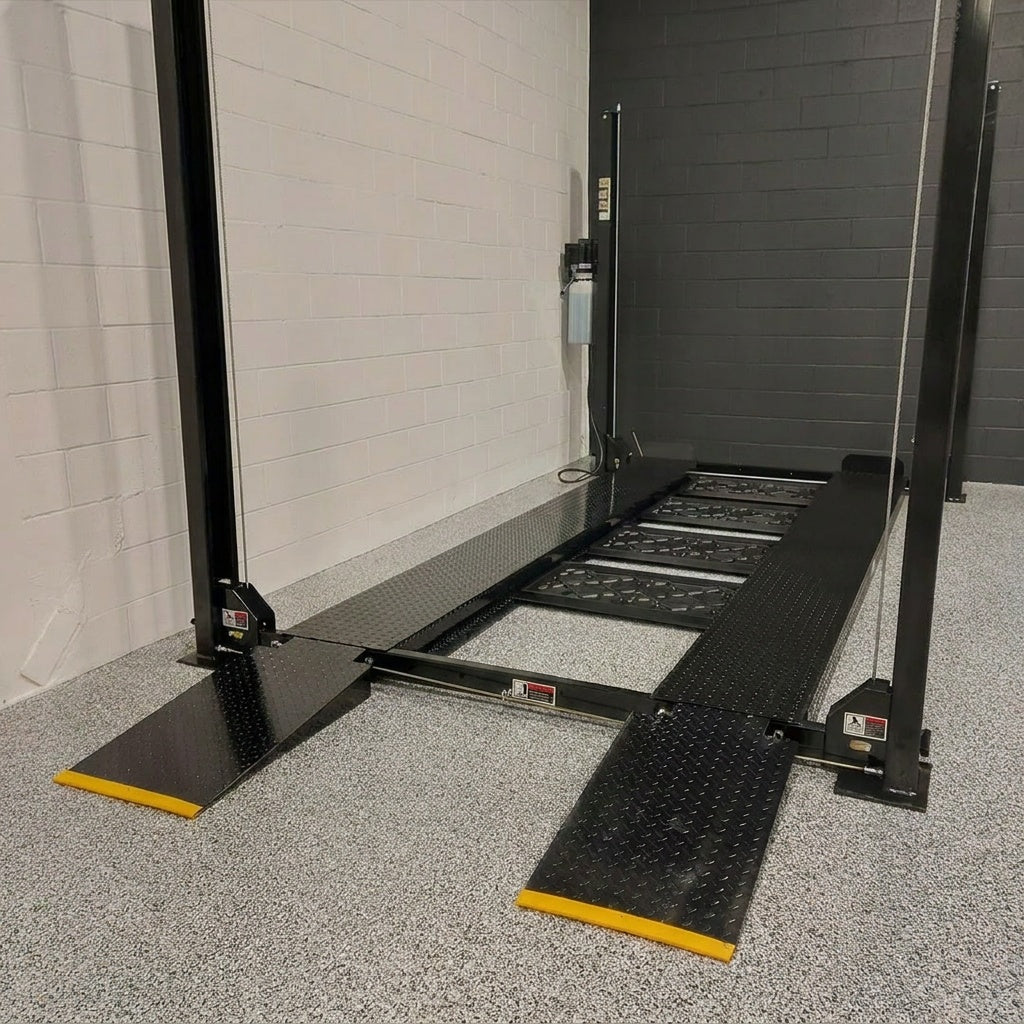

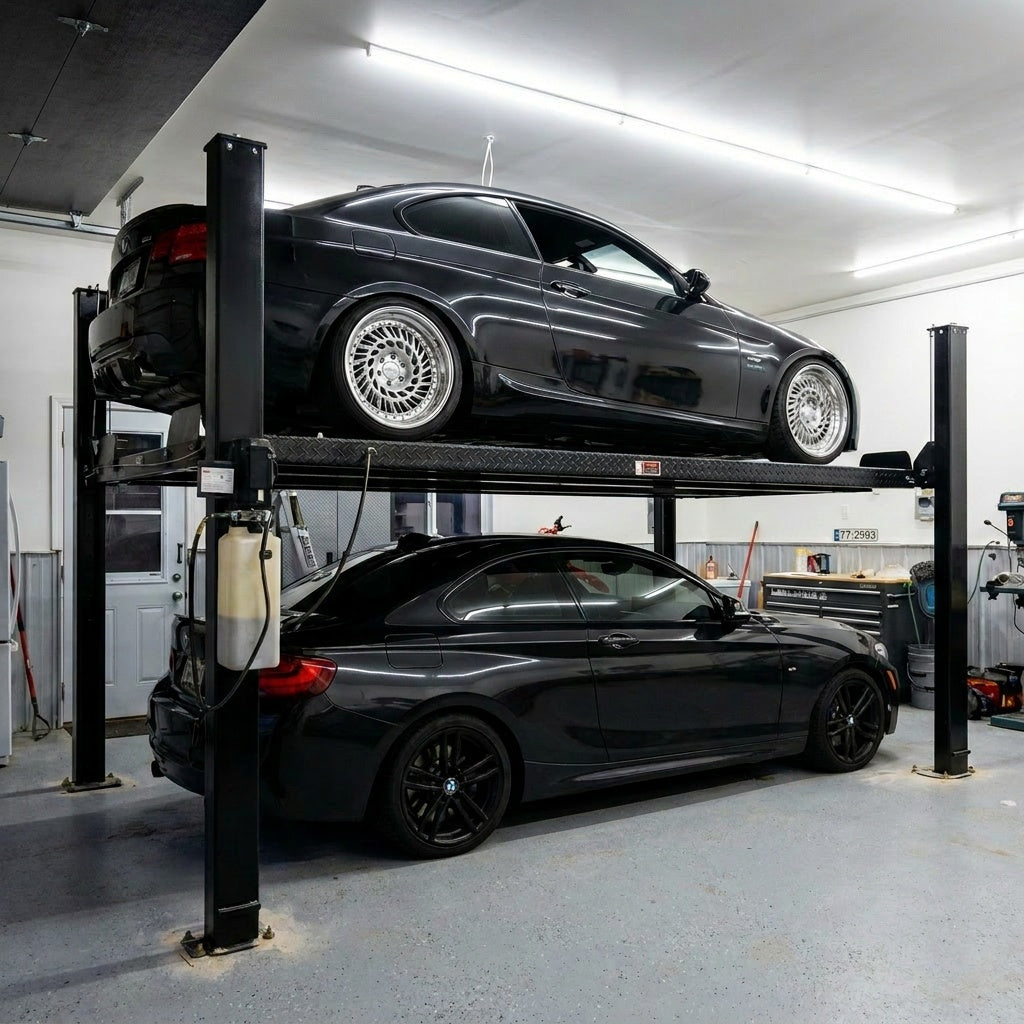

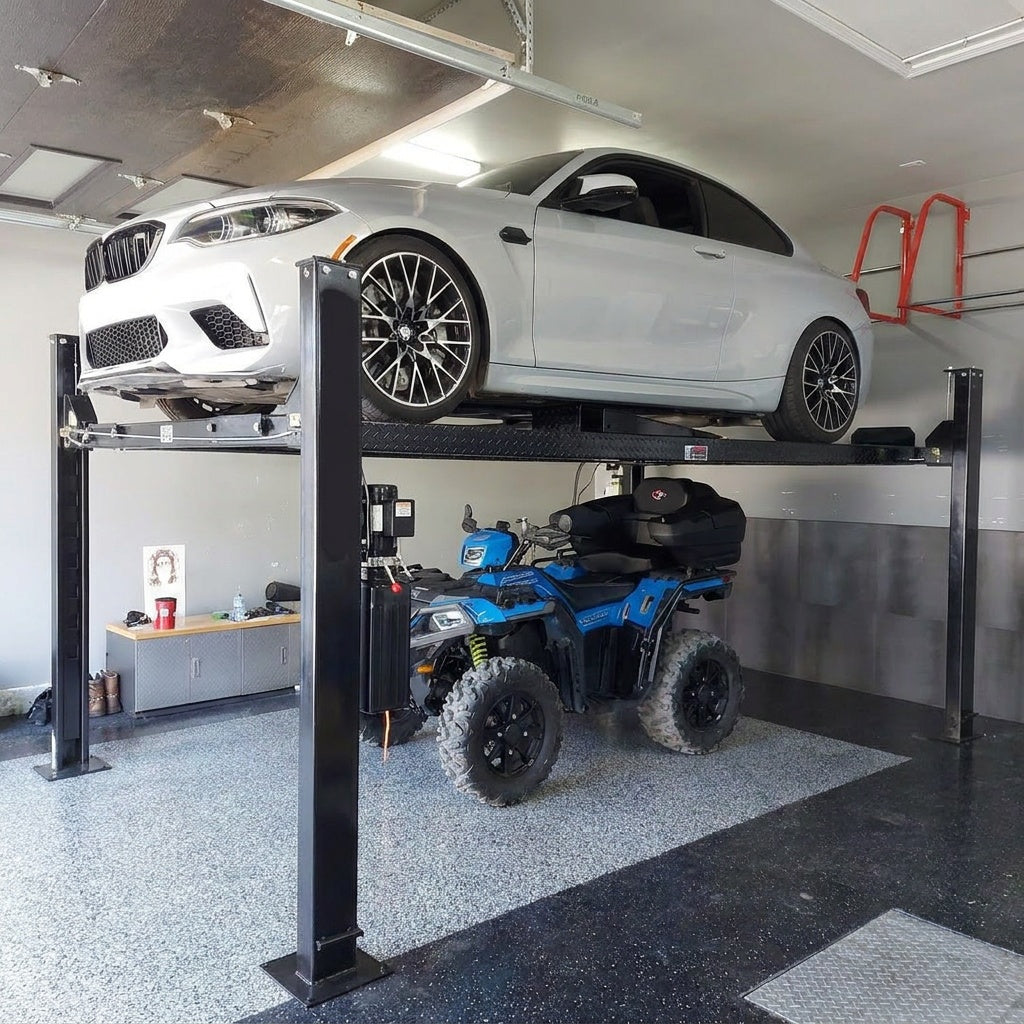

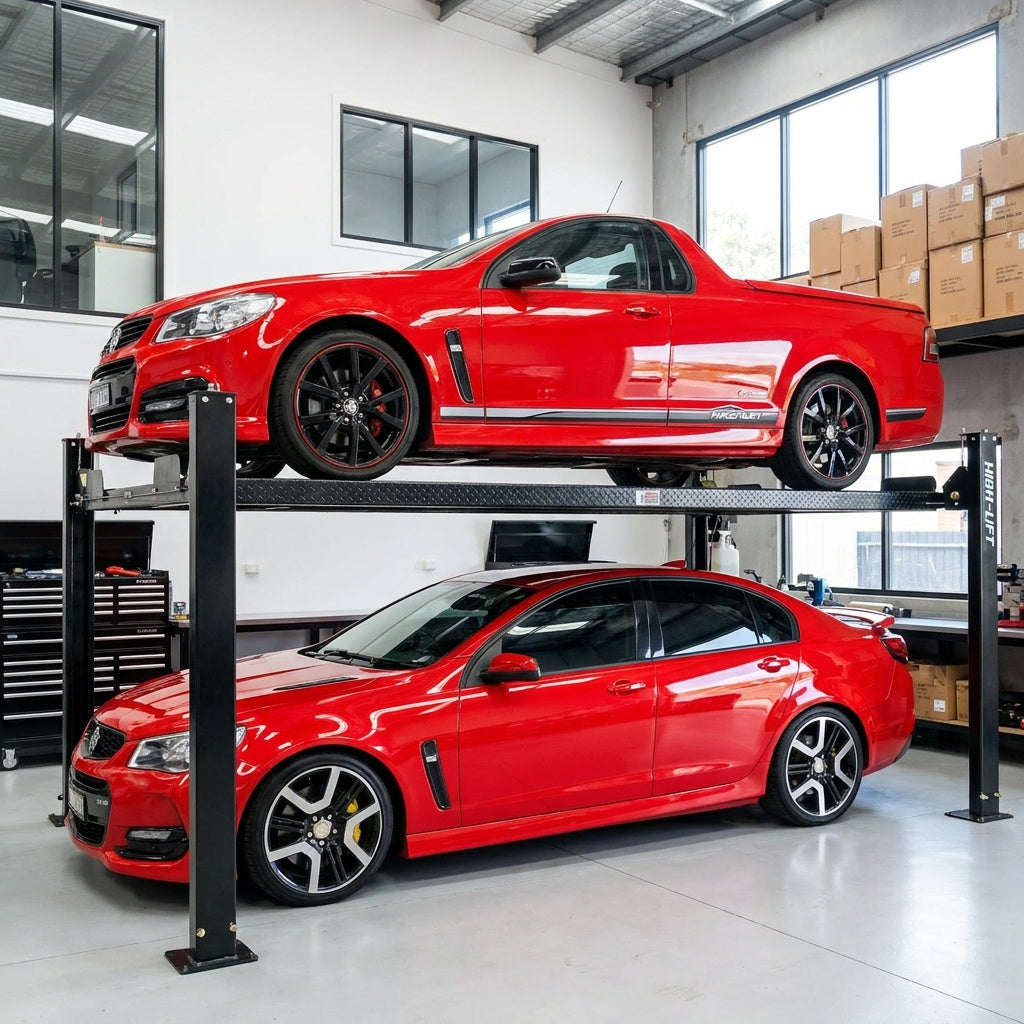

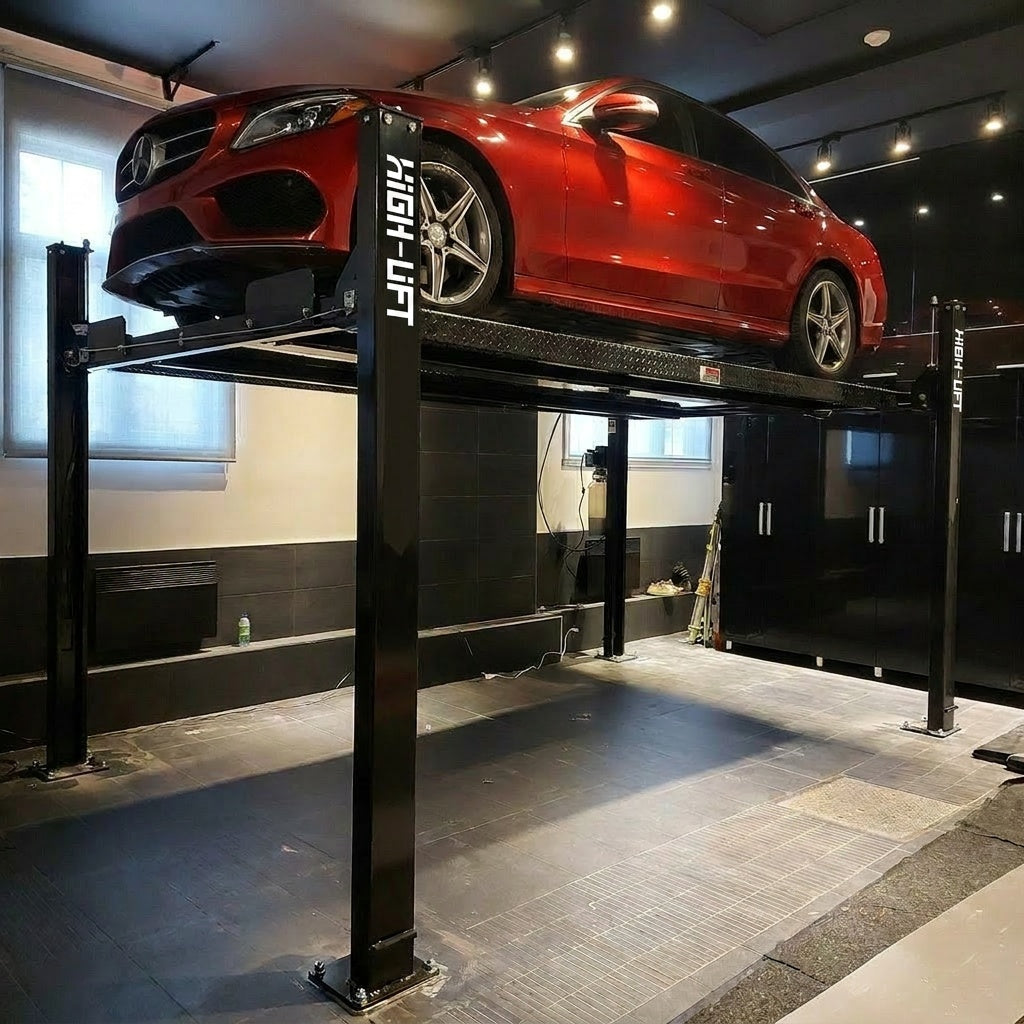

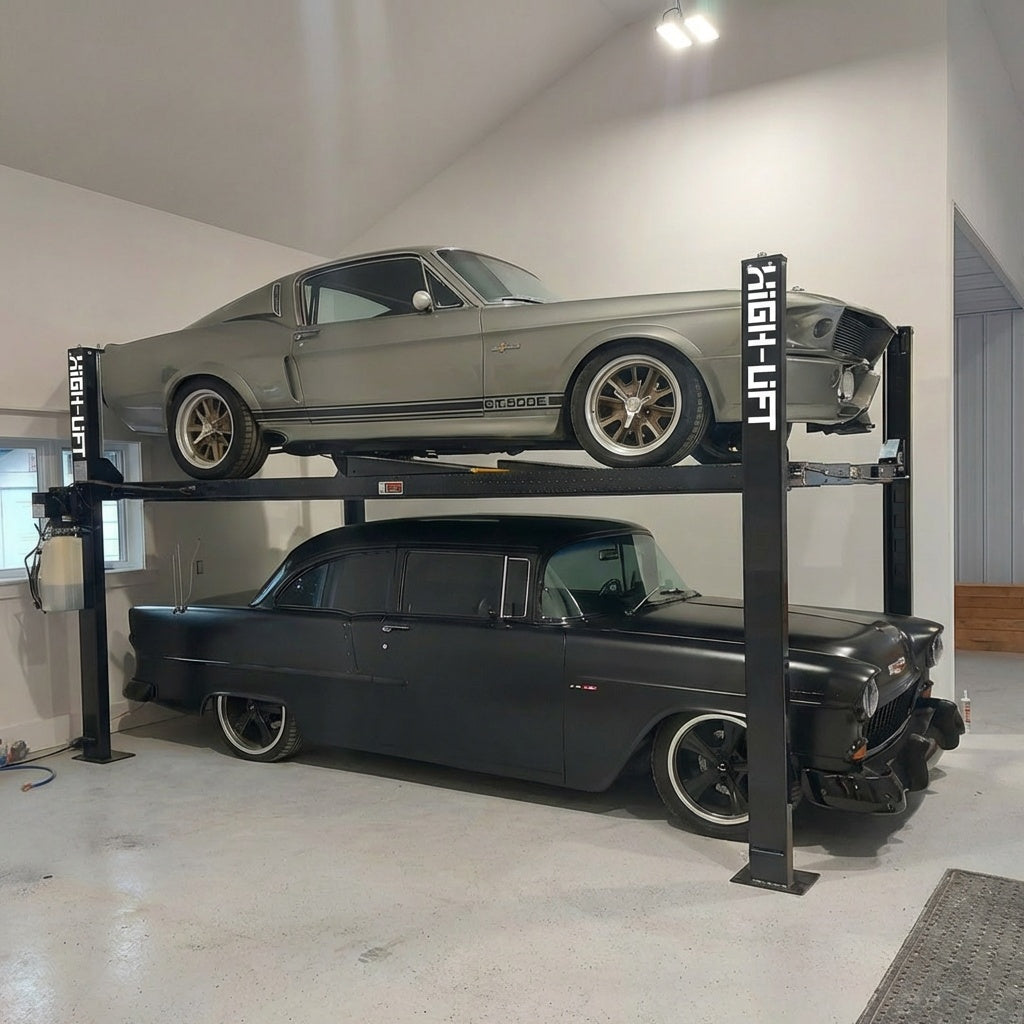

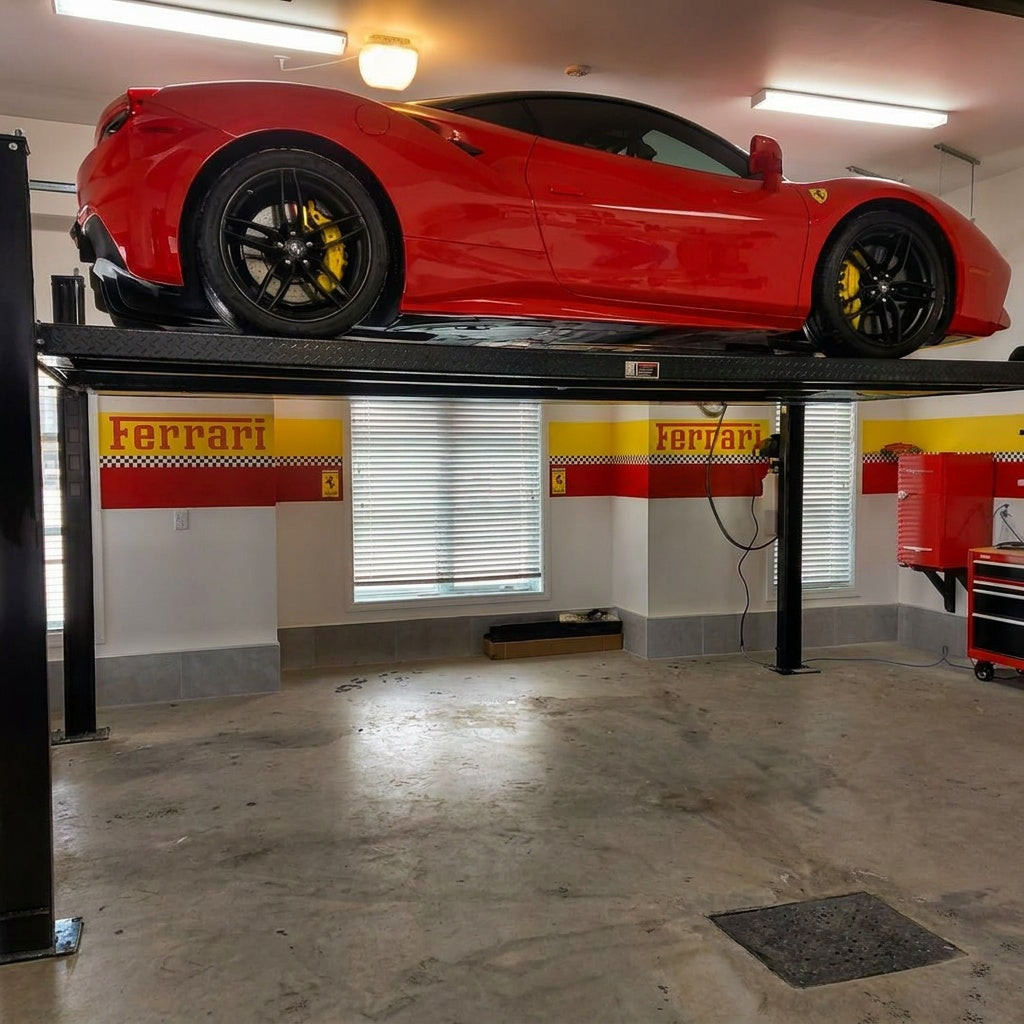

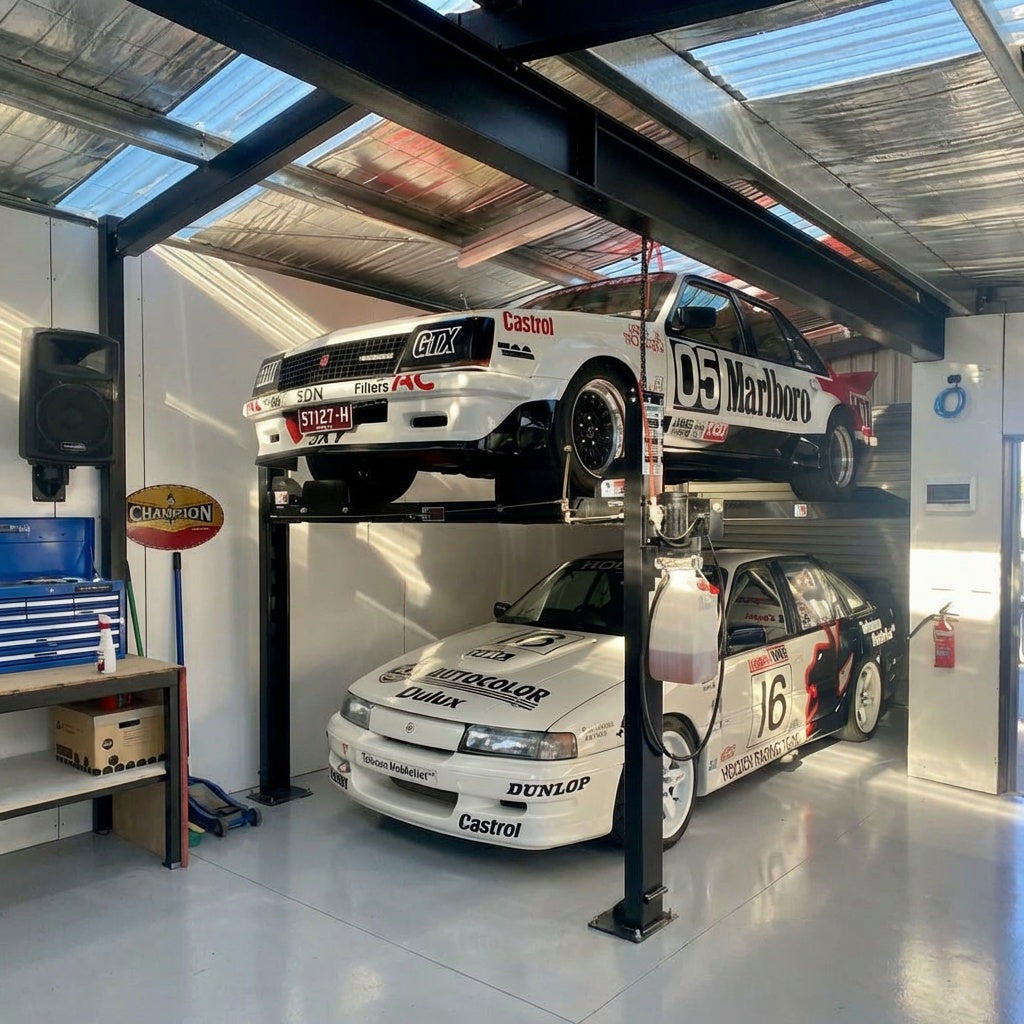

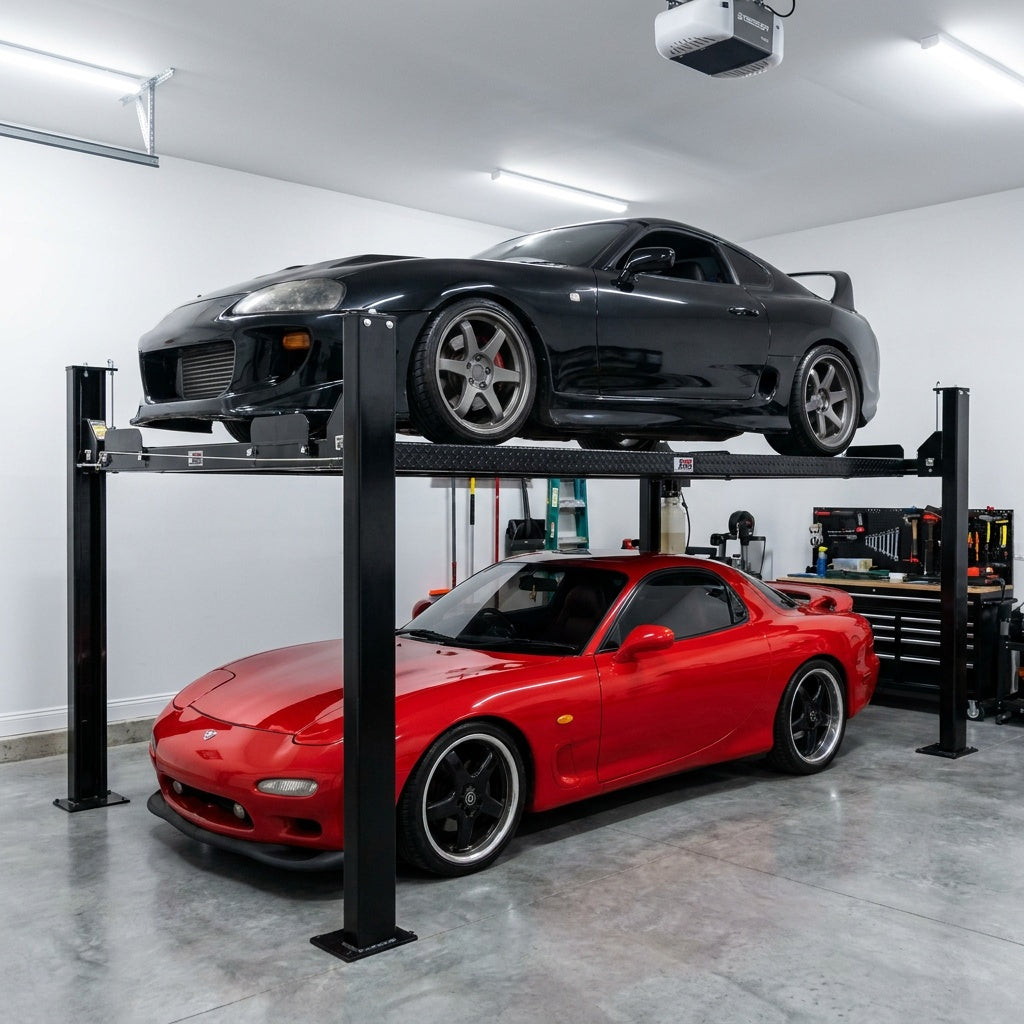

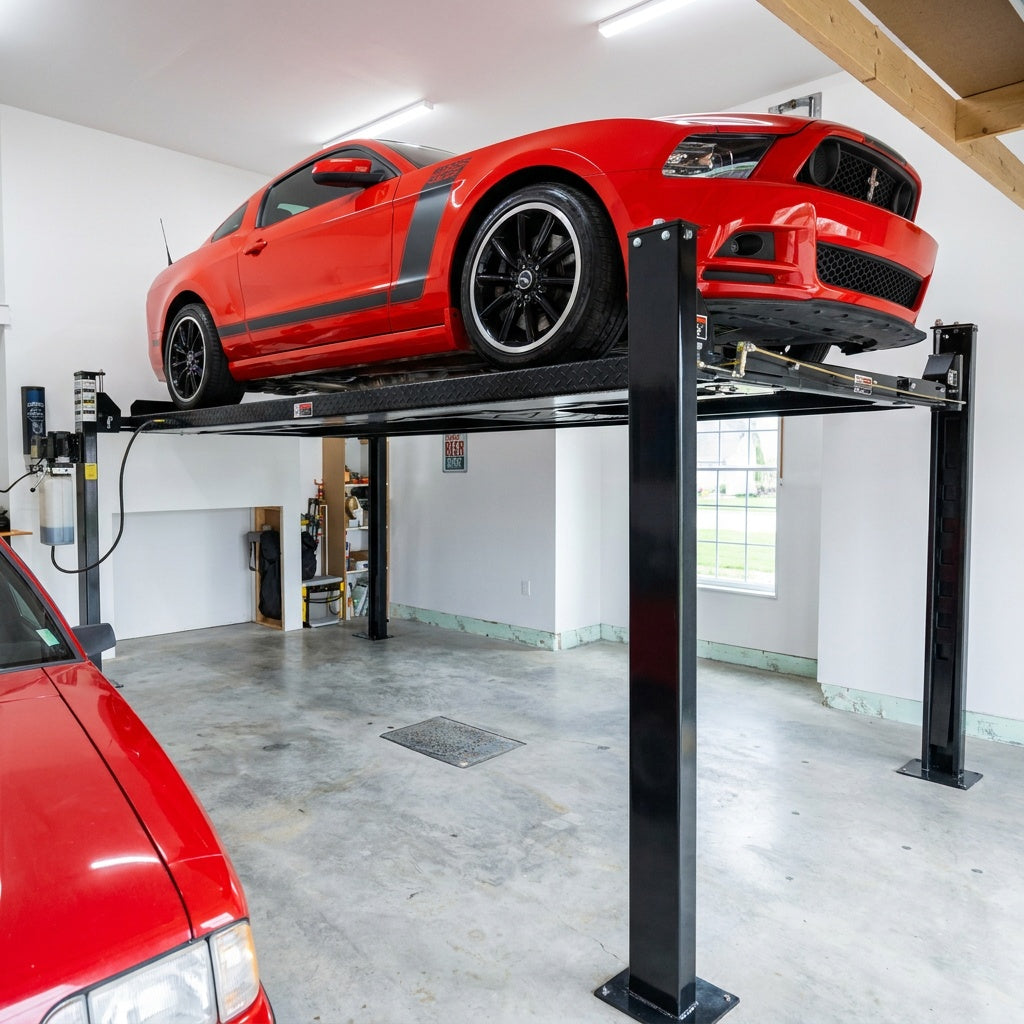

This High-Lift four-post vehicle hoist gives you a versatile, sturdy platform that's perfect for general servicing around the home workshop, plus handy dual-level parking storage to free up floor space. Built with a solid 4000kg capacity, it's got plenty of strength for the jobs a keen home mechanic takes on.

Features

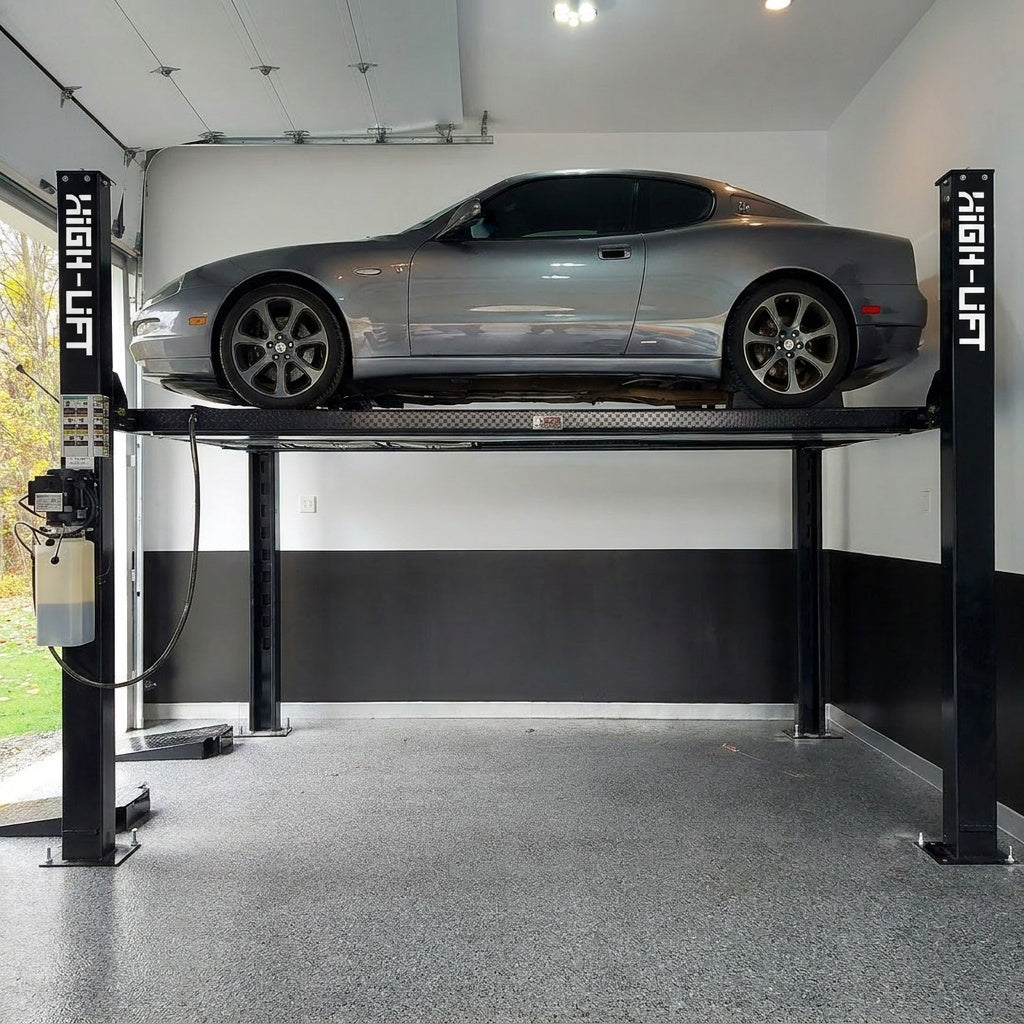

  • Double your parking space
  • Perfect for storing/working on most vehicles
  • Diamond plated platforms
  • Powder coated finished
  • The optional caster wheel kit easily allows you to move the hoist around your workshop

Options:

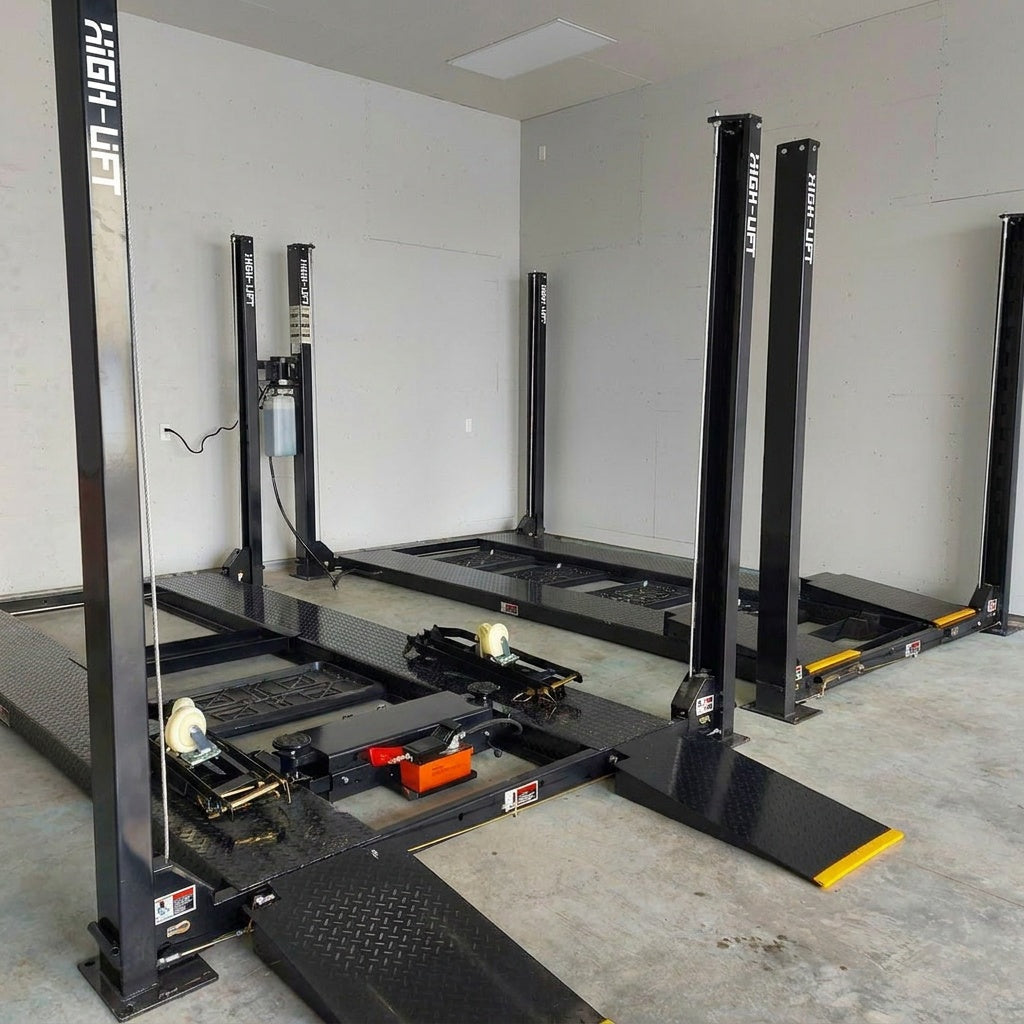

  • Sliding Jacks - RJ3500 or RJQ3500
  • Oil Drip Trays
  • Aluminum Approach Ramps
  • Caster Wheel Kit
  • Steel Tool Tray
  • Steel In-Fill Kit

Safety:

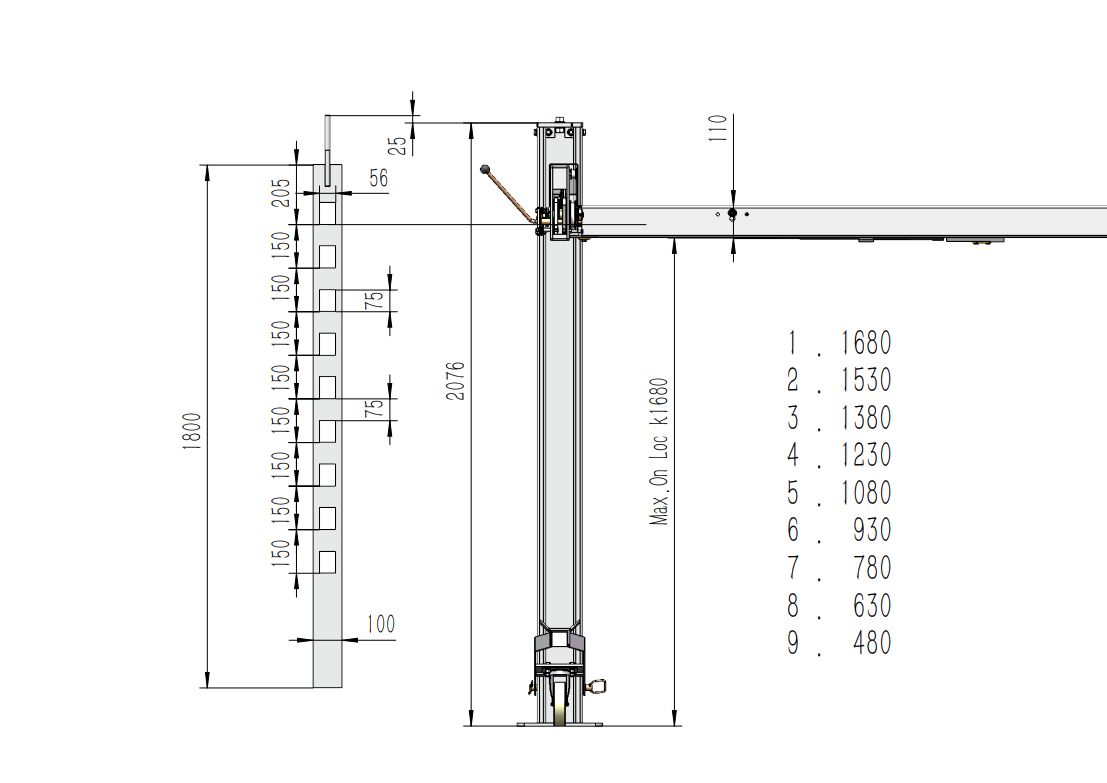

  • Mechanically locks each (170mm) interval
  • Anti-surge valve
  • Cable slack locks

Installation Manual

Workcover Registration

Lifting Cable Compliance Certificate

Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

The YL-4000 is a heavy-duty, portable 4-tonne 4-post parking hoist designed to double your available parking space while giving you the flexibility to service a wide range of vehicles. Diamond-plated platforms and a tough powder-coated finish ensure dependable, long-lasting performance in any garage or workshop setting.

Built on a standard configuration, the YL-4000 supports a wide range of optional extras, including a caster wheel kit, oil tray kit, solid steel infill kit, rolling jack, and jacking plate — letting you customize the hoist to suit your exact needs.

Key Features

  • Slack Cable Safety Interlocks — An integrated secondary mechanical backup mechanism halts lowering travel instantly if a cable loses tension, protecting both the operator and the vehicle.
  • Industrial Powder Finish — The commercial-grade exterior coating provides high resistance against workshop fluids, chemical spills, and heavy mechanical abrasions.
  • Enclosed Cable Routing — High-tensile steel synchronization ropes route internally through the horizontal crossbeams and vertical columns to prevent accidental contact or environmental fouling.

Before You Order

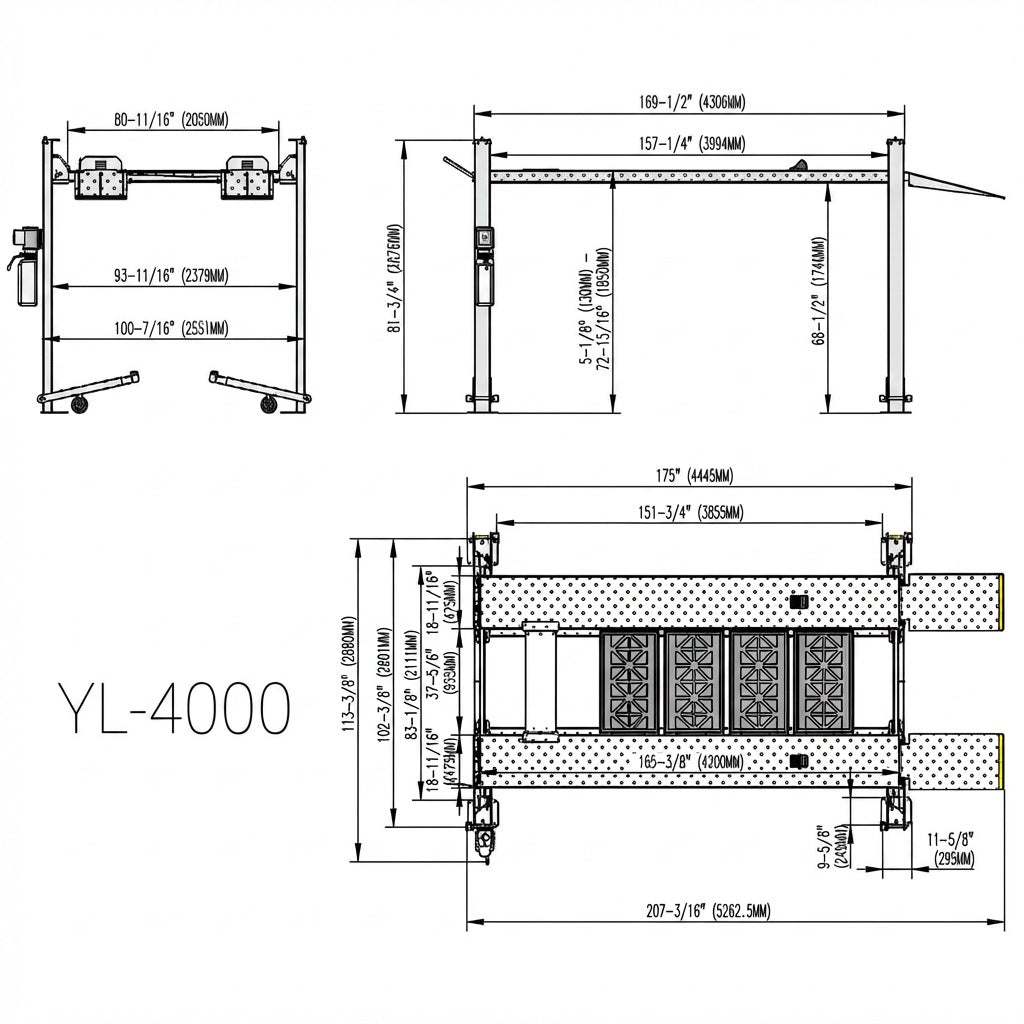

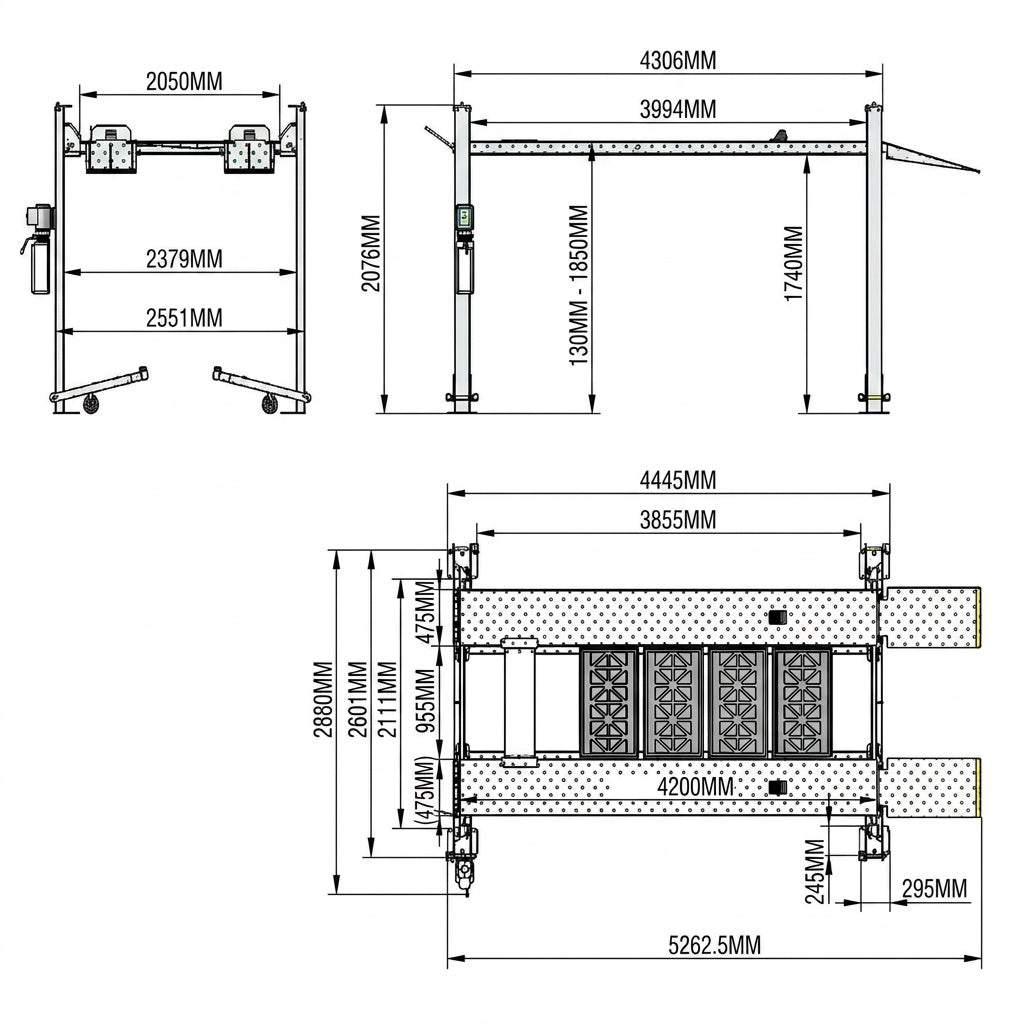

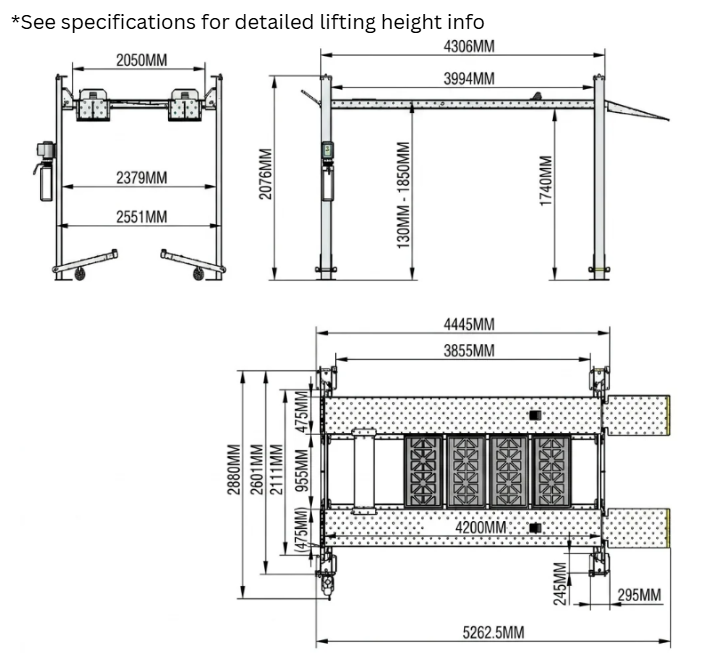

Installation requires a level, fully cured concrete slab with a minimum thickness of 100 mm and a compressive strength rating of 32Mpa. The electro-hydraulic power pack is configured for a standard 240 V single-phase electrical supply requiring a dedicated 20 A circuit breaker, which must be connected directly by a licensed electrician. Verify that your workshop layout provides sufficient floor space for the 4200 mm runway length and that your ceiling height easily accommodates the maximum vertical lifting height plus the roofline of your tallest target fleet vehicle.

What's Included

  • Four heavy-duty support columns with internal mechanical locking ladders
  • Two drive-on approach ramps featuring high-traction surface stamping
  • Complete set of high-tensile steel synchronization cables and pulley blocks
  • 240 V single-phase hydraulic power unit with integrated push-button controls
  • Commercial floor anchoring bolts and full hardware assembly pack

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation


Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
