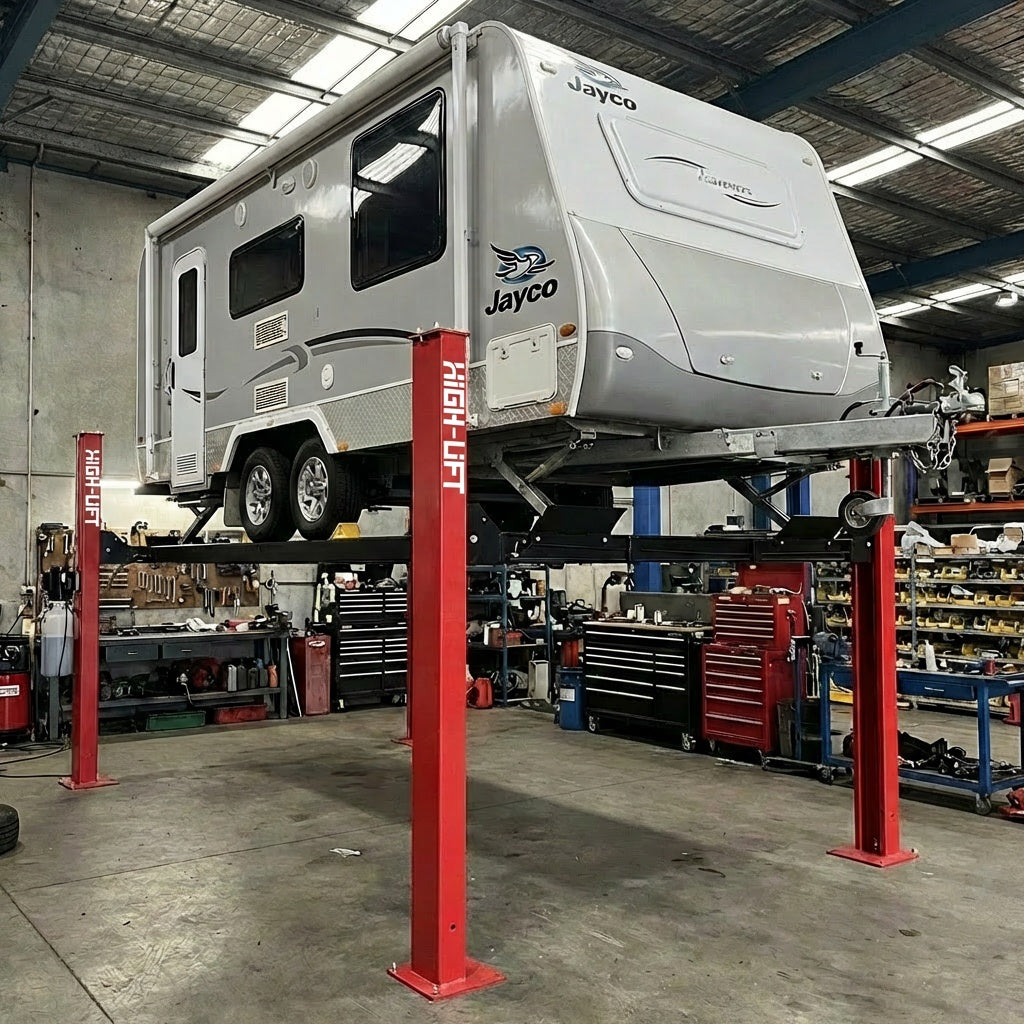

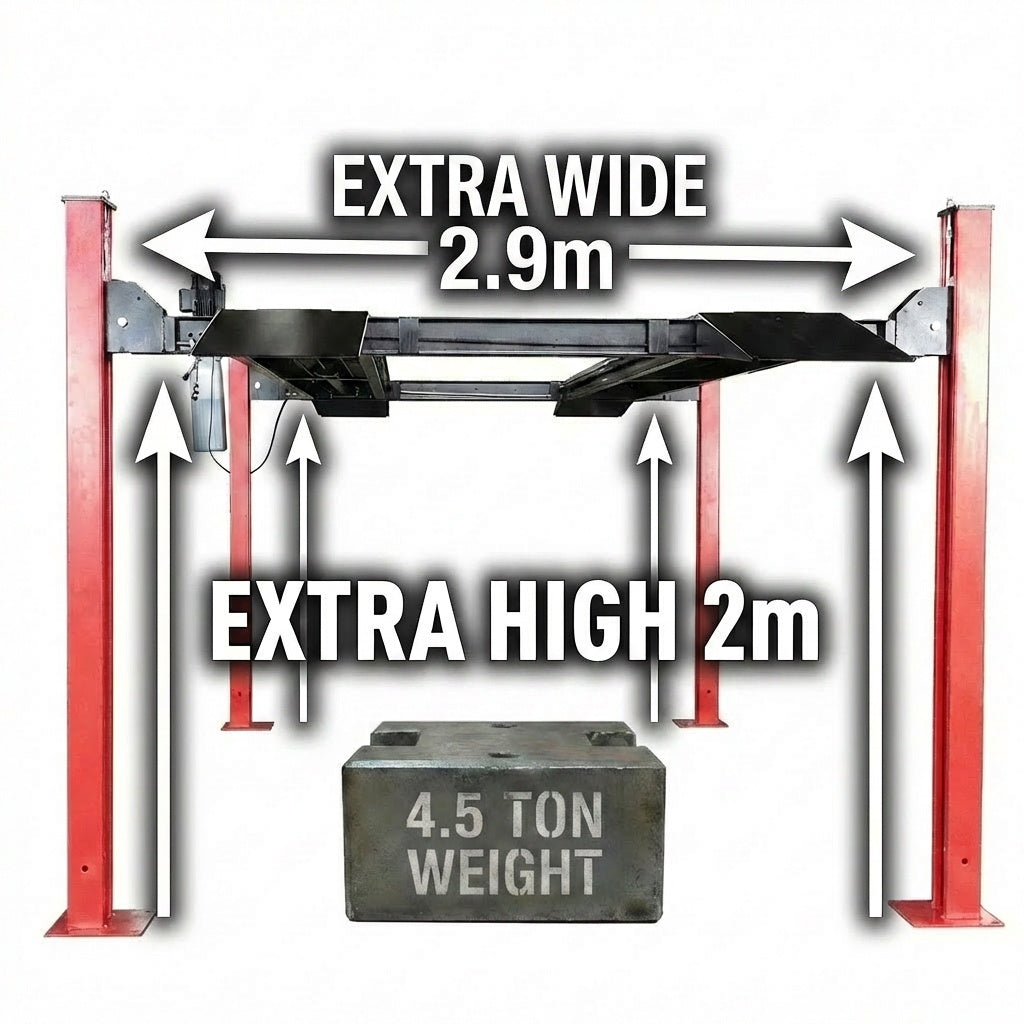

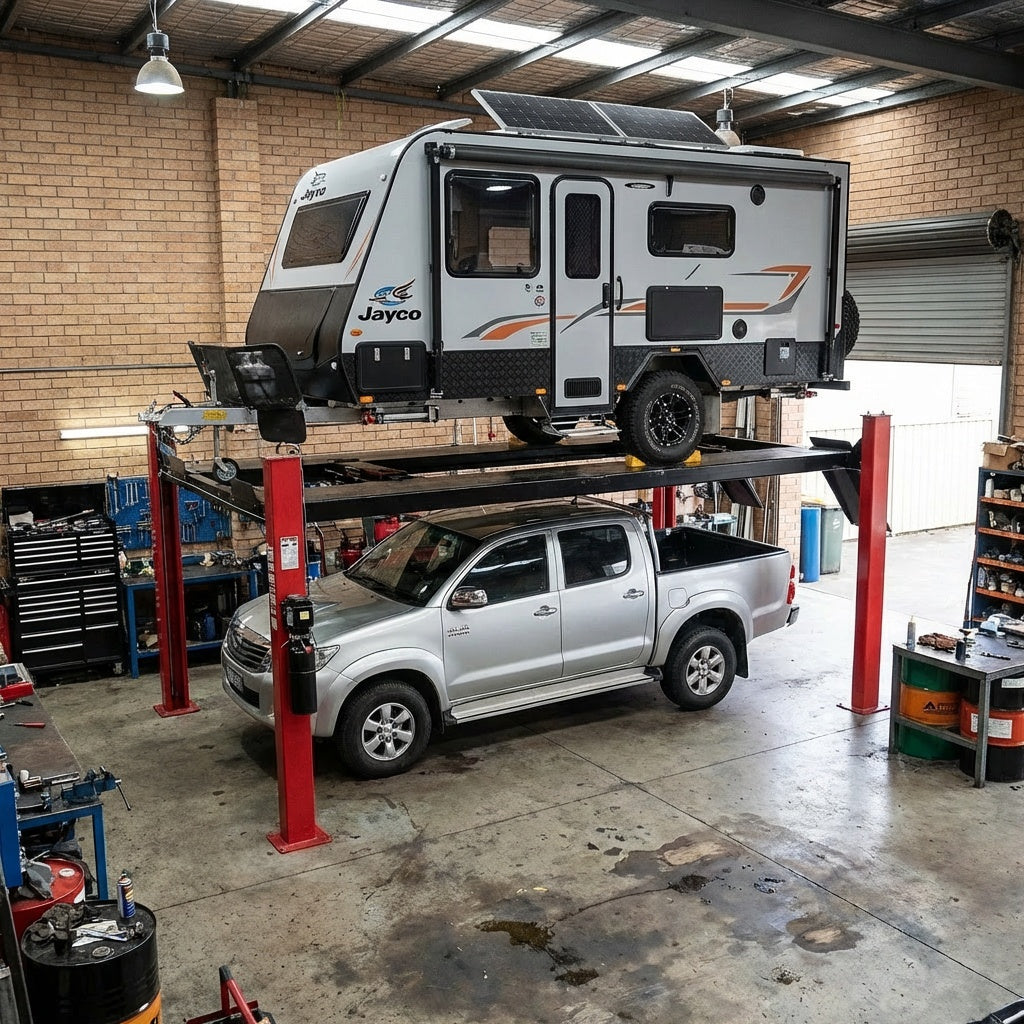

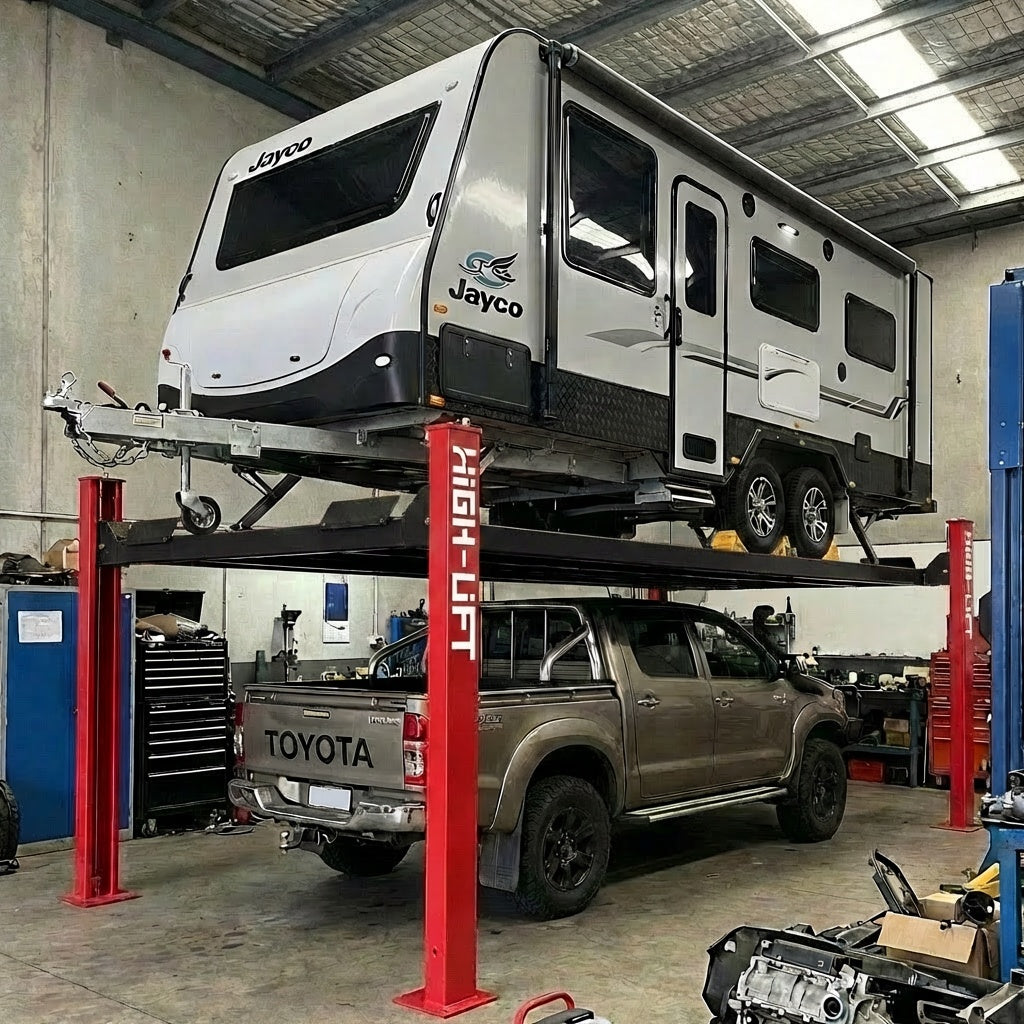

FYLPF-4500 4 Post Car Hoist 4.5 Tonne Extra High & Wide Model with caster kit

Unlike standard four-post parking lifts that restrict lifting height, limit runway length, and cause structural flex under off-centre loads, this extra-high, extra-long alternative uses reinforced steel profiles and taller columns to safely maximize overhead workshop capacity. It is engineered explicitly for automotive collectors, commercial storage facilities, and mechanical service garages requiring maximum clearance to walk underneath or stack high-roof utility vehicles, meaning it is not suited to low-ceiling domestic garages or shallow concrete floors that cannot support heavy structural anchoring.

Key Features

• Optimised Hydraulic Cylinder — A high-output industrial hydraulic cylinder tucked beneath the runway works alongside high-tensile steel cables to deliver uniform, quiet, and synchronized vertical lifting.
• Slack Cable Safety Interlocks — An integrated secondary mechanical backup mechanism halts downward travel instantly if any synchronization cable loses tension, protecting the operator and the assets below.
• Durable Powder Finish — The commercial-grade exterior coating provides exceptional resistance against workshop chemical spills, hydraulic fluids, and severe mechanical abrasions.
• Enclosed Cable Routing — High-tensile steel synchronization ropes route internally through the horizontal crossbeams and vertical columns to eliminate environmental fouling and snagging hazards.

Before You Order

Installation requires a level, fully cured concrete slab with a minimum thickness of 125 mm and a compressive strength rating of 3000 PSI. The electro-hydraulic power pack operates via a standard 240 V single-phase electrical supply connected to a dedicated 20 A circuit breaker, which must be hardwired directly by a licensed electrician. Ensure your high-roof workshop bay provides adequate vertical and horizontal clearance for the overall expanded length and height of this model plus the combined dimensions of the vehicles, maintaining a safe margin from any overhead trusses or automated roller doors.

What's Included

• Two extra-long structural steel runways with non-slip textured surfaces
• Four tall heavy-duty support columns featuring internal mechanical locking ladders
• Two extended drive-on approach ramps with high-traction surface stamping
• Complete set of high-tensile steel synchronization cables and heavy pulley blocks
• 240 V single-phase hydraulic power unit with integrated push-button controls
• Industrial concrete floor anchoring bolts and full hardware assembly pack

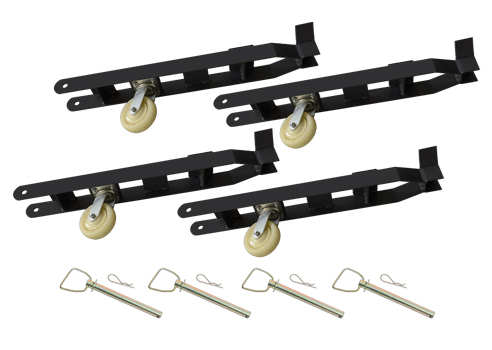

Please note that hydraulic fluid, plastic drip trays, and rolling caster mobility kits are sold separately.

To maximize the productivity of your specialized vehicle storage bay, consider combining this high-clearance four-post unit with our commercial tyre changers, electronic wheel balancers, or mobile tool storage cabinets. Contact our technical sales desk for trade package configurations and transport logistics to your business.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation
