Highlift AYL4000 4 Post Car Storage Workshop Storage Hoist 4 tonne
This High-Lift four-post vehicle hoist gives you a versatile, sturdy platform that's pe...
Aussie Car Hoists

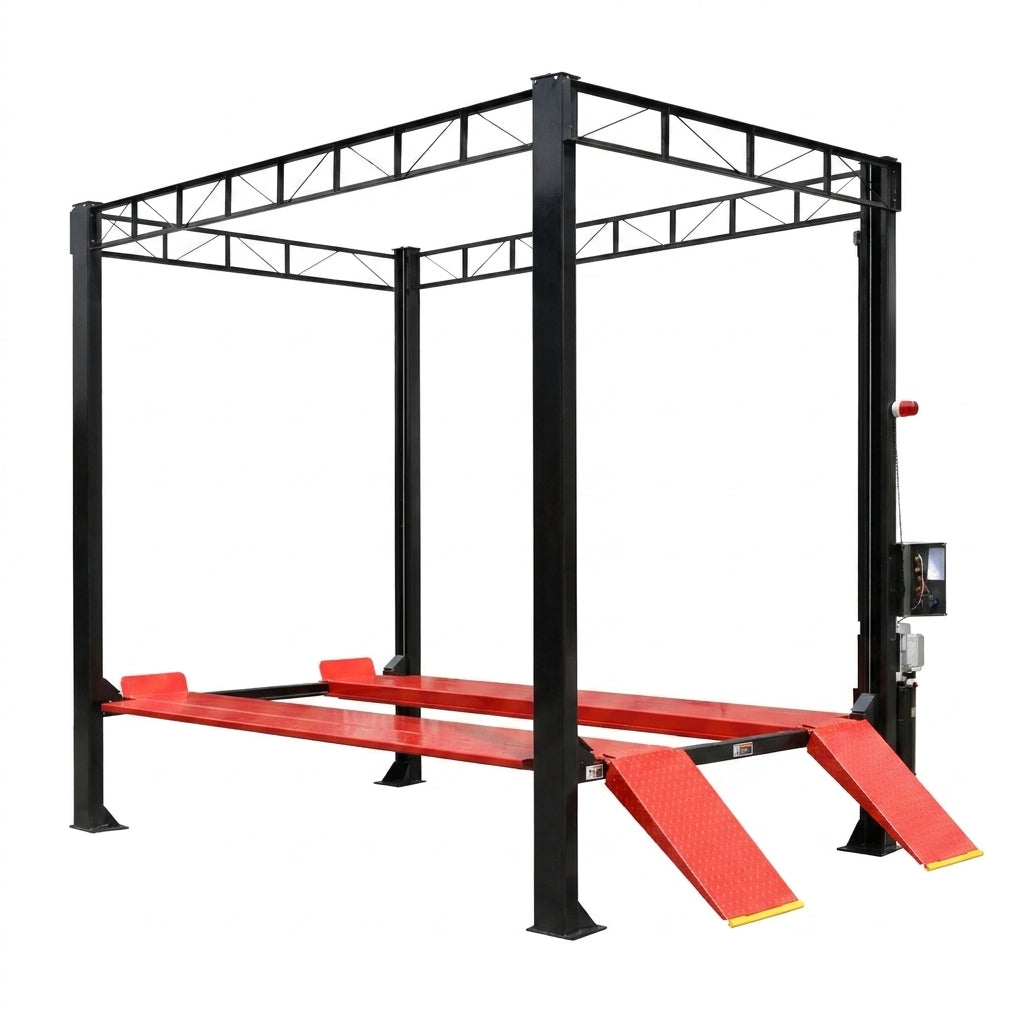

Aussie Car Hoists can fully design and customise your 4-post hoist to suit the unique needs of your workshop or storage area, delivering a tailored lifting solution for a range of applications. Built with a robust hydraulic system and multiple safety features, each hoist can be custom-built to your specifications in both length and height — giving you the flexibility and reliability you need for vehicle storage.

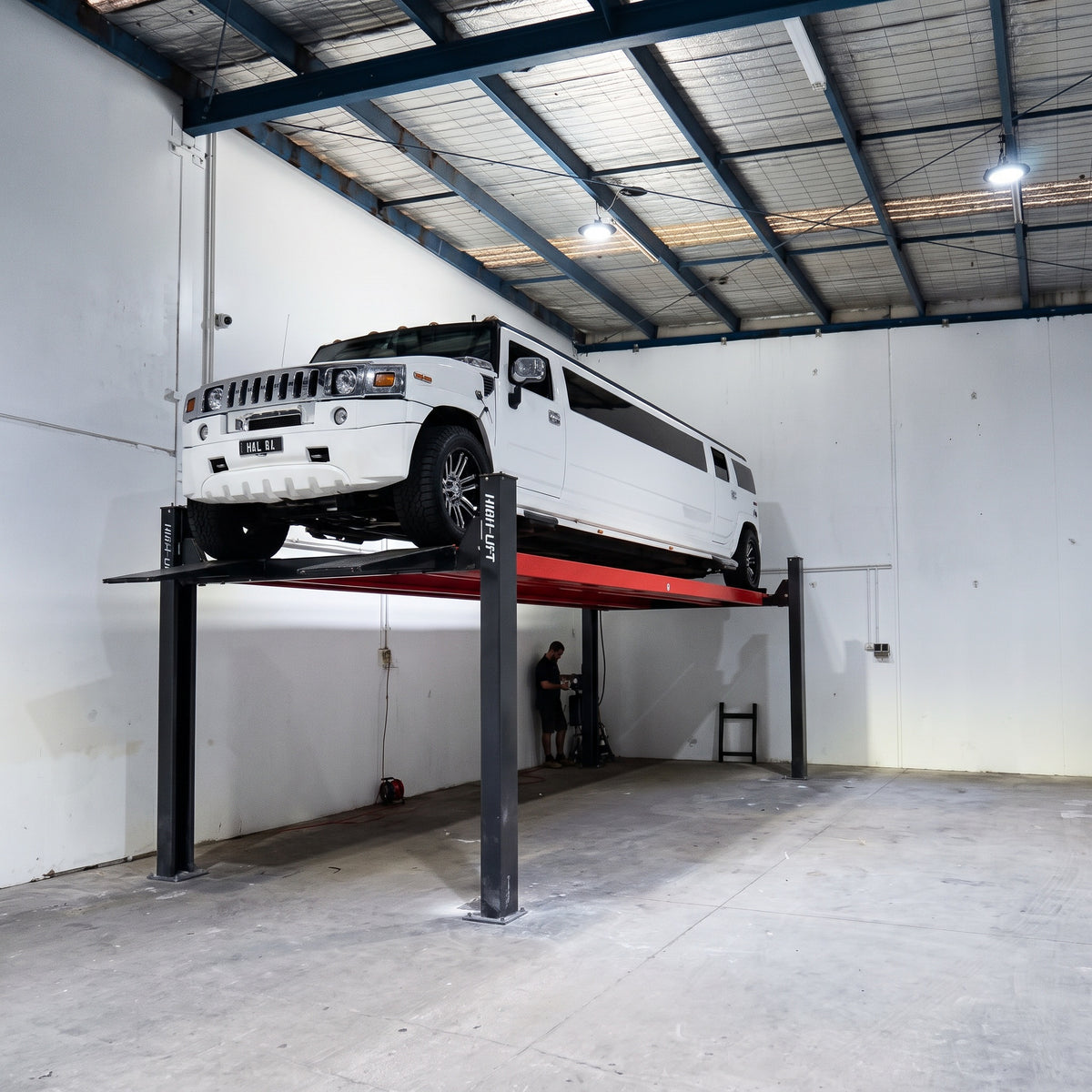

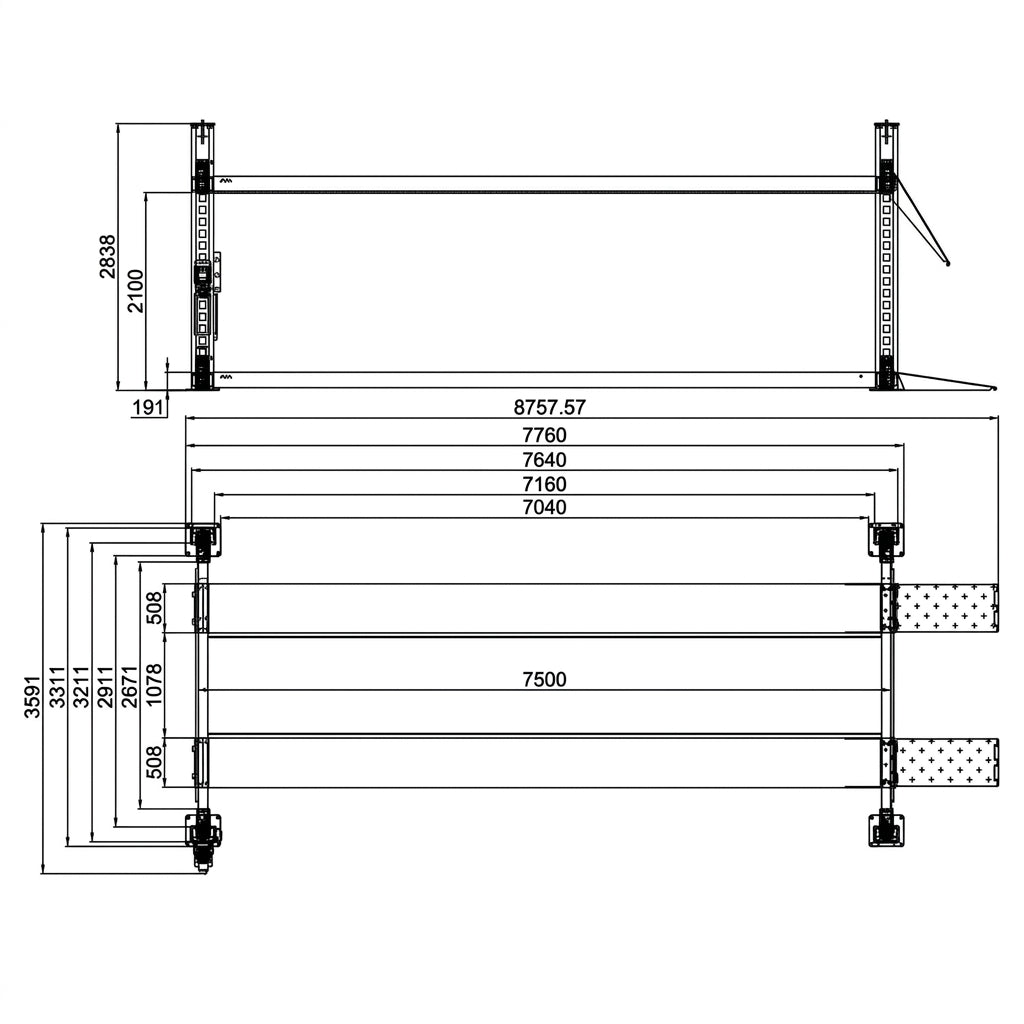

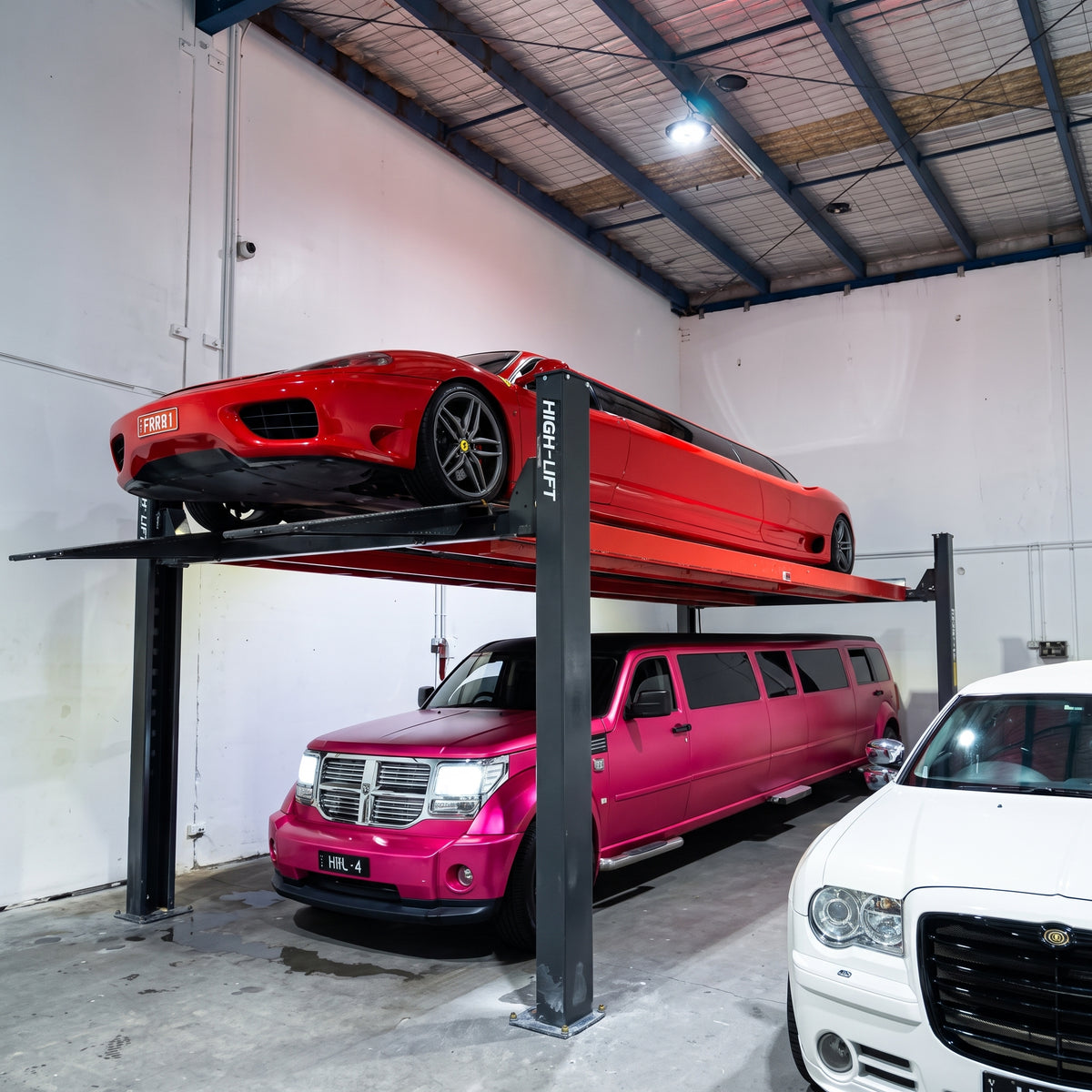

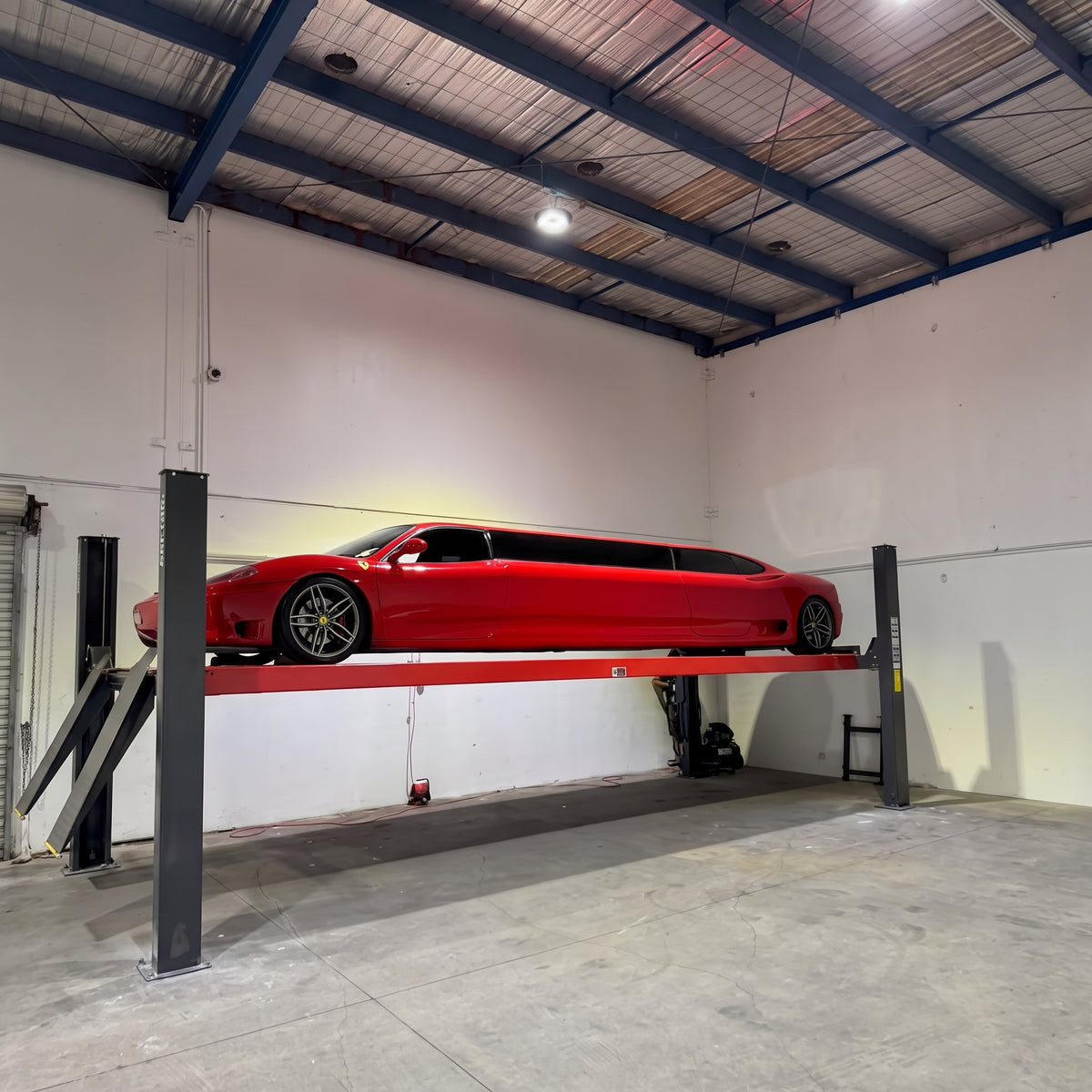

Below are pictures of custom built 4 Tonne hoist for customer, 7.5 meters long To Suit limousine's
Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.
Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.
| Specification Property | Value / Measurement |
|---|---|
| Lifting Capacity | 5000Kg |
| Maximum Lifting Height | 1834mm |
| Lock Release System | Pneumatic |
| Overall Height | 2312mm |
| Overall Width | 5030mm |
| Overall Length | 7760mm (Excluding Wheel ramps) |
| Clearance Under Runways | 4488mm |
| Drive Through Clearance | 4375mm |
| Width Between Columns | 4430mm |
| Power Required | 240V Single Phase 2.2Kw (15amp) |
| Required Concrete Thickness | 100mm 32Mpa |
| Hydraulic Fluid Required | 14 Liters ISO 46 Grade |
| Packing Dimensions Carton 1 | 427 x 56 x 73cm 915kg |
| Packing Dimensions Carton 2 | 500 x 56 x 56cm 1045kg |
| Lifting Time | 60 Sec |
| Warranty | 5 years on the structure and 1 year on electrical, mechanical, and hydraulic components. |
