Home / Products / Highlift YL-5500 5.5 Tonne 4 Post Commercial Use Wheel Alignment Car Hoist

Aussie Car Hoists

Highlift YL-5500 5.5 Tonne 4 Post Commercial Use Wheel Alignment Car Hoist

$7,000.00
$7,400.00

In stock

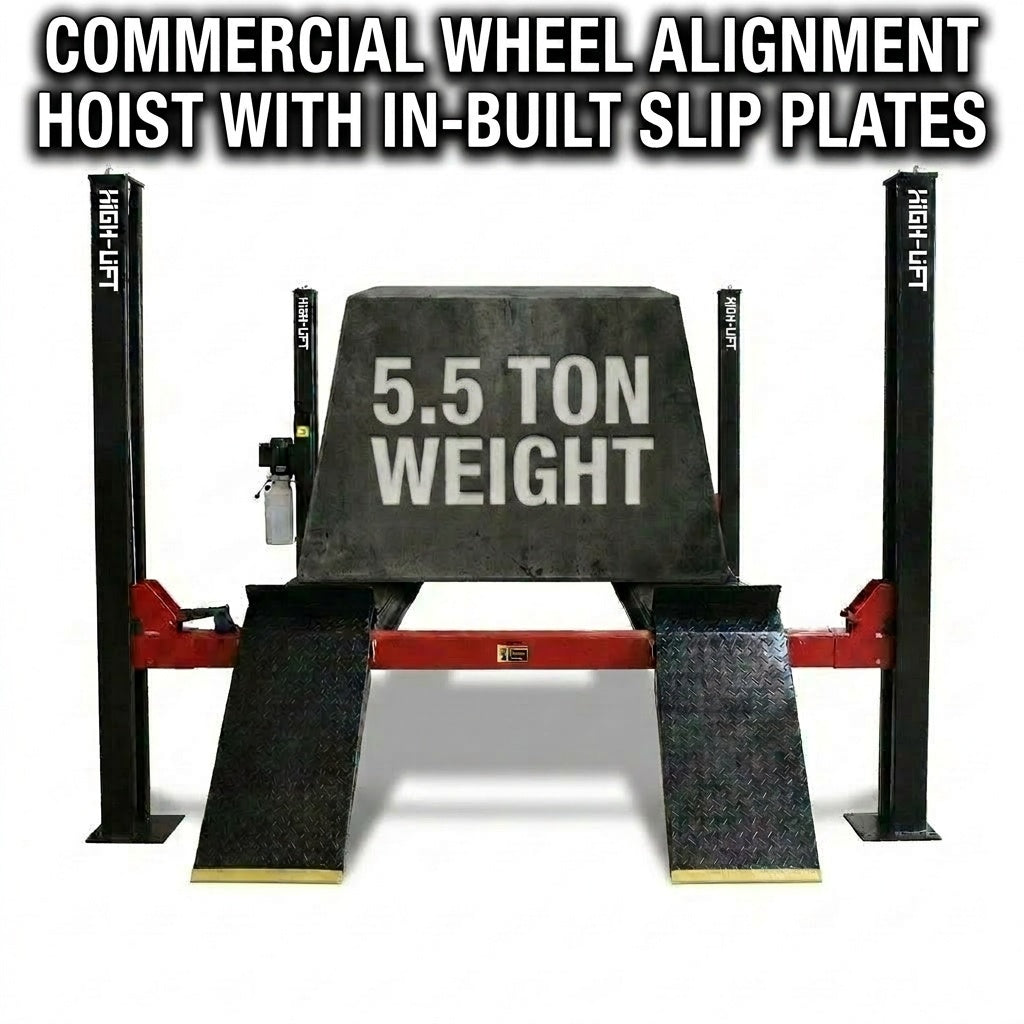

The High-Lift industrial four-post vehicle hoist is engineered explicitly for heavy commercial wheel alignment and vehicle servicing. Featuring a 5500kg structural capacity, it allows commercial alignment centers, fleet maintenance departments, and transport specialists to safely lift long-wheelbase delivery vans, oversized four-wheel drives, and mid-sized commercial trucks.

  • Integrated Slip Plates — Built-in precision rear slip plates permit smooth tyre movement during alignment setups to guarantee exact tracking measurements.
  • Pneumatic Safety Release — Mechanical locking ladders engage automatically across multiple height settings, utilizing a centralized air release system for fast, safe lowering cycles.
  • Durable Powder-Coated Finish — The industrial-grade exterior coating protects the structural steel frame against constant tyre friction, workshop grime, and corrosive automotive fluids.
Features
  • Heavy Duty Commercial Wheel Alignment Hoist
  • This hoist is perfect for professional workshops.
  • Diamond plated platforms
  • Powder coated finished

Options:

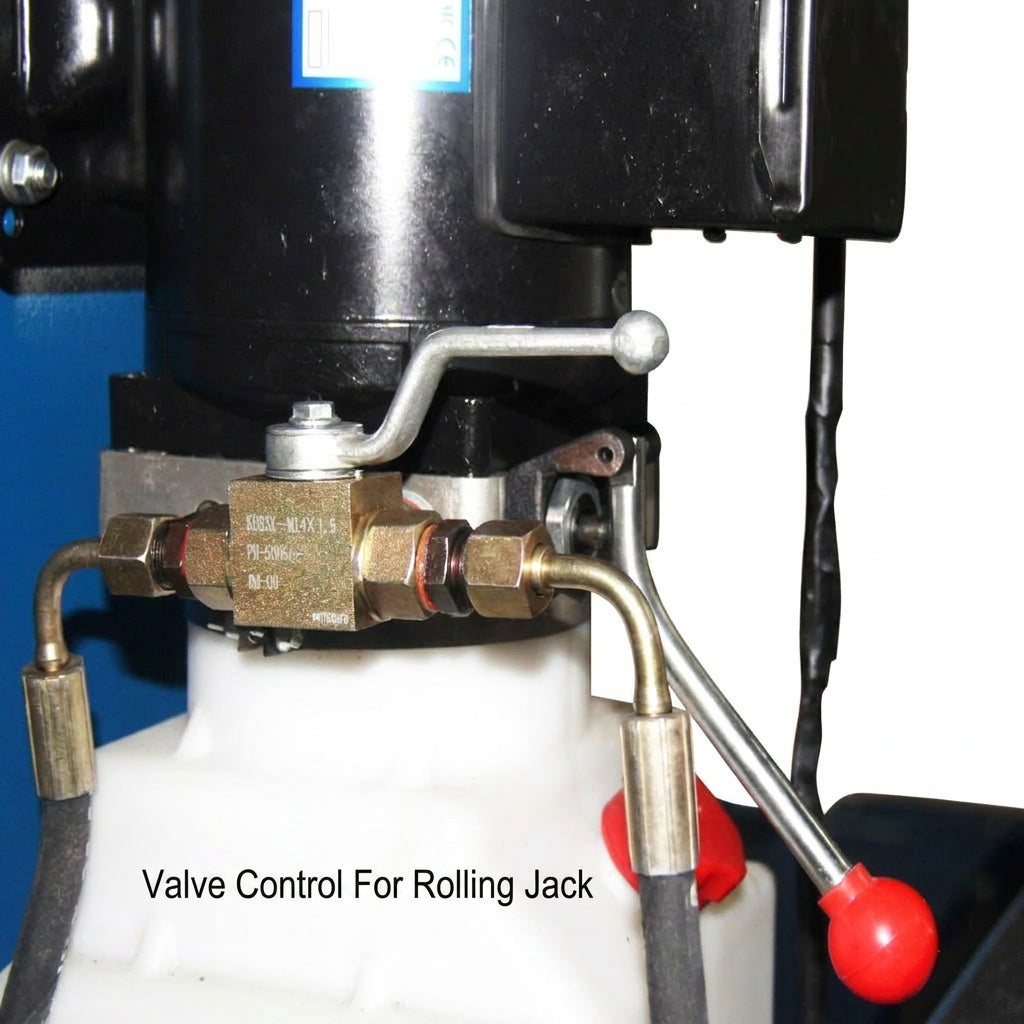

  • Sliding Jack - RJQ-7000
  • Steel Tool Tray
  • Jacking Plate

Safety:

  • Mechanically locks each (170mm) interval
  • Anti-surge valve
  • Cable slack locks
  • Please Note Rolling Jack as Pictured Sold Separately

Installation Manual

Workcover Registration

Lifting Cable Compliance Certificate

Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview


The 5-Ton 4-Post Wheel Alignment Hoist is a robust, reliable solution built specifically for vehicle alignment work in professional workshops. Its durable powder-coated finish adds versatility for a range of maintenance tasks, while a strong focus on safety and performance ensures your alignment processes run efficiently and securely every time.

Key Features

  • Wheel Alignment Compatibility — Precision-machined runways feature integrated rear alignment slip plates and dedicated cutouts for front turntables to accommodate multi-axle commercial vehicle tracking specifications.
  • High-Output Hydraulic System — A commercial-grade hydraulic cylinder tucked safely beneath the runway works alongside high-tensile steel cables to deliver uniform, quiet, and synchronized vertical lifting.
  • Slack Cable Safety Interlocks — An integrated secondary mechanical backup mechanism halts downward travel instantly if any synchronization cable loses tension, protecting the technician working underneath.
  • Low-Profile Approach Ramps — Long drive-on approach ramps allow low-clearance commercial delivery vans and modified sport utilities to mount the runways without scraping the undercarriage.

Before You Order

Installation requires a level, fully cured concrete slab with a minimum thickness of 100 mm and a compressive strength rating of 32Mpa. The pneumatic safety lock mechanism requires a dedicated workshop compressed air supply delivering a minimum pressure of 6 bar to 8 bar. The electro-hydraulic power unit requires a dedicated 415 V three-phase power supply with a 20 A circuit breaker, which must be connected and wired directly by a licensed commercial electrician.

What's Included

  • Two structural steel tracking runways with integrated rear alignment slip plates
  • Four heavy-duty steel columns featuring internal mechanical locking ladders
  • Two heavy vehicle drive-on approach ramps with high-traction surface textures
  • Complete set of high-tensile steel synchronization cables and pulley assemblies
  • 415 V industrial hydraulic power unit with integrated push-button controls
  • Commercial floor anchoring bolts and hardware installation pack

Please note that hydraulic oil, front alignment turntables, and rolling jacking beams for wheel-free servicing are sold separately.

To fully optimize your commercial service bay, consider pairing this four-post tracking unit with our heavy-duty truck tyre changers, high-capacity wheel balancers, and pneumatic rolling jacks. Contact our team for assistance with layout planning and matching components for your fleet servicing requirements.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
