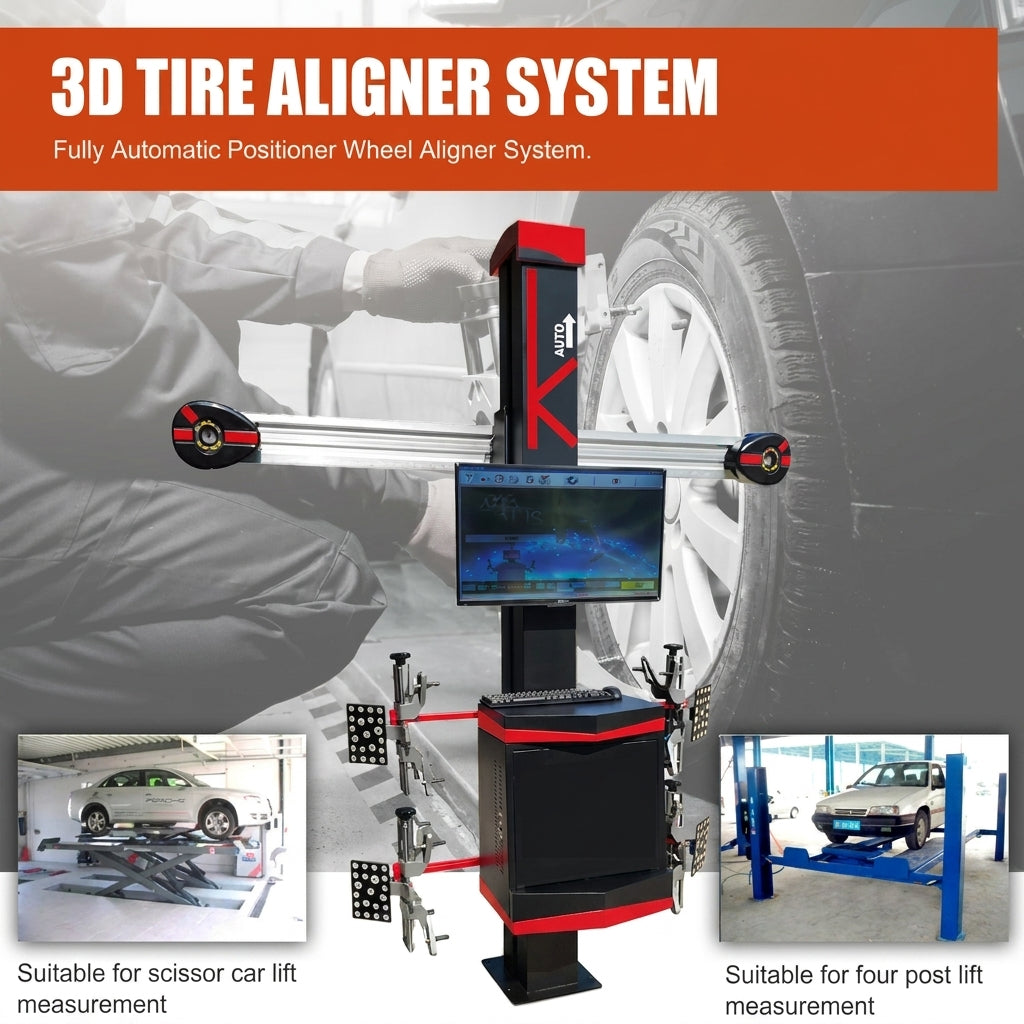

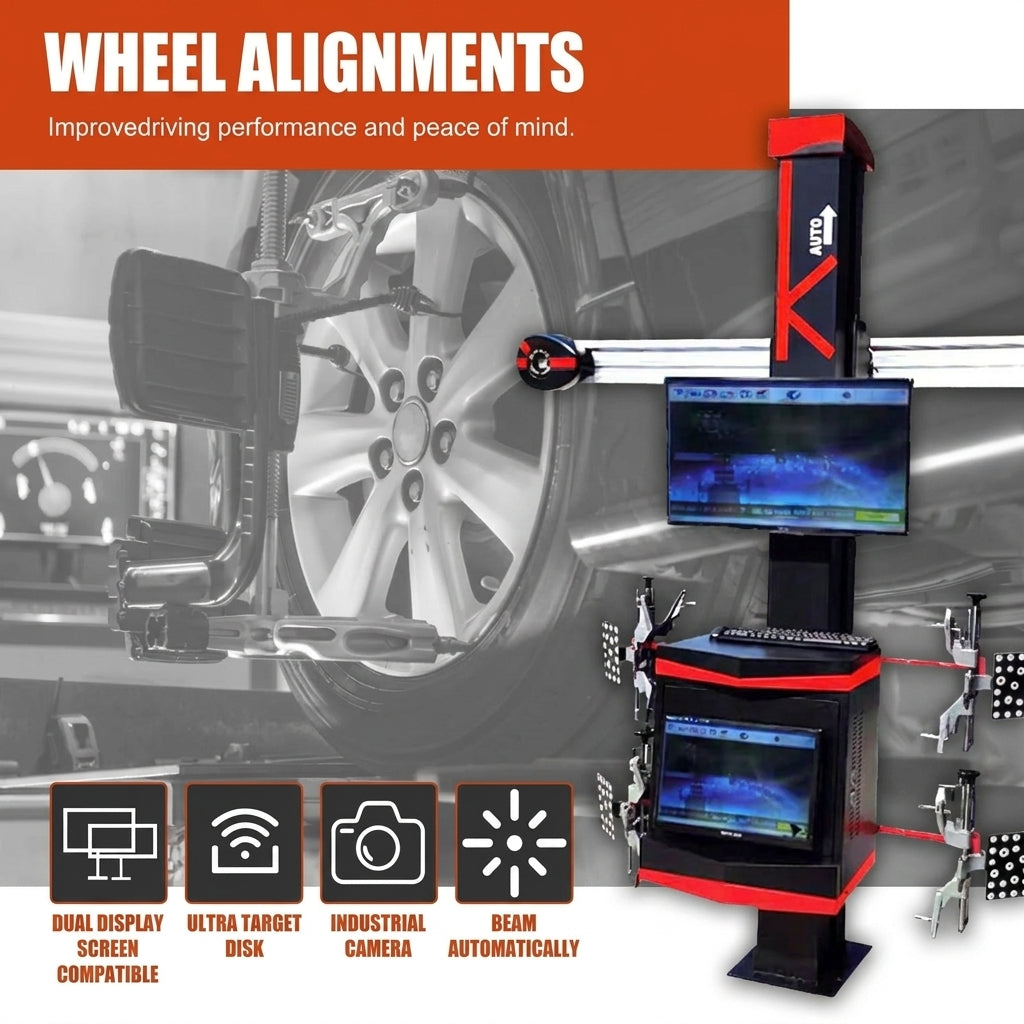

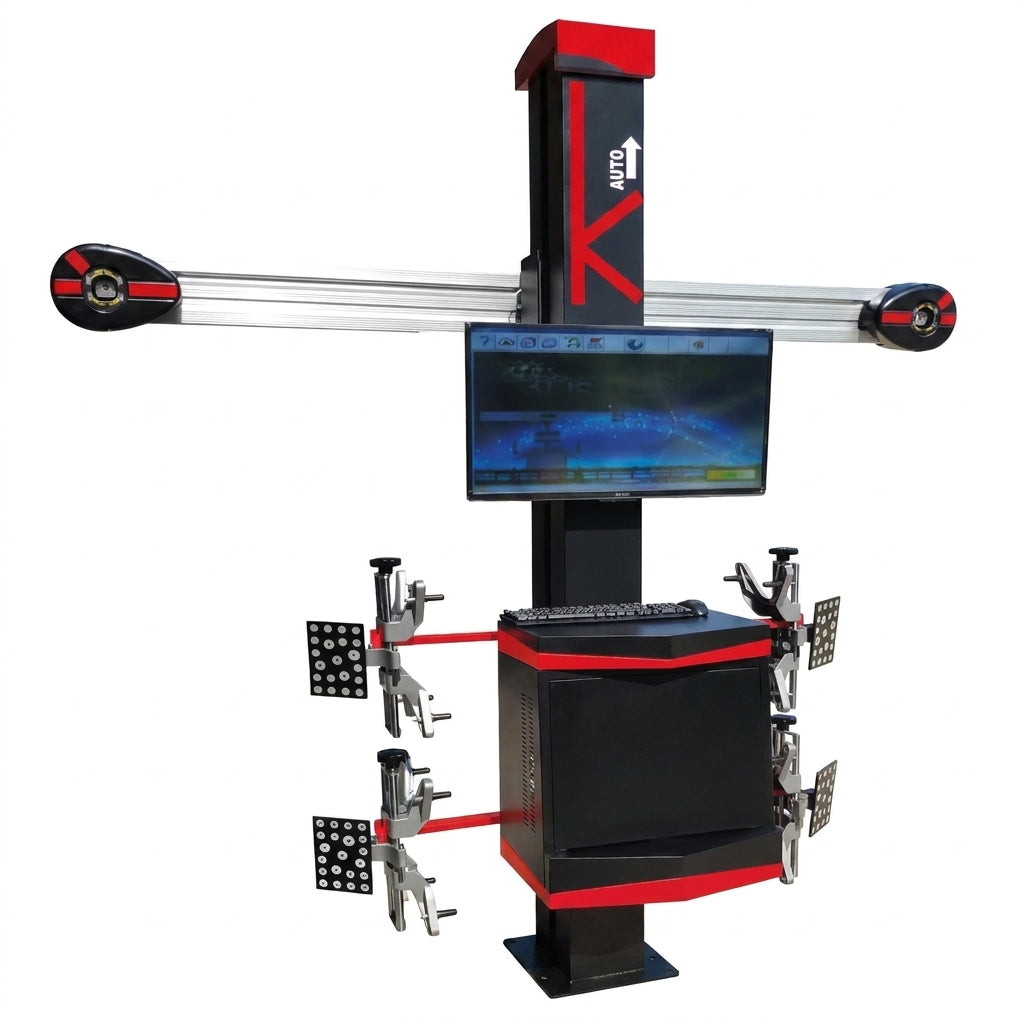

V3D-KL 3D Car Wheel Aligner, Laser Wheel Alignment Machine Automatic Lateral Beam

Why This Wheel Aligner Is Better Than Others on The Market-

• Free Vehicle Data Base Updates Each Year
• Simple To Install & Use
• Windows Based Operating System Not Eprom

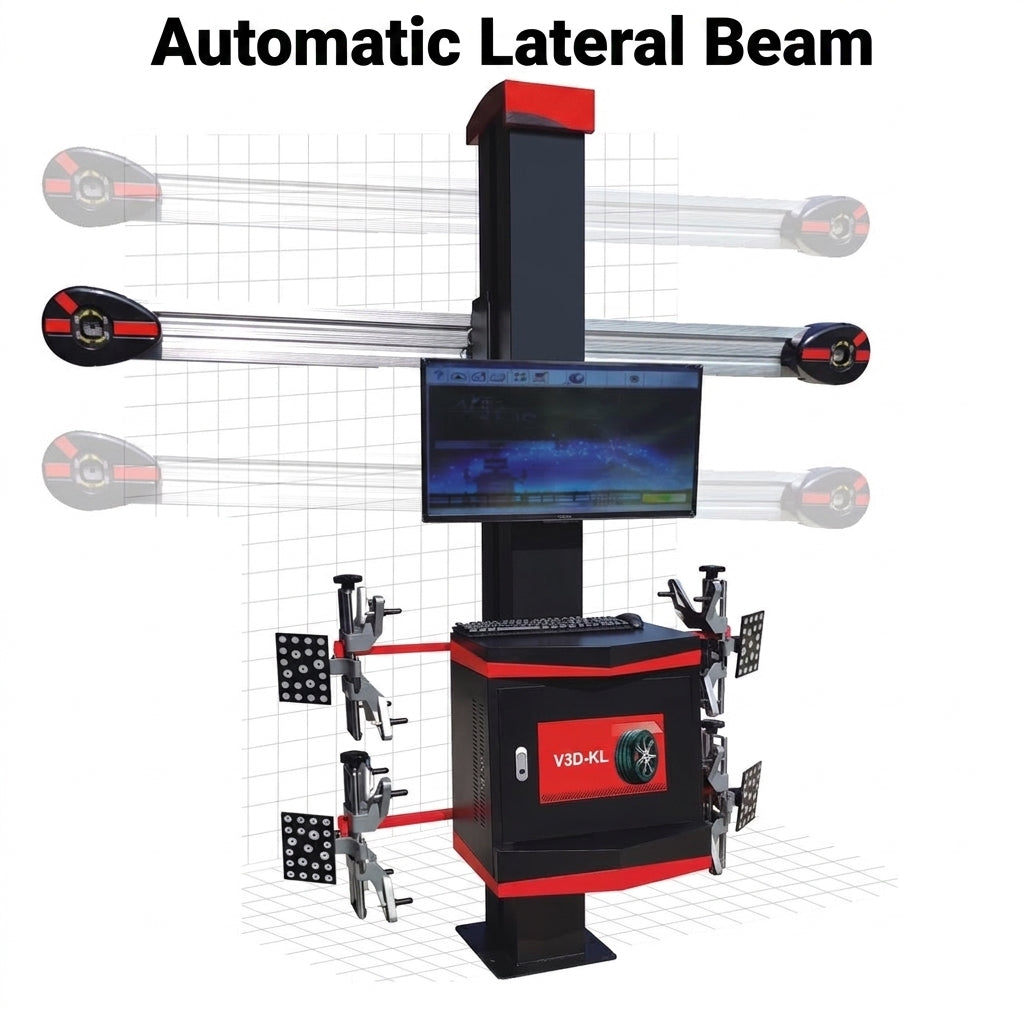

• Automatic Lateral Beam,  Follows vehicle targets as the lift raises or lowers, eliminating the need to reposition cameras mid-job

Key Features of the V3D-KL 3D Wheel Alignment Machine

The V3D-KL isn’t just an alignment tool—it’s a productivity booster for shops. Here’s what makes it stand out:

1. Industry-Leading Accuracy: Measure to 0.01° Precision

Accuracy is non-negotiable for alignment work, and the V3D-KL delivers:

Micro-Precision Sensors: Captures critical alignment parameters with unmatched detail:

Toe: ±0.01° accuracy (range: ±40°)

Camber: ±0.01° accuracy (range: +45°)

Caster & S.A.I.: ±0.02° accuracy (range: ±45°)

Track Width & Wheelbase: ±2mm accuracy (fits wheelbases from 2006mm to 4572mm, covering most cars, trucks, and SUVs).

High-Definition Industrial Cameras: Equipped with full-frame optical lenses that restore images with clarity, even in low-light garages. No more blurry data or missed adjustments.

This precision ensures every alignment meets OEM standards, reducing customer complaints and repeat visits.

2. Fully Automatic Operation: Save Time, Reduce Fatigue

Gone are the days of manual adjustments and tedious measurements. The V3D-KL streamlines the process:

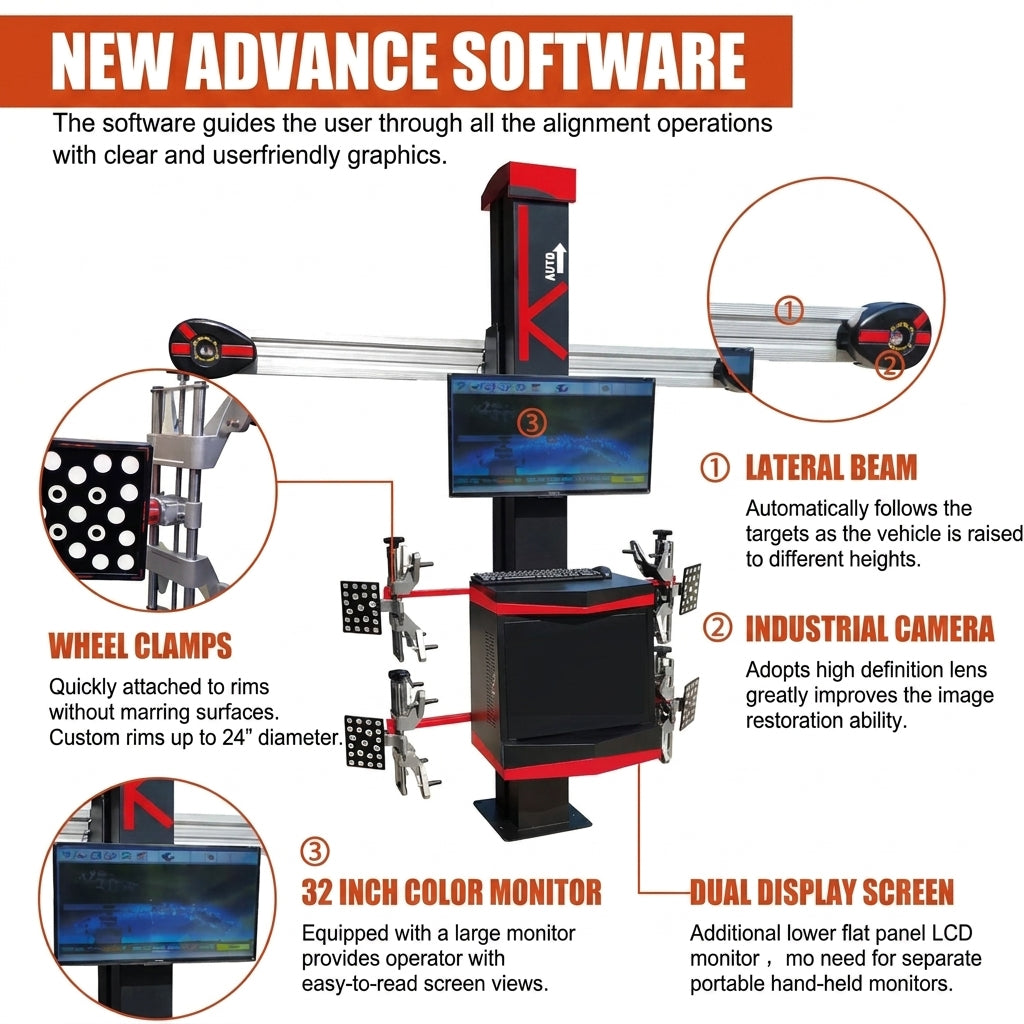

Automatic Lateral Beam: Follows vehicle targets as the lift raises or lowers, eliminating the need to reposition cameras mid-job.

One-Click Software Guidance: The advanced software uses clear, user-friendly graphics to walk technicians through every step—from clamping to final adjustments. Even new staff can master alignments in hours, not weeks.

3. Versatility for All Vehicles: Fits 10–24” Rims

Shops handle a mix of cars, trucks, SUVs, and even custom vehicles—and the V3D-KL adapts:

Wide Rim Compatibility:

Works with rims from 10” (small cars/ATVs) to 24” (custom trucks/SUVs), making it ideal for general repair shops and specialty tire centers.

Non-Marring Wheel Clamps: Attach quickly to rims without scratching alloy or chrome finishes—protecting customers’ valuable wheels and avoiding costly damage claims.

Built-In Vehicle Database: Constantly updated with specs for domestic and import models (from Ford to Toyota, BMW to Honda), ensuring technicians always have the latest alignment data at their fingertips.

4. Durable & Shop-Ready Design

Auto shops are tough environments—dust, oil, and constant use take a toll on equipment. The V3D-KL is built to last:

Sealed Electrical Components: Protects terminals, switches, and motors from dust and moisture, extending the machine’s lifespan.

Low Noise Operation: Runs at <70 dB—quieter than most shop tools—keeping the workspace comfortable for technicians.

240v/50Hz Compatibility: Works with standard shop electrical systems,

How the V3D-KL Boosts Shop Productivity

Time is money in auto repair—and the V3D-KL cuts alignment time from 60+ minutes to 20–30 minutes per vehicle. Here’s how:

1. Fast Setup: Wheel clamps attach in 2 minutes; cameras calibrate automatically.
2. Real-Time Data: Instantly displays misalignment issues, so technicians focus only on necessary adjustments.
3. No Rework: Precision measurements mean alignments are done right the first time, reducing repeat jobs.

4. For a busy shop handling 5–10 alignments daily, this translates to 2–5 extra billable hours per week—adding thousands to annual revenue.

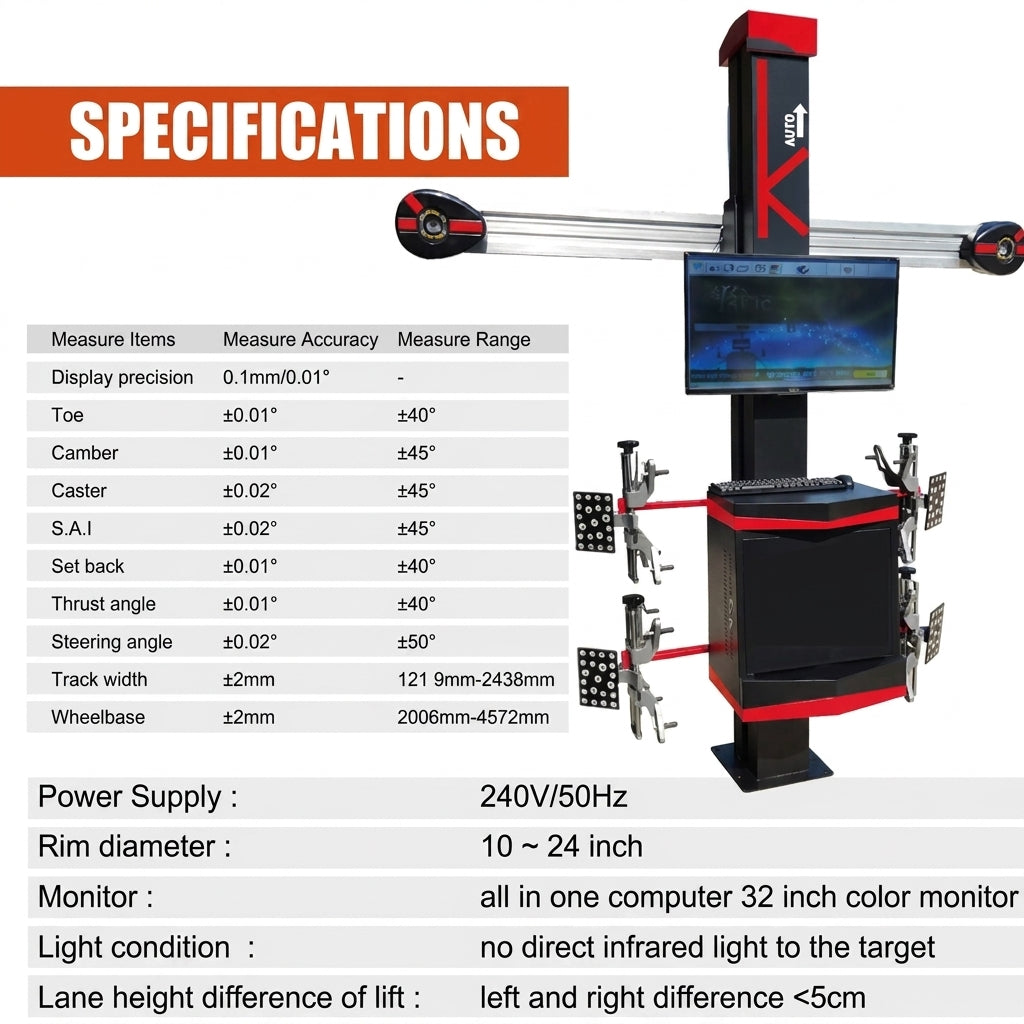

• Description




  • Power Supply: 240V/50Hz
  • Toe-in 0~±40 degree.
  • Camber: 0~±45 degree.
  • Caster: 0~±45 degree.
  • SAI/Kingpin: 0~±45 degree.
  • Set back: 0~±40 degree.
  • Steering angle: 0~±50 degree.
  • Thrust Angle: 0~±40 degree.
  • Rim diameter: 10~24 inch.
  • Track width: ±2mm.
  • Track Measuring range: 1219mm-2438mm / 47.9inch-95.9inch.
  • Wheelbase: ±2mm.
  • Wheelbase Measuring range: 2006mm-4572mm / 78.9inch-180inch.
  • Monitor: all in one computer 32-inch color monitor.
  • Light condition: no direct infrared light to the target.
  • Lane height difference of lift: left and right difference <5cm.
  • Four-wheel positioning optical system.
  • High-resolution drive-on approach camera provides full on-screen view of vehicle driving on lift platforms. Alignment functions and measurements are controlled via the mouse, keyboard or remote control.

  Features clear and user-friendly graphics:
  Superior screen graphics with vibrant animation and displays deliver easy to understand visuals and instruction. Industrial computer equip with one key recovery system increased productivity.

  3D wheel alignment machine is a specialized equipment used in automotive service centers to measure and adjust the angles of the wheels on a vehicle. Proper wheel alignment ensures that the wheels are positioned correctly relative to each other and to the road.

  Key Features:
  3D Technology: Utilizes advanced sensors and cameras to provide precise measurements of wheel angles in three dimensions.
  User-Friendly Interface: Many machines come with touchscreens and intuitive software that guide the technician through the alignment process.
  Real-Time Measurements: Provides immediate feedback on wheel alignment status, making it easier to diagnose issues.
  Data Storage: Capable of storing alignment data for different vehicles, allowing for easy retrieval and comparison.

  Functions:

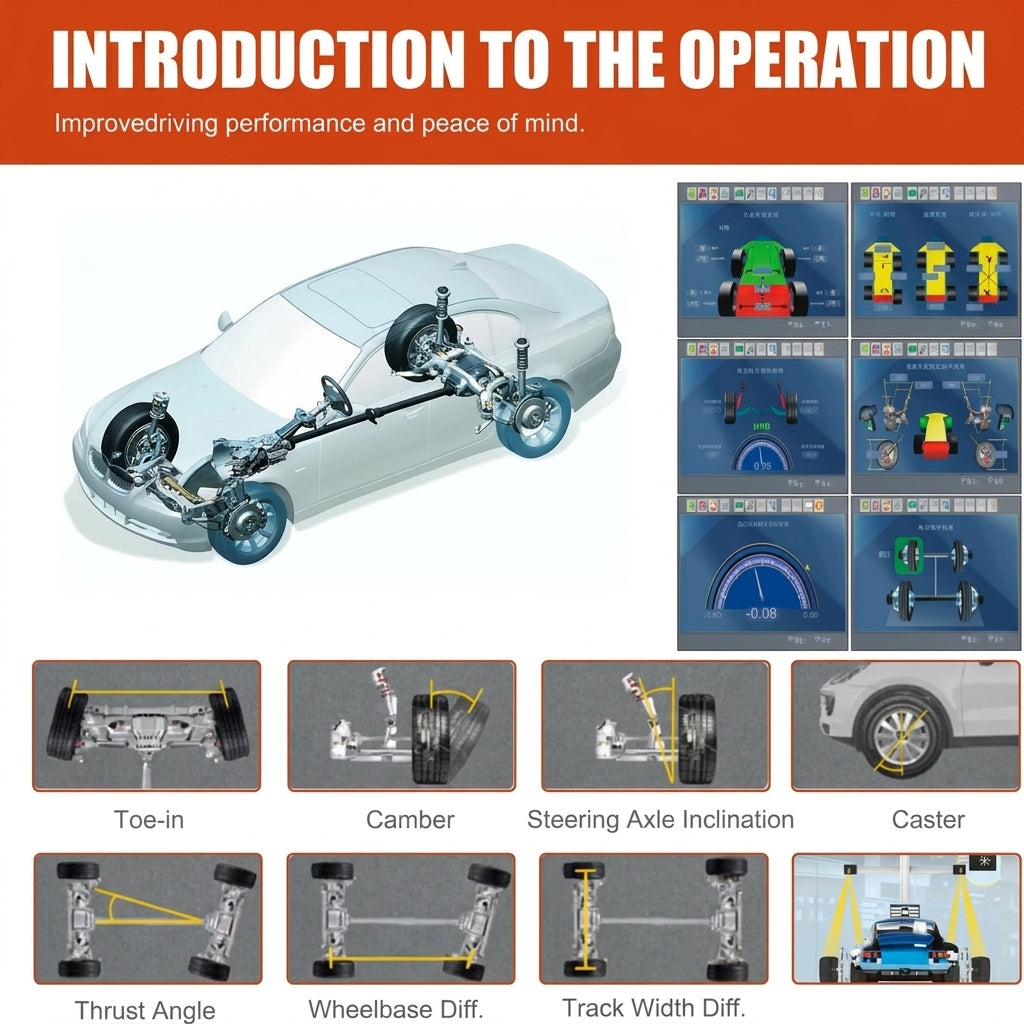

  Caster, Camber, and Toe Measurement: Accurately measures these critical angles to determine if they are within manufacturer specifications.
  Adjustments: Allows technicians to make necessary adjustments to align the wheels properly.
  Before and After Comparisons: Displays before and after measurements to show the impact of the adjustments made.

  Benefits:
  Improved Vehicle Handling: Proper alignment enhances the vehicle's handling and steering response.
  Extended Tire Life: Reduces uneven tire wear, extending the lifespan of tires.
  Fuel Efficiency: Improves fuel economy by reducing rolling resistance.

CLICK HERE HOW TO UPDATE VEHICLE DATA BASE
