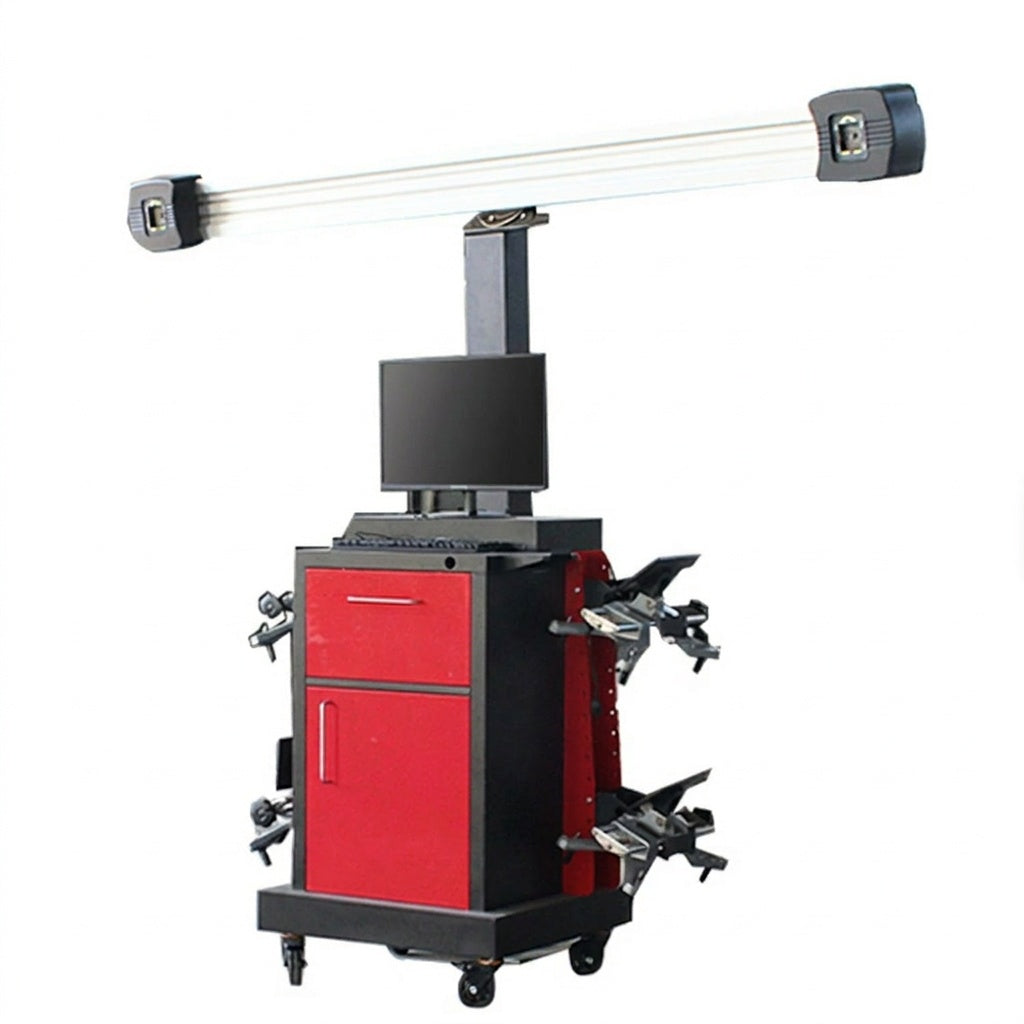

V3D-SL 3D Car Wheel Aligner, Laser Wheel Alignment Machine with Cabinet

$7,600.00

In stock

Why This Wheel Aligner Is Better Than Others on The Market-

  • Free Vehicle Data Base Updates Each Year
  • Simple To Install & Use
  • Windows Based Operating System Not Eprom

This professional 3D computerized laser wheel aligner delivers a high-precision optical tracking solution engineered specifically for busy commercial service centers, suspension repair shops, and independent mechanical garages. Featuring a high-definition dual-camera imaging system mounted on a rigid structural pillar, it tracks chassis geometry accurately in real time to capture essential camber, caster, and toe angles. The system configuration includes an integrated workshop cabinet console that protects the sensitive computing equipment and diagnostic tools, creating a highly organized, professional alignment bay layout.

  • Precision Dual-Camera System — High-definition optical imaging sensors continuously monitor wheel target positions to calculate geometric values with exceptional stability and speed.
  • Rigid Camera Column Setup — The heavy-gauge vertical structural pillar ensures the optical camera crossbeam remains perfectly stable and vibration-free during diagnostic procedures.
  • Cable-Free Target Reflector Plates — Passive, highly durable target boards mount directly to the vehicle wheels without requiring fragile electronic components or battery packs.

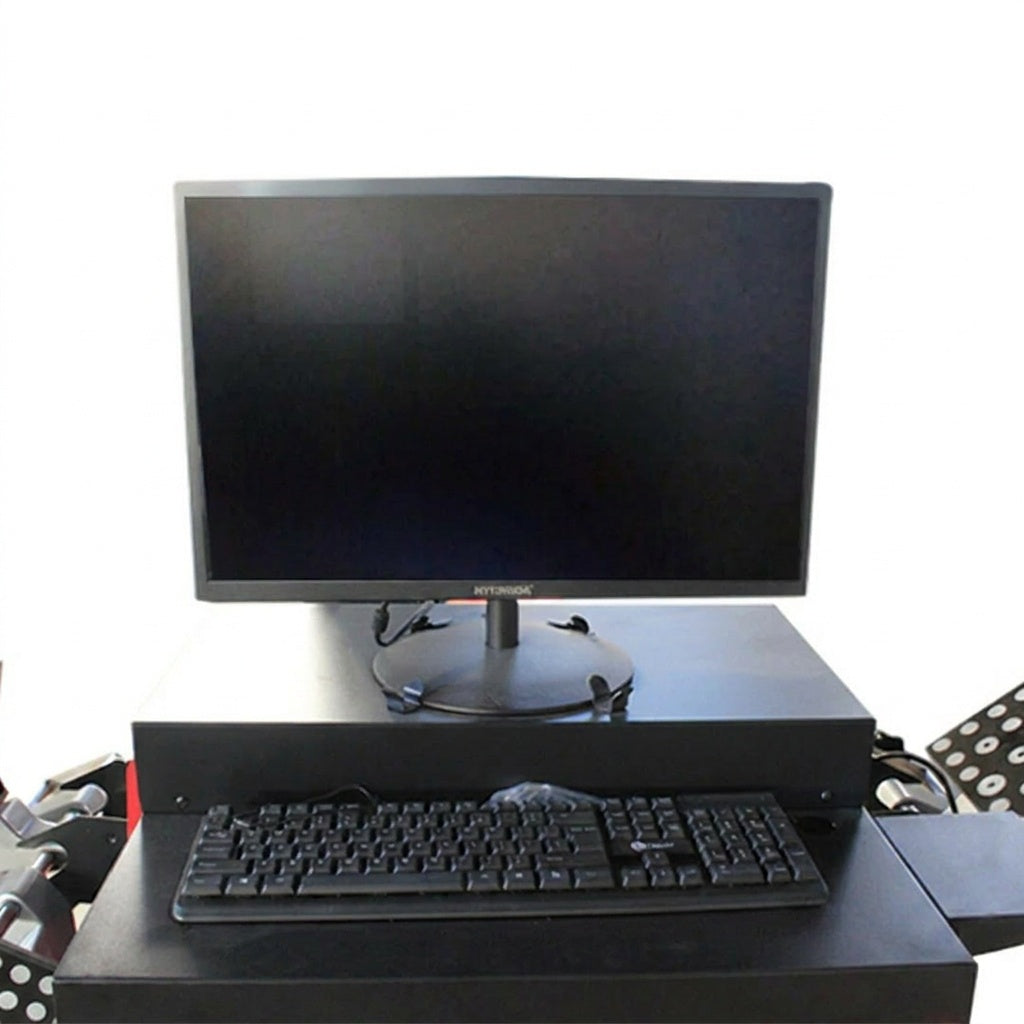

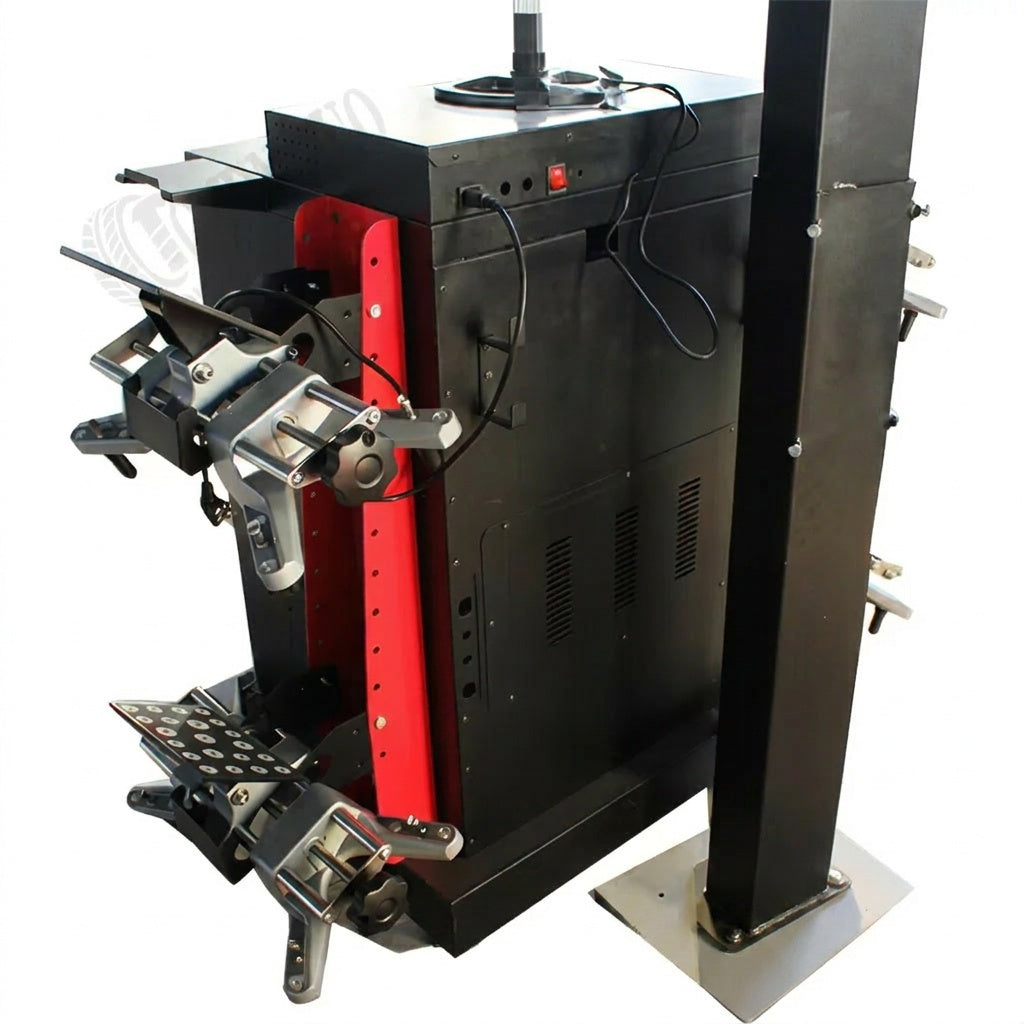

  • Integrated Tool Storage Cabinet — The commercial-grade powder-coated steel console houses the host computer terminal, display monitor, and print station while keeping alignment tools organized.

  • Features-

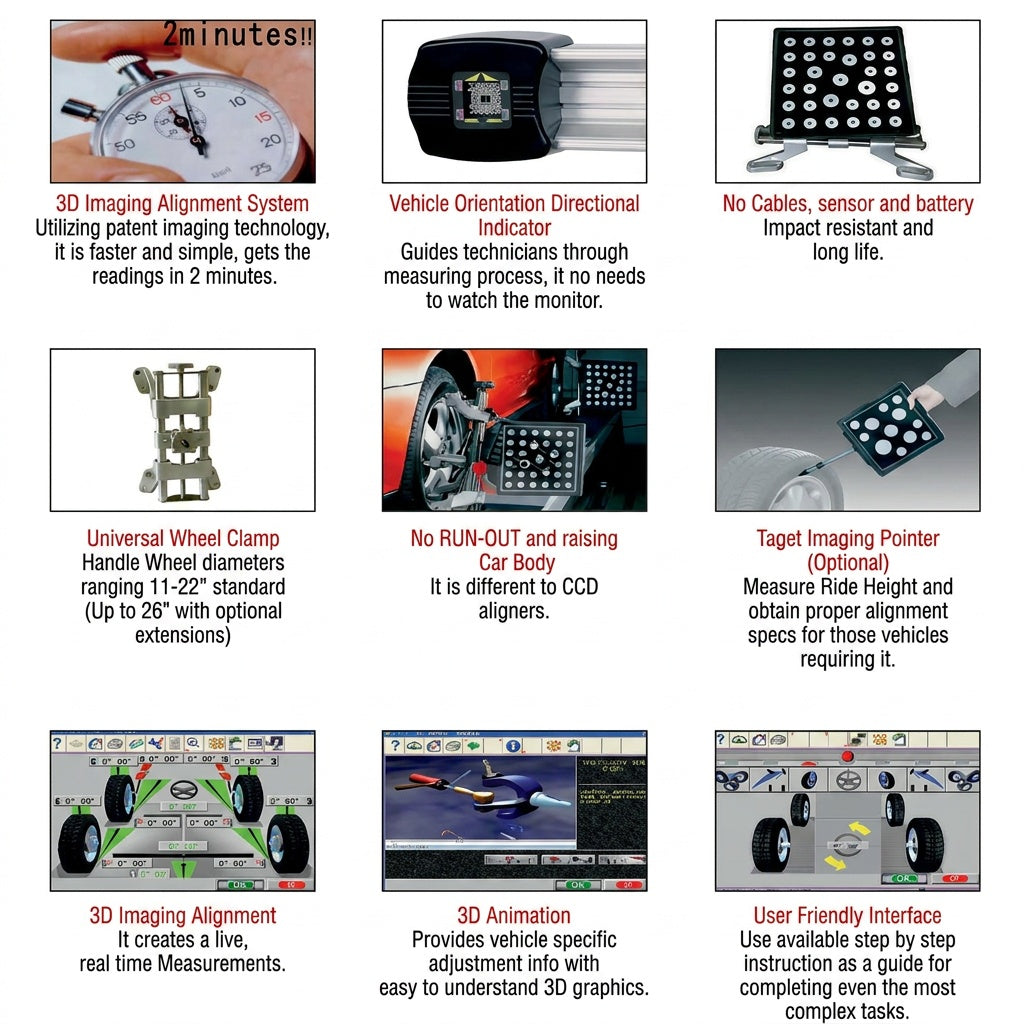

    • 3D Imaging Alignment System
    • 2 Cameras with 4Pcs Targets
    • No Cables Required for Targets
    • Only 1 Calibration After Installation Easy to Install
    • Advanced Software Get Measurement in Under 2 Minutes
    • High Precision & Reliability

CLICK HERE HOW TO UPDATE VEHICLE DATA BASE

CLICK HERE FOR USER MANUAL

Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

Unlike outdated manual string systems or mechanical laser gauges that require complex individual calibration steps for each axle, this automated 3D alignment system uses advanced optical tracking software to read whole-chassis geometry simultaneously. It is engineered explicitly for high-throughput tire fitment businesses, dealership service bays, and general mechanical garages looking to introduce profitable wheel tracking services, meaning it is not suited to mobile service vans or extremely cramped workshop bays that cannot support the required focal clearance distance in front of the hoist.

Key Features

  • Extensive Vehicle Database — Equipped with an integrated, regularly updated library of international automotive manufacturer specifications to ensure exact matching against regional passenger car and 4WD fleets.
  • Shatterproof Passive Targets — Lightweight target boards feature a rugged, non-electronic design that resists data errors caused by workshop grease, moisture, or accidental drops.

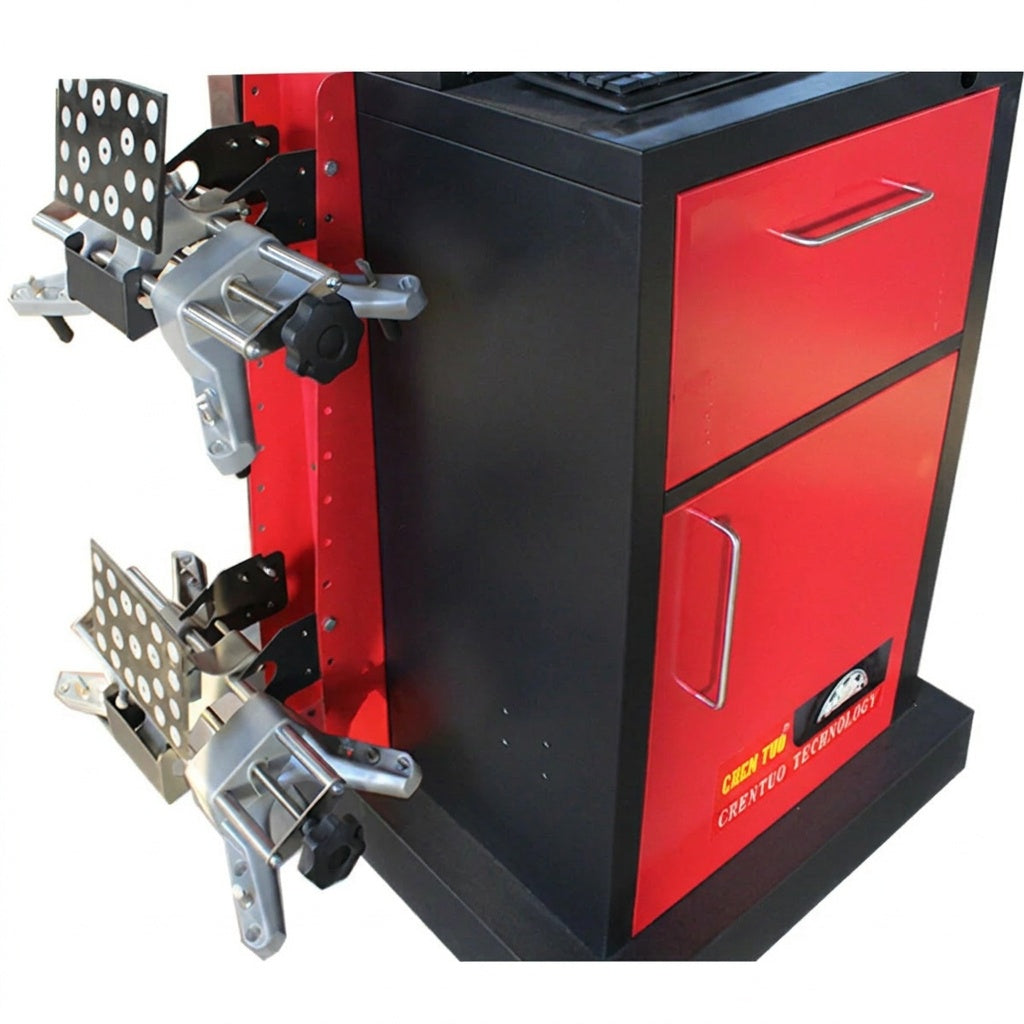

  • Non-Marring Clamping Brackets — Multi-point wheel clamp assemblies secure firmly to the rim lip or tyre shoulder, preventing metal-on-metal gouging or scratching on premium customer alloy wheels.

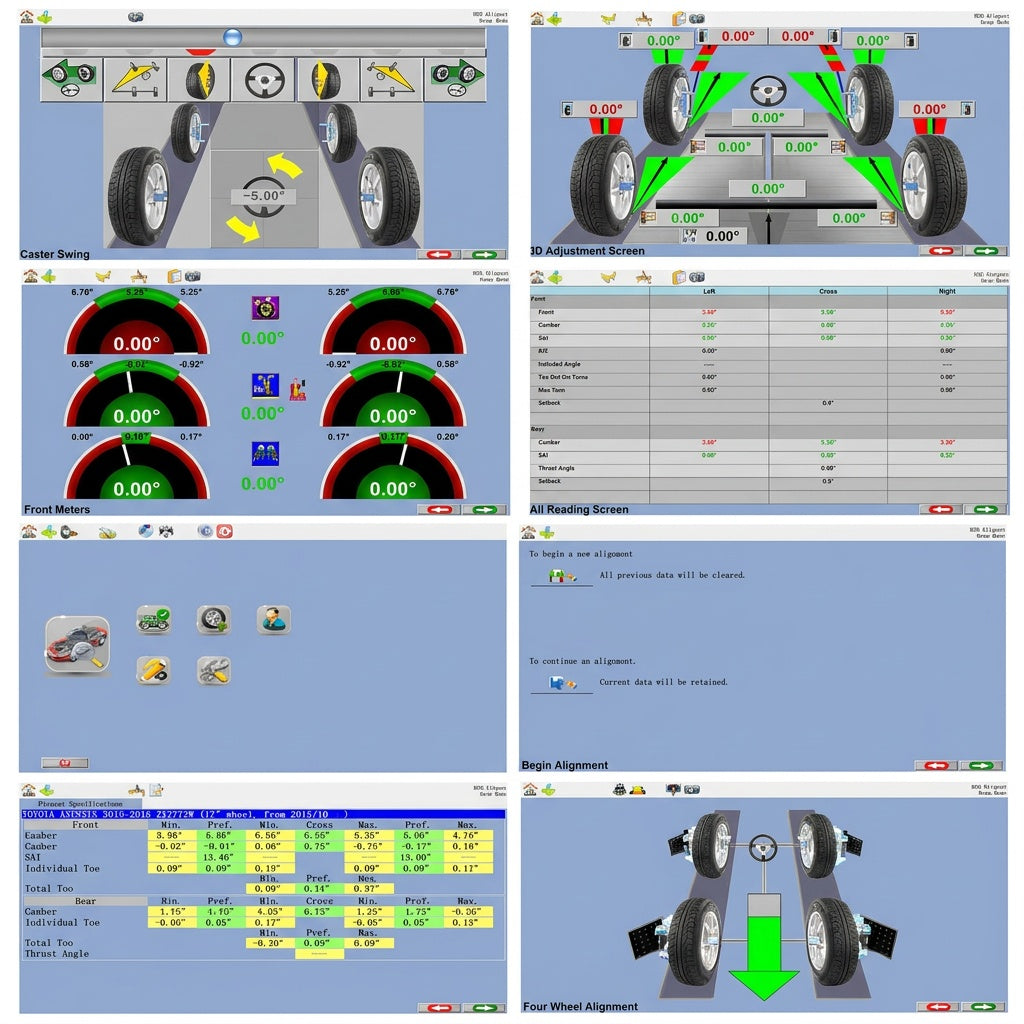

  • Ergonomic Operator Interface — The specialized computer software translates complex alignment angles into straightforward, colour-coded digital instructions to guide technicians through fast adjustments.

Before You Order

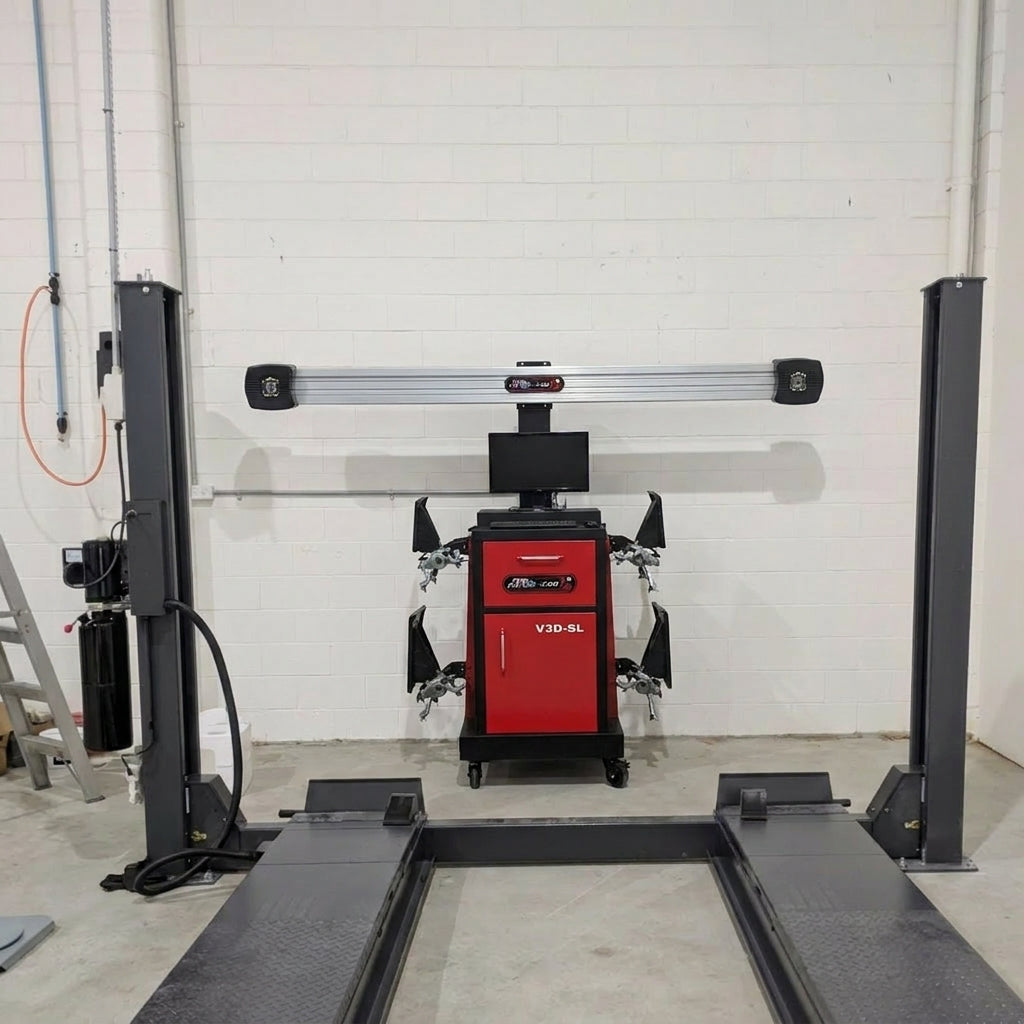

Installation requires a level, flat workshop bay layout with a clear line of sight between the camera tower cross-beam and the vehicle wheel targets at default operating clearances. The computerized terminal requires a standard 240 V single-phase electrical outlet; using a dedicated surge-protected power line is highly recommended to shield sensitive components. Ensure your designated service bay footprint can easily accommodate the fixed camera column without obstructing regional workshop thoroughfares or sliding garage doors.

What's Included

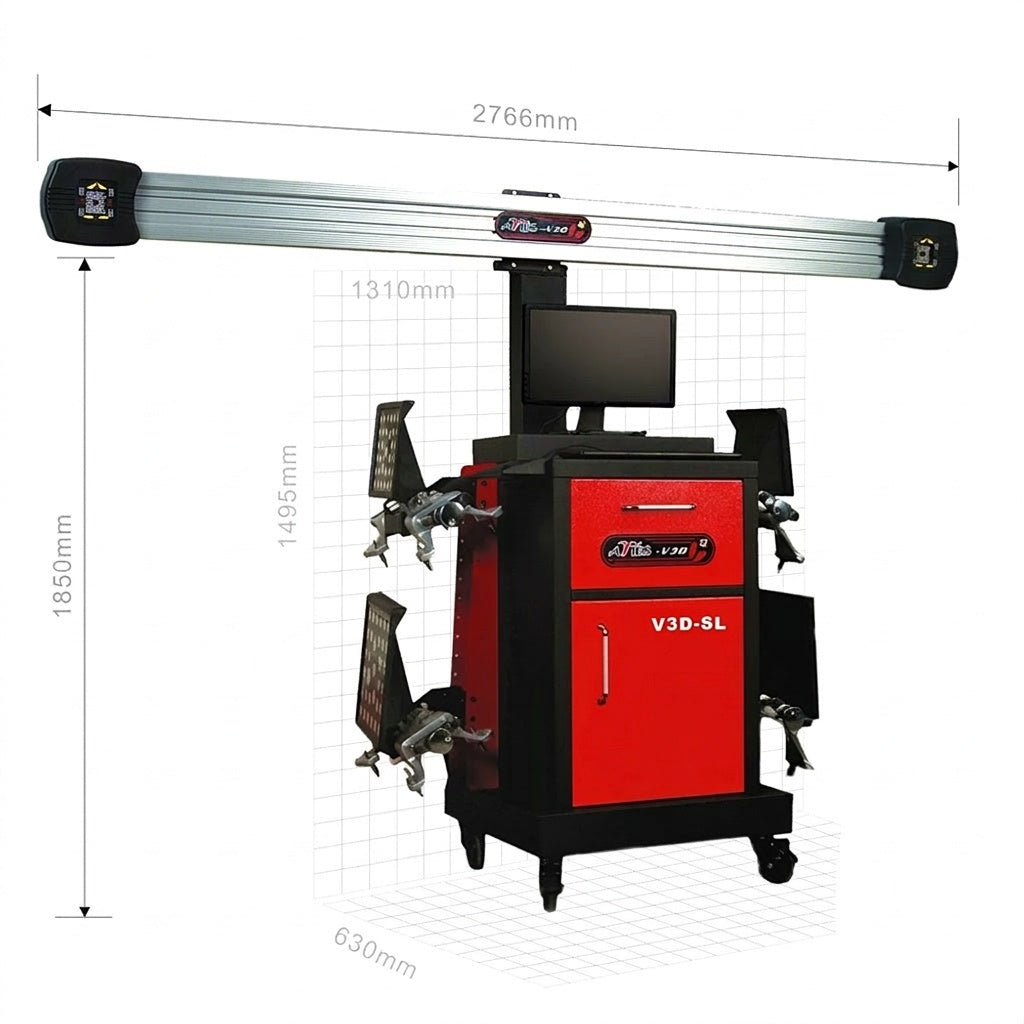

  • One structural steel camera pillar assembly with a precision dual-camera tracking beam
  • One heavy-duty mobile workshop console cabinet with a high-definition display monitor
  • Four cable-free passive 3D target reflector plates with protective housings
  • Four universal multi-point wheel clamping brackets with non-marring adapters
  • Comprehensive wheel alignment diagnostic software featuring an international vehicle database
  • Steering wheel lock holder clamp and mechanical brake pedal depressor rod

Please note that vehicle service hoists, front alignment turntables, and rear alignment slip plates are sold separately.

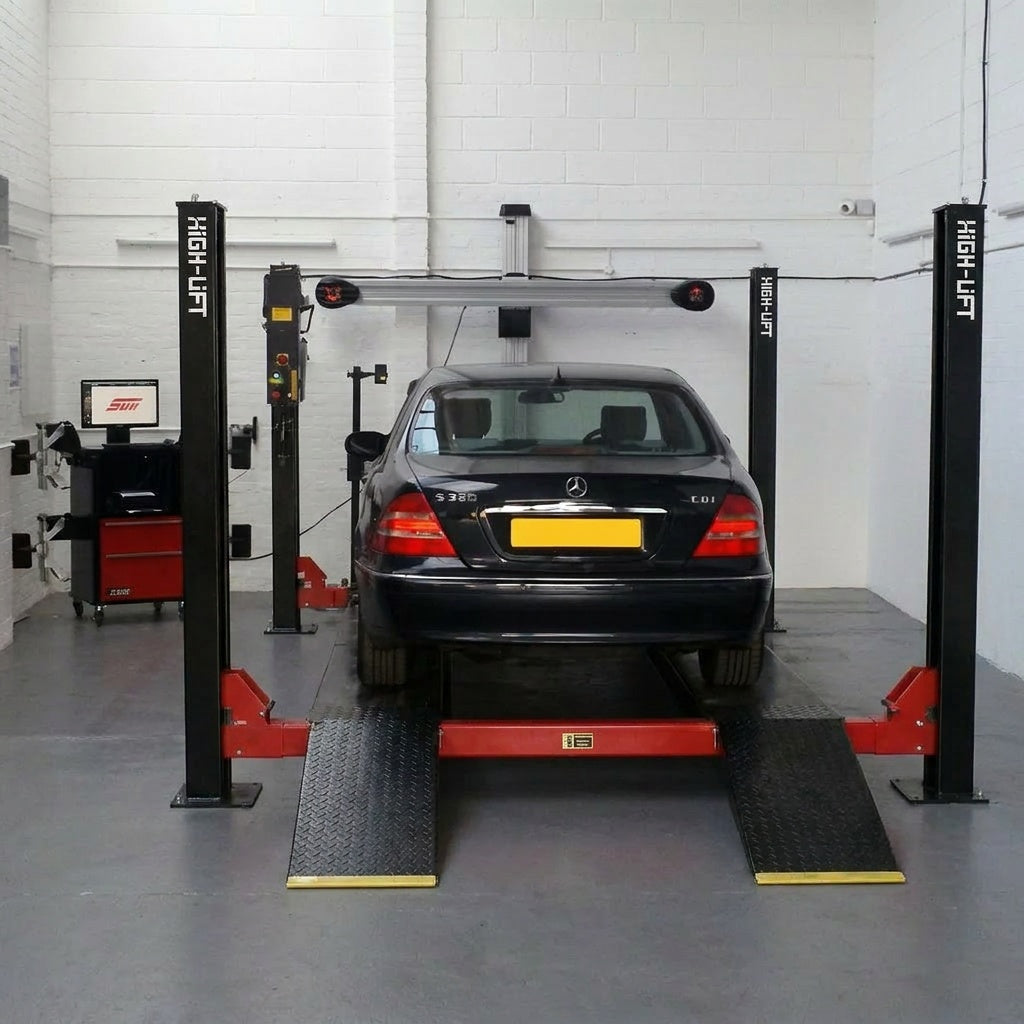

To fully establish an industry-leading wheel service bay, consider combining this 3D laser alignment system with our heavy-duty four-post alignment hoists, commercial tyre changers, or digital wheel balancers. Contact our technical support team for software package updates and freight logistics arrangements direct to your business.

3-year warranty. In stock and shipped from Wendouree, Victoria.

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
