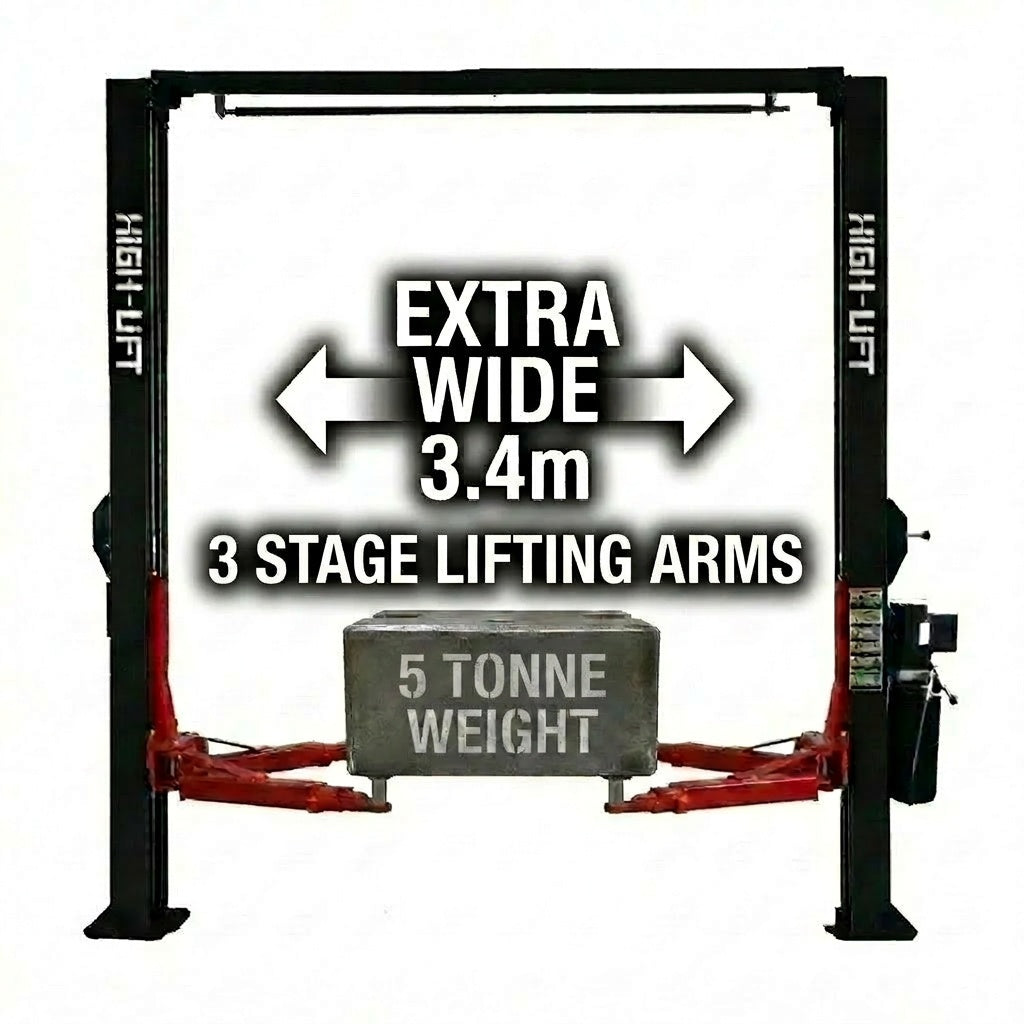

YL-350W 5 Tonne Extra Wide Clear Floor Car Hoist With 3 Stage Arms Single Point Release 3.4m Between Columns 5000kg

$4,700.00

In stock

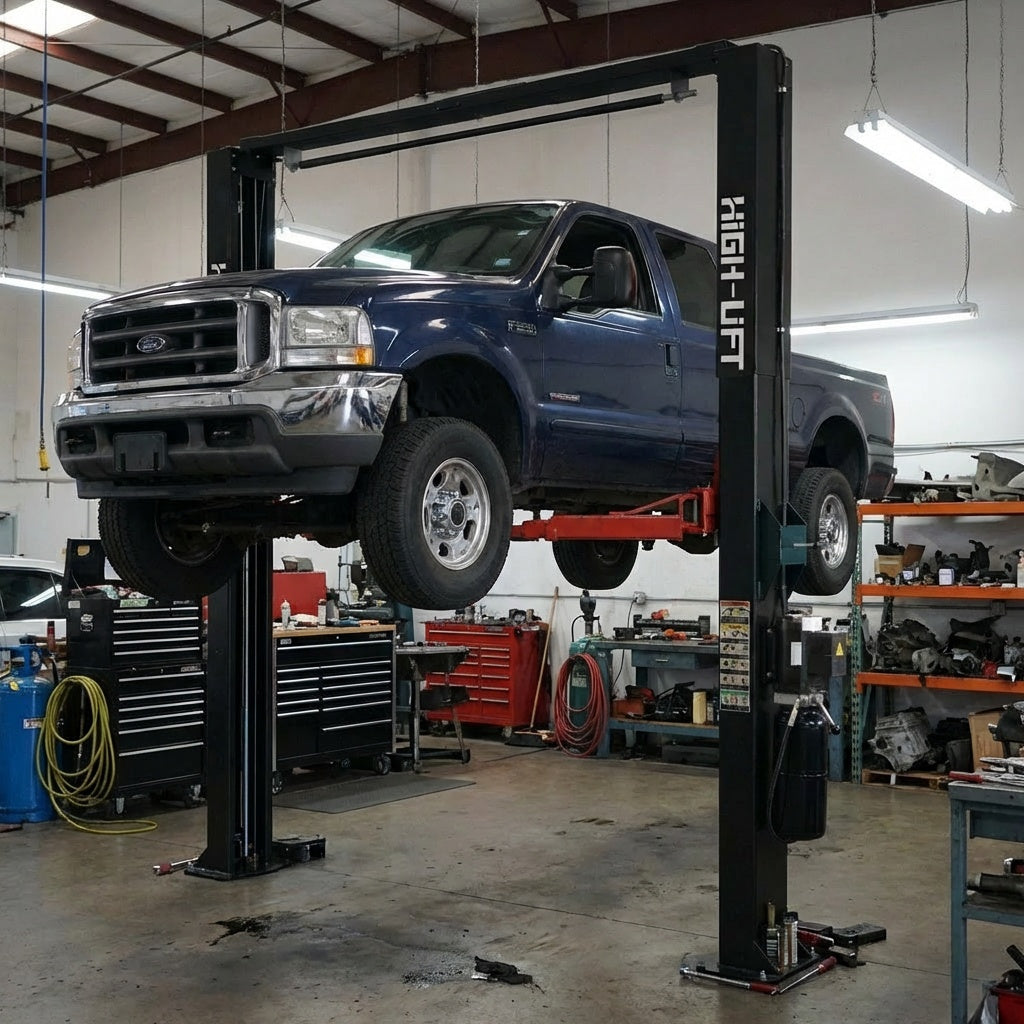

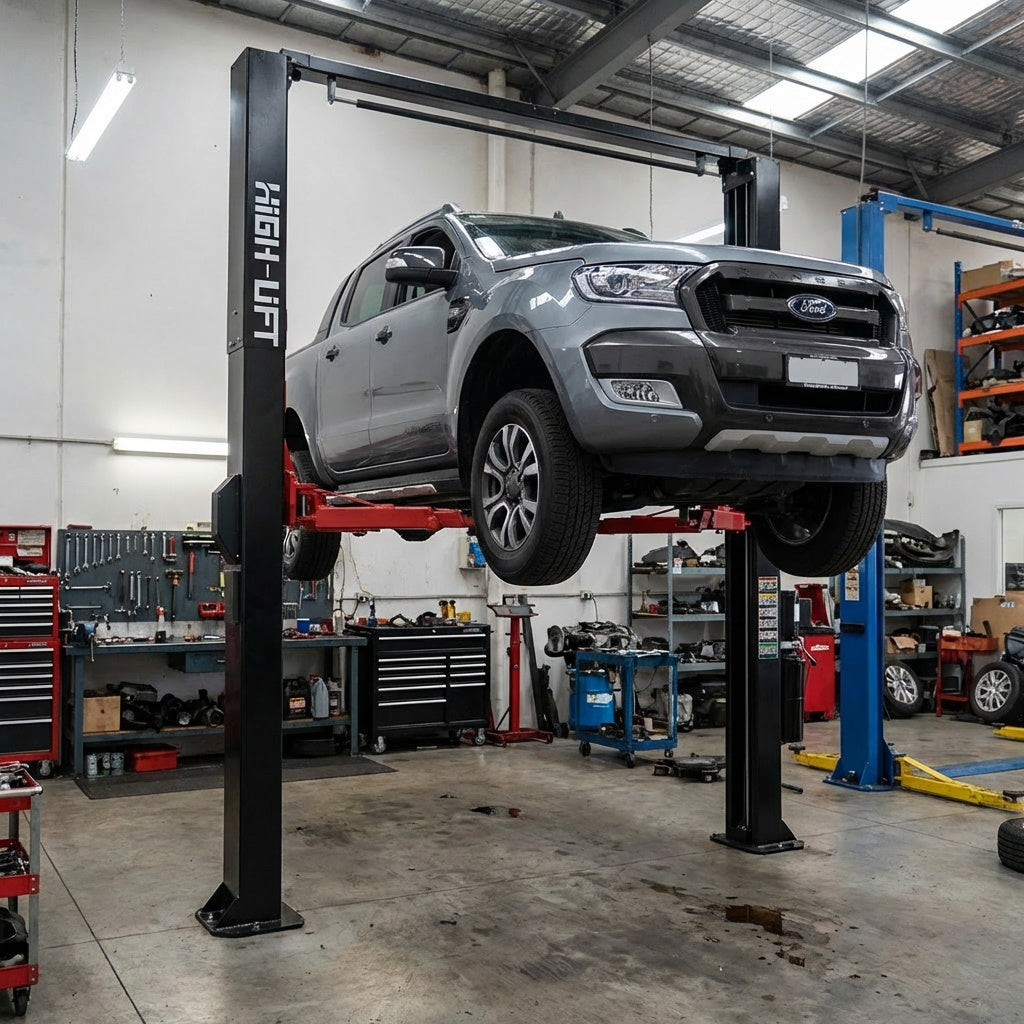

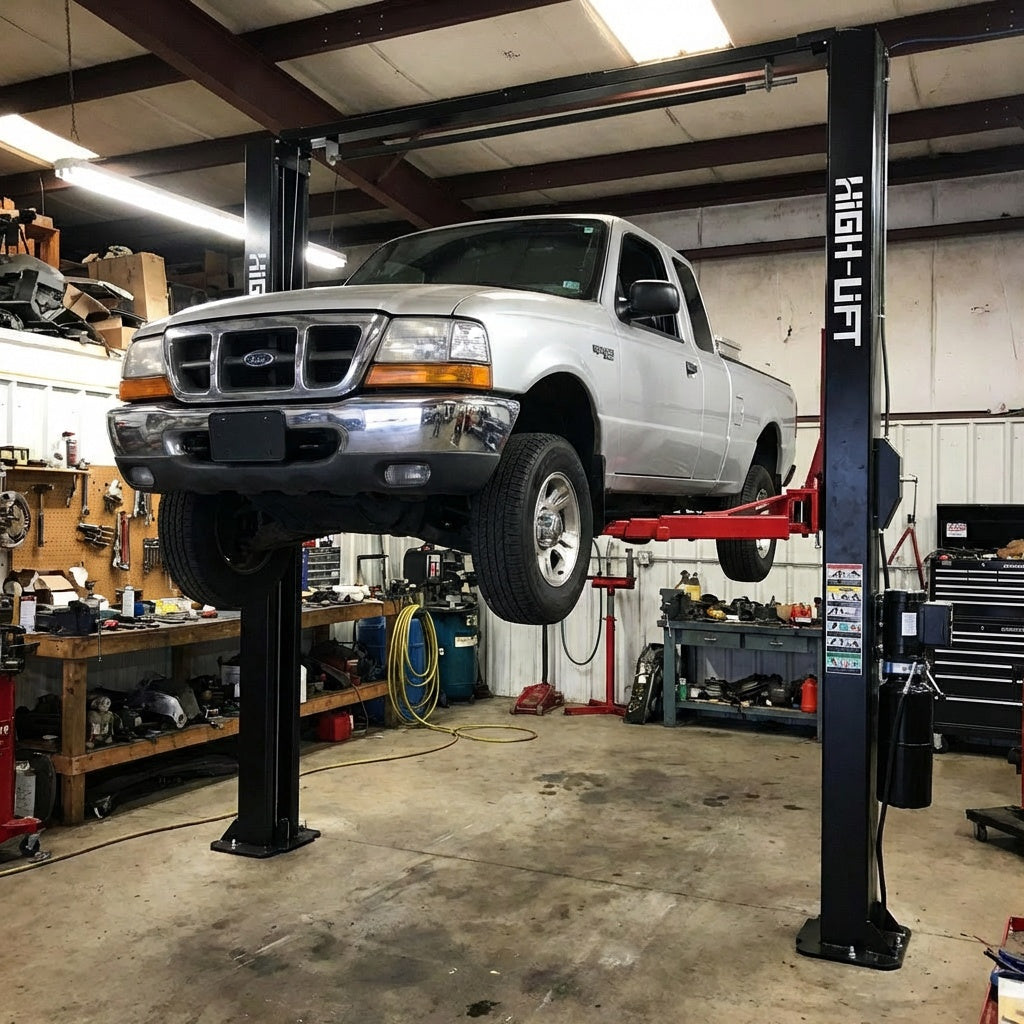

This heavy-duty two-post clear-floor vehicle hoist delivers an unobstructed ground workspace engineered with an extra-wide footprint for wide work utilities, light commercial vehicles, and light trucks. Featuring a 5000kg structural capacity and a substantial 3400mm clearance between columns, it allows mechanical trade specialists to lift wide vehicles and oversized four-wheel drives safely. The overhead clear-floor layout keeps the workshop floor entirely free of cables and conduits, allowing technicians to roll transmission jacks, heavy tool chests, and oil drainers smoothly beneath the vehicle.

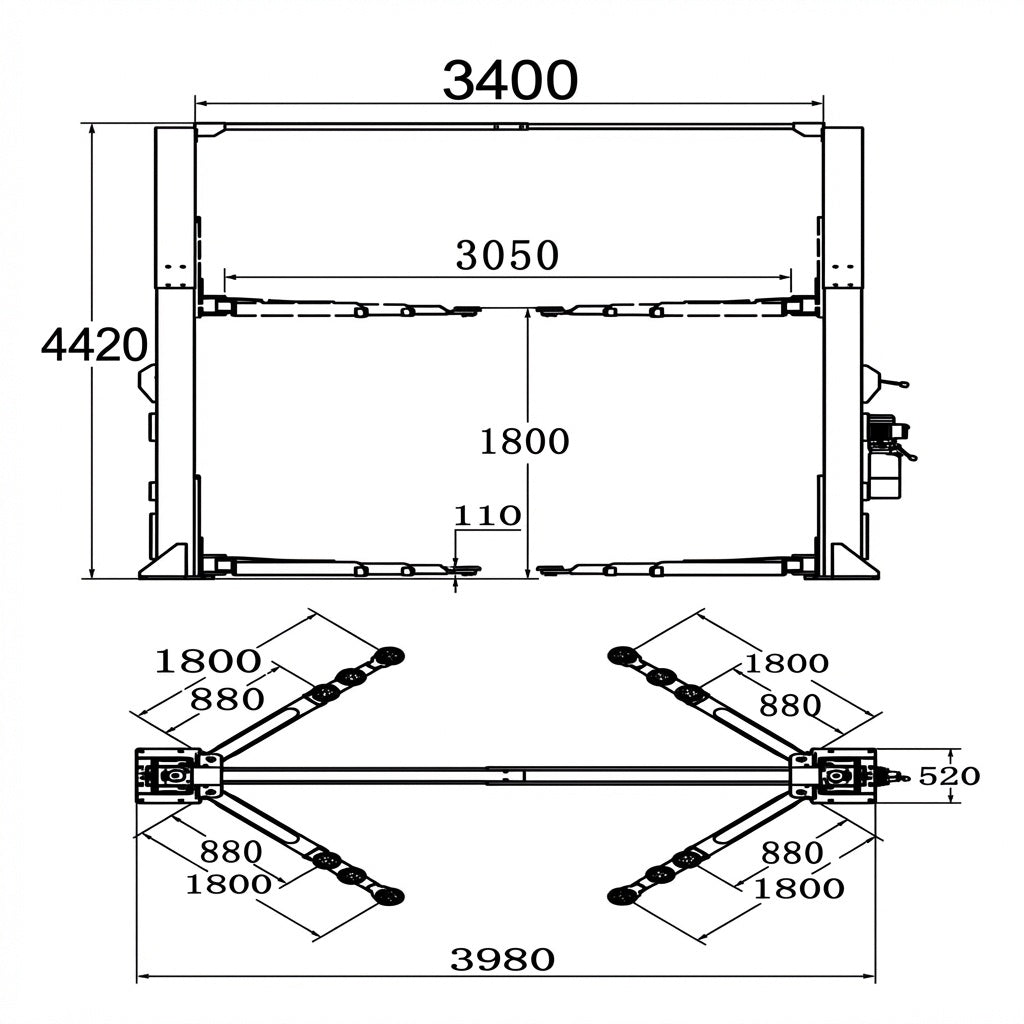

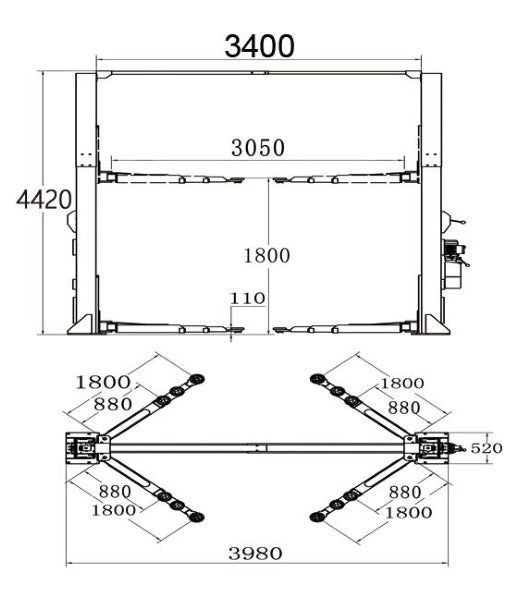

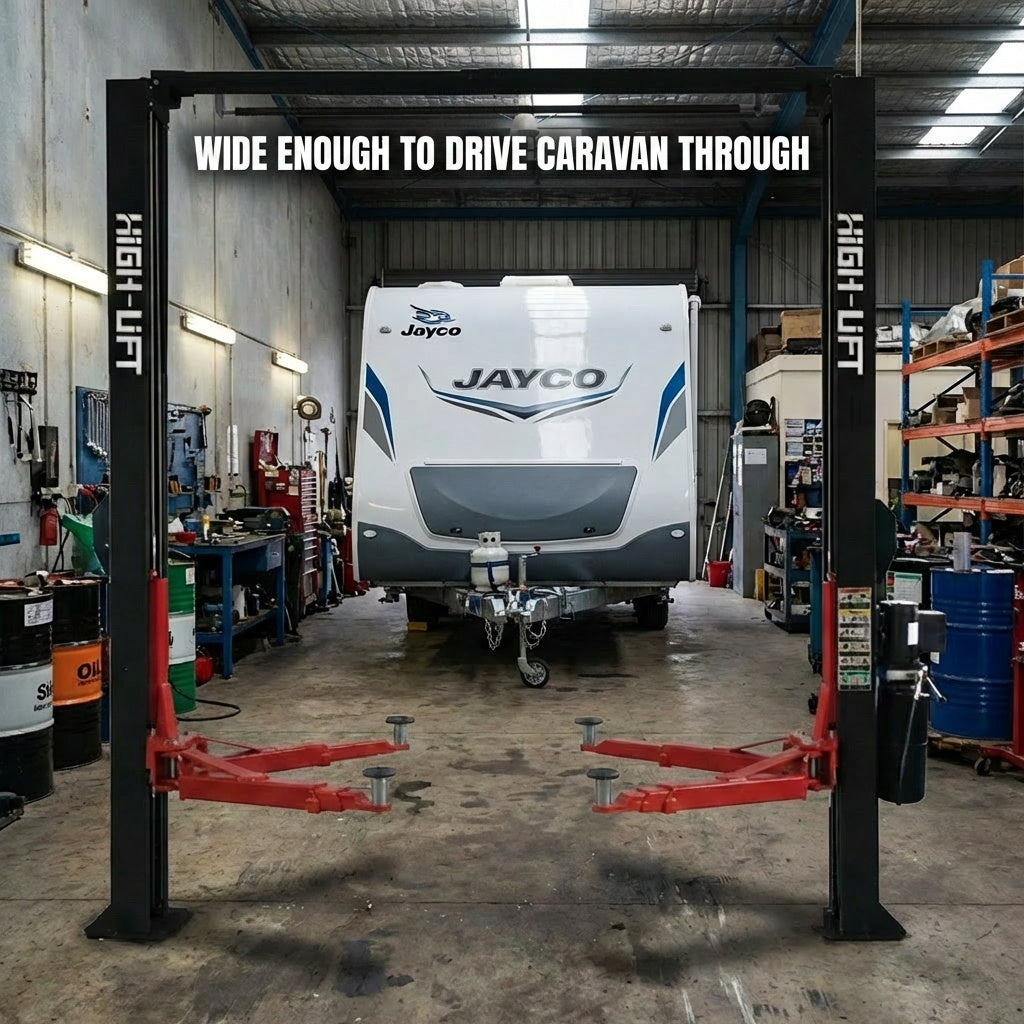

  • Extra-Wide Clearance — The expanded 3400mm width between columns ensures wide commercial vehicles can drive through and open doors effortlessly within the service bay.

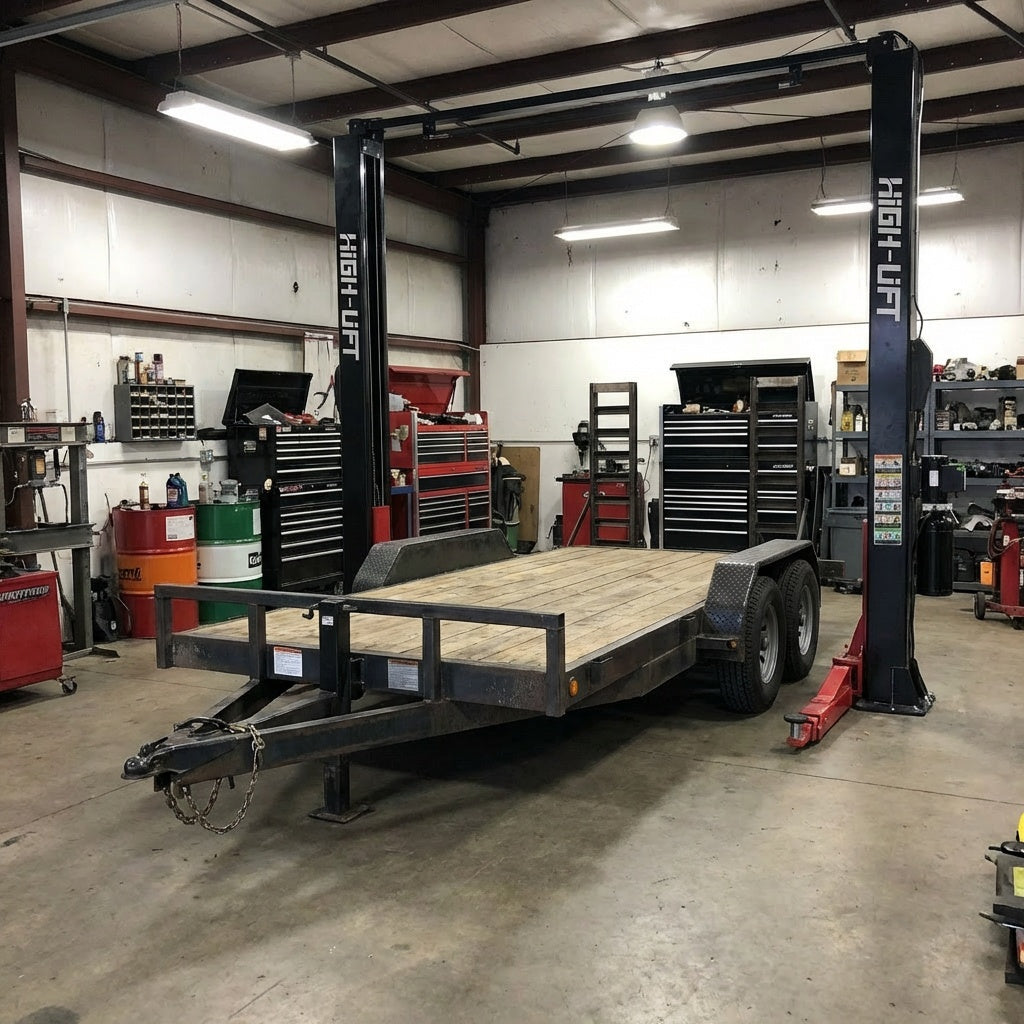

  • Unobstructed Floor Workspace — The overhead cross-beam layout leaves the floor space free of cables and conduits, allowing smooth movement of rolling equipment between hoist columns.

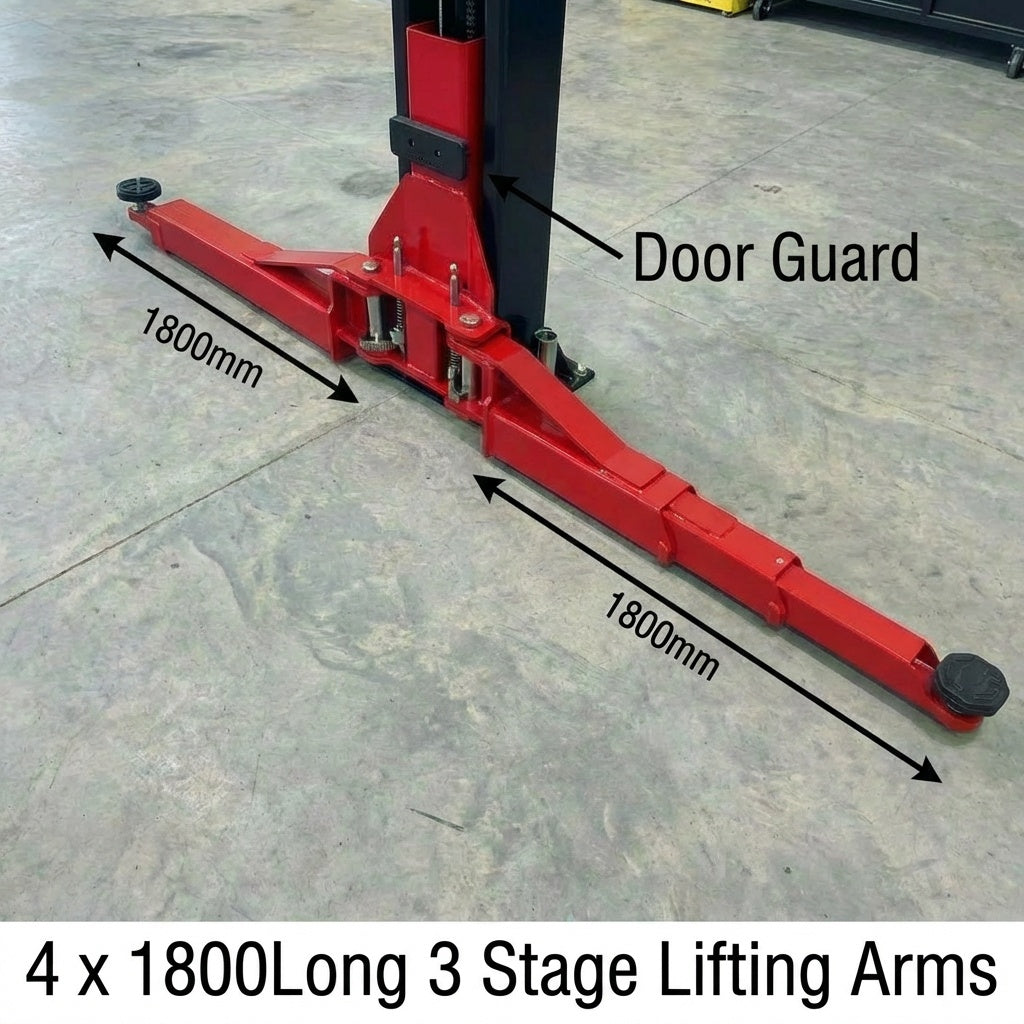

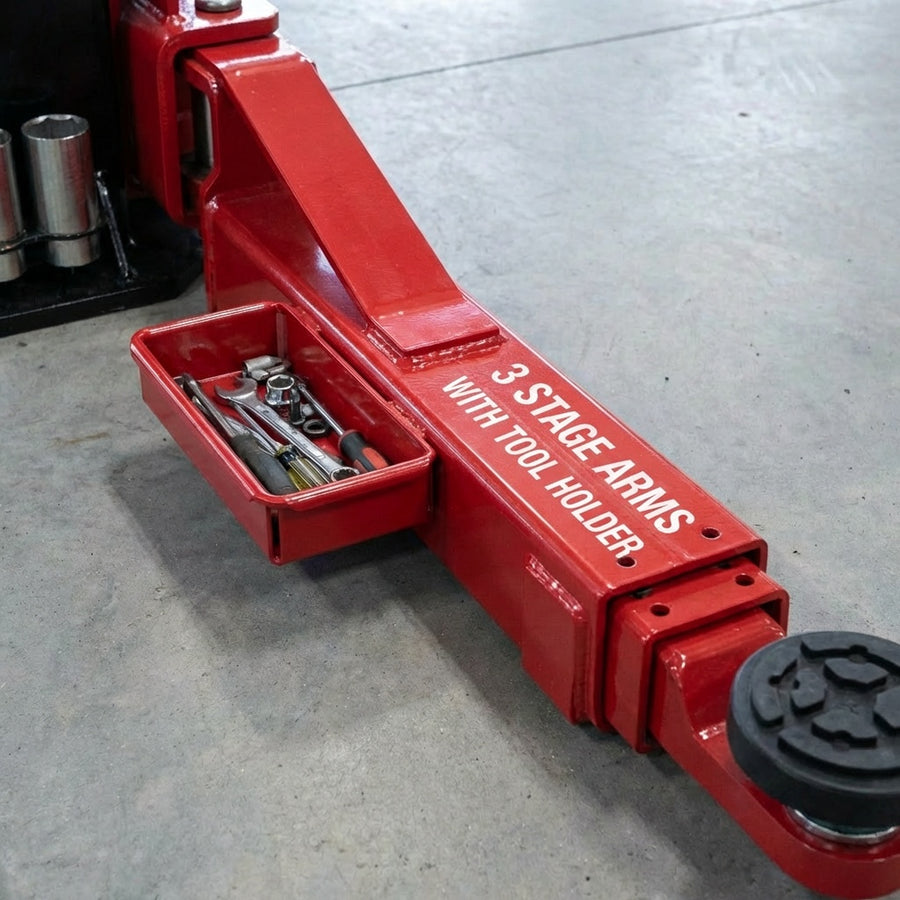

  • 3-Stage Low Profile Telescopic Arms — Heavy-duty 4 x 3 stage 1800mm symmetric lift arms adjust across three distinct telescoping stages to reach precise manufacturer chassis pick-up points on short or long-wheelbase vehicles.
  • Single-Point Lock Release — A centralised mechanical release handle disengages the safety locks on both columns simultaneously to accelerate lowering cycles and improve workshop throughput.

  • Safety Features

    • Anti-surge valve
    • Automatic mechanical carriage locks
    • Automatic mechanical arm locks
    • Standard column curtain

    What’s Included?

    • 2 post hoist with all bolts, cables, lines and fixings
    • 240V hydraulic power unit (415v Optional)
    • Concrete anchor bolts
    • Detailed installation instructions

    What’s Not Included?

    • Hydraulic oil ISO 46 Grade Required
    • Setup electrical connection

    Shed Requirements

    • 115mm deep concrete at 32mpa

Installation Manual

Workcover Registration

Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

Unlike standard 4-tonne or narrower 5-tonne models that restrict drive-through access and limit door clearance on wide-track commercial vehicles, this extra-wide clear-floor lifting system features an expansive 3.4-metre spacing between columns to ease bay placement. It is engineered explicitly for high-volume commercial fleet operators, diesel repair garages, and agricultural service workshops managing wide light trucks, service utilities, and oversized four-wheel drives.

Key Features

  • Overhead Safety Cut-Off — An integrated padded shutoff bar spans the top beam to immediately isolate the hydraulic motor if a tall commercial vehicle profile contacts the upper structure.
  • Optimised Structural Footprint — Extra-large column base plates distribute heavy vertical lifting loads across a wider surface area to reduce localised structural stress on the concrete foundation.
  • Self-Lubricating Slide Blocks — High-density polyethylene wear pads protect internal carriage movement and minimise mechanical friction along the steel columns for prolonged operational life.

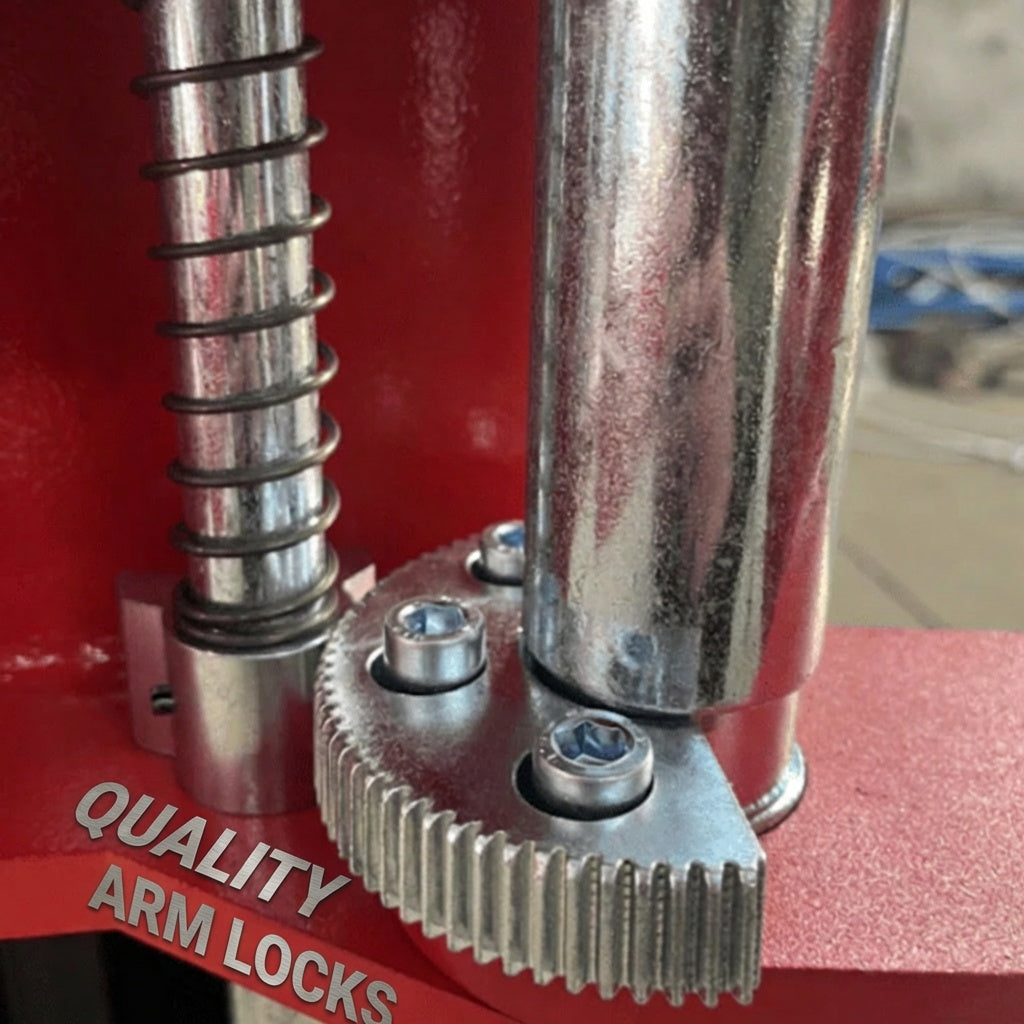

  • Automatic Arm Restraints — Heavy-duty gear ring locks engage automatically upon ascent to fix the position of the three-stage arms and eliminate any pivoting risks while under load.

Before You Order

Installation requires a level, fully cured concrete slab with a minimum thickness of 115 mm and a compressive strength rating of 32Mpa. The electro-hydraulic power pack operates via a standard 240 V single-phase electrical supply connected to a dedicated 15 A circuit breaker (should not operate off of a 10amp extension lead). Ensure your designated workshop bay provides adequate vertical clearance for the overall clear-floor structure, maintaining a safe margin from any hanging lights or automated doors.

What's Included

  • Two extra-wide 5000 kg structural steel column assemblies
  • One overhead cross-beam assembly with integrated safety shutoff padding bar
  • Four three-stage telescoping symmetric lifting arms with automatic gear locks
  • Two industrial-grade hydraulic cylinders with high-strength leaf chains
  • 240 V single-phase hydraulic power unit with integrated fluid reservoir

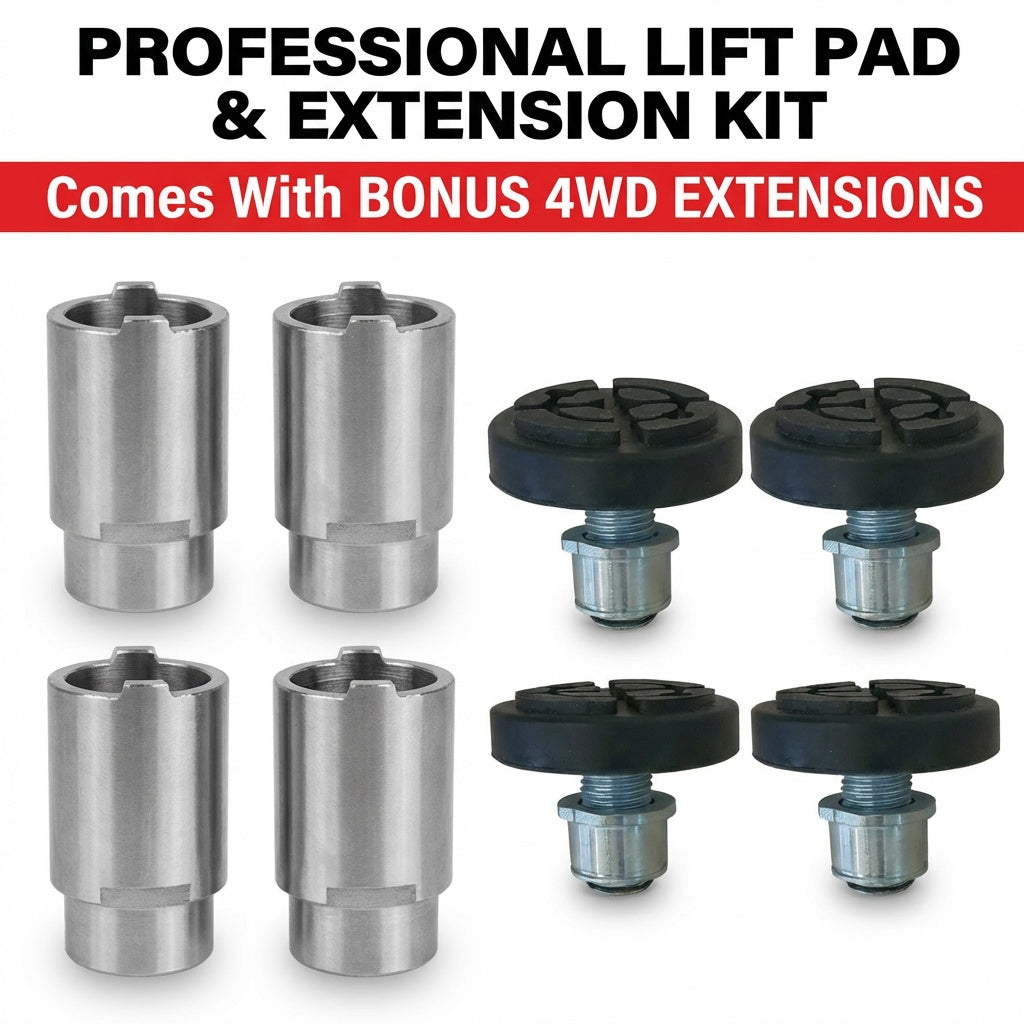

  • Four screw-adjustable pick-up pads and four high-clearance extension sleeves
  • Heavy-duty steel synchronisation cables and concrete floor anchor bolts

Please note that AW46 grade hydraulic oil is sold separately.

To maximise your commercial workshop efficiency, consider combining this 5-ton lifting system with our heavy-duty truck tyre changers, high-capacity wheel balancers, or mobile transmission jacks. Contact our technical sales team for trade package configurations and transport logistics to your site.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
