2 Post Car Hoist Base Support, Reinforcement Plates For YL-240 & YL-340

$810.00

In stock

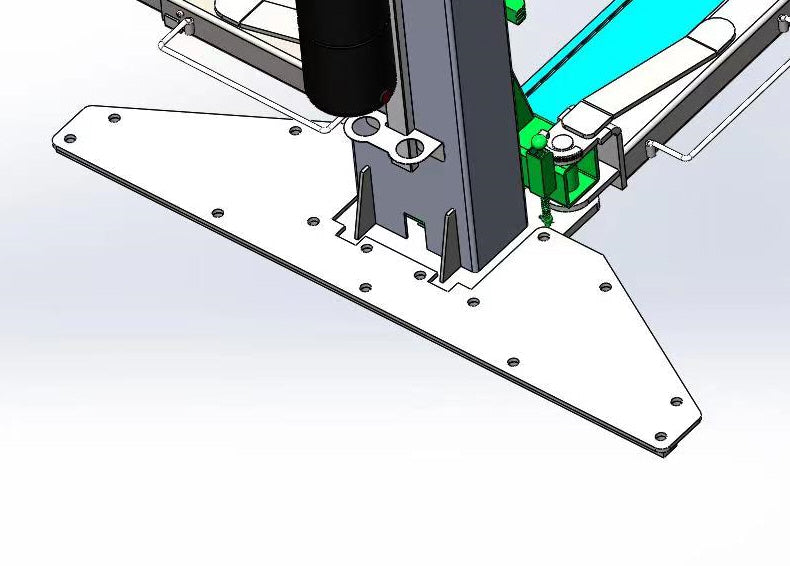

This premium 2-post car hoist floor reinforcement plate kit delivers a heavy-duty engineering solution designed specifically for workshops and home garages with concrete slab configurations under 200mm thick. Serving as a crucial safety bridge, these outrigger expansion plates increase the surface contact area where the columns mount to the ground, distributing extreme pulling and tipping forces more evenly across sub-standard concrete foundations. Manufactured from ultra-thick structural plate steel, this set provides a reliable, code-compliant alternative to expensive floor demolition and re-pouring, allowing automotive enthusiasts and trade professionals to anchor their lifts with total structural stability.

  • Slab Load Distribution — Massive outrigger plate geometry dramatically expands the physical anchoring footprint, reducing localized stress on thinner concrete foundations.
  • Cost-Effective Compliance — Converts sub-optimal concrete floors into a secure, hoist-ready foundation without the extreme labor and downtime of tearing out and re-pouring a slab.
  • Heavy-Gauge Plate Steel — Over-engineered structural carbon steel provides unyielding rigidity to withstand immense tension and torque loads under maximum vehicle lift weight.
  • Universal YL Series Match — Specifically engineered to adapt to high-capacity 4.5-tonne 2-post lifts, ensuring seamless bolt alignment with standard column base layouts.
Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

Unlike basic anchor bolts that depend entirely on the deep compressive strength of a thick industrial slab and can fracture thin or unreinforced foundations, this structural floor reinforcement kit mechanically spreads the lift load across a vastly larger grid layout. It is engineered explicitly for automotive restoration shops, commercial lease bays, and residential garages encountering sub-standard, old, or unverified concrete conditions under 200mm, meaning it is not required for newly built workshops that already feature heavy-duty, depth-certified 32 MPa reinforced concrete pads.

Key Features

  • Precision Laser-Cut Geometry — The outrigger plates are laser-machined with exact tolerances to match factory column footprints, ensuring flawless bolt alignment for both new installations and retrofits.
  • Expanded Anchor Bolt Array — Incorporates a multi-point anchoring matrix that locks into multiple sectors of the concrete floor, dampening vibrations and eliminating column flex.
  • Industrial Powder-Coated Shielding — Coated in a highly resilient, chemical-resistant industrial finish to guard the underlying steel plate structure against moisture, rust, and oil spills.
  • Ultra-Low Profile Footprint — Designed with a tapered low-clearance edge profile to minimize tripping hazards around the service bay and prevent damage to rolling floor jacks.

Before You Order

This reinforcement kit is designed to suit 4.5-tonne 2-post car hoists (including the YL-240 and YL-340 series); verify your column base configurations prior to finalizing your order. While these outrigger plates vastly improve stability on thinner concrete slabs, the underlying floor must still be structurally sound, fully cured, and free of crumbling, major through-cracks, or severe shifting. Ensure your installation site is perfectly level to maintain precise vertical column alignment.

What's Included

  • One matching pair (set of 2) heavy-duty structural steel floor reinforcement plates
  • Complete high-tensile structural bolting hardware package (18 x heavy assembly bolts)

Please note that primary concrete dyna-bolts, raw floor anchoring hardware, and the 2-post car hoist units themselves are sold separately.

To establish a fully secure, high-capacity vehicle service bay, consider combining these reinforcement plates with our professional 2-post clear-floor lifts, high-pressure air-hydraulic foot pumps, or heavy-duty transmission jacks. Contact our technical sales desk for freight delivery logistics and trade warehouse collection configurations.

3-year warranty. In stock and shipped from Wendouree, Victoria.
