YL-250W 5 Tonne Extra Wide Base Plate Car Hoist With 3 Stage Arms Single Point Release 3.4m Between Columns 5000kg

$4,400.00

In stock

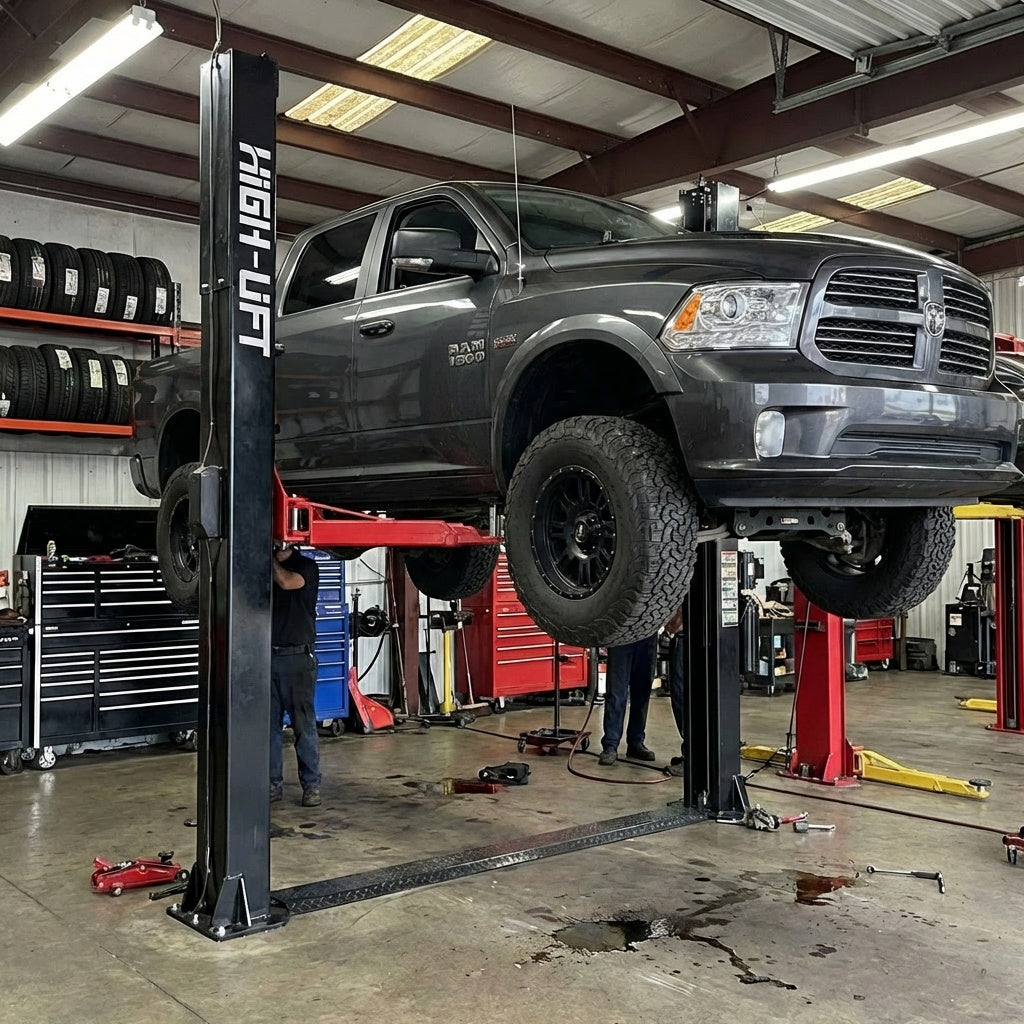

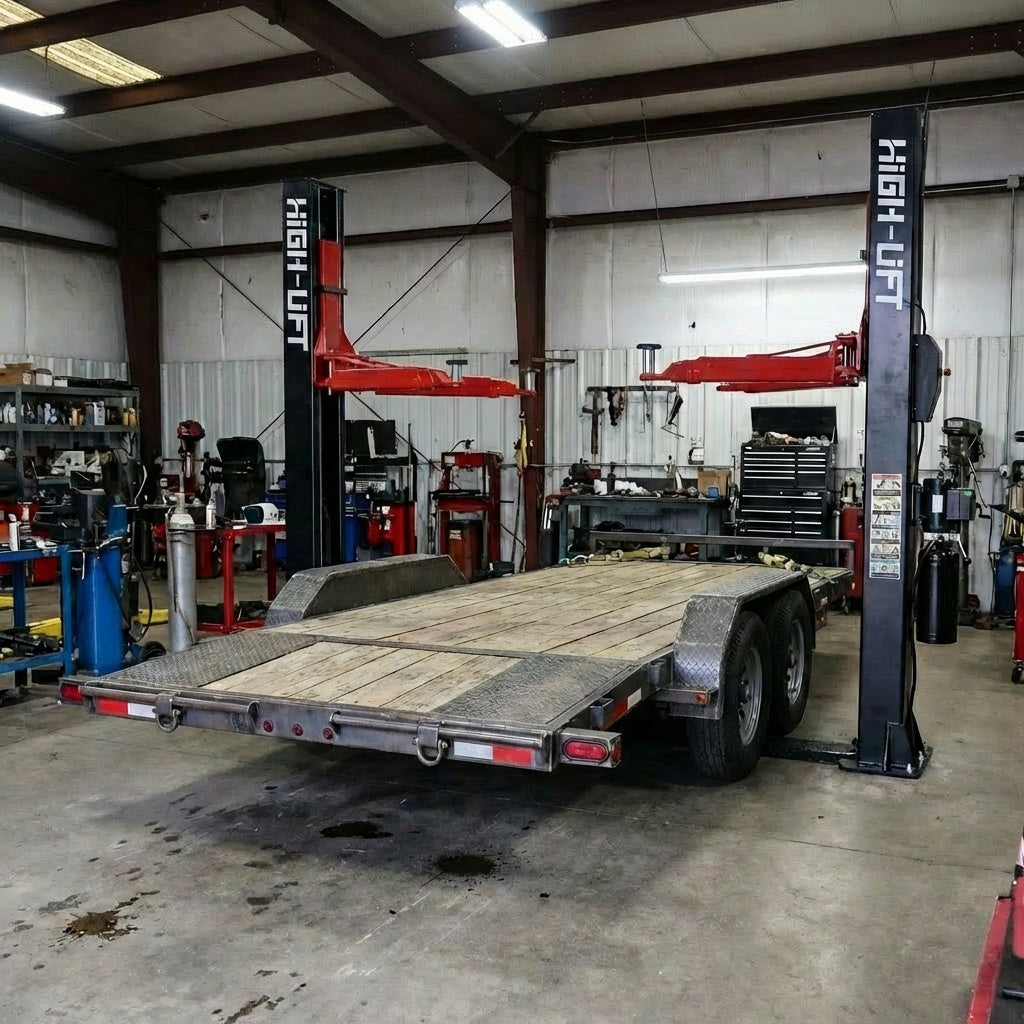

This heavy-duty two-post floor plate vehicle hoist delivers an engineered lifting solution with an extra-wide footprint specifically designed for wide work utilities, light commercial vehicles, and light trucks. Featuring a 5000kg structural capacity and a substantial 3400mm clearance between columns, it allows mechanical trade specialists to lift wide vehicles and oversized four-wheel drives safely under low ceilings. The floor plate layout keeps the overhead area completely open, allowing tall commercial transport vans to be serviced without vertical structural interference.

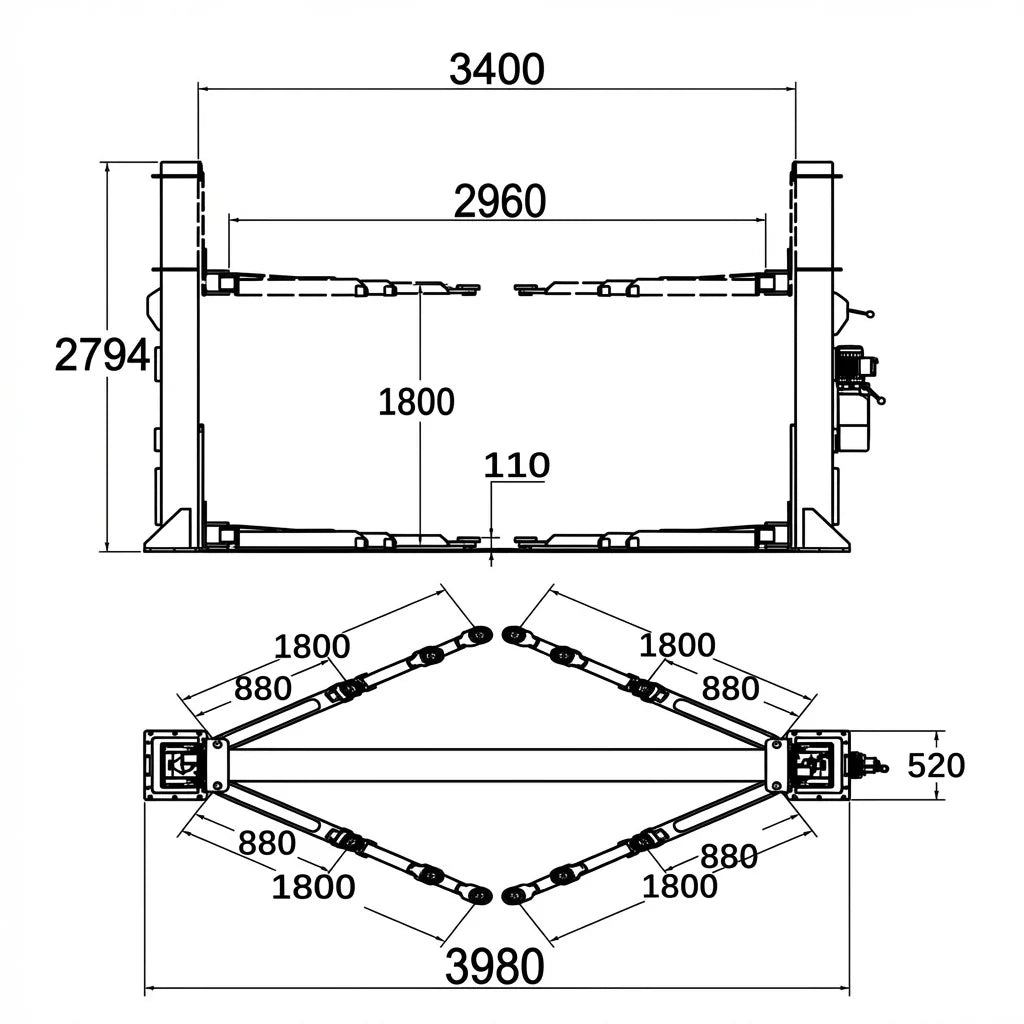

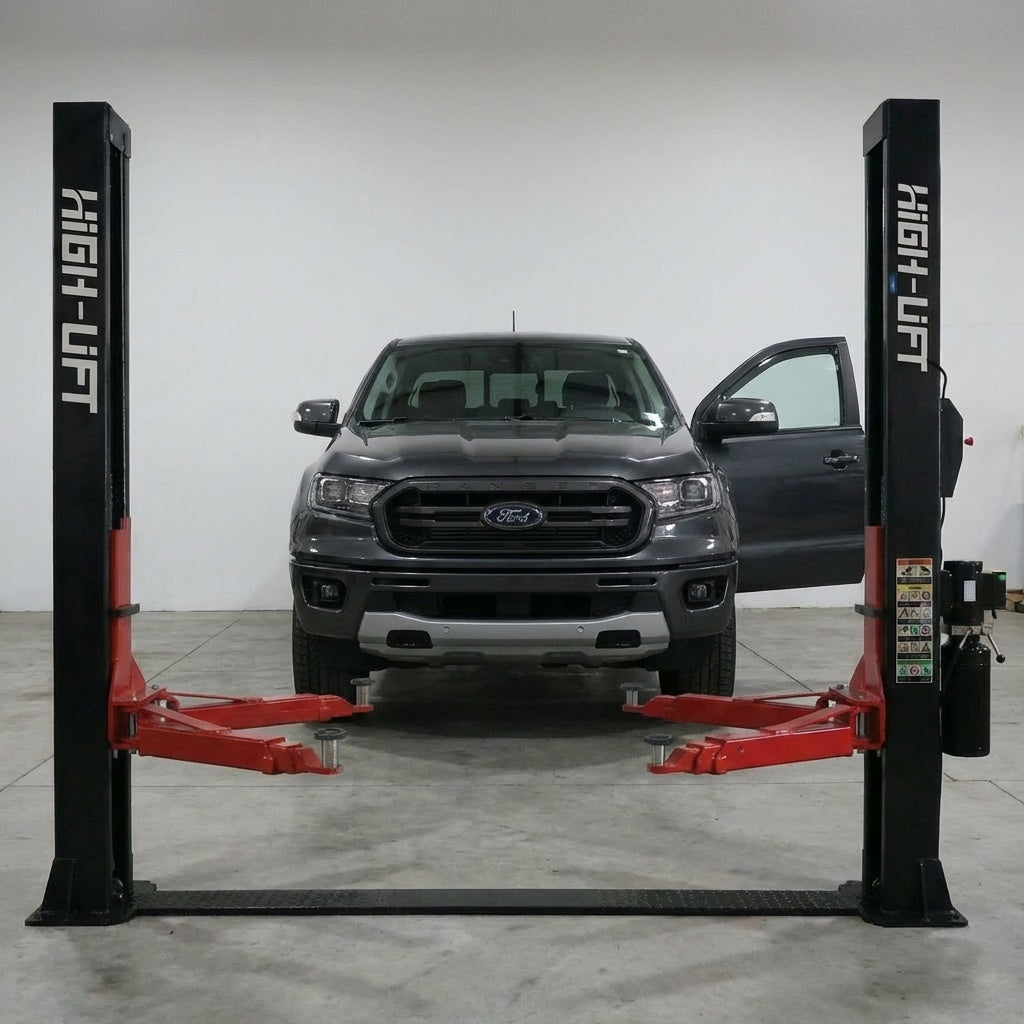

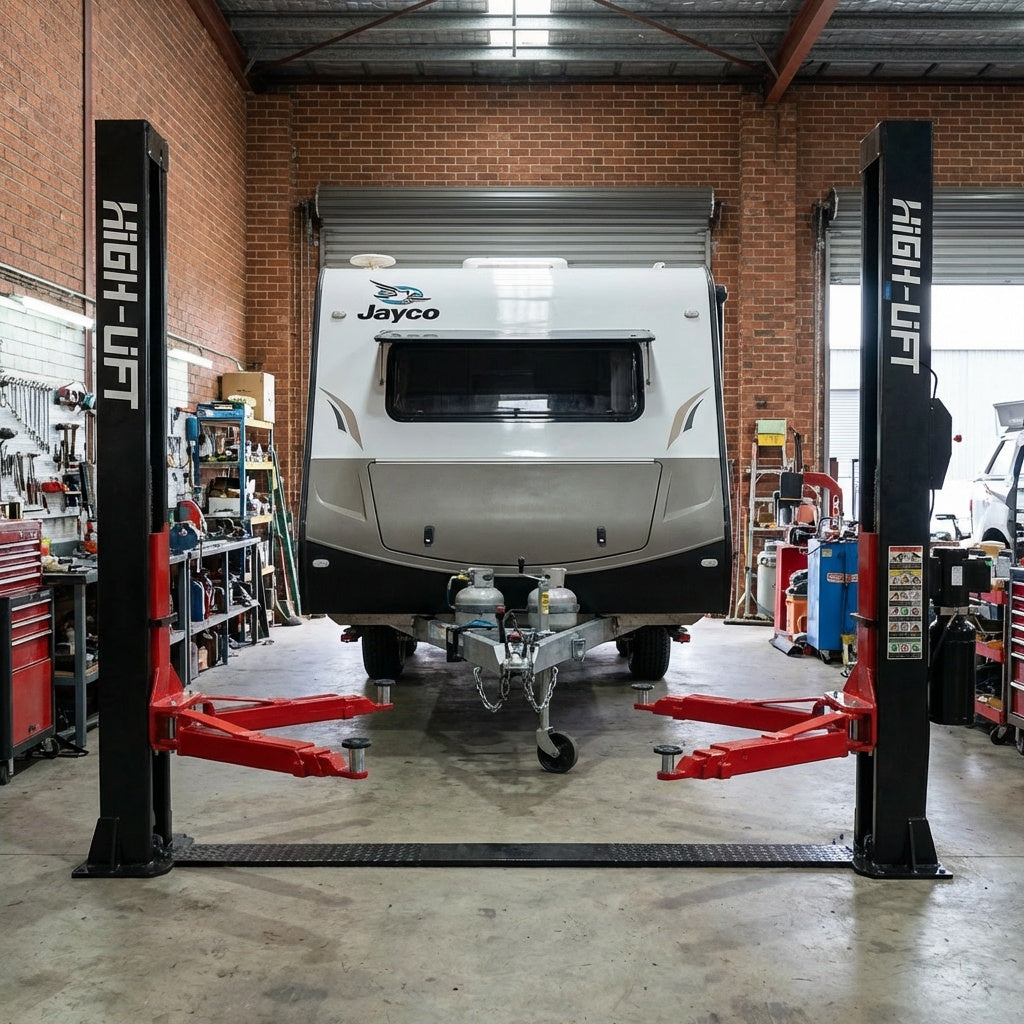

  • Extra-Wide Clearance — The expanded 3400mm width between columns ensures wide commercial vehicles can drive through and open doors effortlessly within the service bay.
  • 5000kg Structural Capacity — Reinforced heavy-gauge steel profiles provide the maximum rigidity required to safely elevate heavy commercial fleets and laden trade utilities.

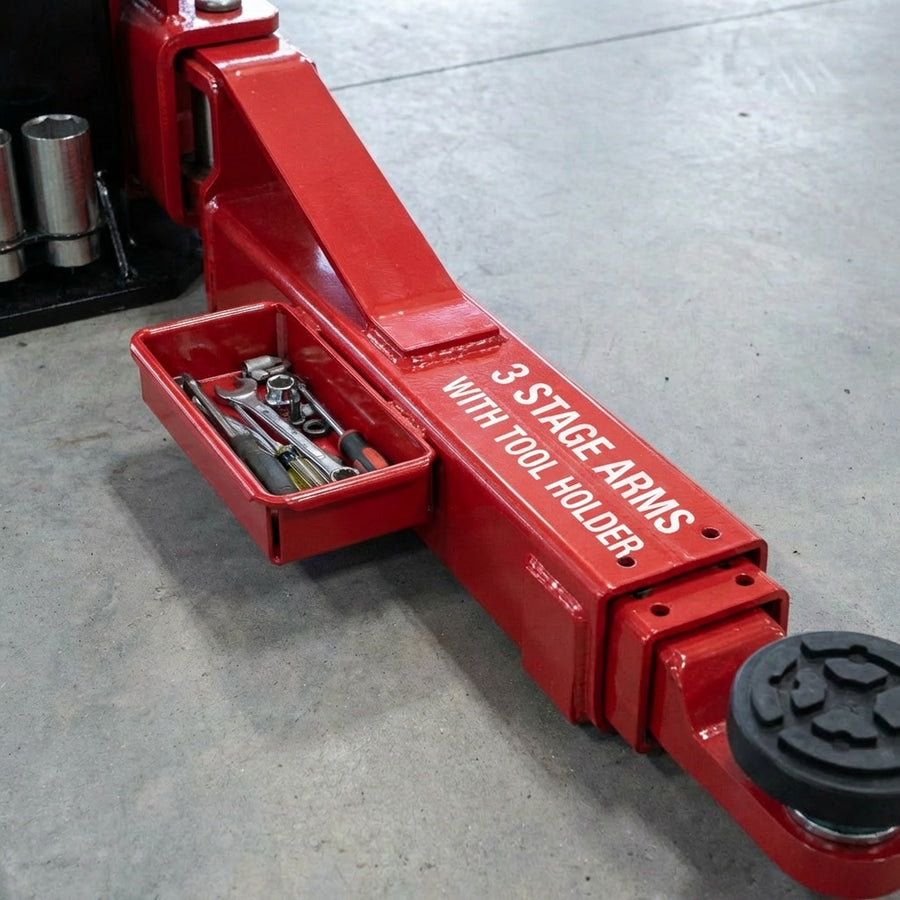

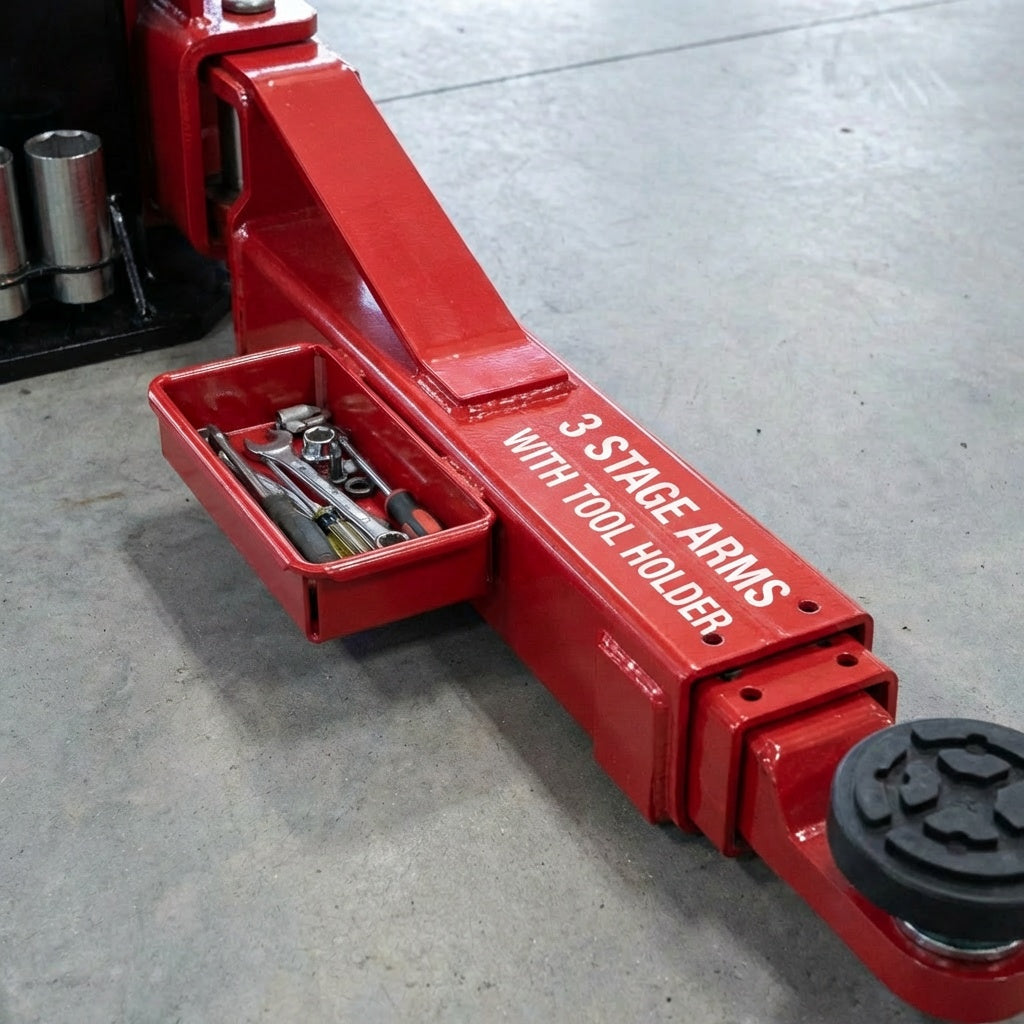

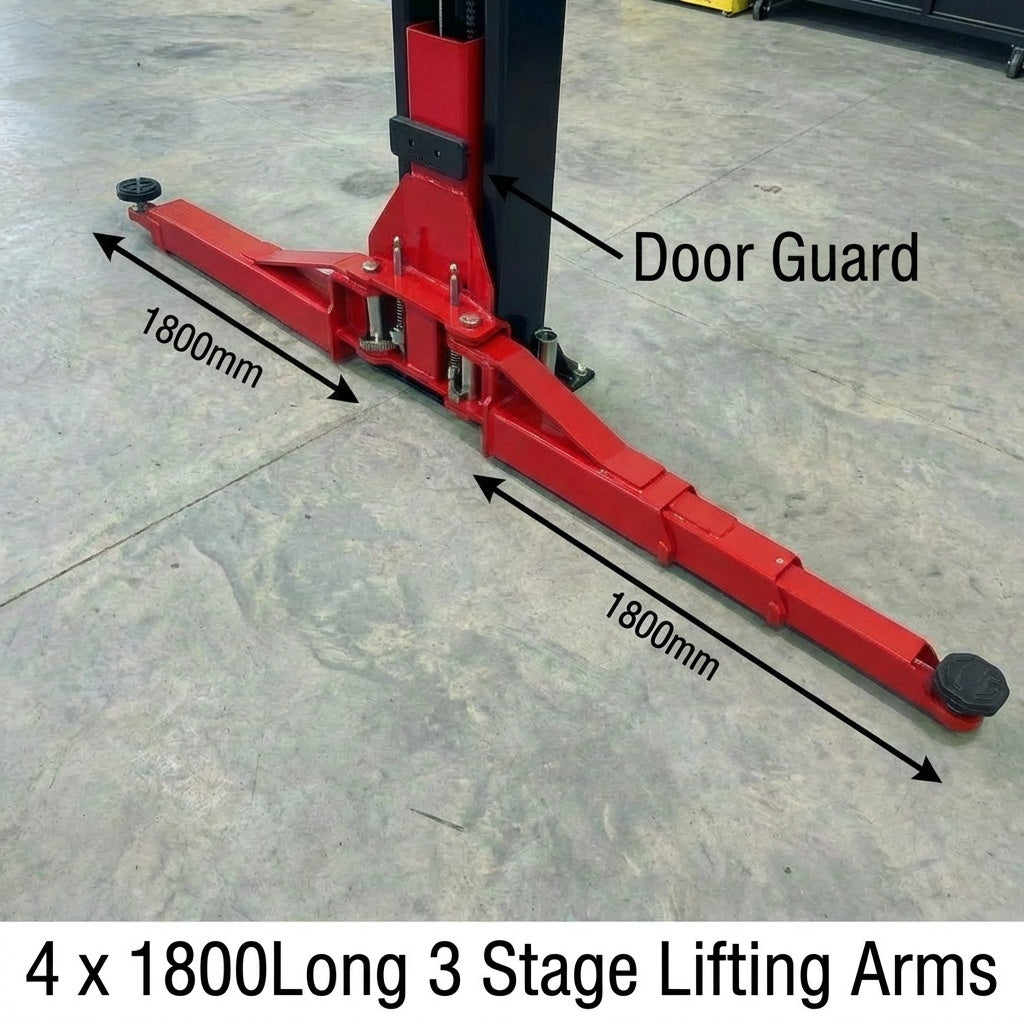

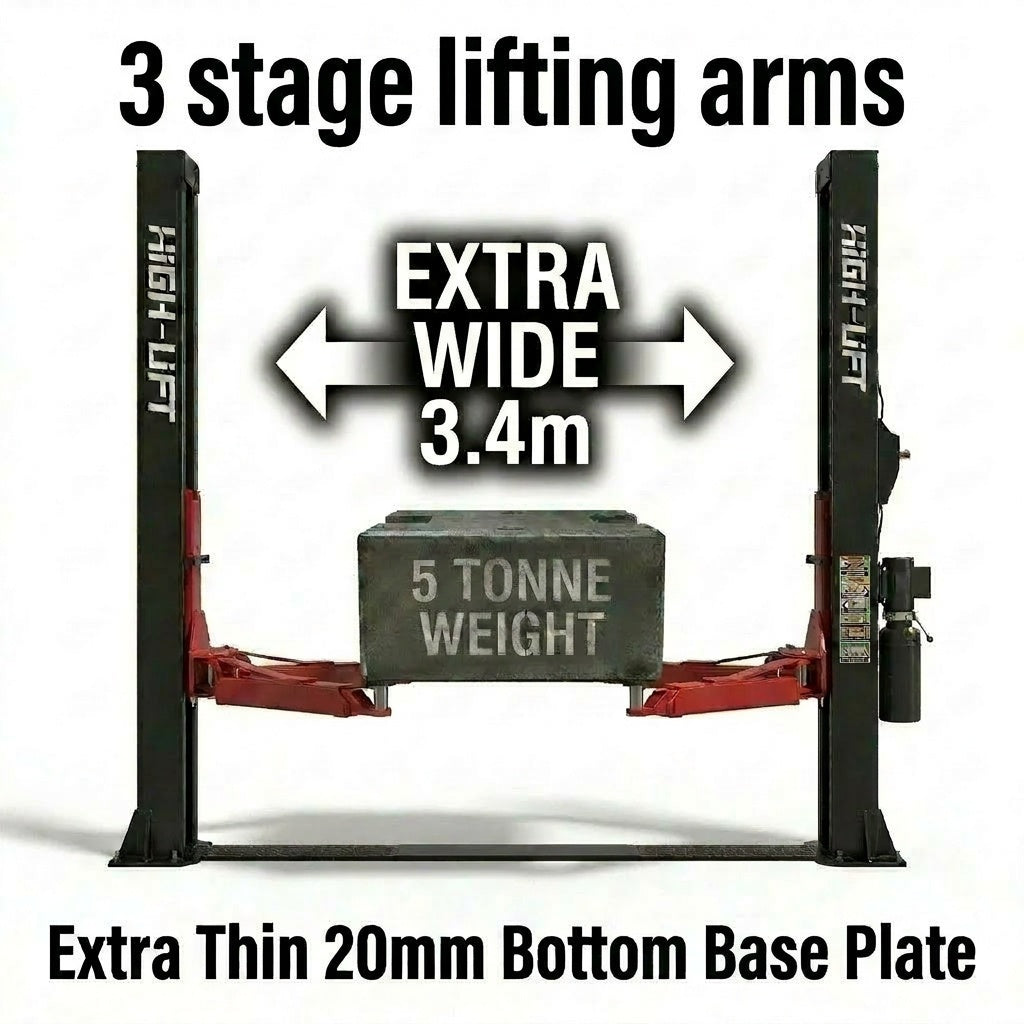

  • 3-Stage Low Profile Telescopic Arms — Heavy-duty 4 x 3 stage 1800mm symmetric lift arms adjust across three distinct telescoping stages to reach precise manufacturer chassis pick-up points on short or long-wheelbase vehicles.
  • Single-Point Lock Release — A centralised mechanical release handle disengages the safety locks on both columns simultaneously to accelerate lowering cycles and improve workshop efficiency.

  • Safety Features

    • Anti-surge valve
    • Automatic mechanical carriage locks
    • Automatic mechanical arm locks
    • Standard column curtain

    What’s Included?

    • 2 post hoist with all bolts, cables, lines and fixings
    • 240V hydraulic power unit (415v Optional)
    • Concrete anchor bolts
    • Detailed installation instructions

    What’s Not Included?

    • Hydraulic oil ISO 46 Grade Required
    • Setup electrical connection

    Shed Requirements

    • 115mm deep concrete at 32mpa

Installation Manual

Workcover Registration

Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

Unlike standard 4-tonne or narrower 5-tonne models that restrict drive-through access and limit door clearance on wide-track commercial vehicles, this extra-wide lifting system features an expansive 3.4-metre spacing between columns to ease bay placement. It is engineered explicitly for high-volume commercial fleet operators, diesel repair garages, and agricultural service workshops managing wide light trucks, service utilities, and oversized four-wheel drives.

Key Features

  • Optimised Structural Footprint — Extra-large column base plates distribute heavy vertical lifting loads across a wider surface area to reduce localised structural stress on the concrete foundation.
  • Dual Hydraulic Rams — Two high-pressure industrial hydraulic cylinders working alongside high-strength leaf chains deliver smooth, synchronised vertical travel and balanced load control.
  • Self-Lubricating Slide Blocks — High-density polyethylene wear pads protect internal carriage movement and minimise mechanical friction along the steel columns for prolonged operational life.

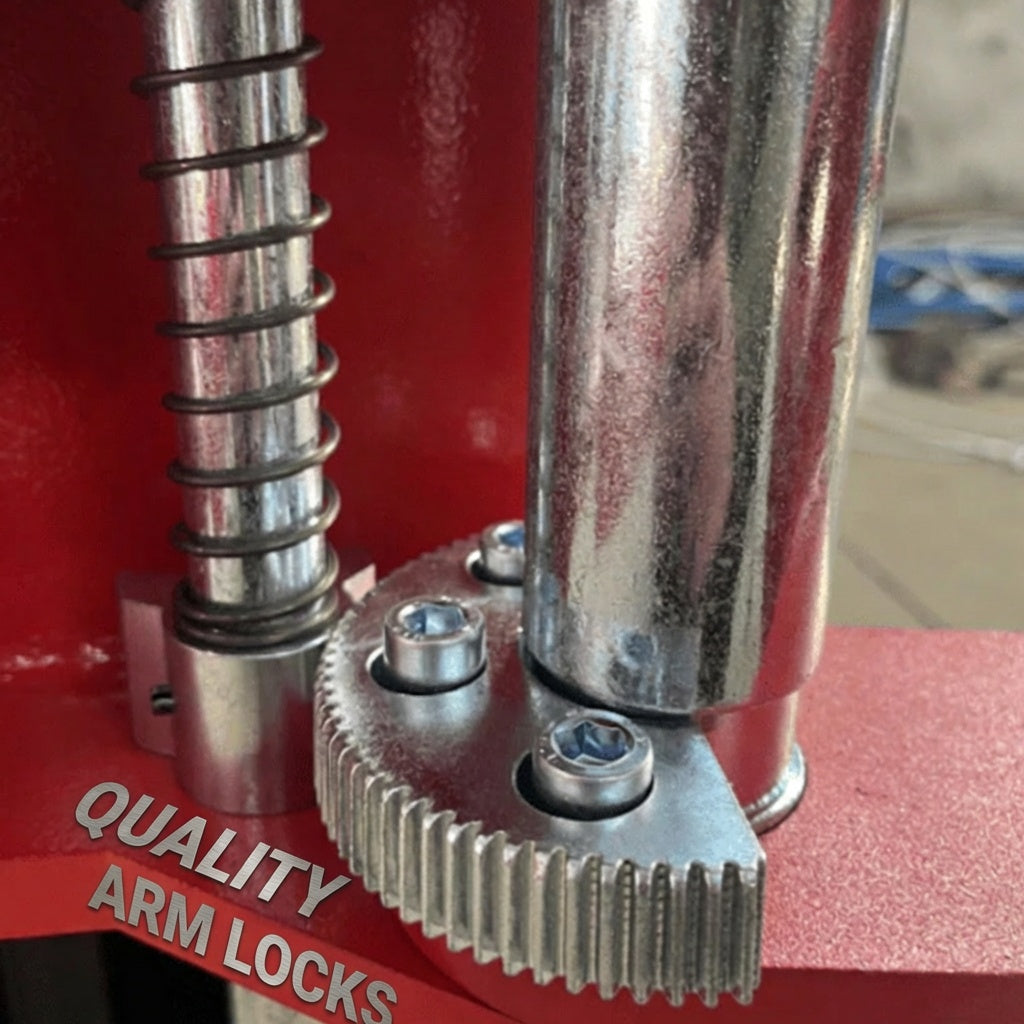

  • Automatic Arm Restraints — Heavy-duty gear ring locks engage automatically upon ascent to fix the position of the three-stage arms and eliminate any pivoting risks while under load.

Before You Order

Installation requires a level, fully cured concrete slab with a minimum thickness of 115 mm and a compressive strength rating of 32Mpa. The electro-hydraulic power pack operates via a standard 240 V single-phase electrical supply connected to a dedicated 15 A circuit breaker (should not operate off of a 10amp extension lead). Ensure your designated workshop bay provides sufficient floor space to accommodate the expanded overall width and that the 2850 mm column height clears all low roof profiles and hanging garage doors.

What's Included

  • Two extra-wide 5000 kg structural steel column assemblies
  • Four three-stage telescoping symmetric lifting arms with automatic gear locks
  • Low-profile steel floor plate cover and internal hydraulic line links
  • Two industrial-grade hydraulic cylinders with high-strength leaf chains
  • 240 V single-phase hydraulic power unit with integrated fluid reservoir

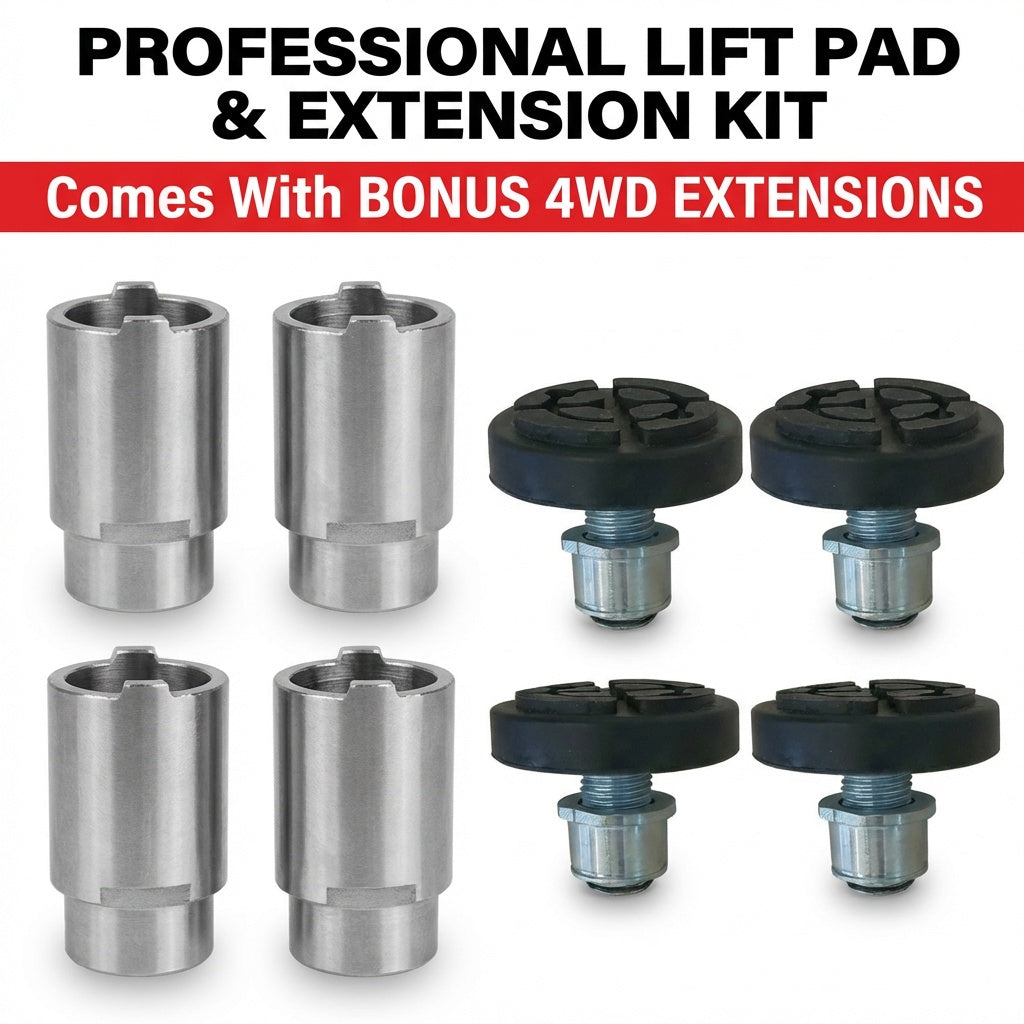

  • Four screw-adjustable pick-up pads and four high-clearance extension sleeves
  • Heavy-duty steel synchronisation cables and concrete floor anchor bolts

Please note that AW46 grade hydraulic oil is sold separately.

To maximise the productivity of your expanded service bay, consider combining this extra-wide lifting system with our heavy-duty truck tyre changers, high-capacity wheel balancers, or mobile transmission jacks. Contact our technical sales team for trade pricing configurations and transport logistics to your site.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation
