YL-250 Base Plate Car Hoist 5 Tonne Extra Thick Columns Single Point Release 5000kg

$3,950.00
$4,050.00

In stock

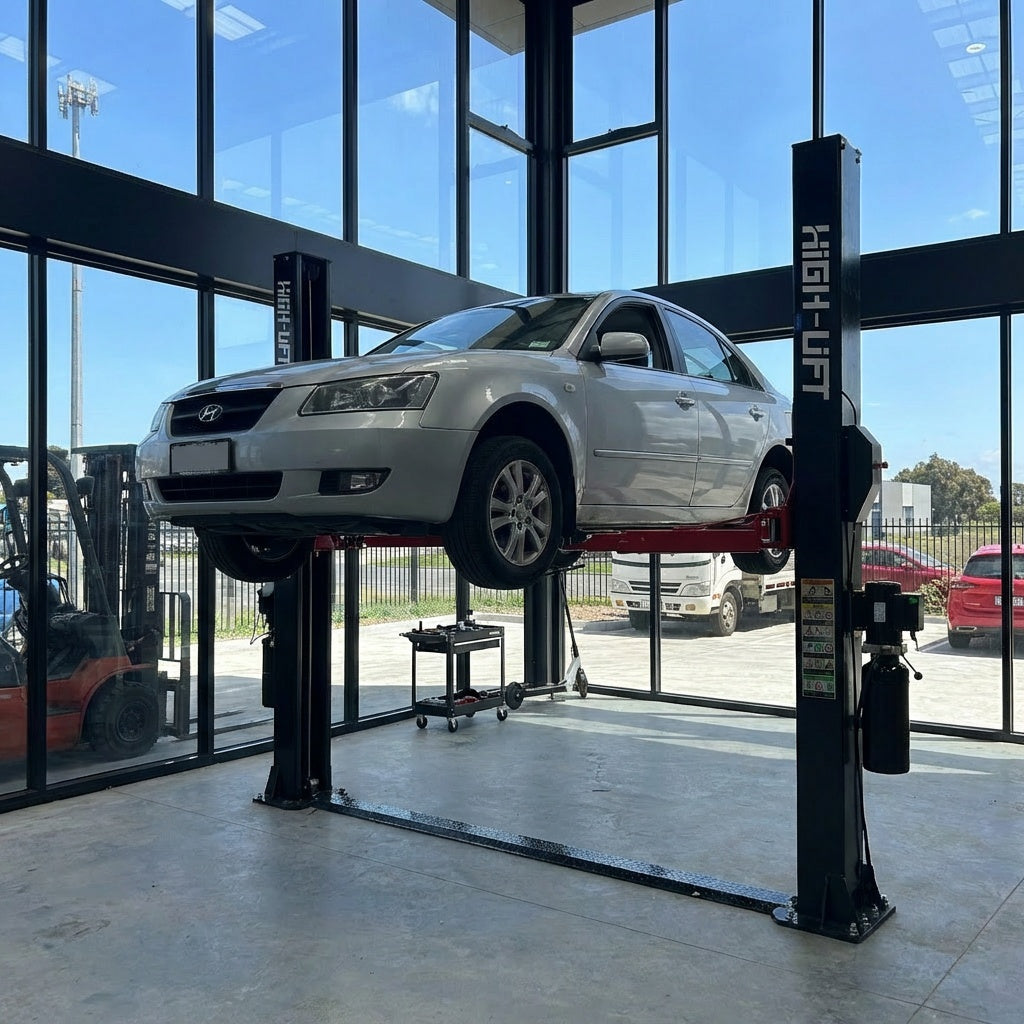

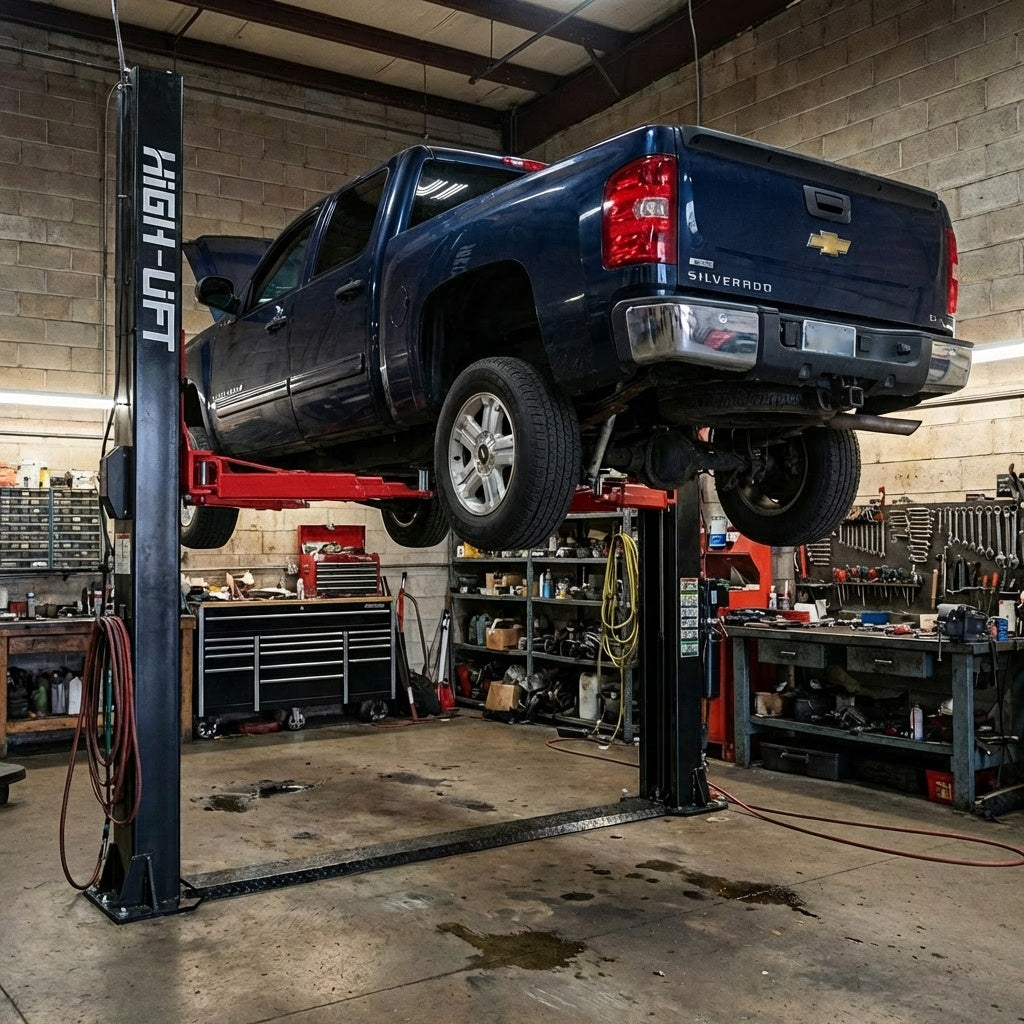

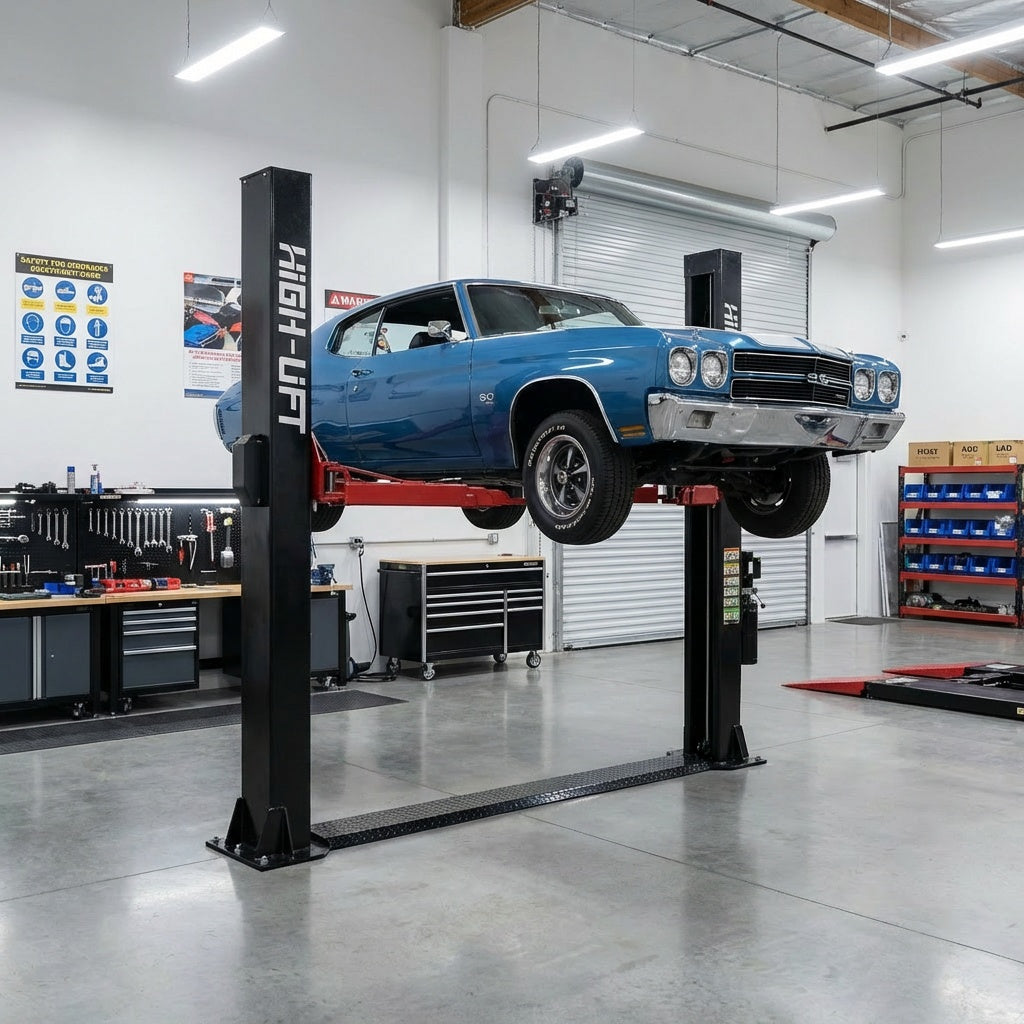

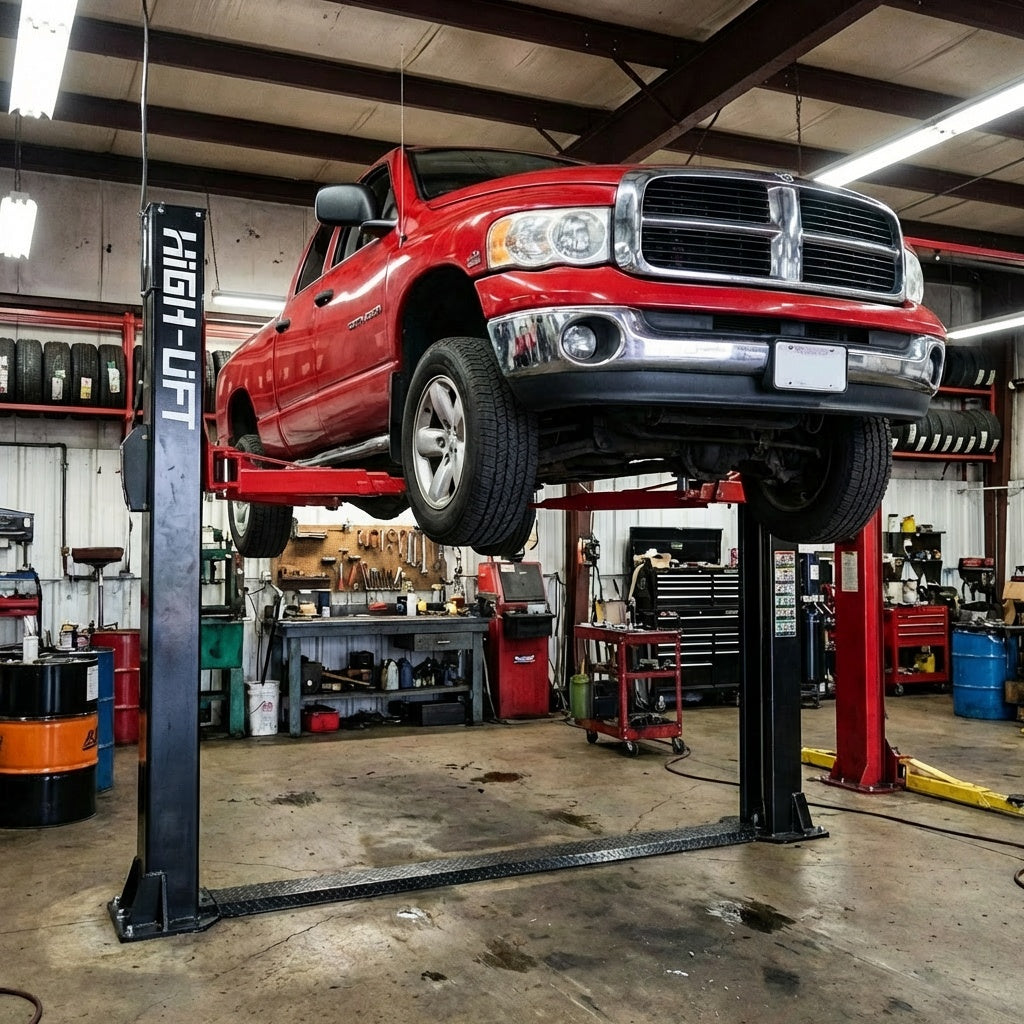

This heavy-duty two-post floor plate vehicle hoist provides an engineered lifting solution for commercial workshops managing wide, heavy, and long-wheelbase transport fleets. Featuring an expanded 5000 kg structural capacity, it allows mechanical trade specialists to lift heavy work utilities, four-wheel drives, and light commercial vehicles safely under low-clearance ceilings. The low-profile steel floor plate protects internal synchronisation cables and hydraulic hoses while maintaining a completely open overhead layout for tall vans.

  • Expanded 5-Tonne Capacity — Heavy-duty structural steel profiles are engineered to securely elevate high-gvm commercial vehicles, mid-sized trucks, and fully laden trade utilities.

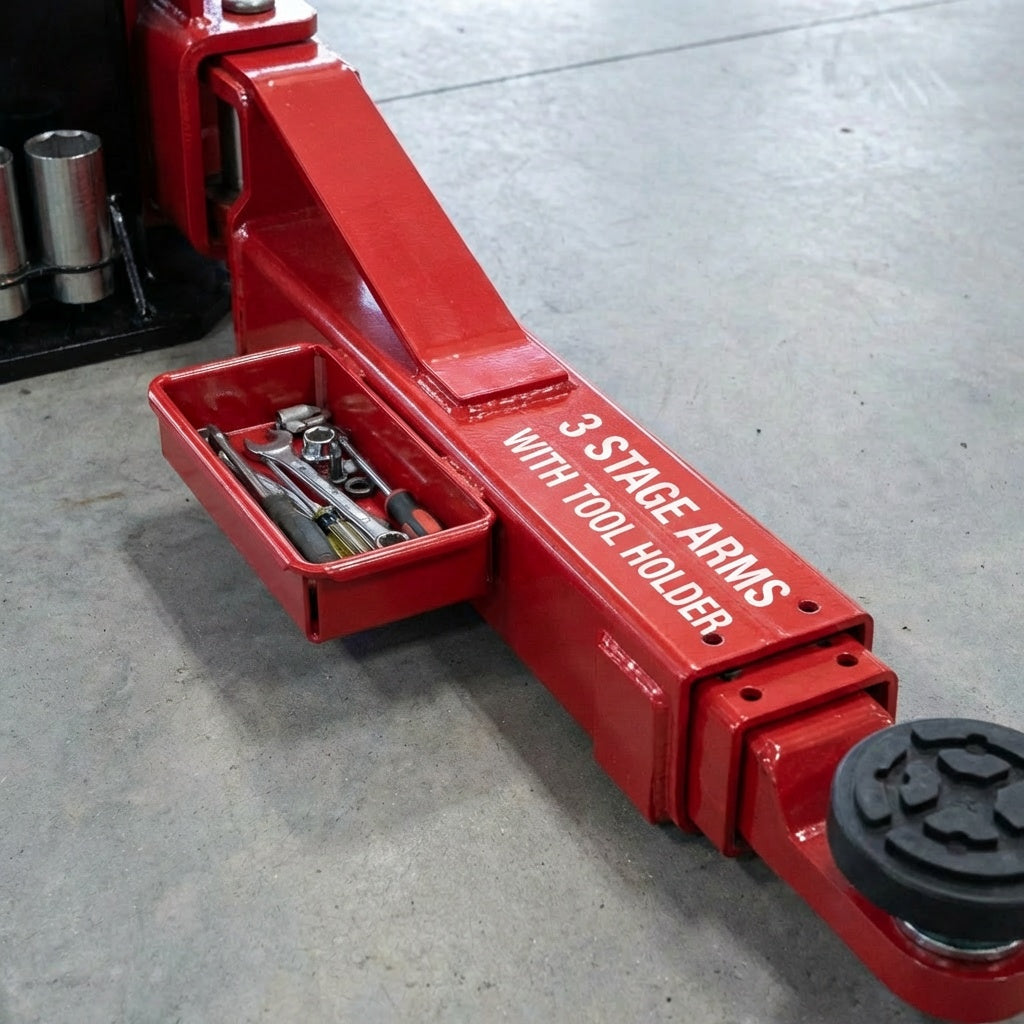

  • 3-Stage Extension Arms — Versatile symmetric lifting arms extend across three distinct stages to reach optimal factory chassis pick-up points on both short and long-wheelbase chassis.
  • Single-Point Lock Release — A centralised mechanical release handle allows the technician to unlock both columns simultaneously to speed up lowering cycles and increase bay throughput.
  • Dual Hydraulic Rams — Two high-pressure industrial hydraulic cylinders work in tandem with high-strength leaf chains to deliver synchronous carriage travel and balanced load distribution.

  • Safety Features

    • Anti-surge valve
    • Automatic mechanical carriage locks
    • Automatic mechanical arm locks
    • Standard column curtain

    What’s Included?

    • 2 post hoist with all bolts, cables, lines and fixings
    • 240V hydraulic power unit (415v Optional)
    • Concrete anchor bolts
    • Detailed installation instructions

    What’s Not Included?

    • Hydraulic oil ISO 46 Grade Required
    • Setup electrical connection

    Shed Requirements

    • 115mm deep concrete at 32mpa

Installation Manual

Workcover Registration

Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

Unlike standard 4000 kg or 4500 kg hoists that experience structural flex and reach limitations when positioned under long-wheelbase commercial vans, this 5-tonne lifting system uses reinforced steel columns and robust internal carriages to guarantee absolute stability. It is engineered explicitly for high-volume commercial fleet workshops, diesel repair garages, and local maintenance bays requiring heavy lifting capability within a restricted-height workspace.

Key Features

  • Reinforced Column Base Plates — Extra-wide mounting feet distribute heavy vertical loads across a larger floor surface area to reduce structural stress on the underlying concrete slab.

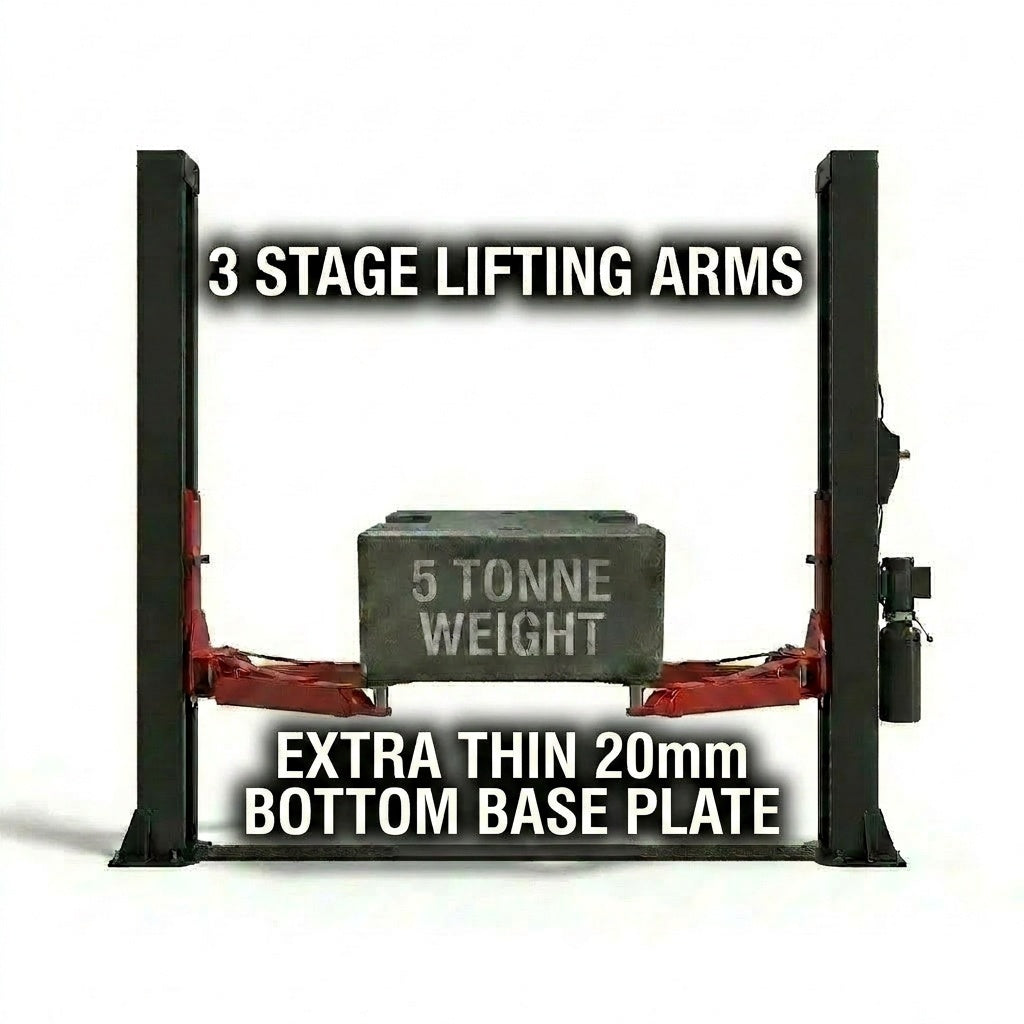

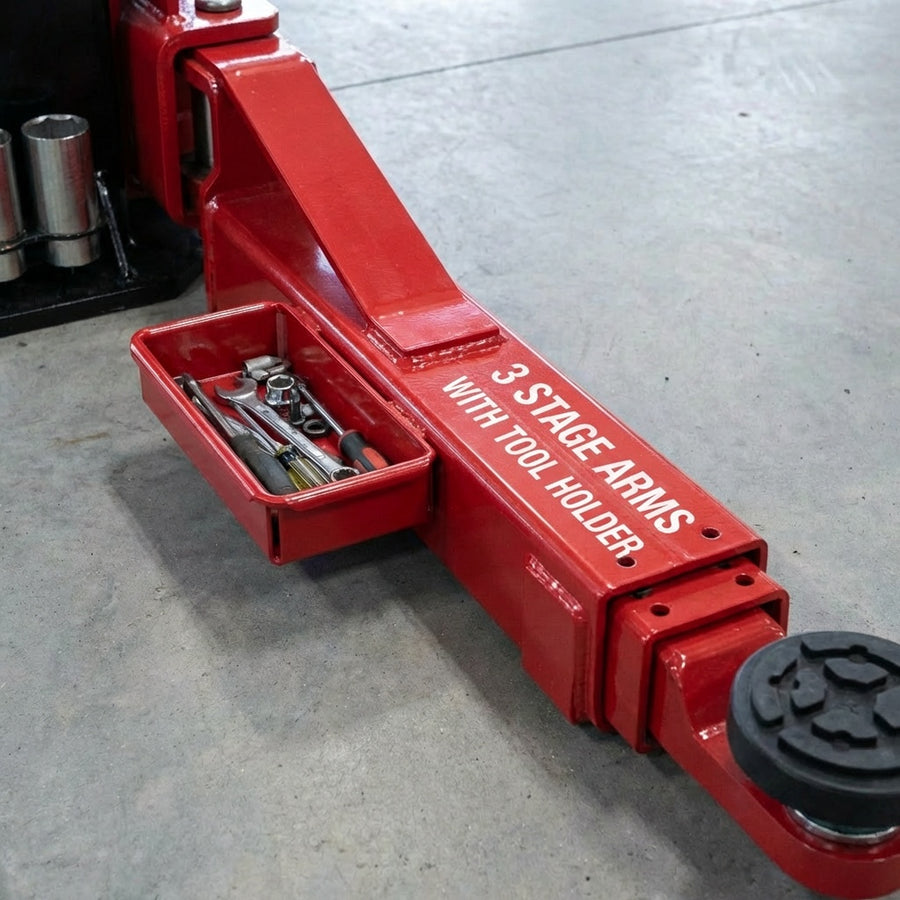

  • Flexible Three-Stage Arms — All four lifting arms feature a three-stage telescoping configuration, allowing the hoist to adjust seamlessly between compact passenger cars and extra-long commercial delivery vehicles.
  • Polyethylene Slider Blocks — Self-lubricating, high-density wear pads ensure smooth vertical carriage movement up and down the steel columns while minimising mechanical friction.

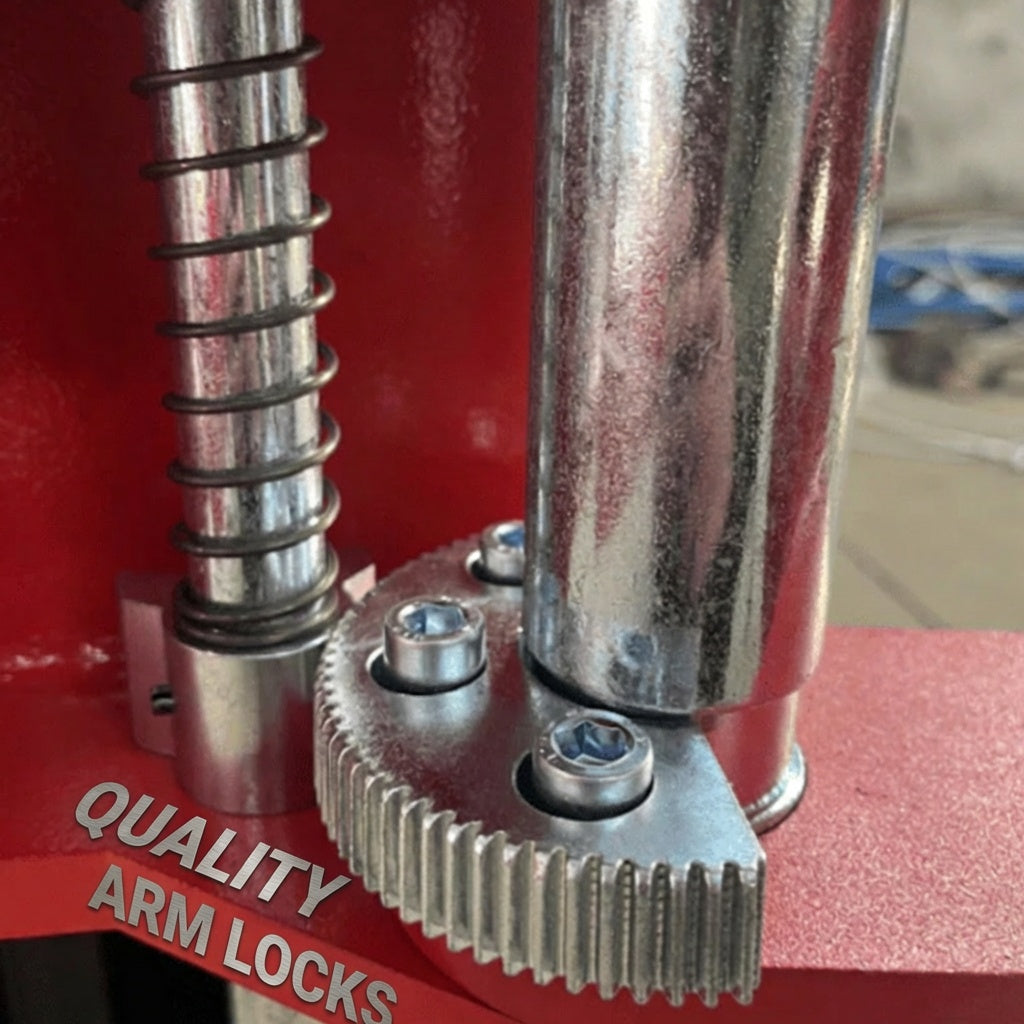

  • Automatic Arm Restraints — Heavy-duty gear ring locks engage automatically upon ascent to fix the position of the three-stage arms and eliminate any pivoting risks while under load.

Before You Order

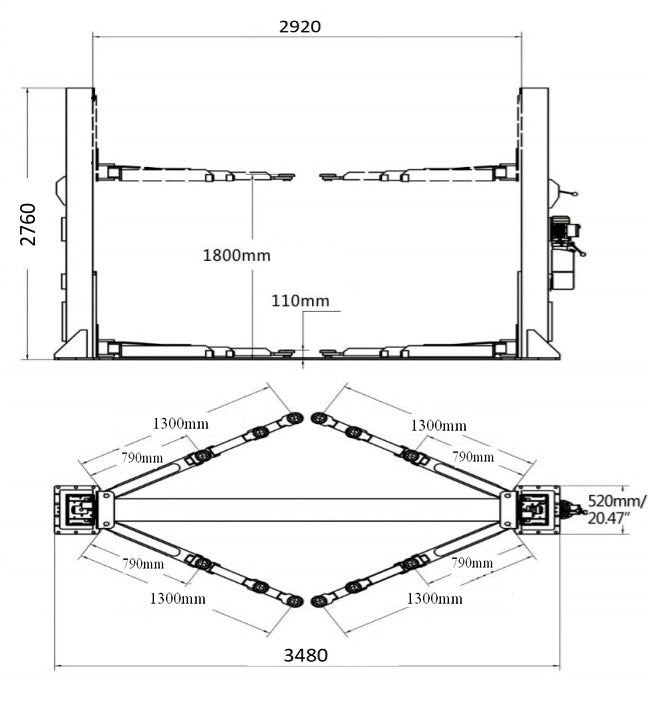

Installation requires a level, fully cured concrete slab with a minimum thickness of 115 mm and a compressive strength rating of 32 MPA. The electro-hydraulic power pack operates via a standard 240 V single-phase electrical supply connected to a dedicated 15 A circuit breaker (should not operate off of a 10amp extension lead). Ensure your designated workshop bay accommodates the 3500 mm overall width and that the 2794 mm column height safely clears all structural roof beams and overhead warehouse lighting.

What's Included

  • Two reinforced 5000 kg structural steel column assemblies
  • Four three-stage telescoping symmetric lifting arms with automatic gear locks

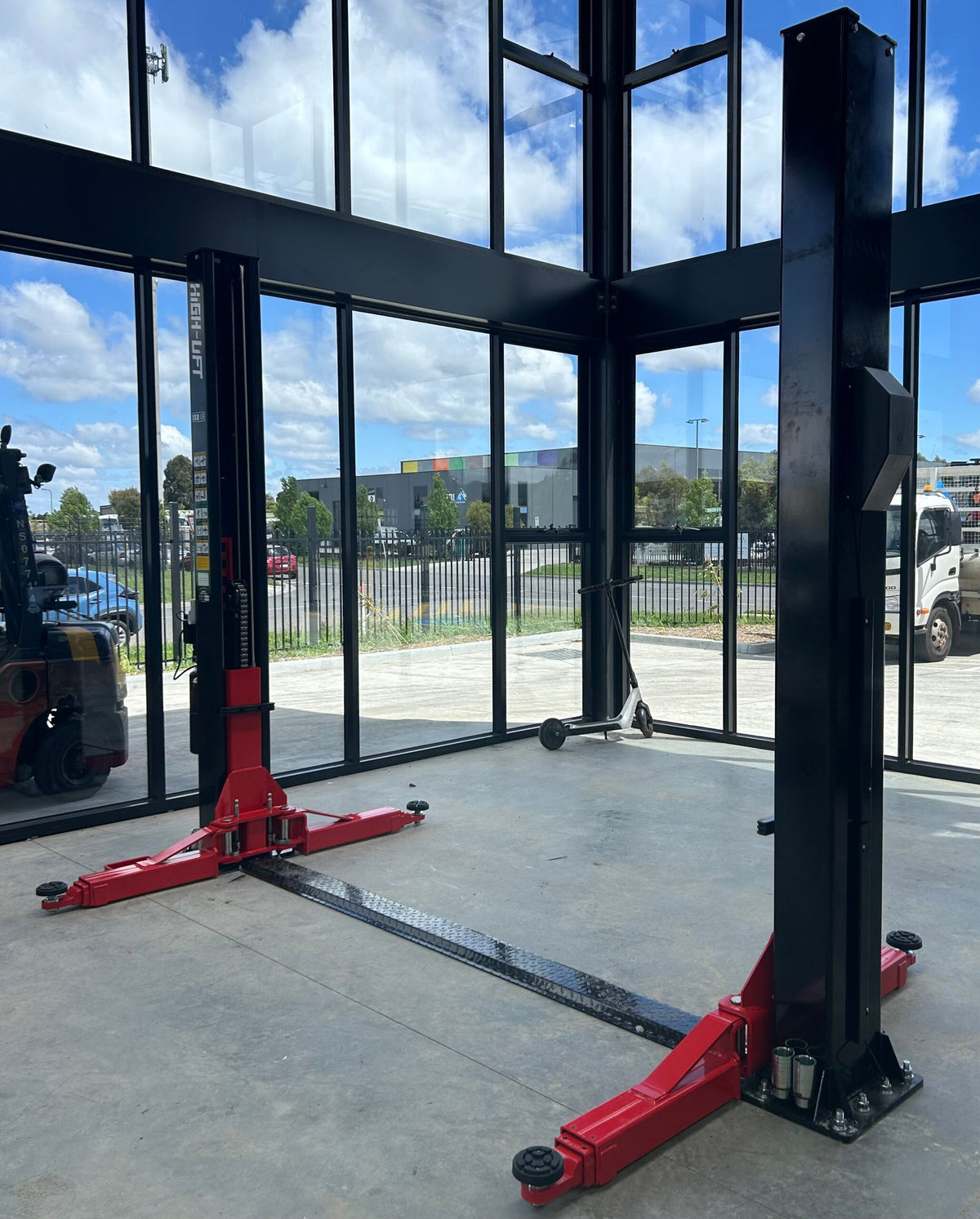

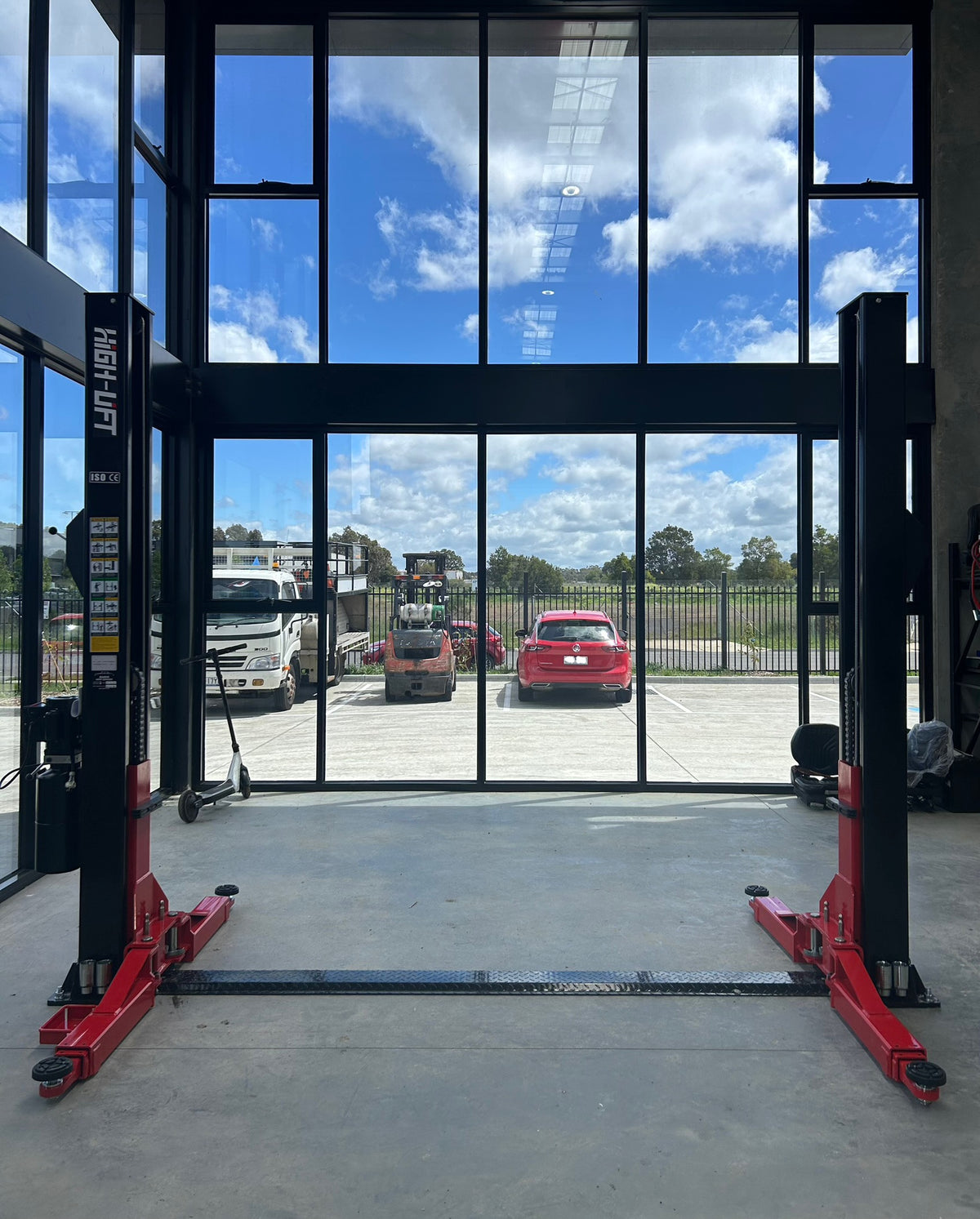

  • Low-profile steel floor plate cover and internal hydraulic line links
  • Two industrial-grade hydraulic cylinders with high-strength leaf chains
  • 240 V single-phase hydraulic power unit with integrated fluid reservoir

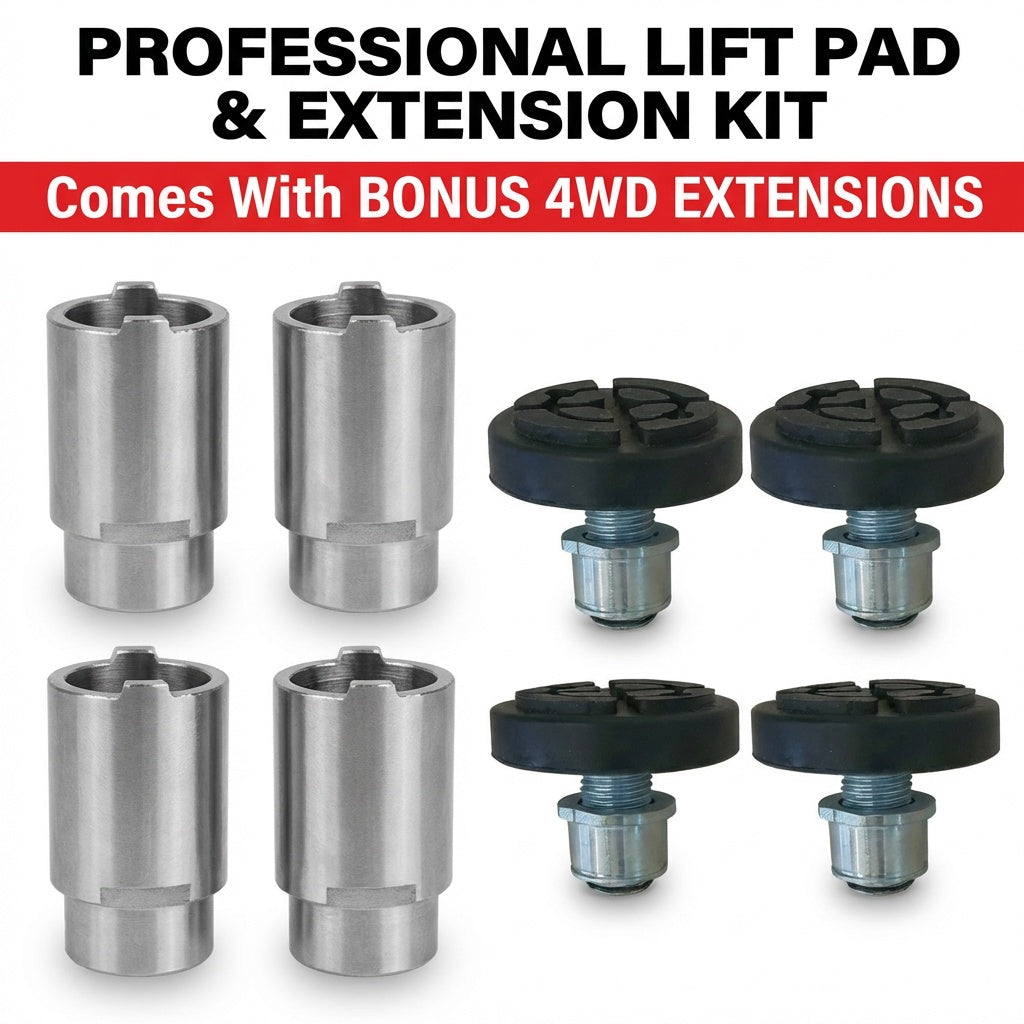

  • Four screw-adjustable pick-up pads and four high-clearance extension sleeves
  • Heavy-duty steel synchronisation cables and concrete floor anchor bolts

Please note that AW46 grade hydraulic oil is sold separately.

To maximise your commercial workshop efficiency, consider combining this 5-tonne lifting system with our heavy-duty truck tyre changers, high-capacity wheel balancers, or mobile transmission jacks. Contact our technical sales team for trade package configurations and transport logistics to your site.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation.


Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
