Highlift 15 Ton 4 Post Truck Hoist Extra Long 7.5Meters

$25,600.00
$30,000.00

In stock

he High-Lift YL-15 Is Suitable for Both Medium & Heavy Rigid Trucks

The High-Lift industrial-grade 4-post hoist is a serious piece of kit, built with a massive 15,000kg structural lifting capacity to handle heavy commercial trucks, oversized fleet vehicles, and multi-axle municipal fleet. Purpose-built as a dual-function heavy vehicle hoist, it delivers exceptional structural rigidity across its extended runways — giving you the strength and stability needed for serious commercial work.

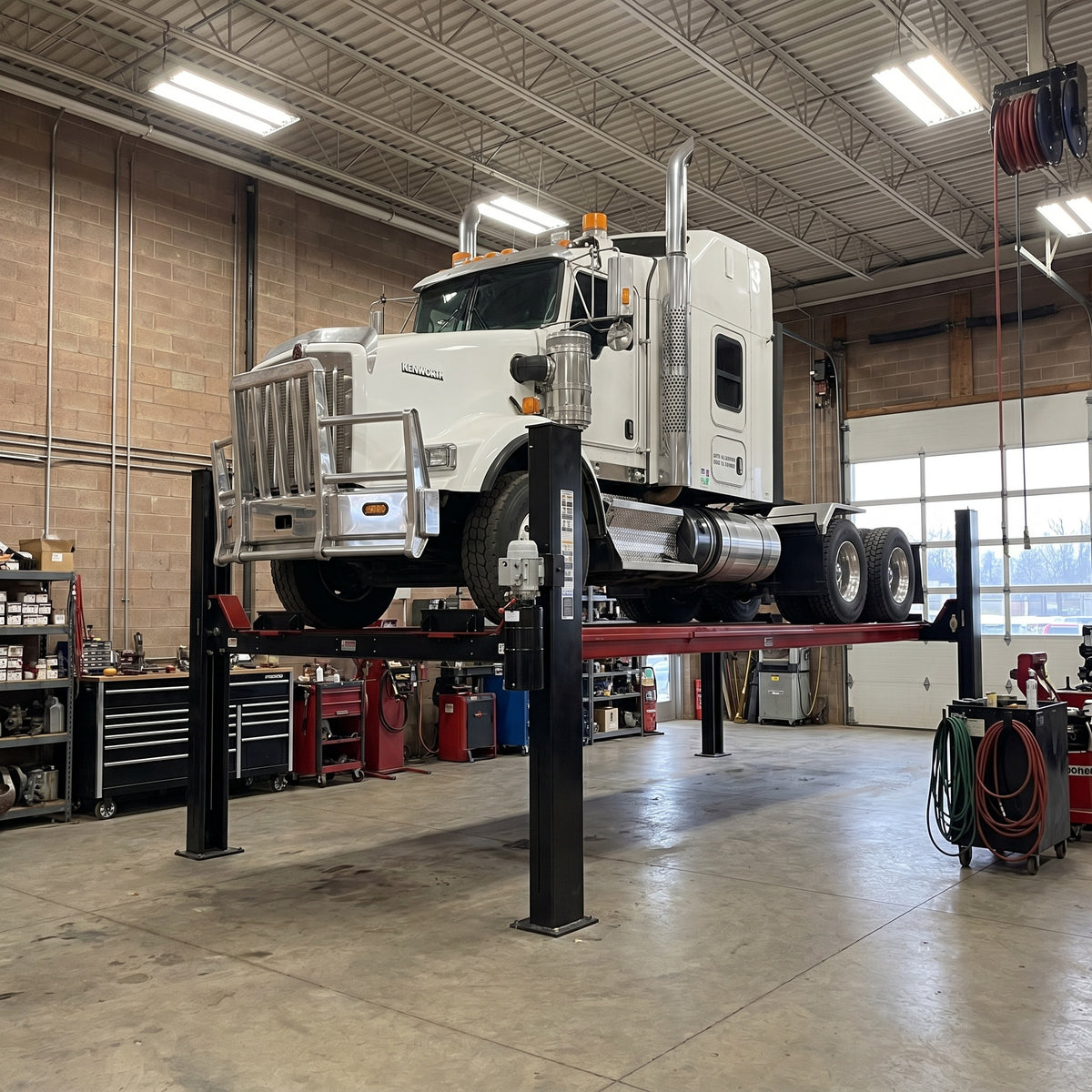

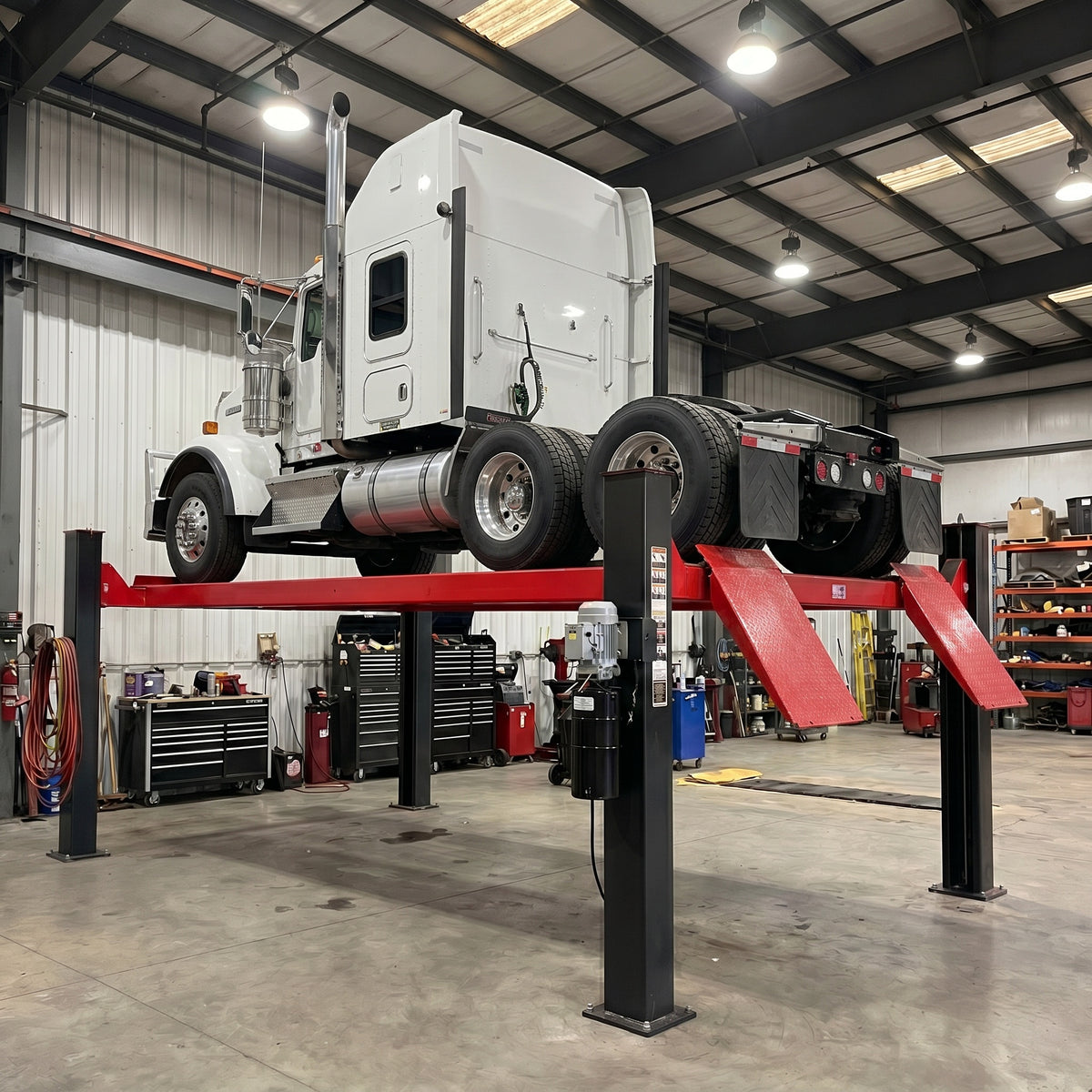

The extra-wide drive-through clearance and heavy-duty approach ramps make loading a breeze, allowing logistics trucks, buses, and large vocational vehicles to be lifted smoothly and safely — no fuss, no compromise on safety.

  • 15-Tonne Lifting Capacity — Over-engineered structural steel profiles handle massive gross vehicle masses, providing commercial diesel and fleet garages with maximum lifting safety.
  • Pneumatic Safety Lock Release — Multi-position mechanical locking ladders inside each column engage automatically during ascent and disengage simultaneously via a centralized air-operated release valve.

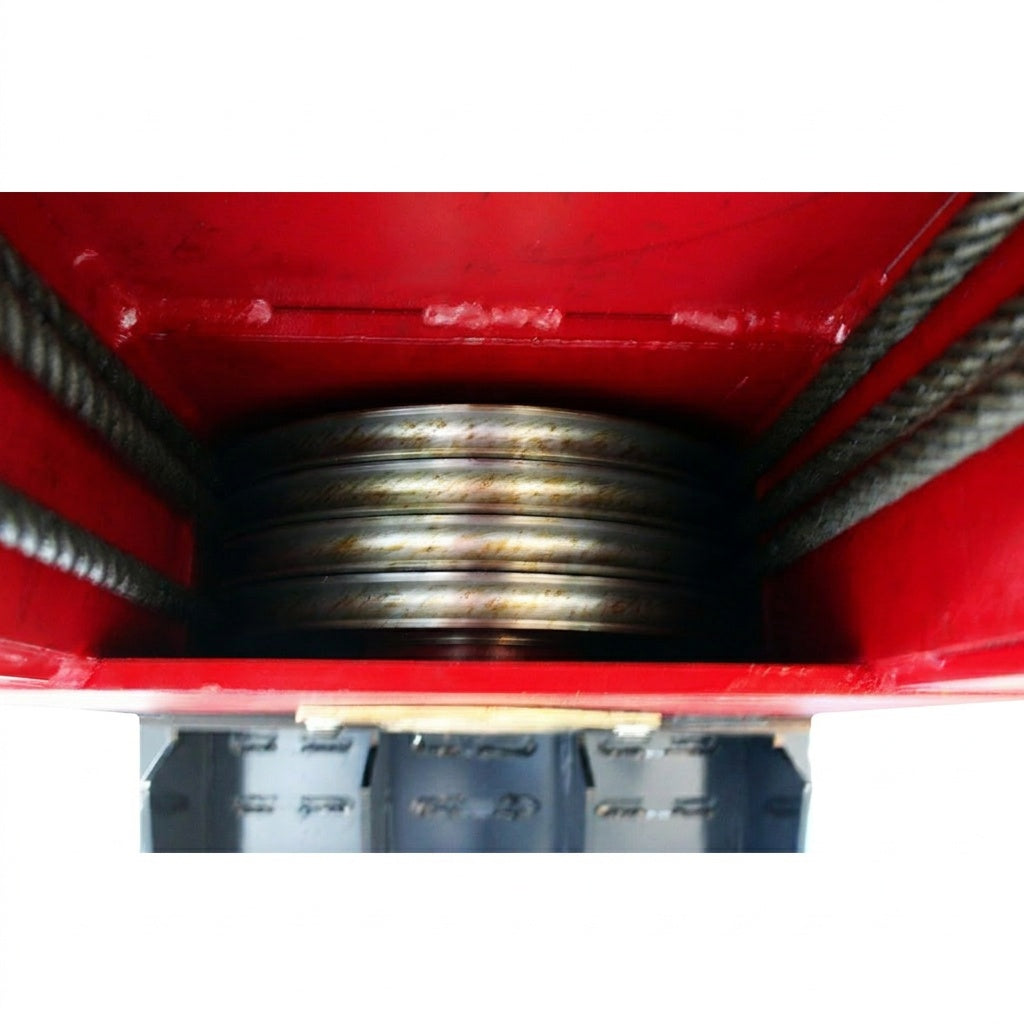

  • Industrial Cable Synchronization — Extra-thick high-tensile steel synchronization ropes route safely through heavy-duty pulley blocks to maintain perfectly level runway travel under off-center axle weights.
Features
  • Heavy Duty Commercial Hoist
  • This hoist is perfect for professional workshops.
  • Diamond plated platforms
  • Powder coated finished

Options:

  • Sliding Jack - RJQ-13500
  • Steel Tool Tray
  • Jacking Plate

Safety:

  • Mechanically locks each (170mm) interval
  • Anti-surge valve
  • Cable slack locks

Installation Manual

Workcover Registration

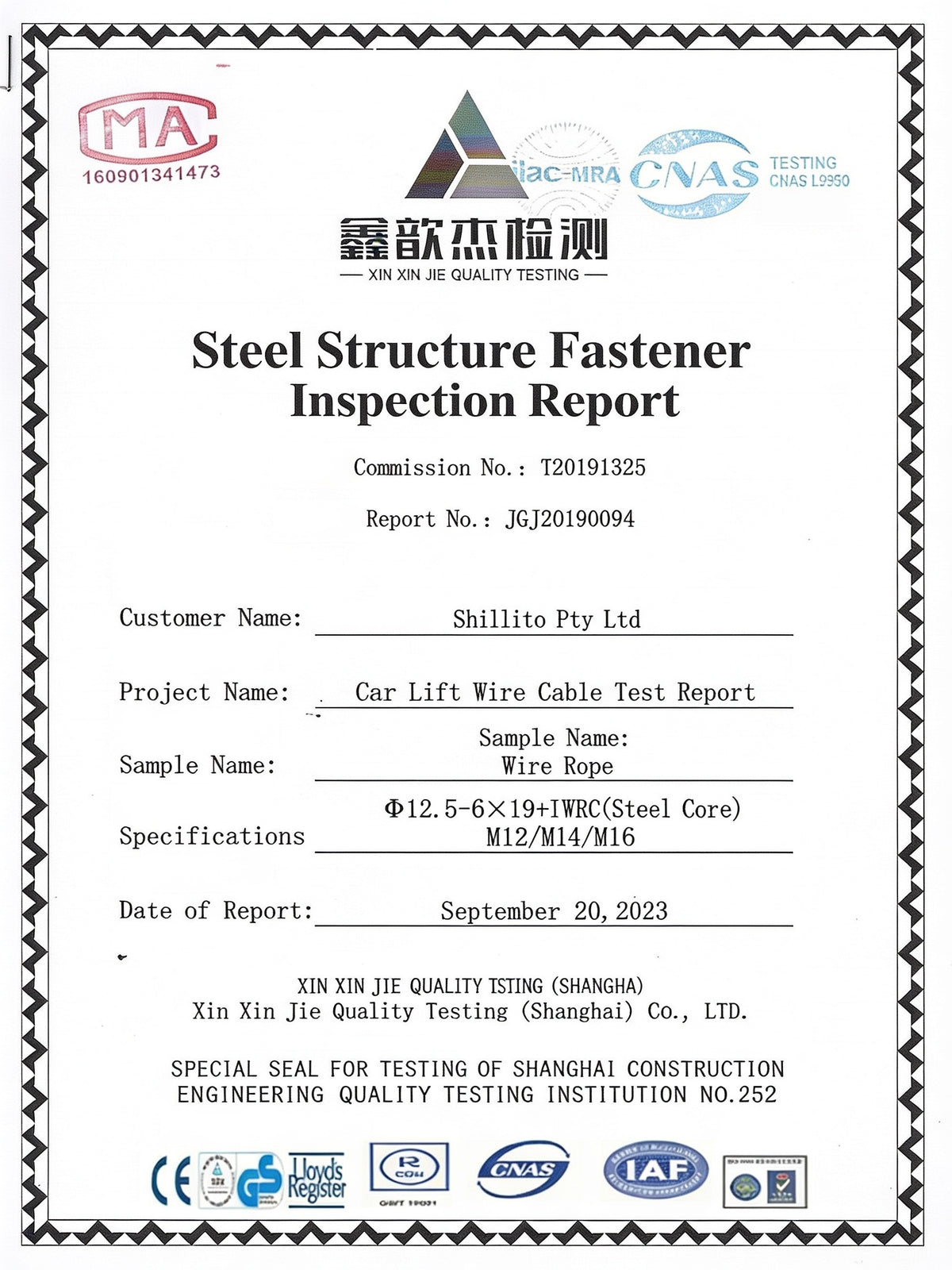

Lifting Cable Compliance Certificate

Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

The High-Lift YL-15, 15 Tonne 4-Post Hoist is a robust, reliable solution built specifically designed for working on ight to medium rigid trucks. Its durable powder-coated finish adds versatility for a range of maintenance tasks, while a strong focus on safety and performance ensures your hoist will run efficiently and securely every time.

Key Features

  • Over-Engineered Runway Architecture — Premium structural steel tracks distribute massive vertical lifting forces over an expanded surface area to eliminate structural deflection during extended servicing cycles.
  • High-Output Hydraulic System — An industrial-grade high-pressure hydraulic cylinder positioned safely beneath the main runway delivers quiet, synchronous, and smooth vertical travel under maximum load weights.

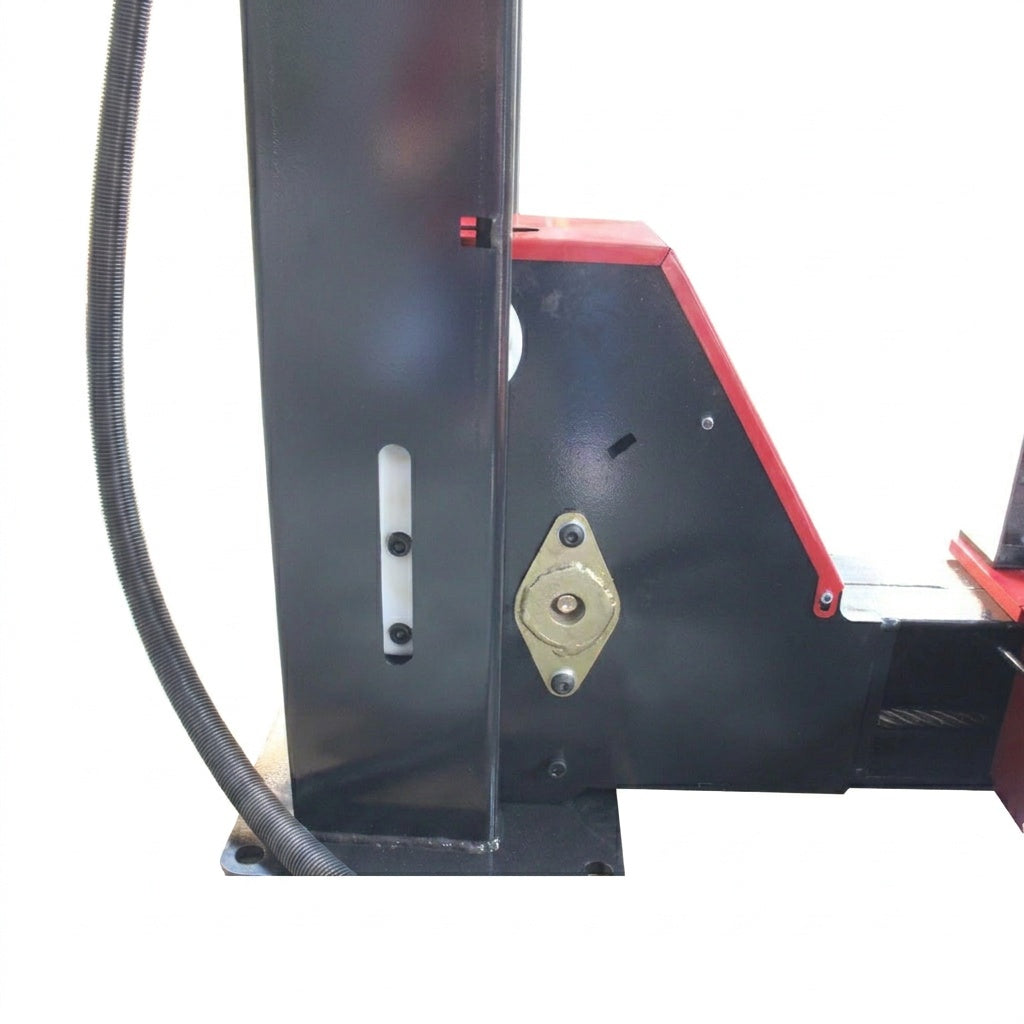

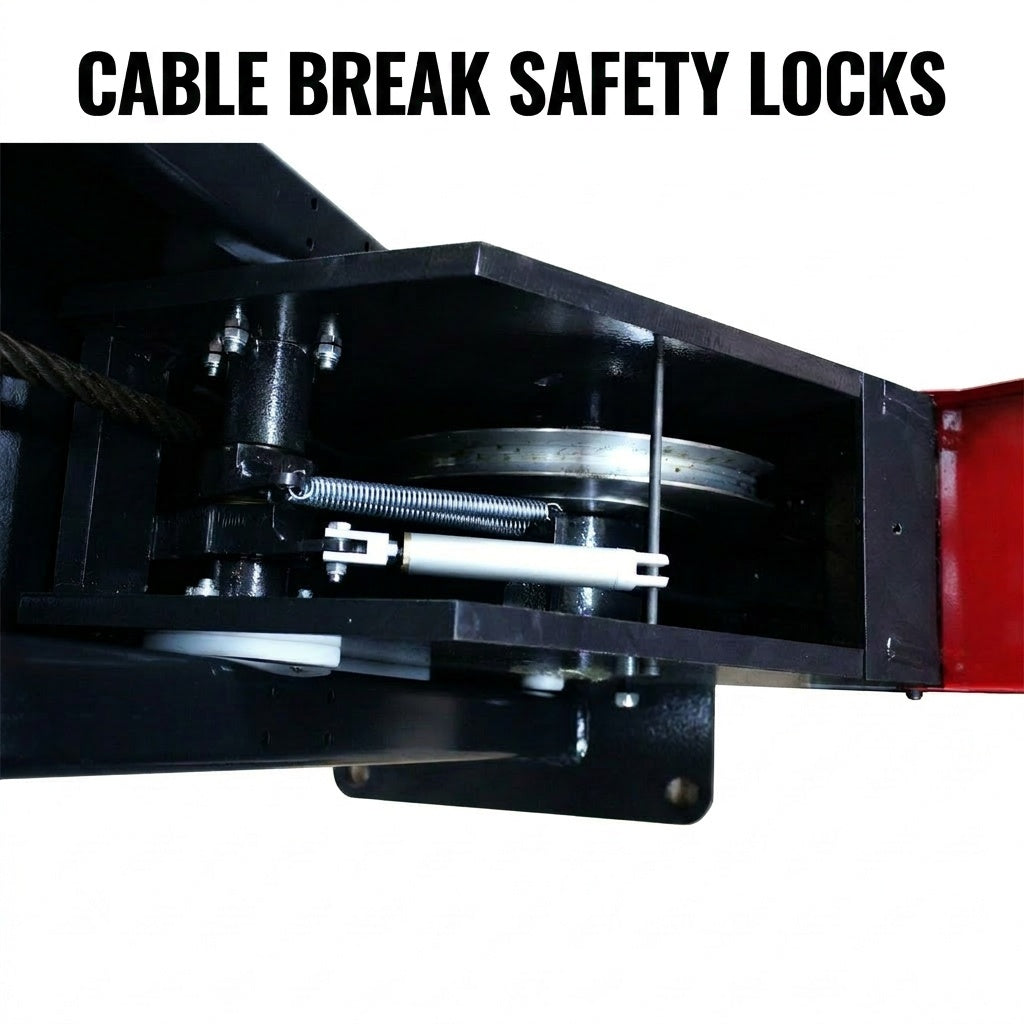

  • Slack Cable Safety Interlocks — An integrated secondary mechanical backup mechanism drops into the locking ladder instantly if any synchronization cable experiences a loss of tension, fully protecting the technician underneath.

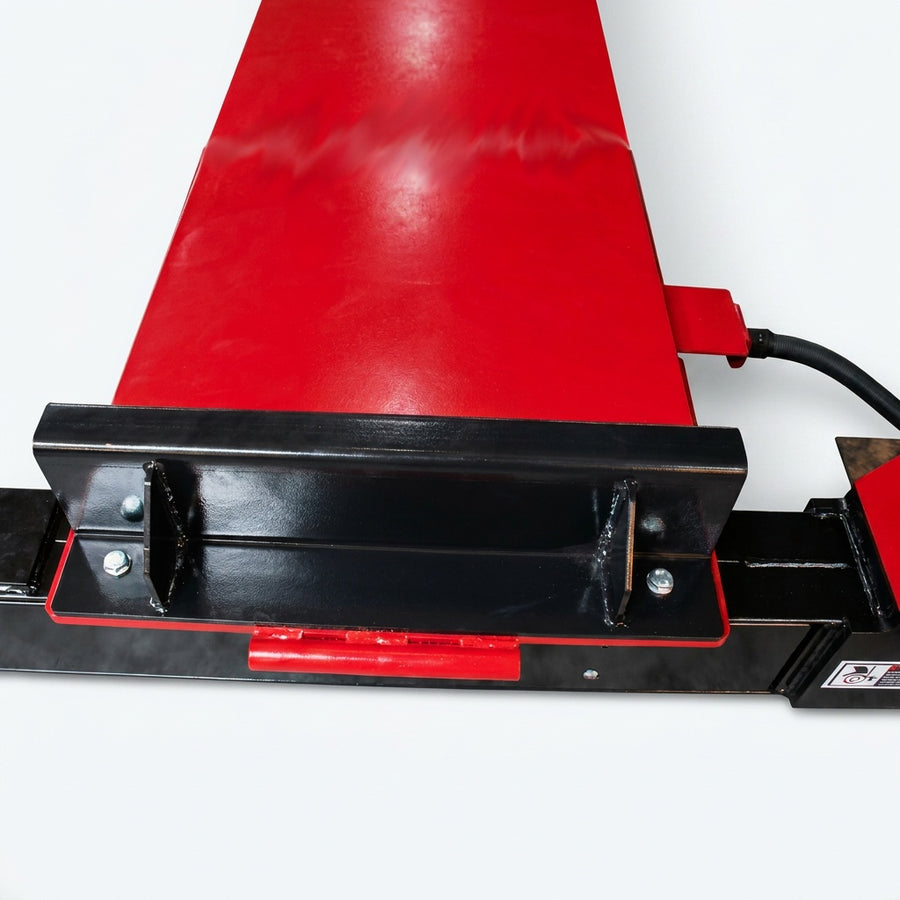

  • Heavy-Duty Approach Profile — Reinforced drive-on approach ramps feature a high-traction stamped surface pattern to ensure large-diameter commercial truck tyres mount the runways securely without slipping.

Before You Order

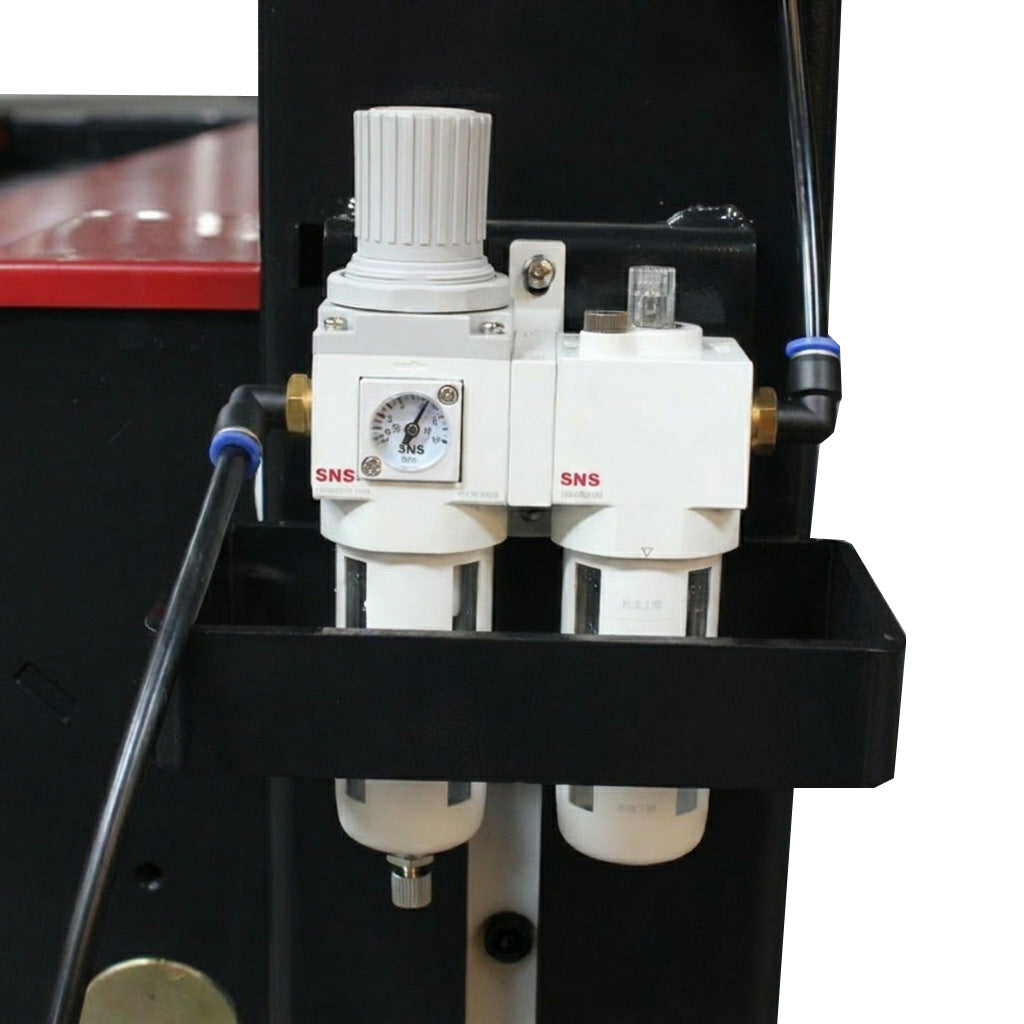

Installation requires a level, fully cured reinforced concrete slab with a minimum thickness of 200 mm and a compressive strength rating of 32Mpa. The pneumatic safety lock release mechanism requires a dedicated workshop compressed air connection maintaining a regular pressure supply of 6 bar to 8 bar. The heavy-duty electro-hydraulic power pack operates via an industrial 415 V three-phase electrical supply paired with a dedicated 20 A circuit breaker, which must be hardwired directly by a licensed commercial electrician.

What's Included

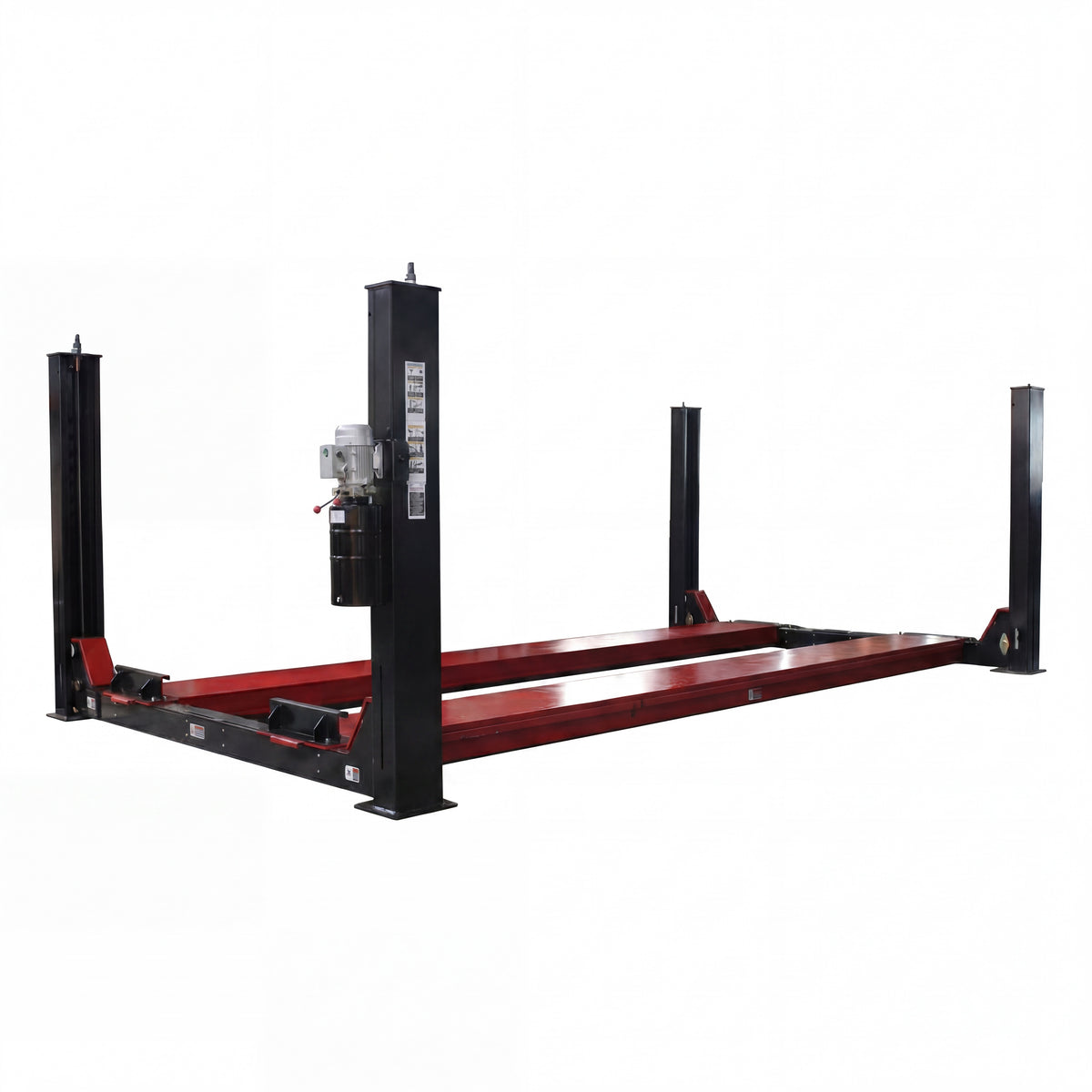

  • Four heavily reinforced industrial steel columns featuring internal mechanical locking ladders
  • Two heavy vehicle drive-on approach ramps with high-traction surface stamping
  • Complete set of extra-thick, high-tensile steel synchronization cables and heavy pulley blocks

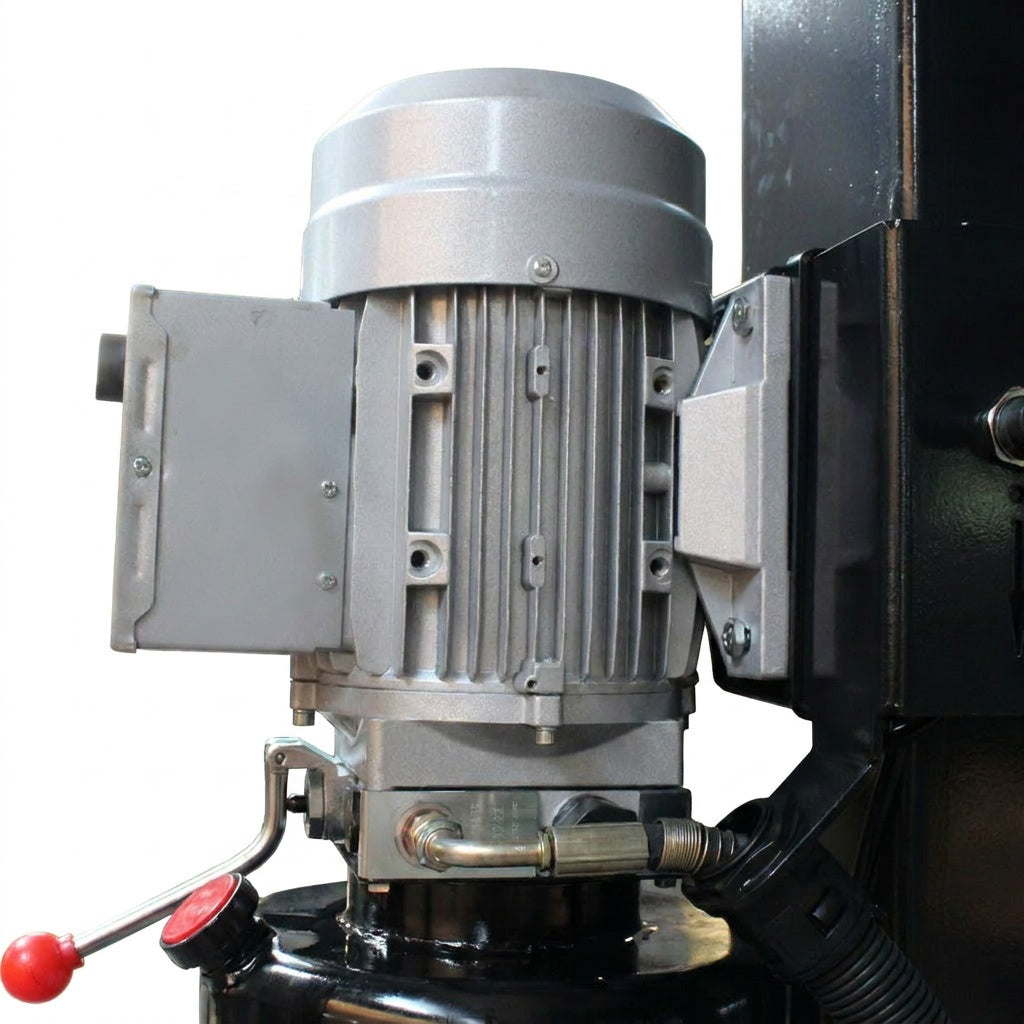

  • 415 V three-phase industrial hydraulic power unit with integrated push-button control station
  • Commercial-grade concrete floor anchoring bolts and high-tensile hardware installation pack

Please note that hydraulic fluid and heavy rolling jacking beams for wheel-free servicing are sold separately.

To establish a fully optimized heavy commercial service bay, consider combining this 15-ton truck lift with our heavy-duty commercial truck tyre changers, high-capacity truck wheel balancers, or commercial air-operated rolling jacks. Contact our technical sales team for trade package configurations and transport logistics to your site.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
