6-Ton Hydraulic Shop Floor Press with Press Plates and H Frame is Ideal for Gears and Bearings (inc GST)

$150.00
$240.00

In stock

This premium 6-tonne H-frame hydraulic workshop floor press delivers an elite mechanical force solution engineered specifically for lighter component assembly, component alignment, and precision fabrication tasks. Optimized for extracting and installing automotive gears, wheel bearings, suspension bushings, small pulleys, and universal joints, this sturdy unit features a robust, multi-position adjustable H-frame structure. Manufactured from thick structural channel steel and outfitted with high-tensile dual press plates, the manual hydraulic ram generates a concentrated 6-tonne downforce vector with minimal user effort. This allows independent mechanical repair garages, specialized engineering workshops, automotive restoration shops, and dedicated home fabricators to execute smooth, distortion-free pressing operations with absolute operator safety margins.

  • 6-Tonne Concentrated Force Profile — Houses a high-capacity manual hydraulic ram that smoothly steps up manual leverage to deliver 6 tonnes of raw, continuous mechanical pressing power.

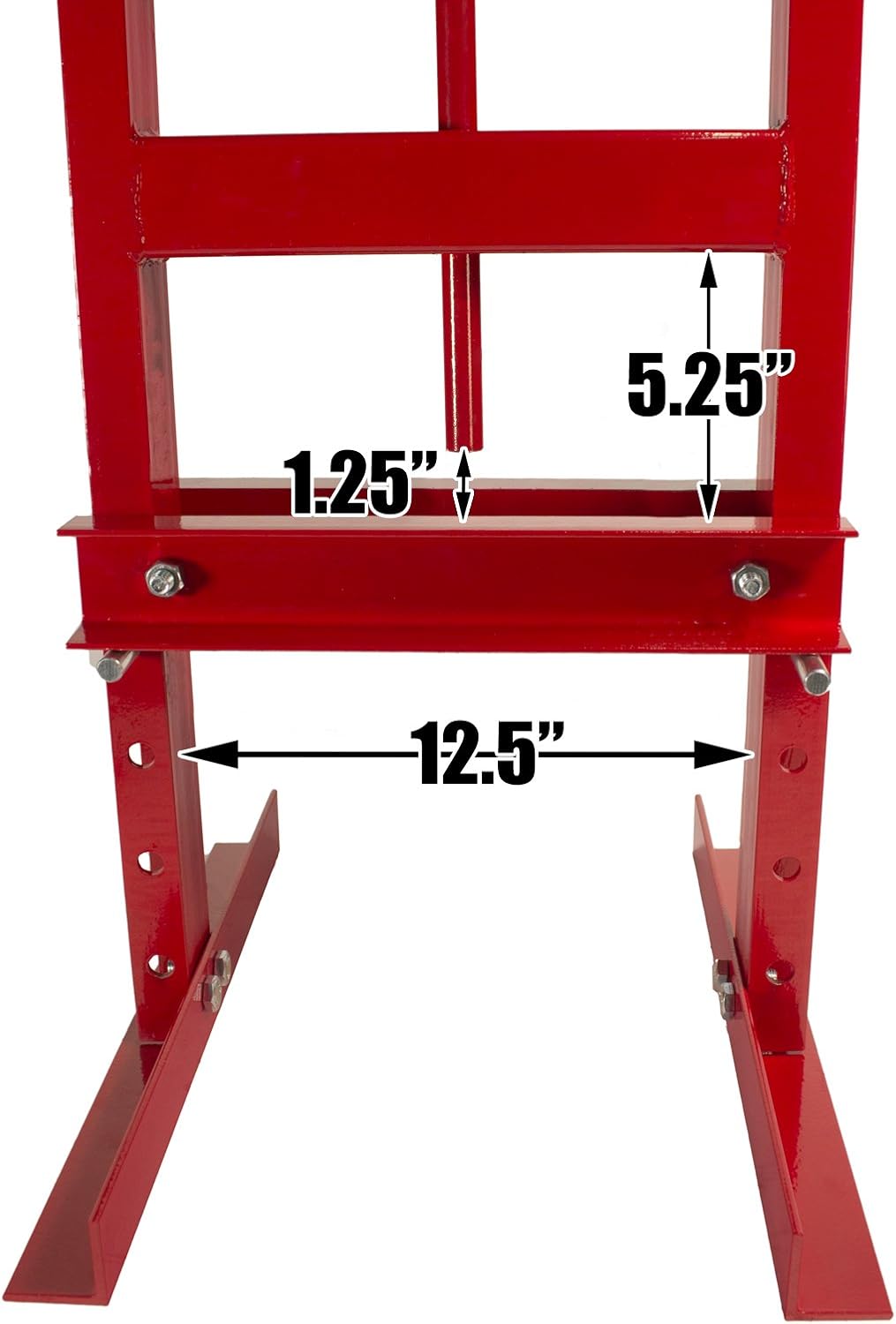

  • Multi-Position Adjustable H-Frame — Features a heavy-duty cross-member support beam that can be raised or lowered across multiple precision-spaced pin settings to cleanly match varying workpiece heights.

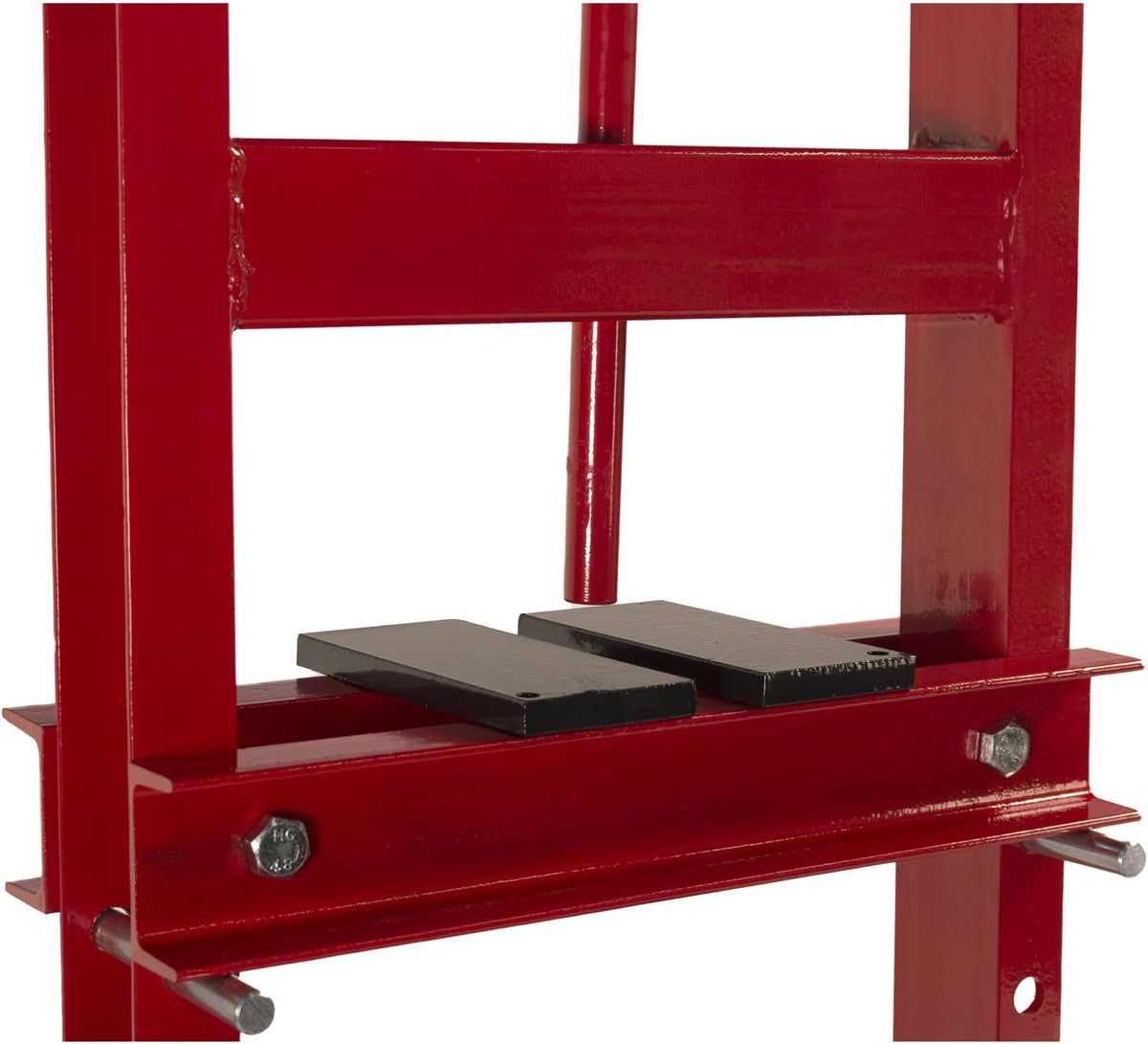

  • Dual High-Tensile Press Plates — Outfitted with a matching pair of heavy steel bolster blocks designed to safely cradle shafts, gears, and odd-shaped castings during high-pressure cycles.
  • Heavy-Gauge Channel Steel Construction — Fully welded and bolted structural steel framework engineered to resist frame flexing, twisting, and catastrophic structural failure under peak load limits.
Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

Unlike light-duty benchtop frames or lower-grade generic press structures that buckle, twist, or flex dangerously under load—causing press plates to unexpectedly spit out components under high kinetic tension—this genuine 6-tonne structural H-frame floor press restores rigid, predictable alignment to your service floor. It is engineered explicitly for automotive repair bays, light industrial fabrication shops, custom performance builders, and agricultural maintenance depots, making it an indispensable mechanical asset for cleanly pressing out seized wheel bearings, bending structural bracket tabs, flattening distorted steel plates, and seating dense rubber or polyurethane suspension bushings without damaging expensive customer components.

Key Features

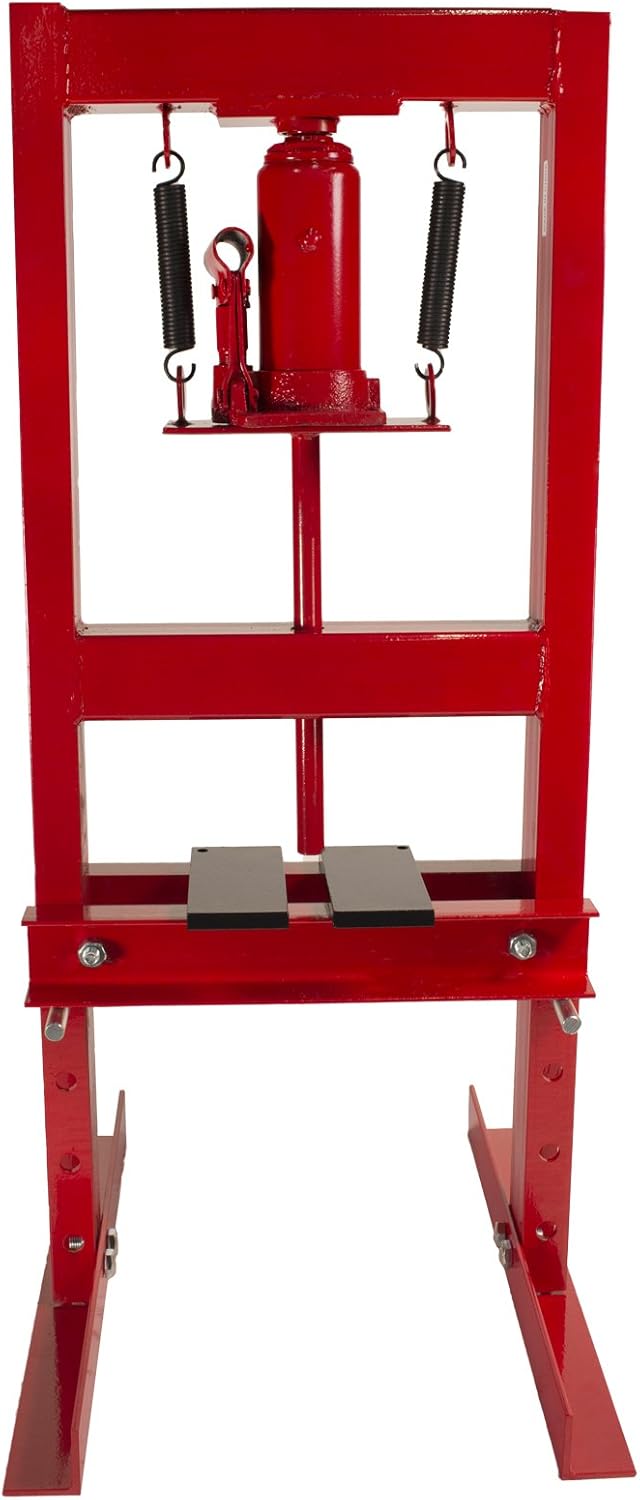

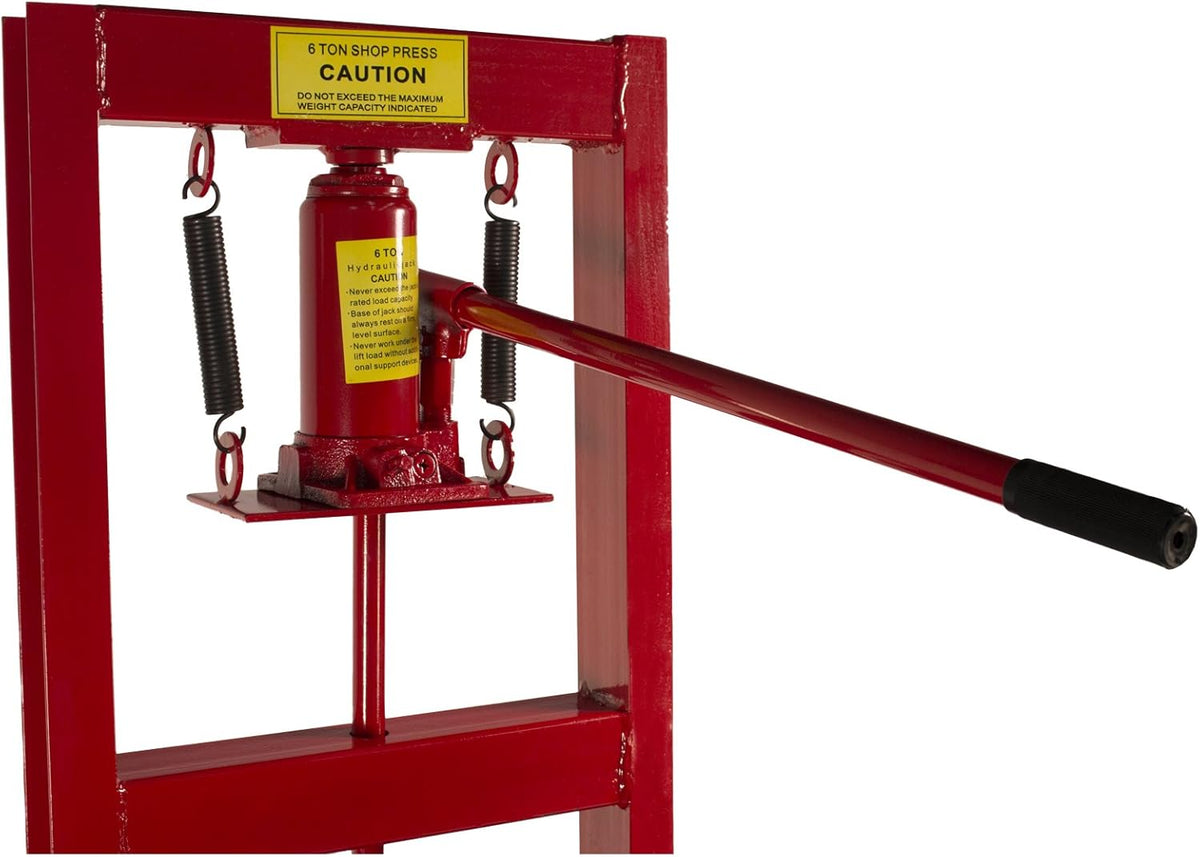

  • Precision Spring-Return Ram Assembly — Outfitted with heavy-duty dual tension return springs that cleanly and automatically retract the hydraulic piston the moment the bleed valve is released, saving vital production time between pressing cycles.
  • Interlocking Cross-Pin Design — Utilizes high-tensile solid steel support pins that pass completely through both sides of the H-frame uprights, ensuring an unyielding, slip-free mechanical anchor for the bolster bed.

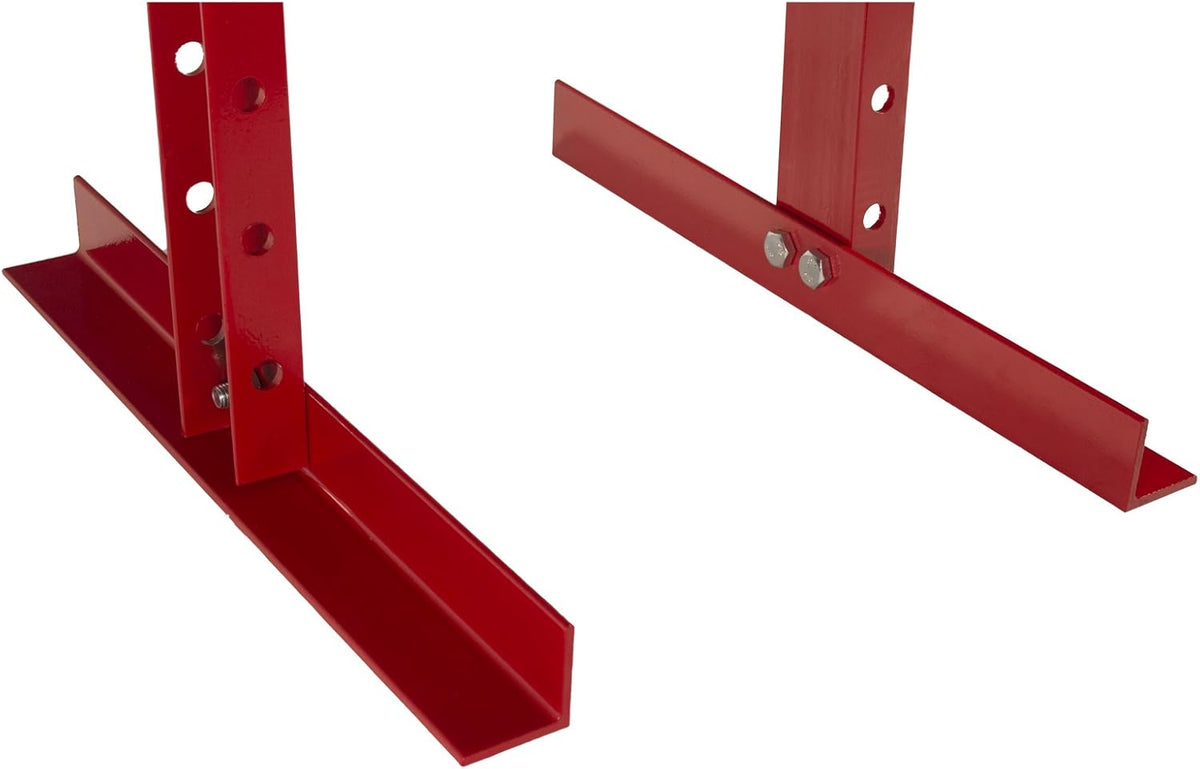

  • Stable Wide-Foot Base Flanges — Formed with wide, floor-hugging steel base rails that expand the unit's overall footprint, preventing tipping, rocking, or floor marring during high-force material fabrication.
  • Industrial Environmental Shielding — Fully treated with a hard-wearing, impact-resistant protective powder coating formulated to withstand daily hammer strikes, airborne grinding dust, harsh oils, and aggressive workshop floor degreasers.

Before You Use

This 6-tonne hydraulic shop press is configured explicitly for positioning on flat, level, and structural industrial concrete floors capable of supporting localized high-tonnage downforce; never operate this unit on uneven or soft surfaces. Always ensure the solid steel H-frame retention pins are pushed completely through both side rails and fully seated before loading the cross-beam bed. Prior to pumping the hydraulic lever, verify that your workpiece is perfectly centered beneath the ram mandrel and that the dual press plates are configured symmetrically to prevent dangerous off-center load shifting.

What's Included

  • One (1) premium heavy-duty 6-tonne structural H-frame hydraulic floor press frame
  • One (1) high-capacity manual hydraulic pump and integrated ram cylinder assembly
  • Two (2) high-tensile solid steel press blocks / bolster plates
  • All necessary high-tensile structural frame assembly hardware and solid support pins

Please note that specialized push-pin mandrel kits, bearing separator collars, custom press sleeves, and floor anchor bolts are sold separately.

To establish a completely comprehensive, ultra-safe mechanical overhaul or fabrication bay, consider combining this heavy-duty floor press with our bearing separator kits, industrial safety glasses, or premium mechanics tool sets. Contact our technical support desk for trade distribution pricing, institutional workshop procurement packages, and nationwide freight logistics options direct to your shop door.

3-year warranty. In stock and shipped from Wendouree, Victoria.

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
