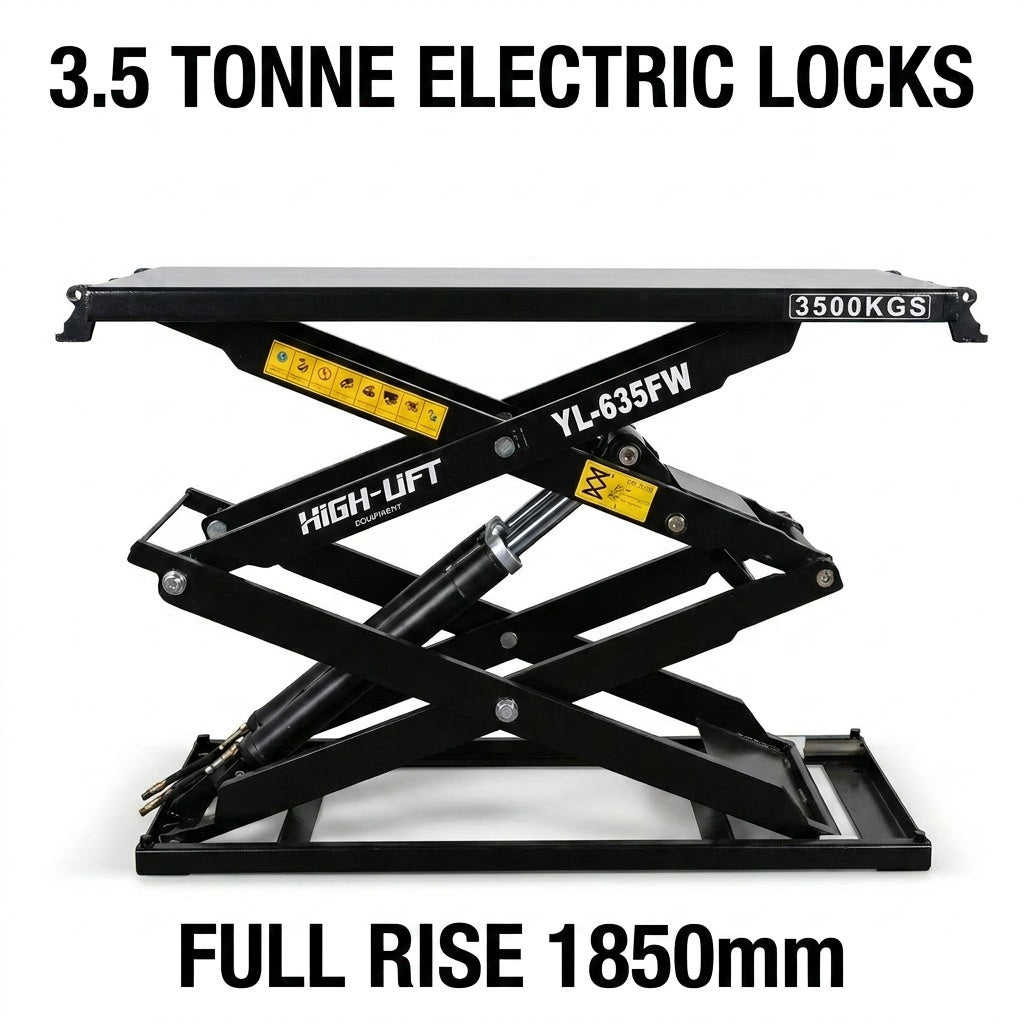

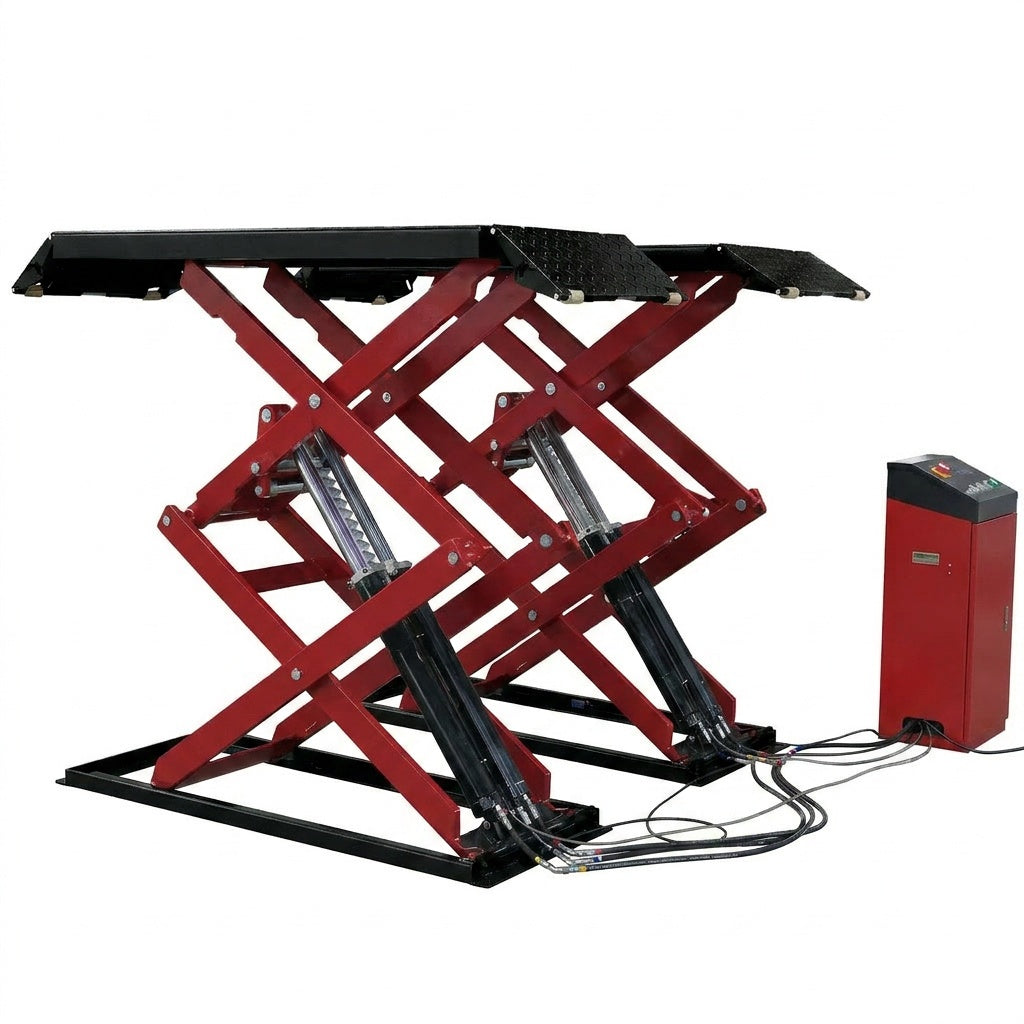

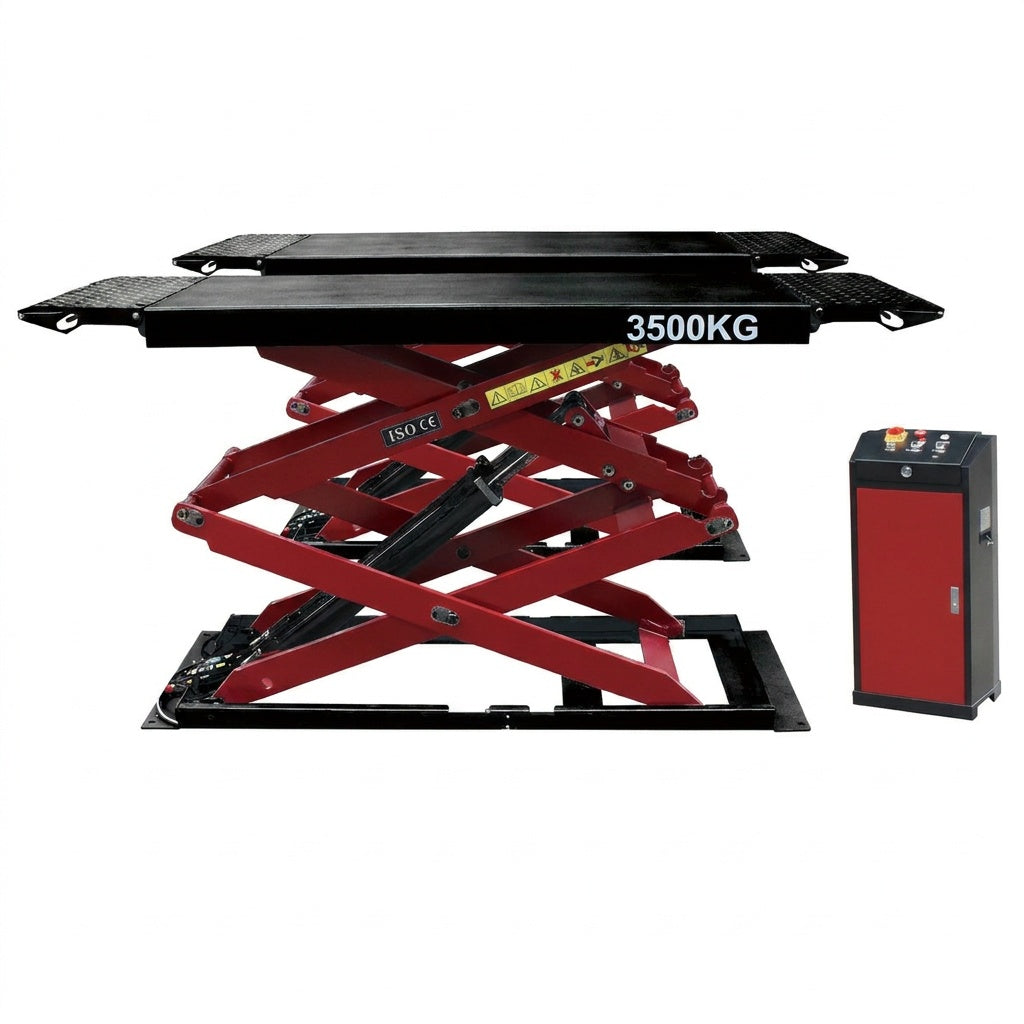

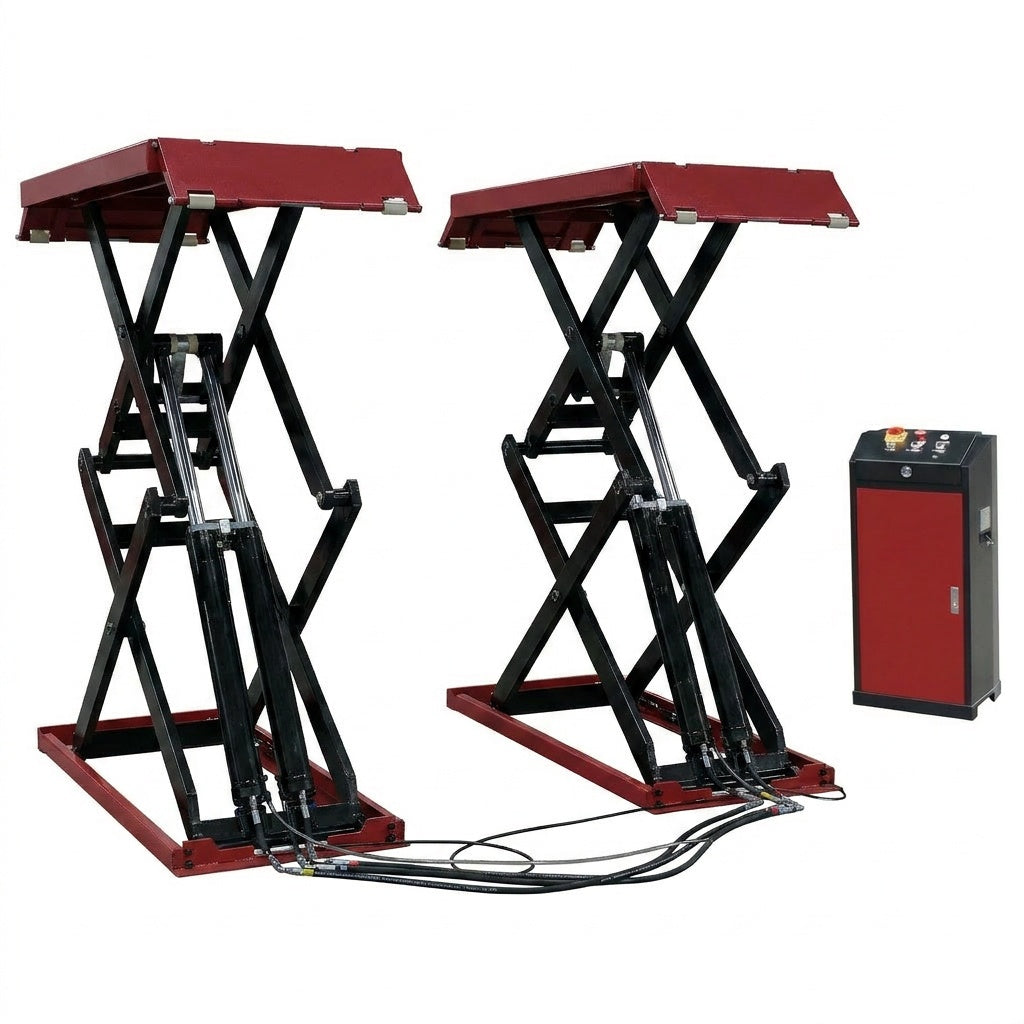

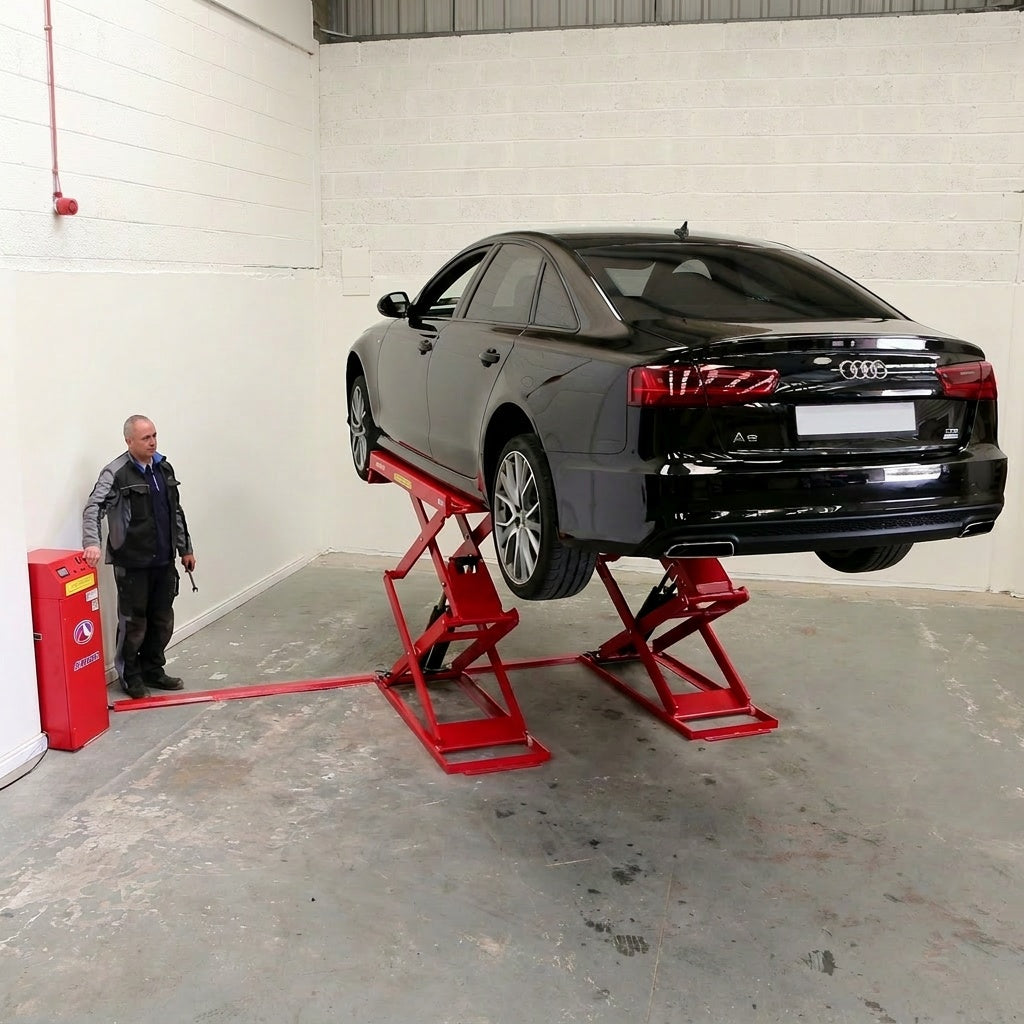

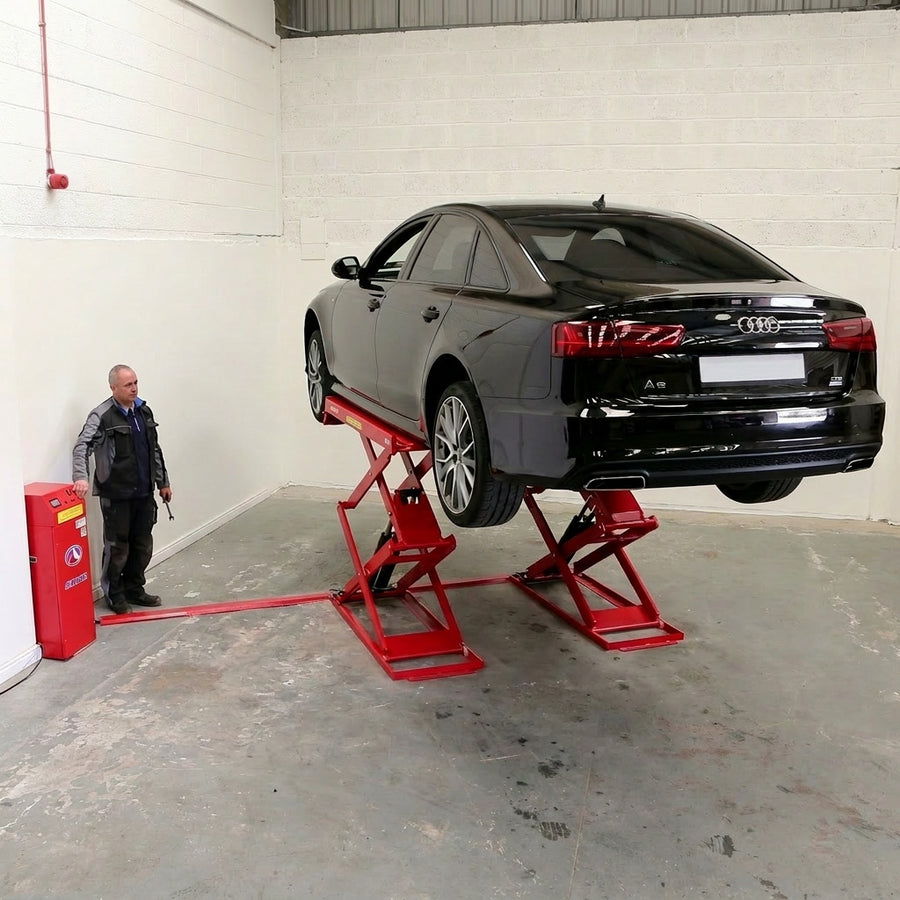

Highlift YL635FW Full Rise Car Scissor Lift 3.5 Tonne Full Height 1800mm

$4,600.00
$5,800.00

In stock

Full-rise scissor lifts are a popular choice in body shops, professional service bays, and home garages alike. Unlike low-rise and mid-rise models, they let you stand upright while you work. Compared to two-post and four-post lifts, they also offer a smaller footprint with no side posts cluttering your work area. We stock full-rise lifts in both frame-engaging and drive-on designs, so you can choose the model that best suits your workflow.

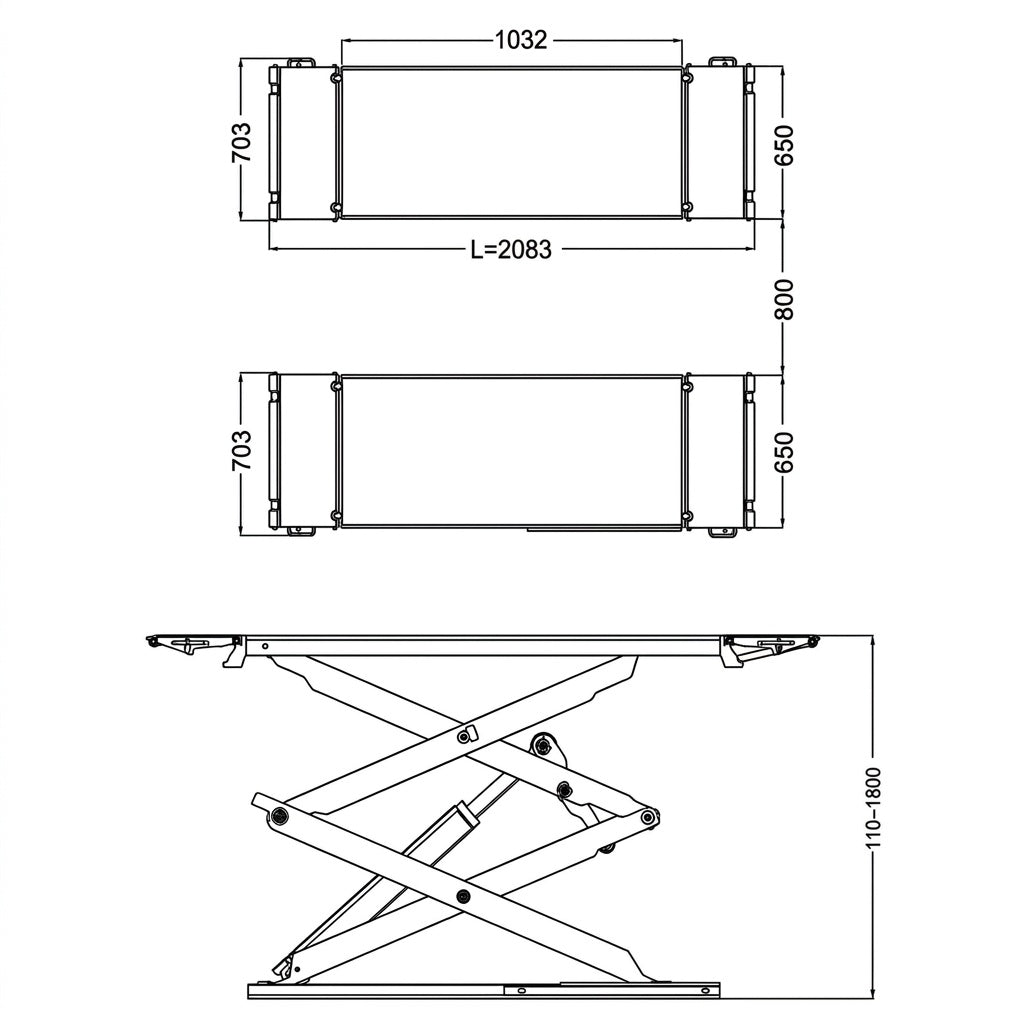

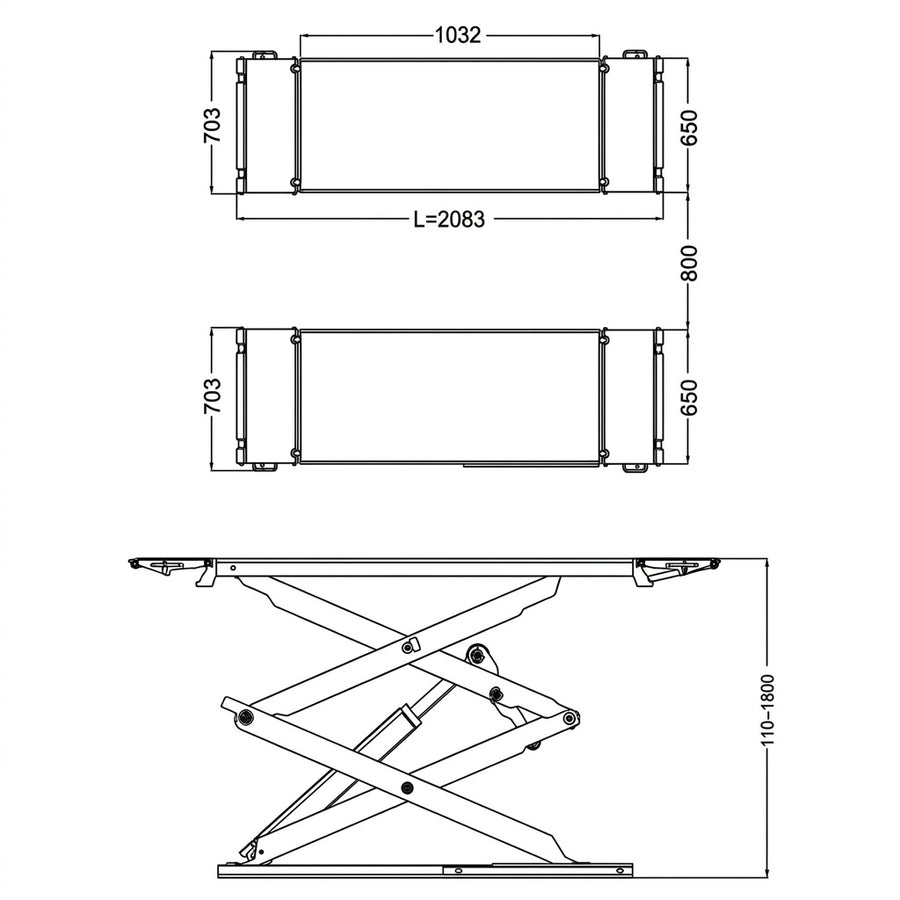

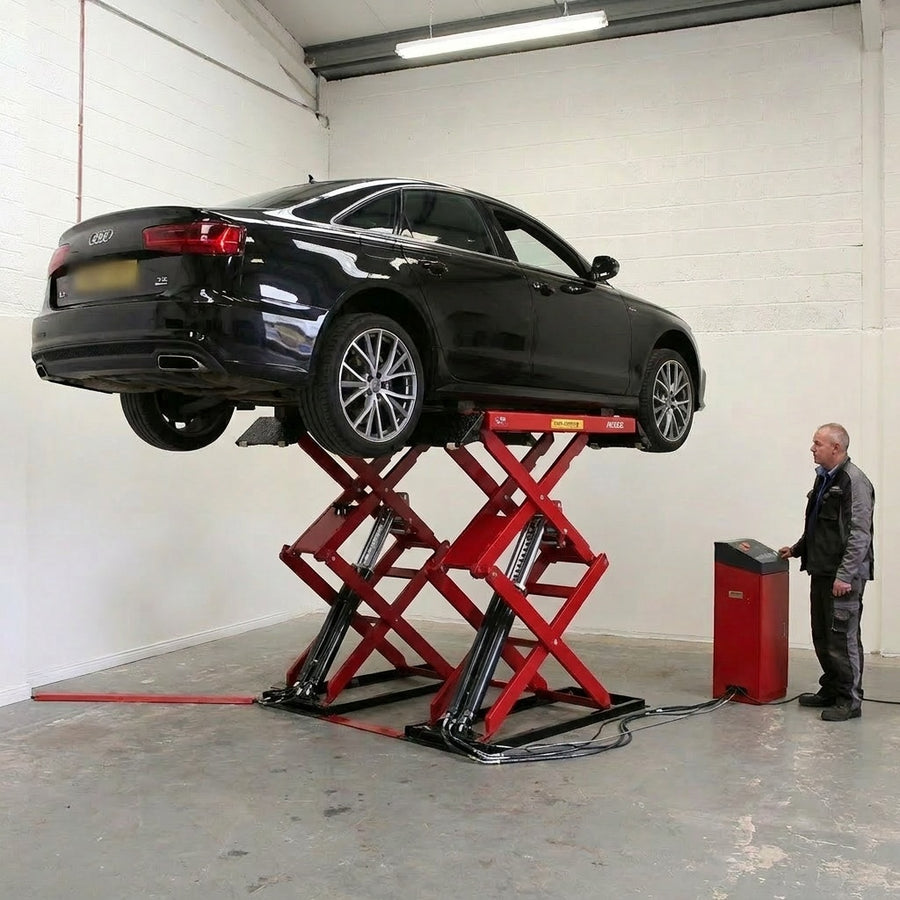

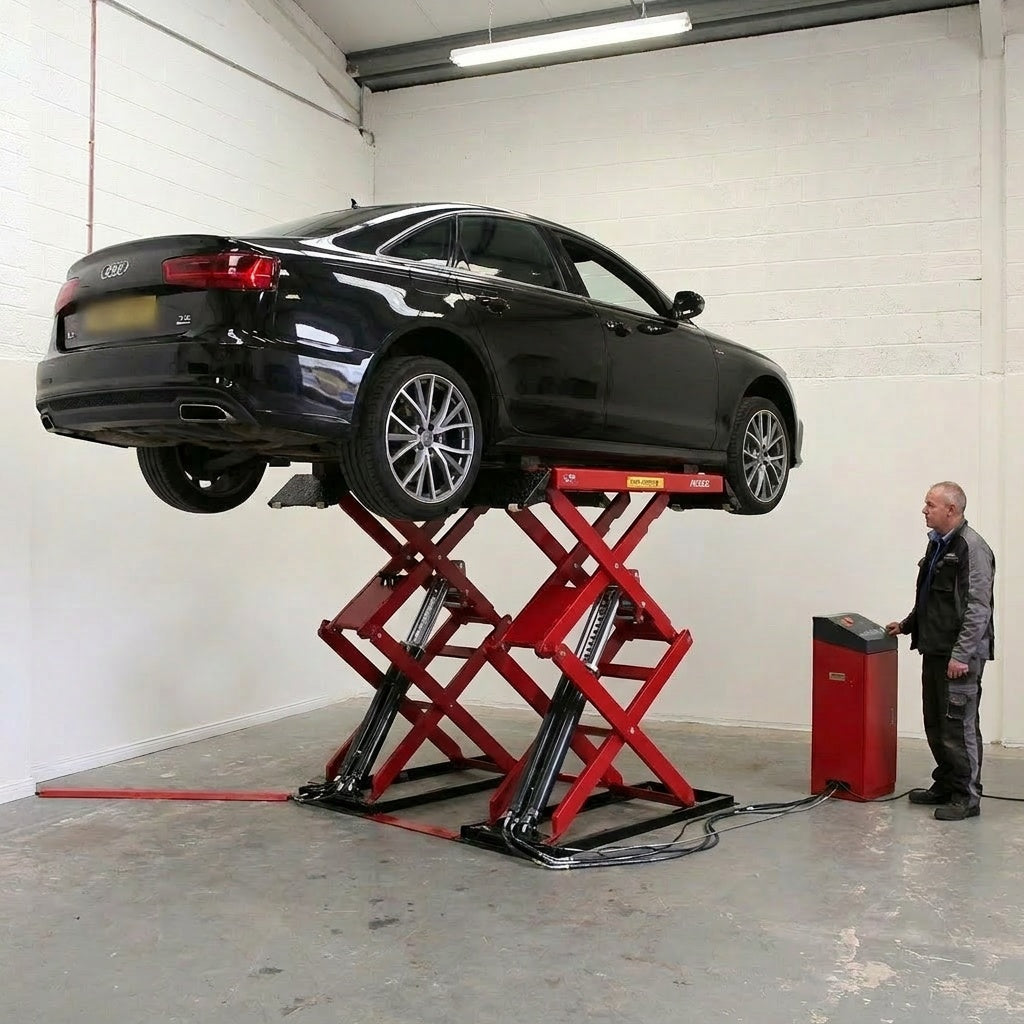

  • 1800mm Full-Rise Elevation — Generous vertical travel height provides an ergonomic standing workspace under the chassis for comprehensive suspension, brake, and wheel servicing.
  • 3.5-Tonne Structural Capacity — Precision-engineered structural steel platforms safely accommodate standard passenger cars, low-slung sports models, and light crossover utilities.
  • Dual-Platform Space Saver — The column-free scissor layout eliminates large vertical outer posts entirely, maximizing lateral clearance and side-door access inside tight service bays.
  • Extendable Runway Configuration — Lockable drive-on approach ramps double as flat platform extensions to seamlessly support vehicles with varying axle lengths and manufacturer pick-up points.
Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

Unlike conventional two-post hoists that obstruct vehicle side doors or four-post platforms that occupy permanent horizontal footprints, this full-rise scissor lift provides an unhindered perimeter workspace that folds away flush when fully lowered. It is engineered explicitly for high-throughput tyre fitting shops, brake repair clinics, paint protection facilities, and mechanical service garages requiring rapid bay cycle times, meaning it is not suited to frame-off classic restorations where major chassis rails or transmission paths must remain fully exposed down the center line of the vehicle.

Key Features

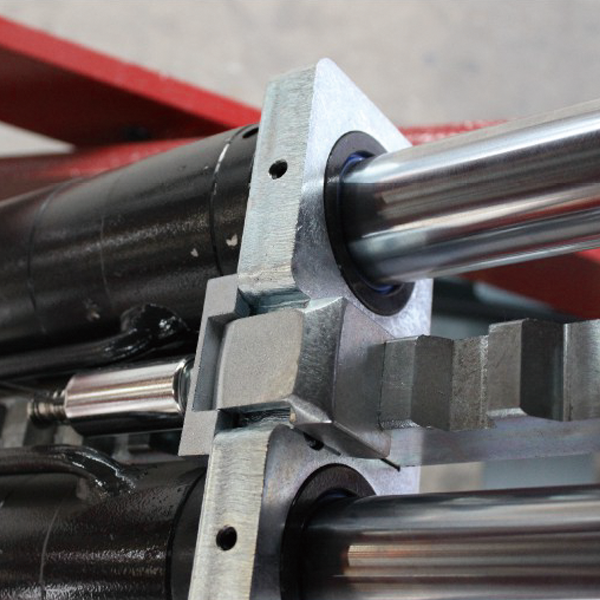

  • Pneumatic Safety Lock Release — Heavy-duty mechanical safety lock bars engage automatically across multiple height increments as the platforms rise, utilizing a centralized air-operated release for safe, smooth lowering.

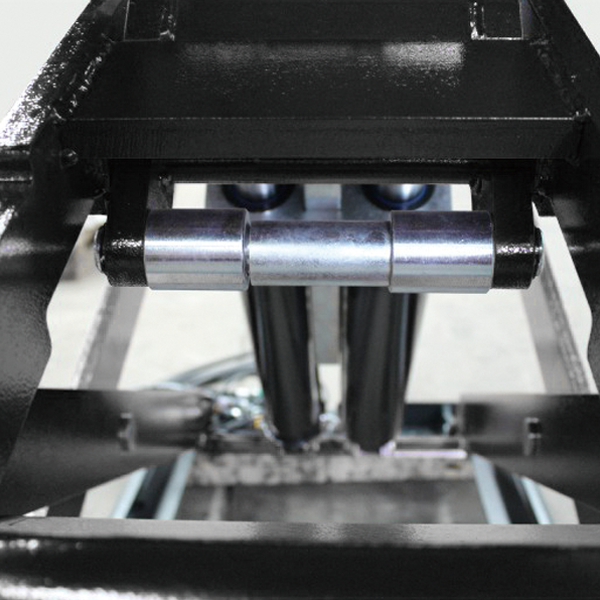

  • Hydraulic Fluid Synchronization — Advanced master-slave hydraulic cylinder circuitry guarantees perfectly balanced, level platform elevation throughout both ascent and descent cycles.
  • Low lowered Profile — The shallow structural design ensures low-clearance performance vehicles and modified sports cars mount the runways smoothly without risk of scraping body kits or front lips.

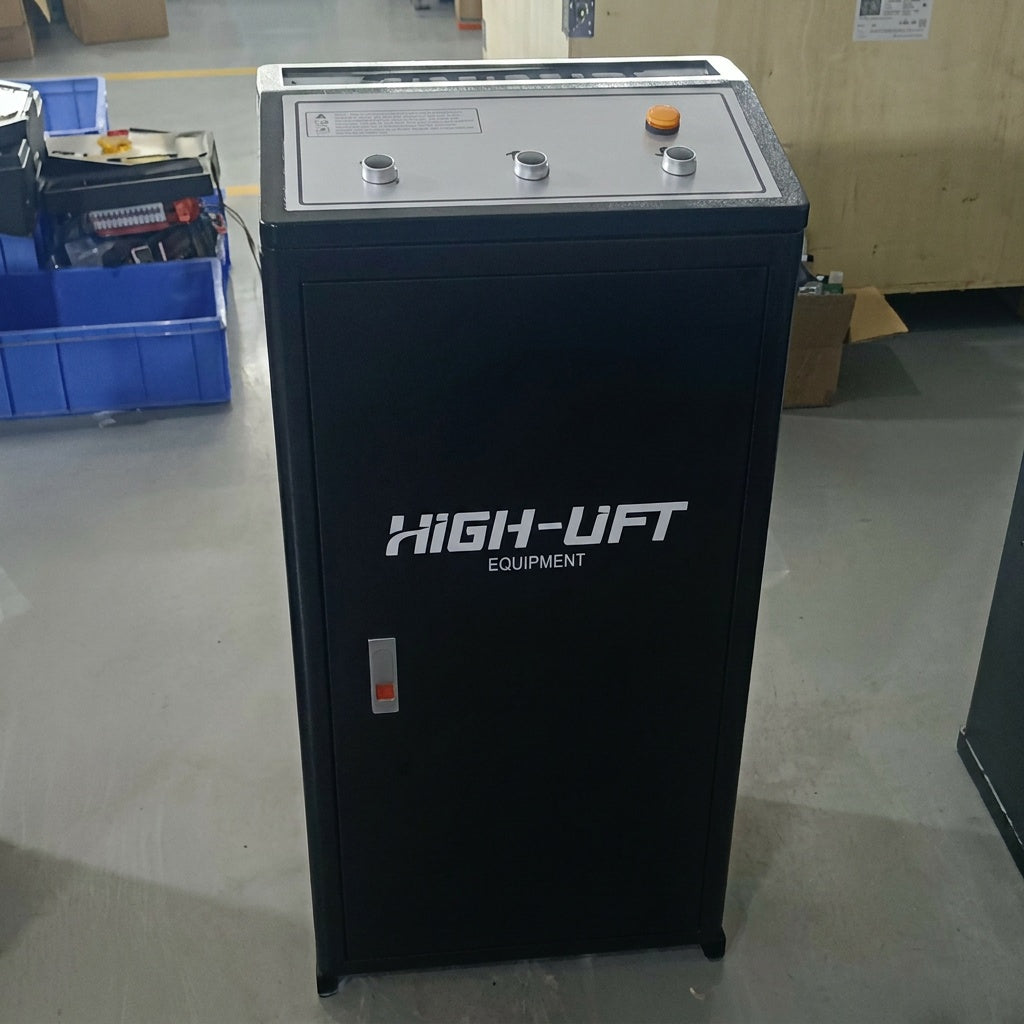

  • Independent Control Station — A standalone commercial-grade electronic console houses the push-button switches, safety alarms, and hydraulic fluid reservoir completely away from the mechanical lift assembly.

Before You Order

Installation requires a level, fully cured concrete slab with a minimum thickness of 125 mm and a compressive strength rating of 3000 PSI. The pneumatic safety lock release mechanism requires a dedicated workshop compressed air supply delivering a stable pressure of 6 bar to 8 bar. The electro-hydraulic power unit is configured for a standard 240 V single-phase electrical supply requiring a dedicated 20 A circuit breaker, which must be connected directly by a licensed commercial electrician.

What's Included

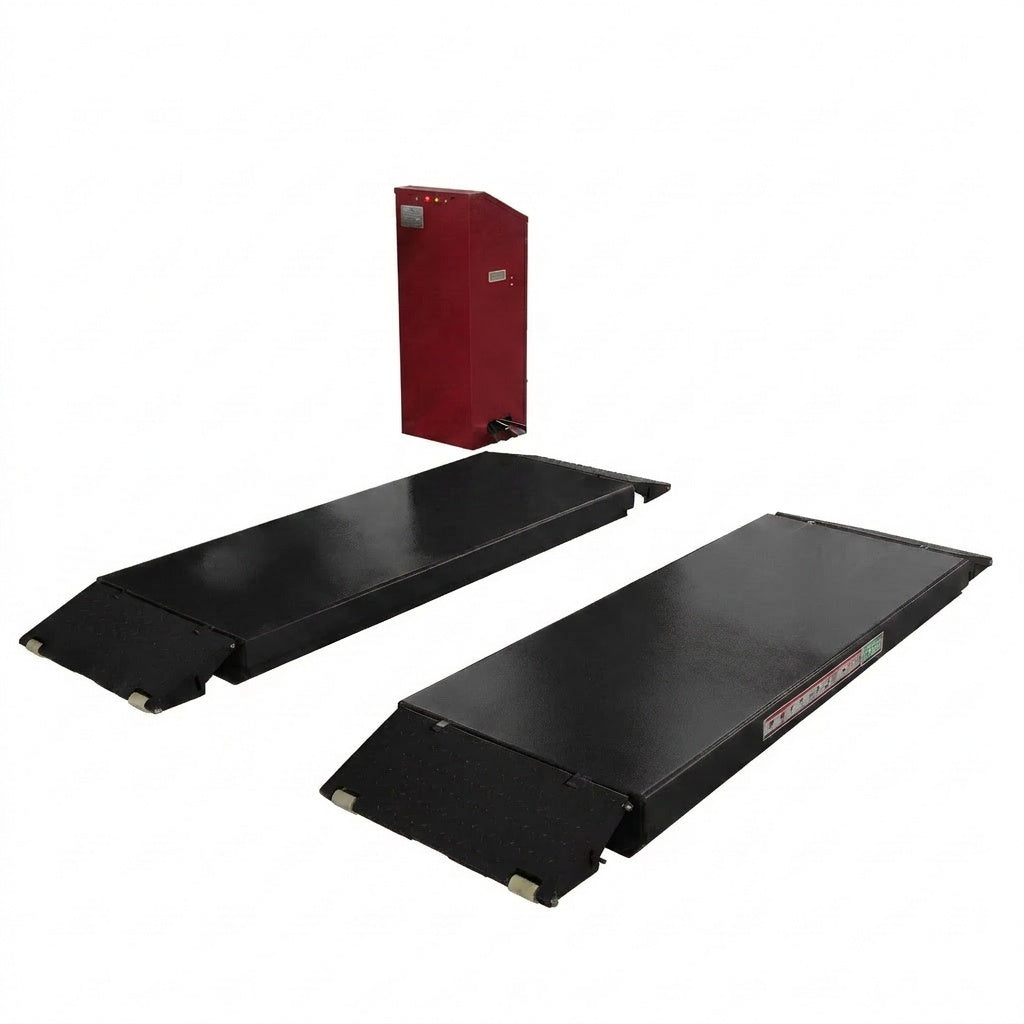

  • Two premium 3000 kg capacity full-rise structural steel scissor platforms
  • Four lockable drive-on approach ramps that lock level to serve as runway extensions
  • One standalone 240 V electronic control console with integrated hydraulic pump
  • Four heavy-duty rubber chassis lifting blocks to safeguard vehicle weld seams
  • Complete set of commercial high-pressure hydraulic lines and internal wiring harnesses
  • Heavy-duty concrete floor anchoring bolts and full hardware installation pack

Please note that premium AW46 grade hydraulic oil is sold separately.

To maximize the productivity of your rapid-service workshop bay, consider pairing this full-rise scissor lift with our professional tyre changers, computer-guided wheel balancers, or mobile tool storage cabinets. Contact our technical sales desk for freight quotes and trade delivery logistics direct to your workshop.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
