6.0 Tonne YL-650E Clear Floor Car Hoist Extra High Columns, Electric Lock Release 6000kg

$4,900.00
$6,800.00

In stock

Why This 6 Tonne Clear Floor Hoist Is More Value for Money Than Others on the Market-

  •  Electric Locks
  • 4 x 3 Stage Lifting Arms

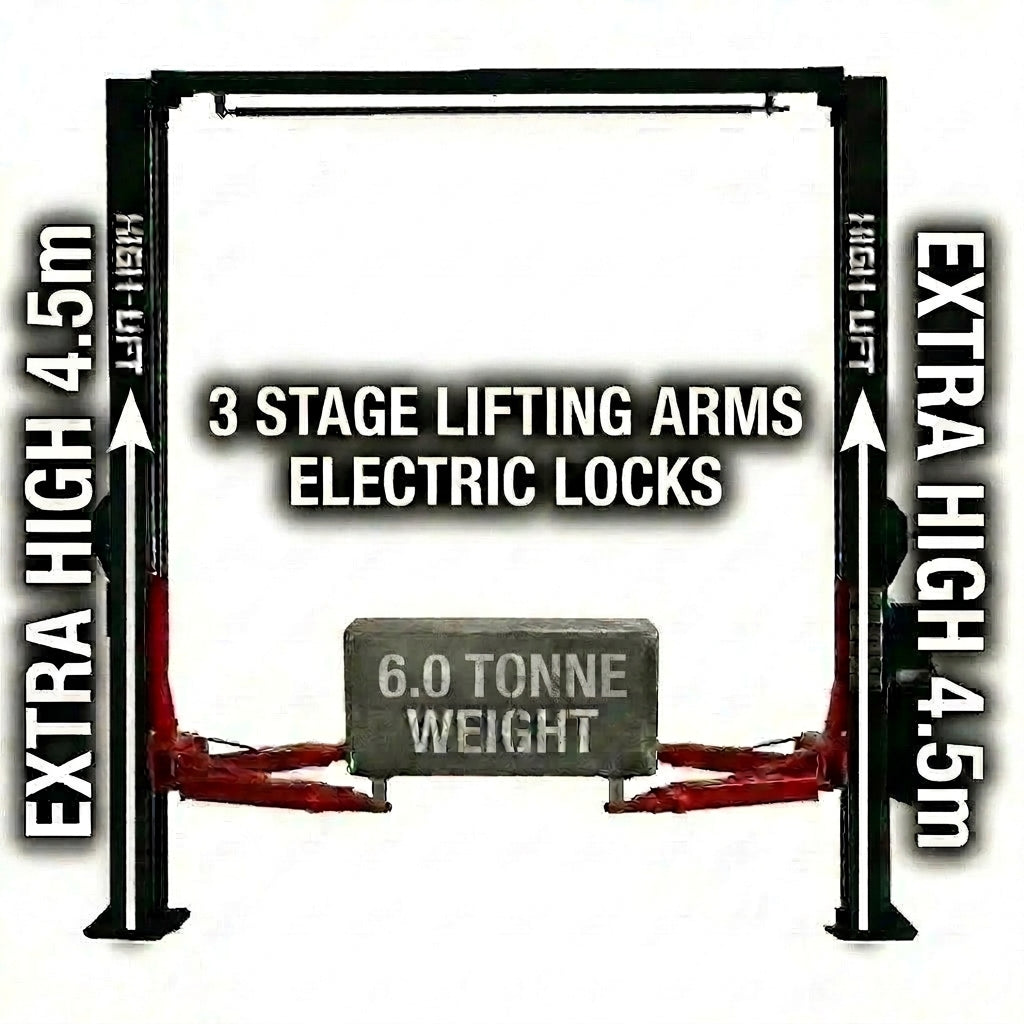

  • Extra High-Top Rail Allowing for Large Vehicles
  • Extra Wide Between Columns
  • 4 x Lifting Arms At 1800mm Long
  • Fee Set of 4WD Pad Height Extenders
  • Super Heavy-Duty Hoist Ways in Excess Of 1200Kg

This heavy-duty two-post clear-floor vehicle hoist engineered with a massive 6000kg structural capacity delivers maximum industrial-grade lifting capability for oversized commercial vehicle fleets. It allows heavy truck repair workshops, fleet maintenance departments, and commercial diesel mechanics to elevate extra-long wheelbase work utilities, armoured vehicles, and large transport vans safely. The overhead clear-floor configuration maintains a clean workshop floor layout, allowing rolling workshop equipment, transmission jacks, and heavy tool chests to pass beneath without ground-level obstructions.

  • 6000kg Industrial Capacity — Extra-thick structural steel columns provide the maximum structural engineering rating required to handle fully laden medium-duty work trucks and heavy service vehicles.
  • Electronic Lock Release — Advanced push-button control panel disengages all mechanical safety locks electronically from a single station to eliminate manual cables and speed up lowering cycles.
  • 3-Stage Low Profile Extension Arms — Heavy-duty telescoping symmetric lifting arms adjust across three distinct extension stages to reach optimal factory chassis pick-up points on short or long-wheelbase profiles.

  • Safety Features

    • Anti-surge valve
    • Automatic mechanical carriage locks
    • Automatic mechanical arm locks
    • Standard column curtain

    What’s Included?

    • 2 post hoist with all bolts, cables, lines and fixings
    • 240V hydraulic power unit (415v Optional, costs extra)
    • Concrete anchor bolts
    • Detailed installation instructions

    What’s Not Included?

    • Hydraulic oil ISO 46 Grade Required
    • Setup electrical connection

    Shed Requirements

    • 150mm deep concrete at 32mpa

Installation Manual

Workcover Registration

Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

This 6-tonne heavy vehicle lifting system uses extra-thick steel columns and massively reinforced internal carriage configurations to guarantee absolute stability. It is engineered explicitly for high-volume commercial fleet operators, local utility yards, and industrial transport workshops managing large delivery vehicles, light trucks, and heavy four-wheel drives.

Key Features

  • Reinforced Column Base Architecture — Over-engineered column plates distribute massive vertical lifting forces over an expanded floor surface area to reduce localised structural stress on the workshop floor foundation.
  • Dual High-Pressure Hydraulic Rams — Dual commercial-grade hydraulic cylinders operating alongside high-strength leaf chains ensure smooth, synchronised vertical travel and precise balanced load control.
  • Self-Lubricating Wear Pads — Industrial high-density macromolecular polyethylene slide blocks protect internal carriage movement and minimise mechanical friction along the steel columns for a prolonged service life.
  • Automatic Arm Restraints — Heavy-duty gear ring locks engage automatically upon ascent to fix the position of the heavy three-stage arms and eliminate any pivoting hazards while under load.

Before You Order

Installation requires a level, fully cured reinforced concrete slab with a minimum thickness of 115 mm and a compressive strength rating of 32Mpa. The electro-hydraulic power pack operates via a standard 240 V single-phase electrical supply connected to a dedicated 15 A circuit breaker (should not operate off of a 10amp extension lead). Ensure your designated high-roof workshop bay provides adequate vertical clearance for the overall clear-floor structure, keeping a safe margin from overhead lighting, support trusses, and automated roller doors.

What's Included

  • Two extra-thick 6000 kg capacity structural steel clear-floor columns
  • One heavy-duty overhead cross-beam assembly with integrated safety shutoff bar
  • Four heavy three-stage telescoping symmetric lifting arms with automatic gear locks
  • Two industrial-grade hydraulic cylinders with high-strength leaf chains
  • 240 V single-phase hydraulic power unit with integrated fluid reservoir and control box
  • Four screw-adjustable pick-up pads and four high-clearance extension sleeves
  • Industrial concrete floor anchoring bolts and heavy hardware installation pack

Please note that AW46 grade hydraulic oil is sold separately.

To maximise the productivity of your heavy commercial service bay, consider pairing this 6-tonne lifting system with our heavy-duty truck tyre changers, high-capacity wheel balancers, or mobile commercial transmission jacks. Contact our technical sales team for trade package configurations and transport logistics to your site.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation
