5Tonne YL-350 Clear Floor Car Hoist Extra Thick Columns, Single Point release 5000kg

$4,450.00
$4,550.00

In stock

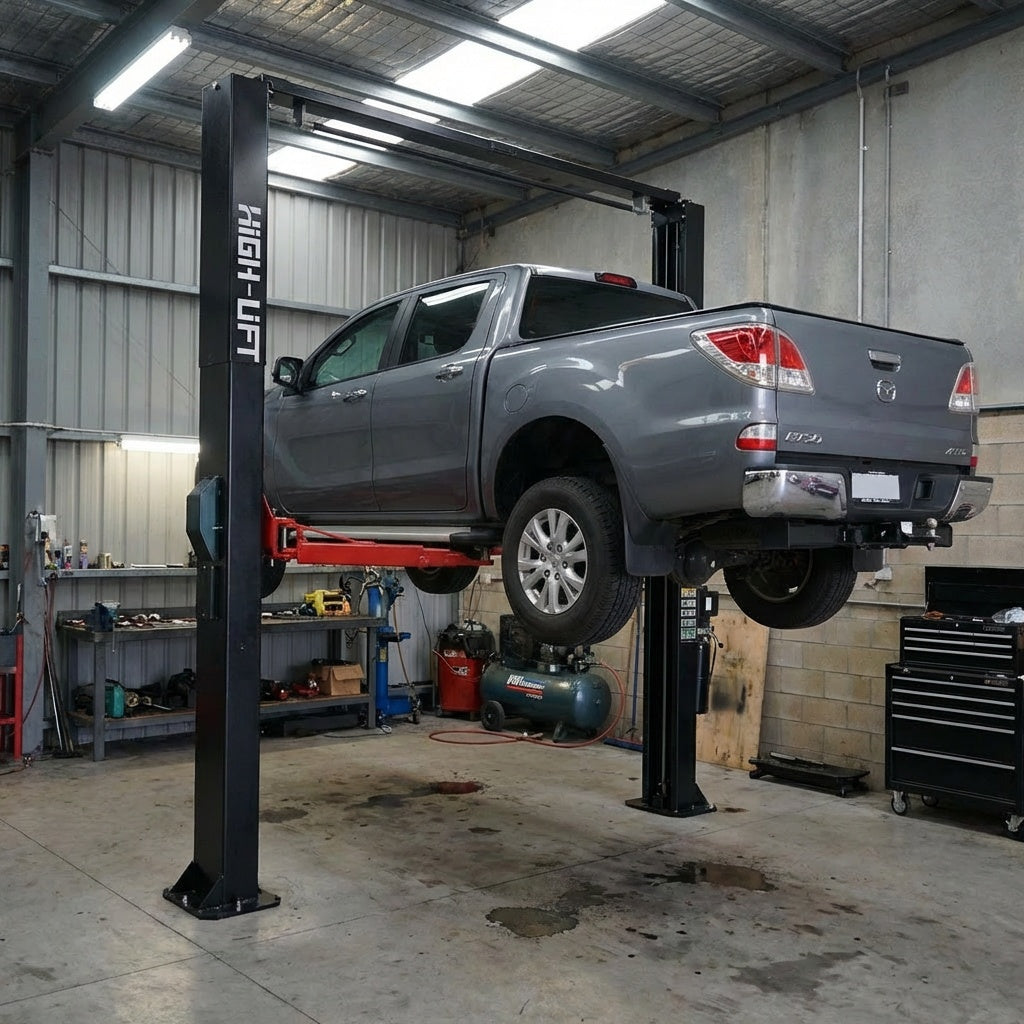

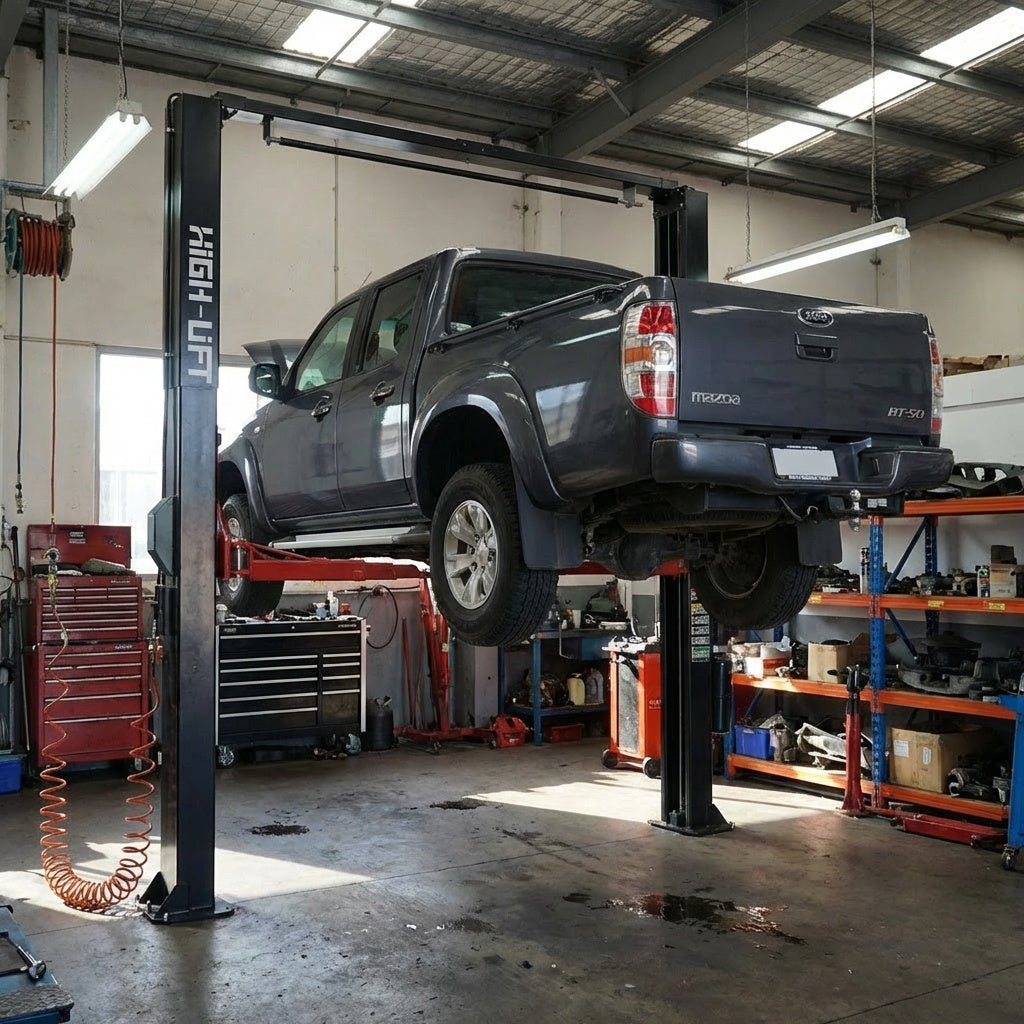

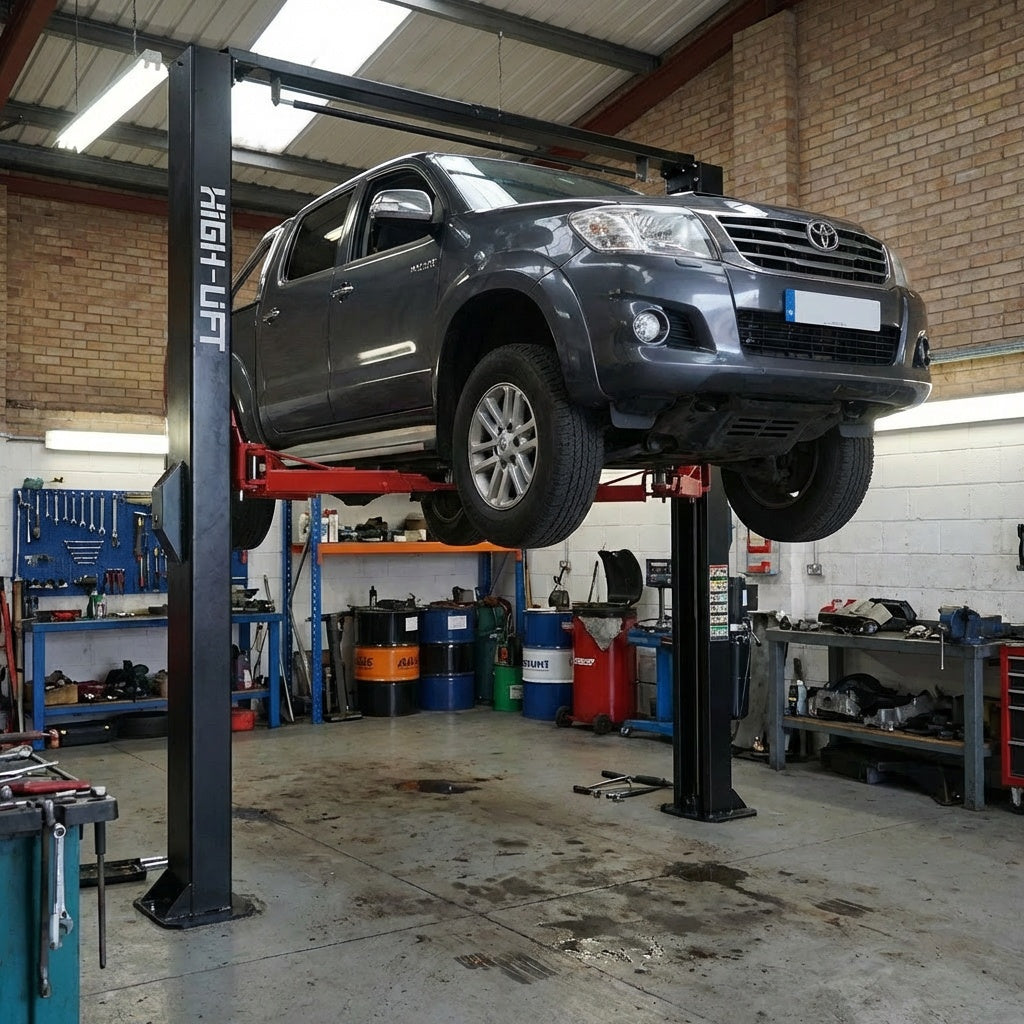

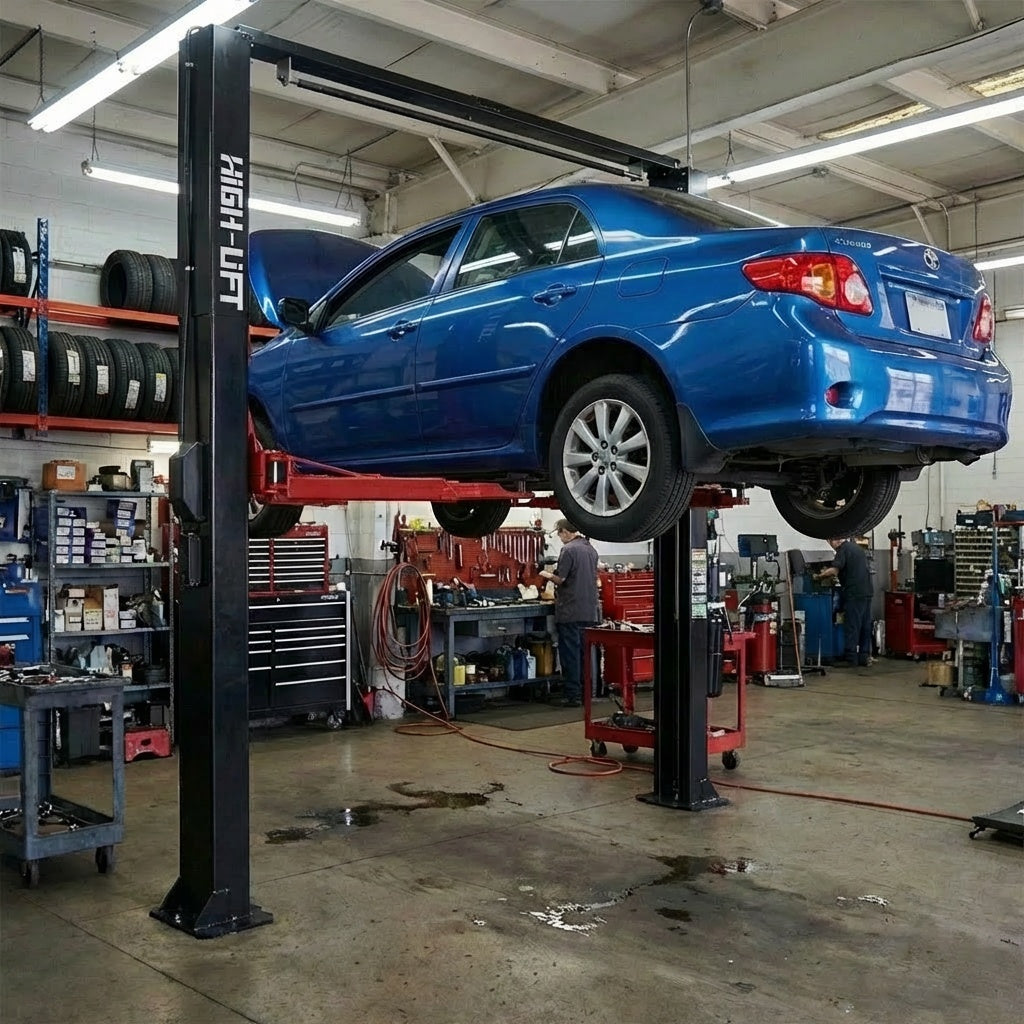

This heavy-duty two-post clear-floor vehicle hoist delivers an unobstructed ground workspace engineered for high-throughput commercial service bays managing oversized fleets. Featuring an expanded 5000kg structural capacity, it allows mechanical trade specialists to lift heavy work utilities, extended four-wheel drives, and light commercial delivery vans safely. The overhead clear-floor design completely eliminates ground-level base obstructions, allowing technicians to roll transmission jacks, heavy tool chests, and oil drainers smoothly beneath the vehicle.

  • Unobstructed Floor Workspace — The overhead crossbeam layout leaves the floor space free of cables and conduits, allowing smooth movement of rolling equipment between hoist columns.

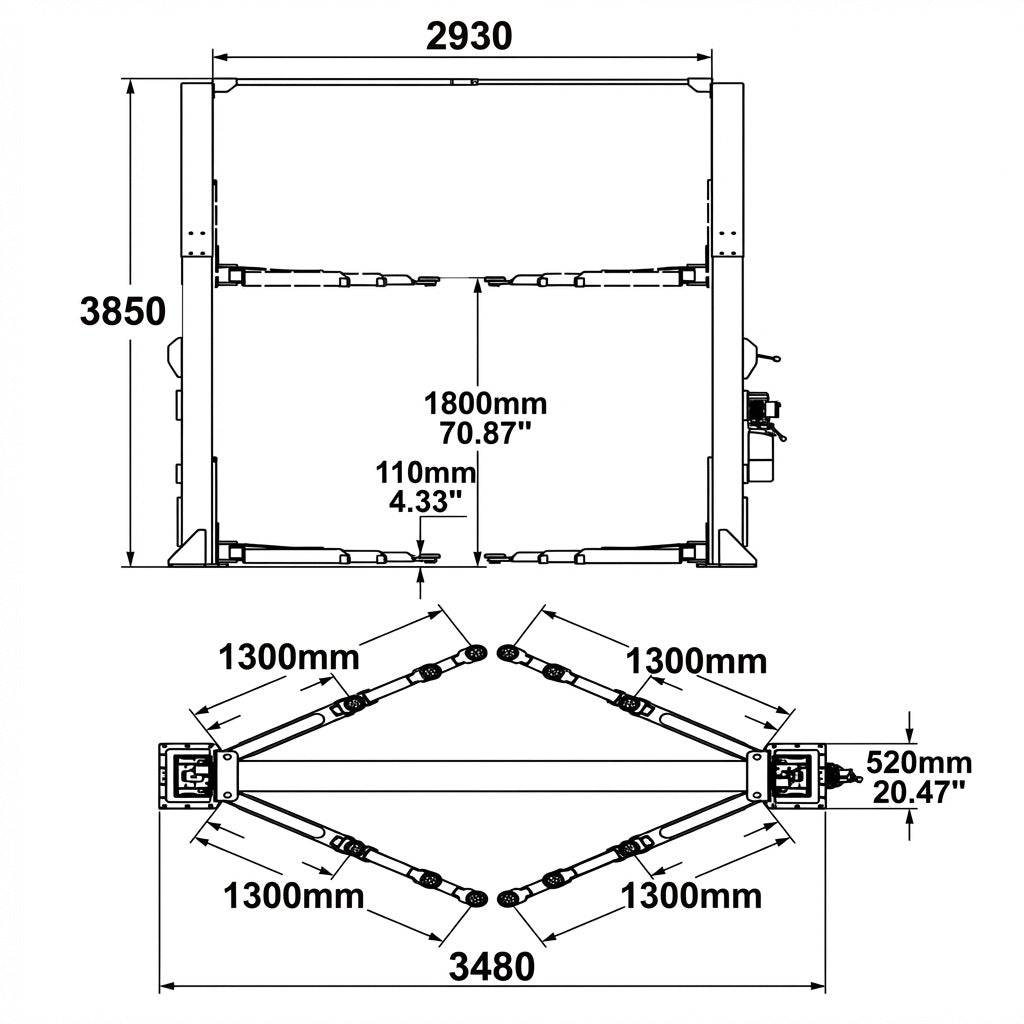

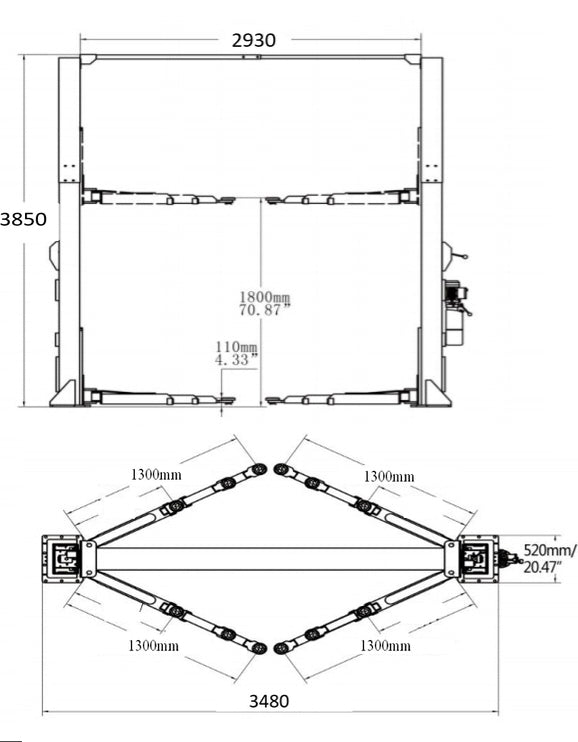

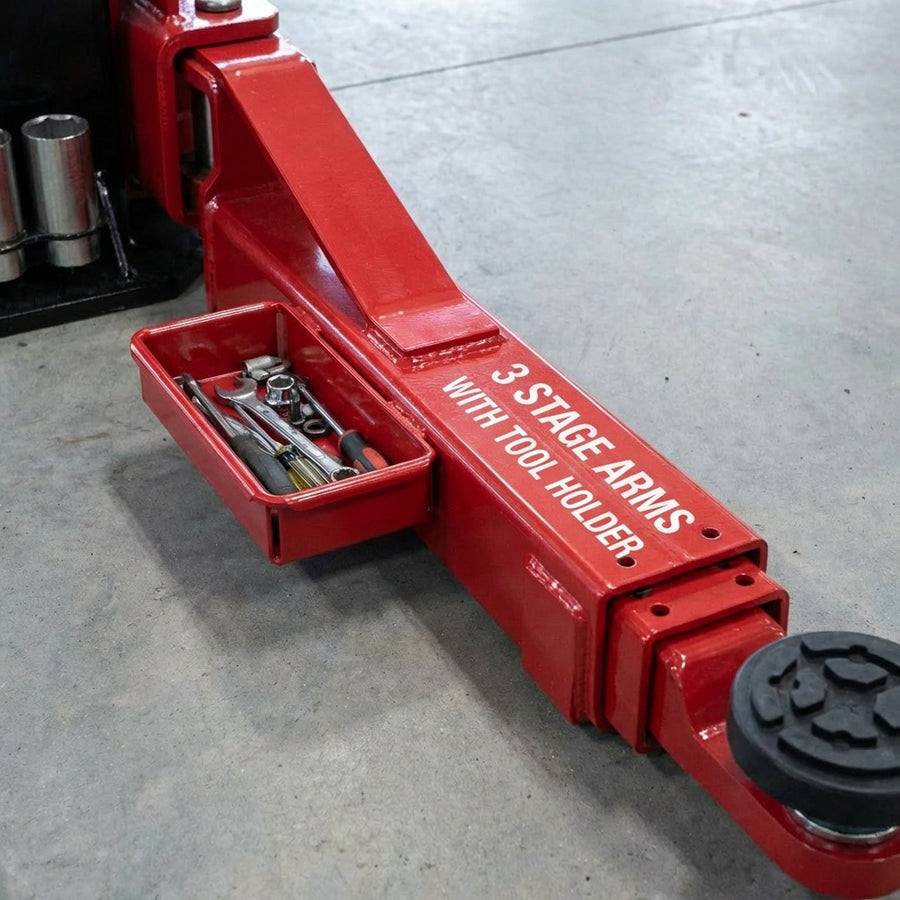

  • 3-Stage Extension Arms —4xHeavy-duty telescoping low profile 1300mm symmetric lift arms adjust across three distinct stages to reach optimal factory chassis pick-up points on short or long-wheelbase transport vehicles.
  • Single-Point Lock Release — A centralised mechanical release handle disengages the safety locks on both columns simultaneously, accelerating lowering cycles and increasing bay productivity.
  • Overhead Safety Cut-Off — An integrated padded shutoff bar spans the top beam to immediately isolate the hydraulic motor if a tall commercial vehicle profile contacts the upper structure.

  • Safety Features

    • Anti-surge valve
    • Automatic mechanical carriage locks
    • Automatic mechanical arm locks
    • Standard column curtain

    What’s Included?

    • 2 post hoist with all bolts, cables, lines and fixings
    • 240V hydraulic power unit (415v Optional)
    • Concrete anchor bolts
    • Detailed installation instructions

    What’s Not Included?

    • Hydraulic oil ISO 46 Grade Required
    • Setup electrical connection

    Shed Requirements

    • 115mm deep concrete at 32mpa

Installation Manual

Workcover Registration

Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

Unlike lighter clear-floor models that experience structural flex and reach limitations when positioned under long-wheelbase commercial vans, this 5-tonne lifting system uses reinforced steel columns and robust internal carriages to guarantee absolute stability. It is engineered explicitly for high-volume commercial fleet workshops, diesel repair garages, and local maintenance bays requiring heavy lifting capability within a high-ceiling workspace.

Key Features

  • Reinforced Column Architecture — Extra-wide mounting base plates distribute heavy vertical loads across a larger floor surface area to reduce structural stress on the underlying concrete slab.

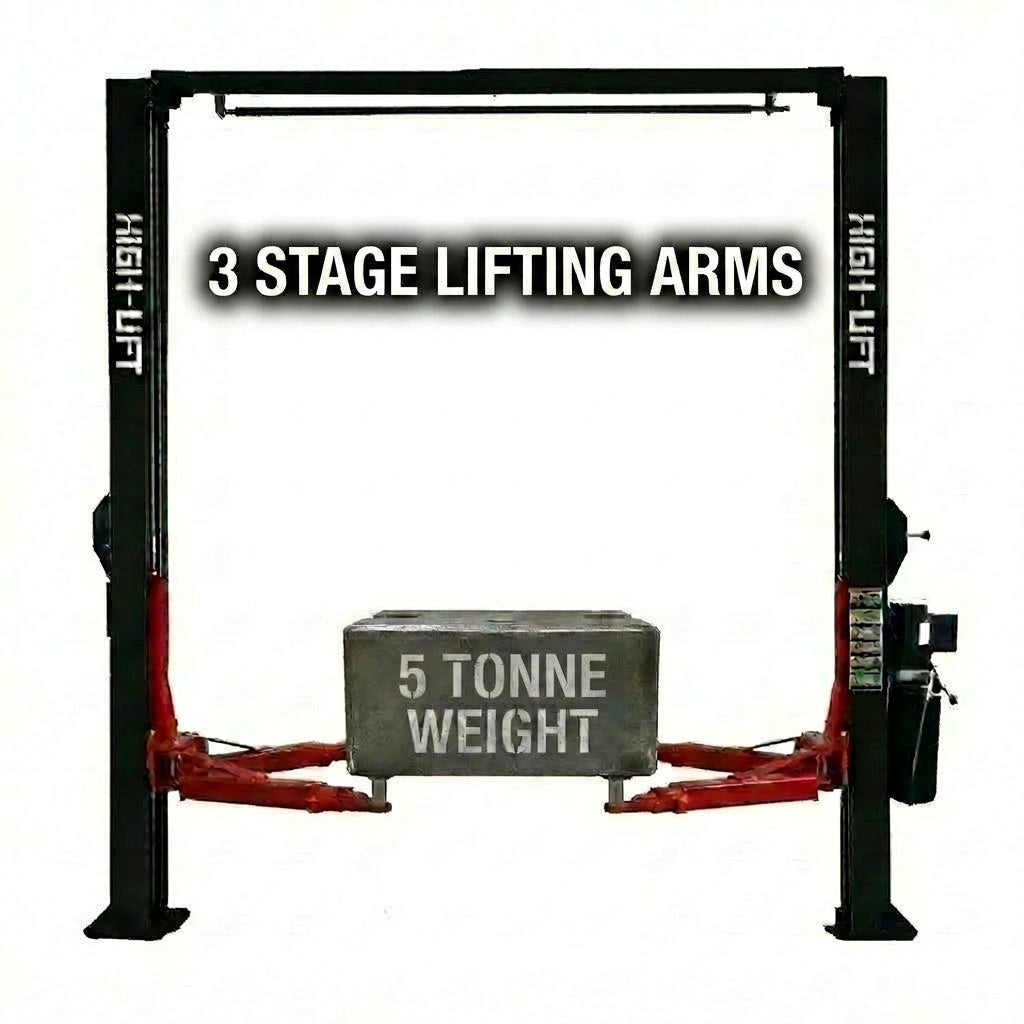

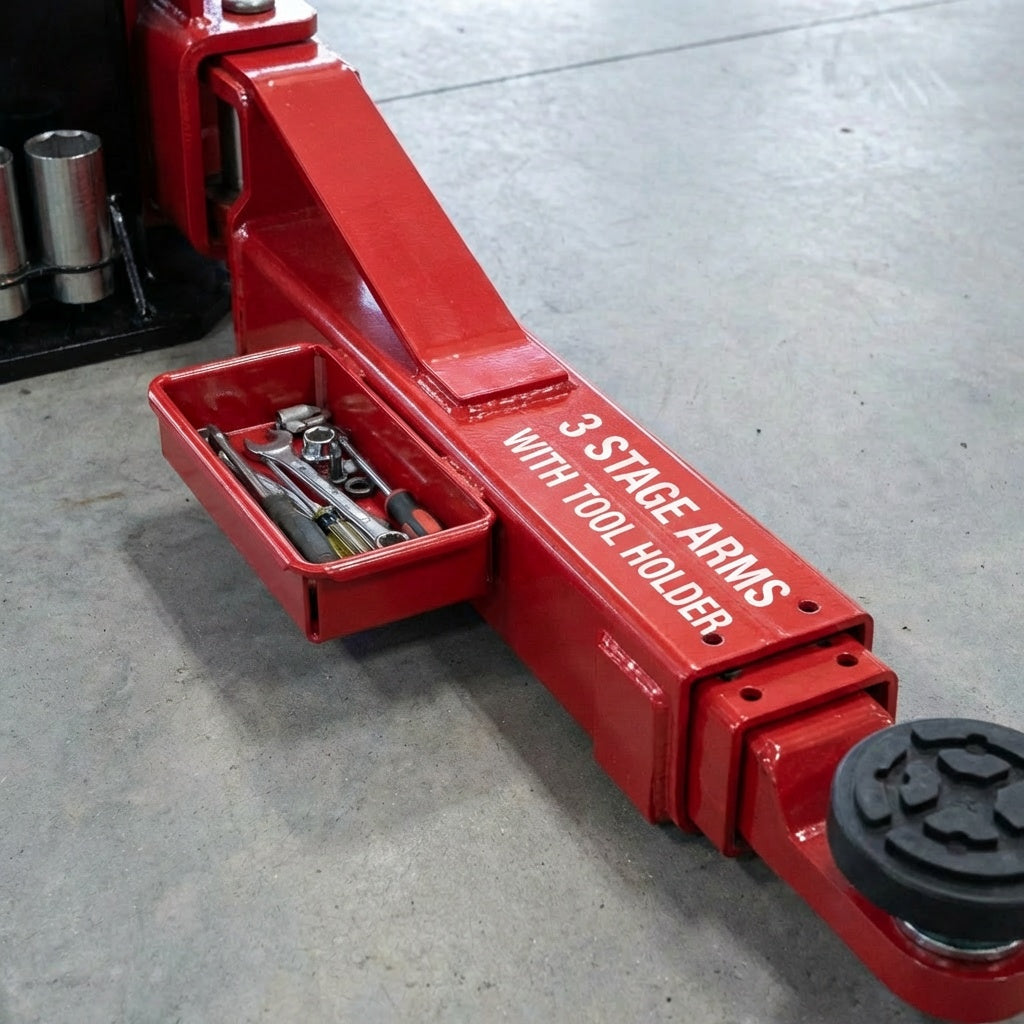

  • Flexible Three-Stage Arms — All four lifting arms feature a three-stage telescoping configuration, allowing the hoist to adjust seamlessly between compact passenger cars and extra-long commercial delivery vehicles.
  • Polyethylene Slider Blocks — Self-lubricating, high-density wear pads ensure smooth vertical carriage movement up and down the steel columns while minimising mechanical friction.

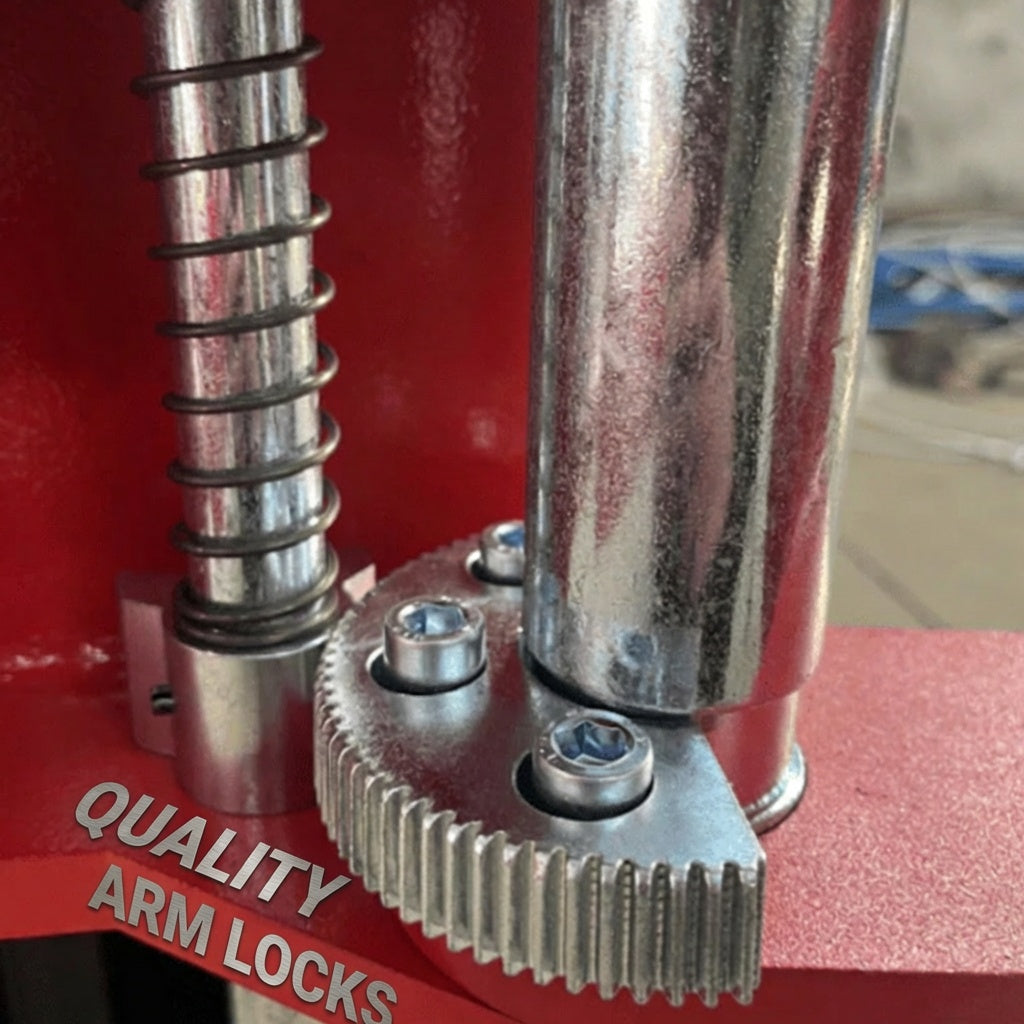

  • Automatic Arm Restraints — Heavy-duty gear ring locks engage automatically upon ascent to fix the position of the three-stage arms and eliminate any pivoting risks while under load.

Before You Order

Installation requires a level, fully cured concrete slab with a minimum thickness of 115mm and a compressive strength rating of 32Mpa. The electro-hydraulic power pack operates via a standard 240 V single-phase electrical supply connected to a dedicated 15 A circuit breaker (should not operate off of a 10amp extension lead). Ensure your designated workshop bay provides adequate vertical clearance for the overall clear-floor structure, maintaining a safe margin from any hanging lights or automated doors.

What's Included

  • Two reinforced 5000 kg structural steel column assemblies
  • One overhead cross-beam assembly with integrated safety shutoff padding bar
  • Four three-stage telescoping symmetric lifting arms with automatic gear locks
  • Two industrial-grade hydraulic cylinders with high-strength leaf chains
  • 240 V single-phase hydraulic power unit with integrated fluid reservoir

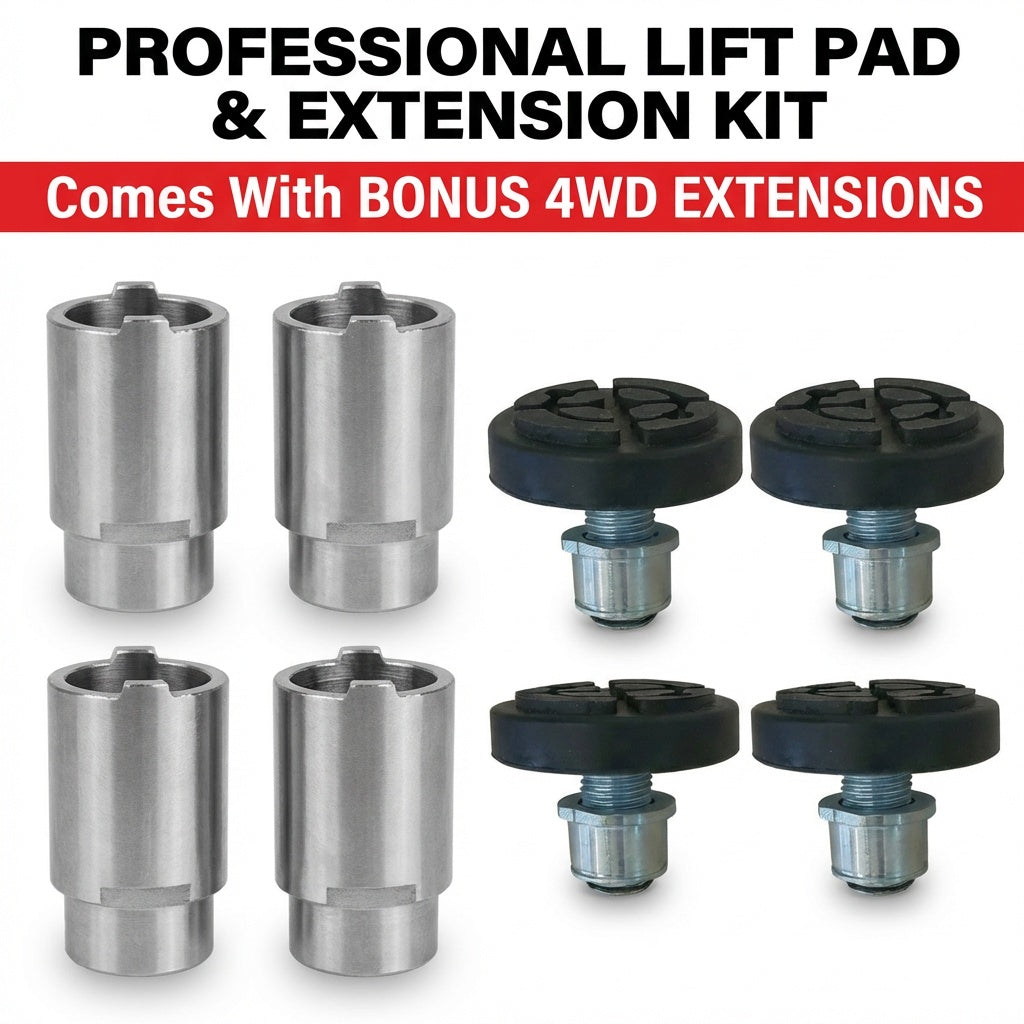

  • Four screw-adjustable pick-up pads and four high-clearance extension sleeves
  • Heavy-duty steel synchronisation cables and concrete floor anchor bolts

Please note that AW46 grade hydraulic oil is sold separately.

To maximise your commercial workshop efficiency, consider combining this 5-ton lifting system with our heavy-duty truck tyre changers, high-capacity wheel balancers, or mobile transmission jacks. Contact our technical sales team for trade package configurations and transport logistics to your site.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
