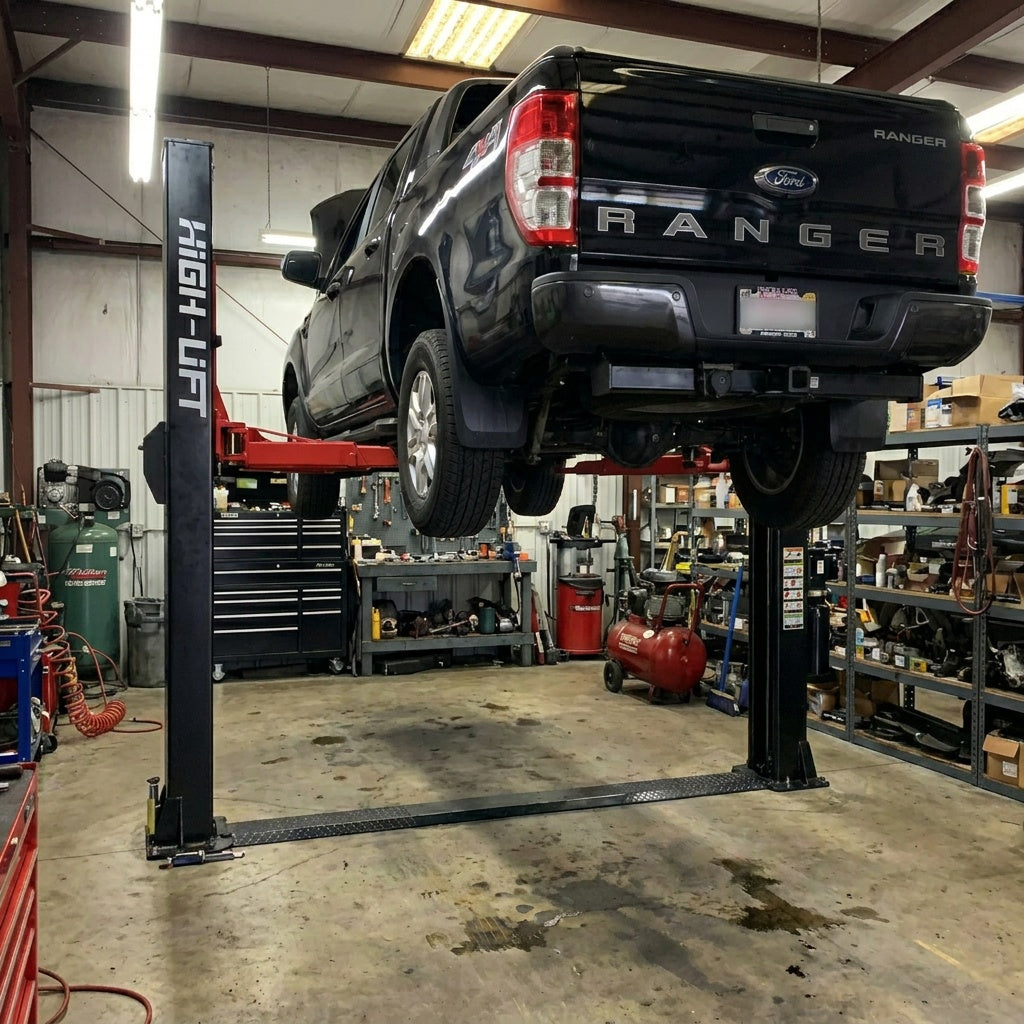

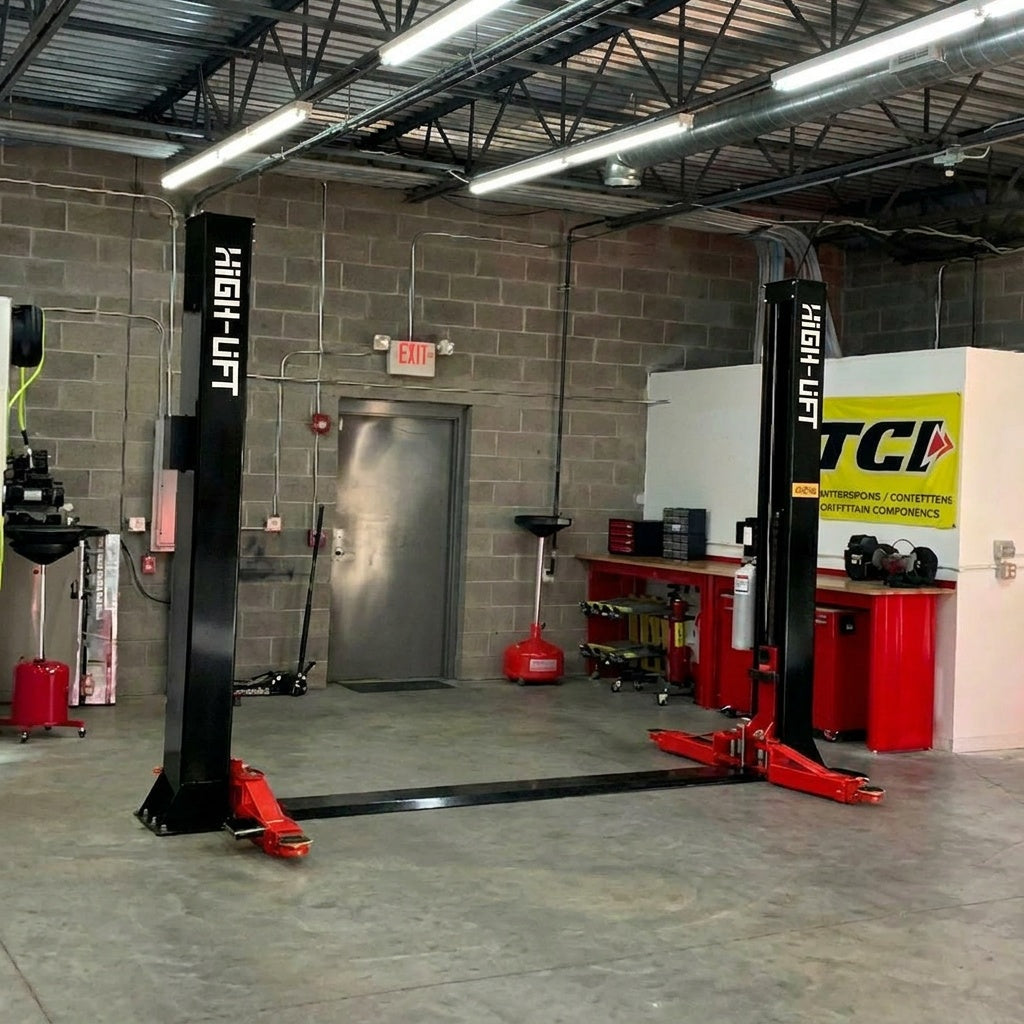

4.5 Tonne Base Plate Car Hoist Single Point Release YL-240

Unlike lighter 4500 kg variants on the market that use thinner gauge steel and lack structural rigidity under heavy off-centre loads, this 4.5-tonne hoist uses 5 mm thick steel posts and reinforced internal carriages to eliminate structural deflection. It is engineered explicitly for commercial mechanical garages, fleet repair centres, and trade workshops operating within standard sheds or low-clearance bays, meaning it is not suited to high-roof workshops where an overhead clear-floor layout is preferred for moving tall workshop equipment underneath.

Key Features

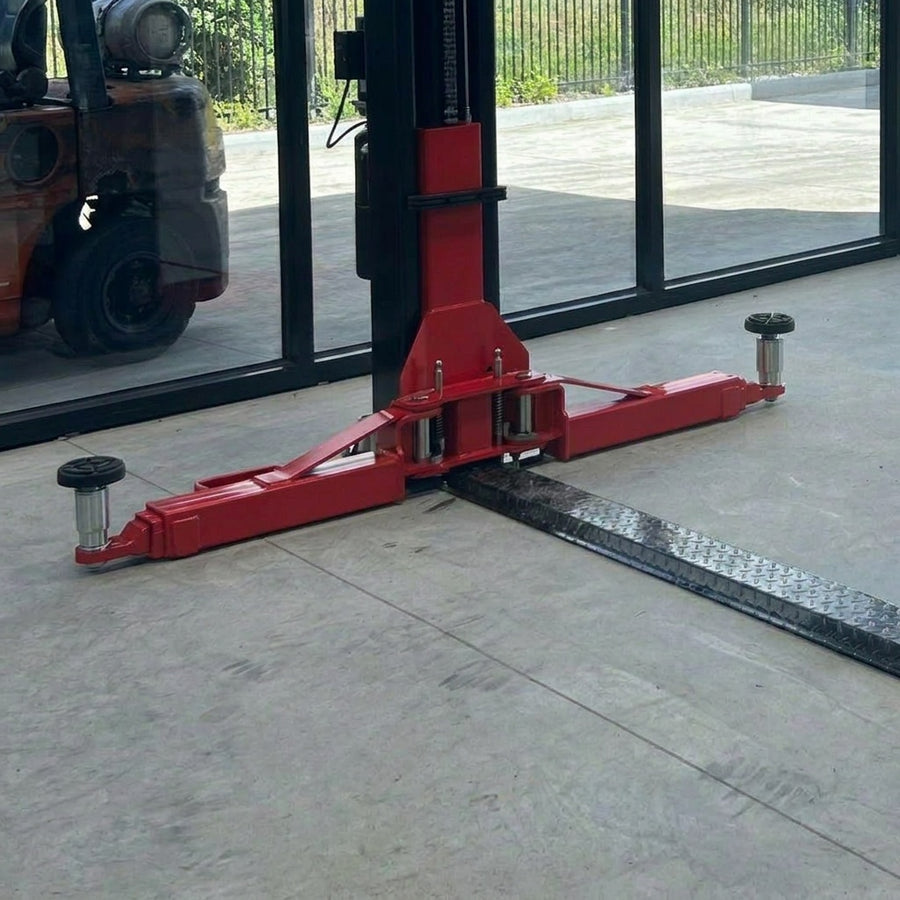

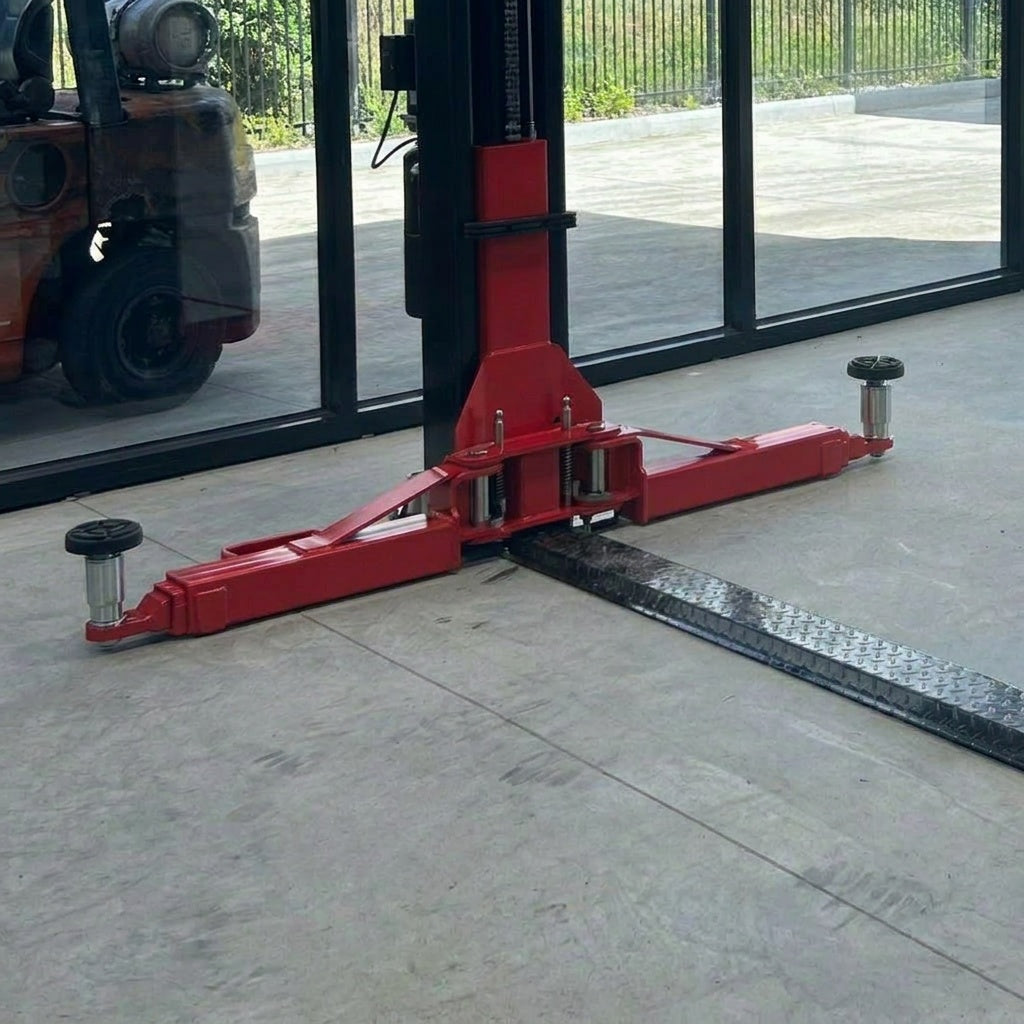

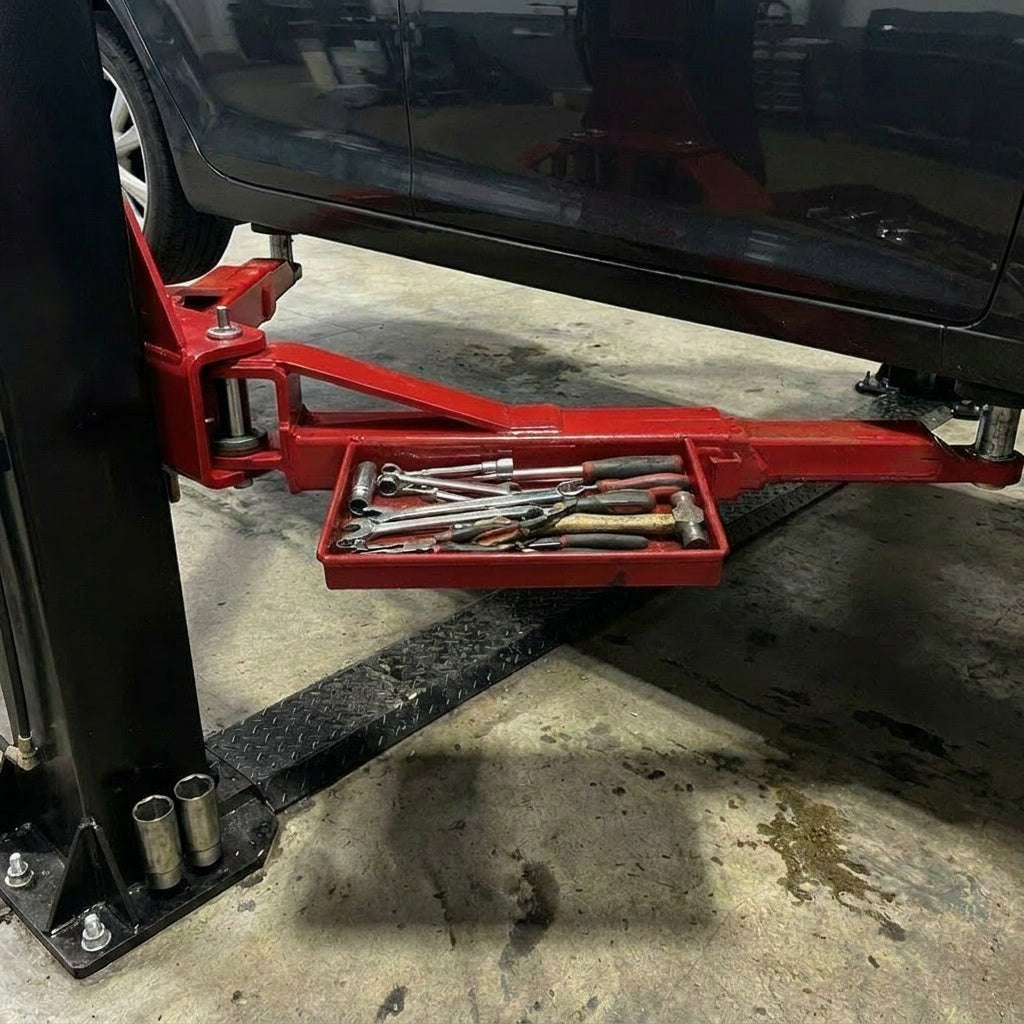

• Double Extension Arms — The flexible asymmetric arm design extends from 890 mm to 1390 mm on the long arms and 740 mm to 1050 mm on the short arms to suit various vehicle wheelbases.

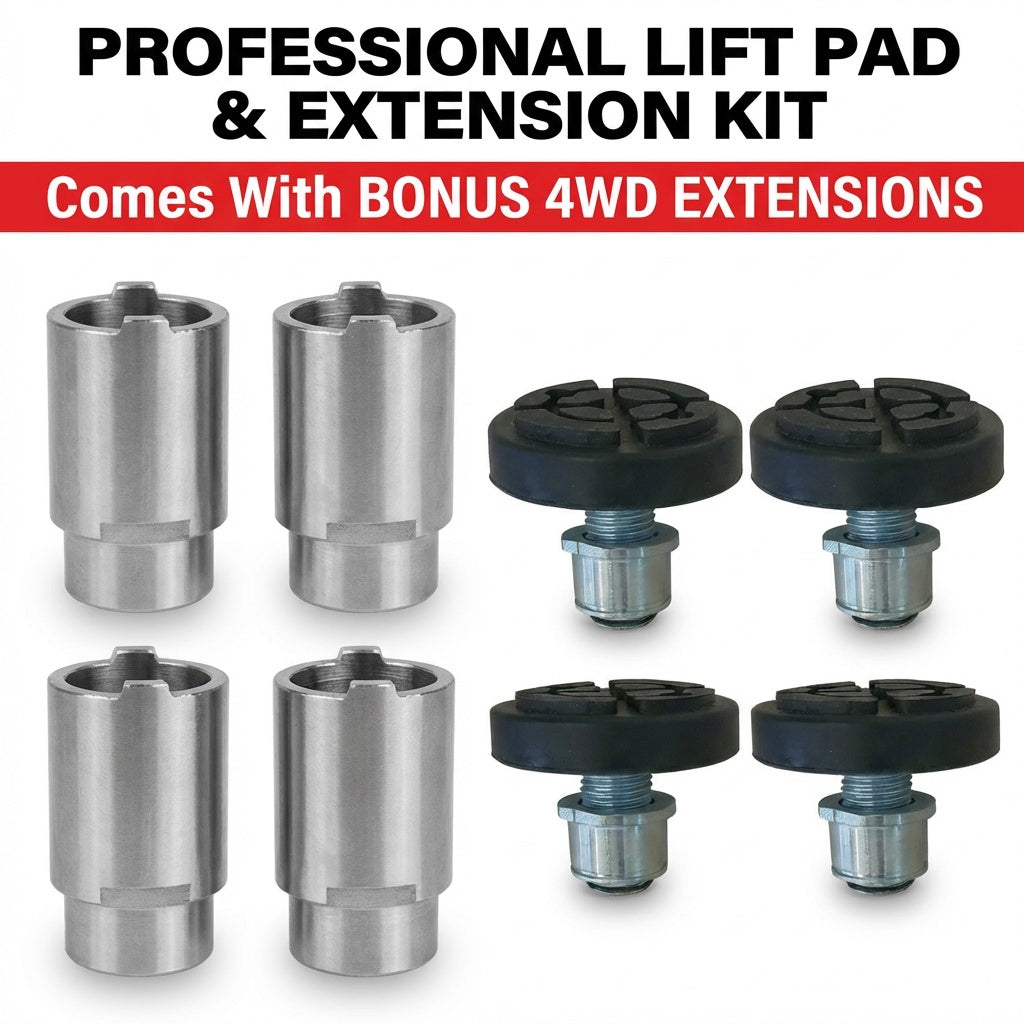

• Screw-Adjustable Lifting Pads — Heavy-duty adjustable lifting pads permit precise placement under factory chassis points, with bonus pad height extenders included for high-clearance four-wheel drives.
• High-Strength Equalisation — Heavy-duty 9 mm high-tensile steel cables coordinate carriage movement to ensure level lifting even when weight distribution is uneven.
• Industrial Slide Blocks — Macro-molecular polyethylene slide blocks offer heat resistance and high structural strength to ensure smooth vertical travel up the columns.

Before You Order

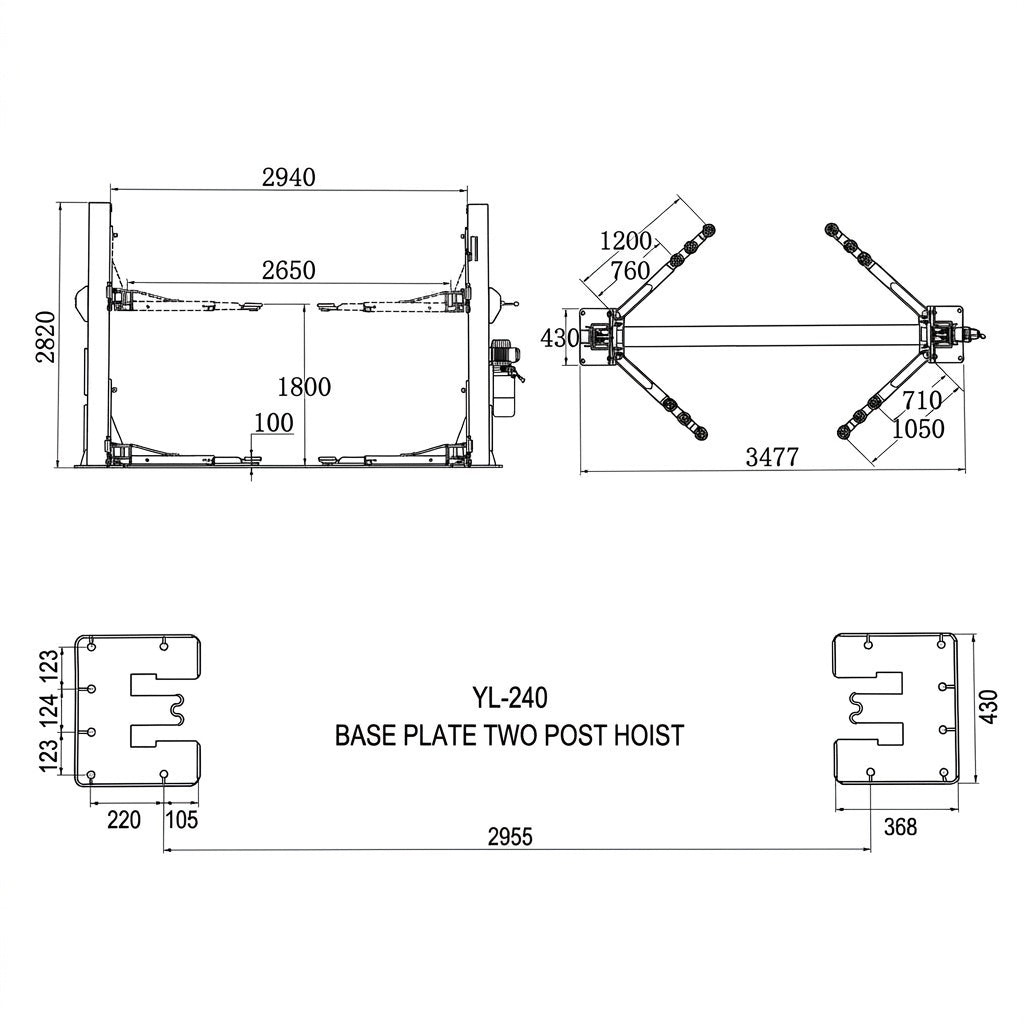

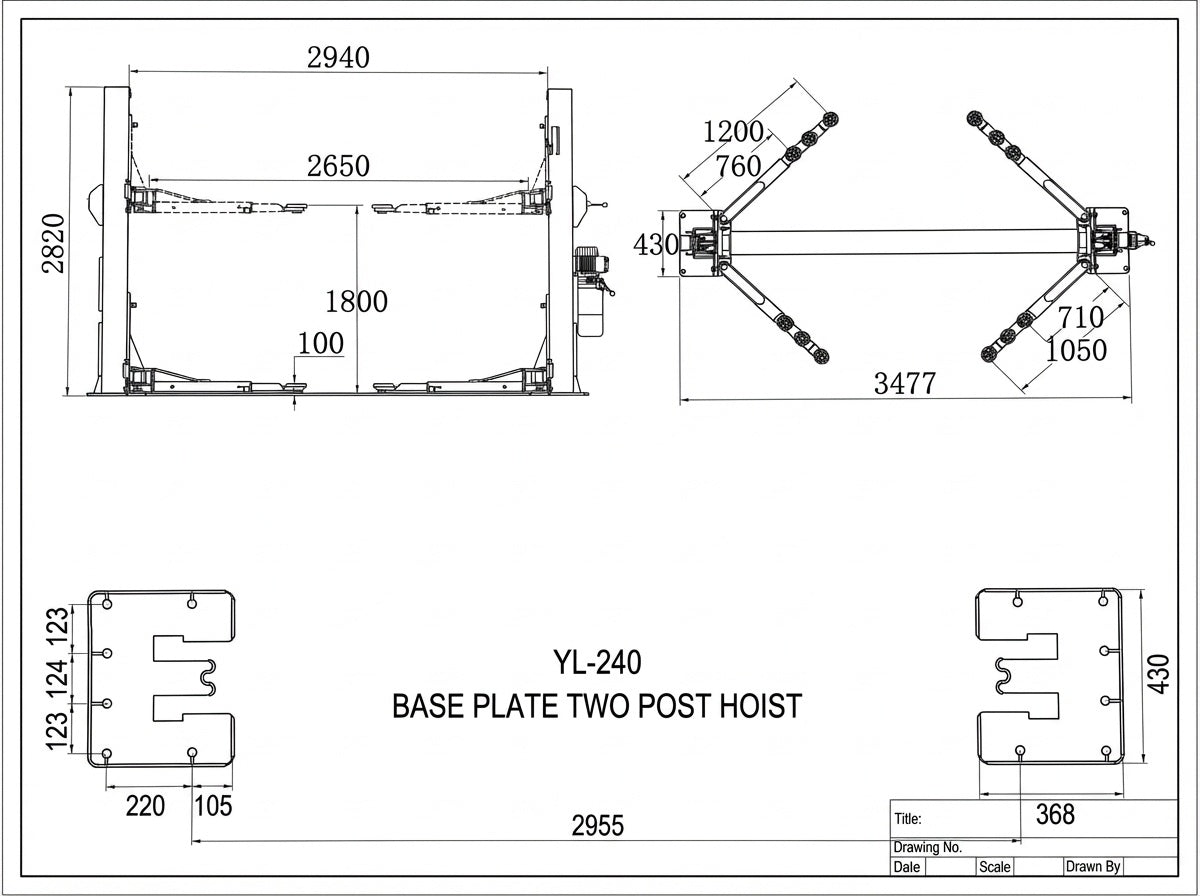

Installation requires a level, fully cured concrete slab with a minimum thickness of 115 mm and a compressive strength rating of 32Mpa. The electro-hydraulic power pack operates via a standard 240 V single-phase electrical supply connected to a dedicated 15 A circuit breaker (should not operate off of a 10amp extension lead). Ensure your workshop floor footprint accommodates the 3477 mm overall width and that the 2794 mm overall height clears all structural roof beams and hanging garage doors.

What's Included

• Two 5 mm thick structural steel column assemblies
• Two heavy-duty internal carriage assemblies with polyethylene slide blocks

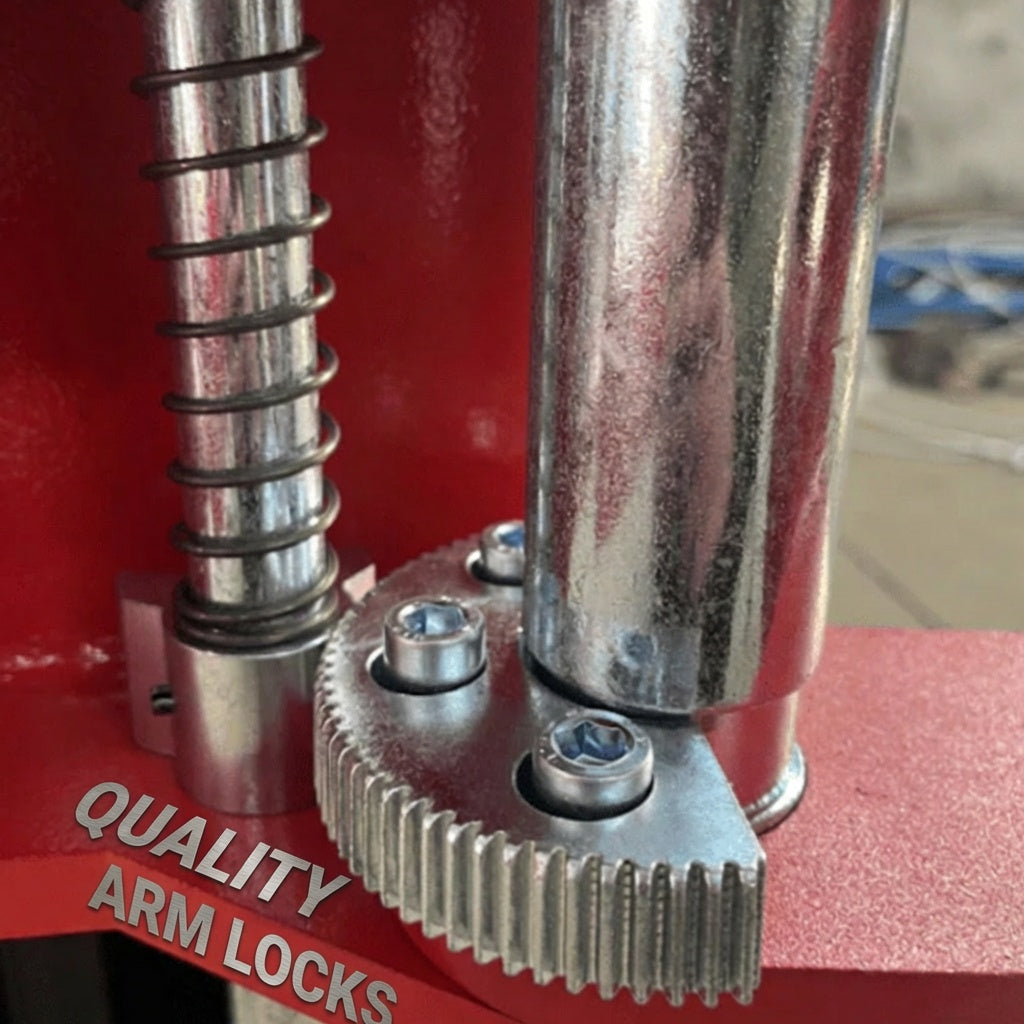

• Four double-extension telescopic lift arms with automatic arm locks

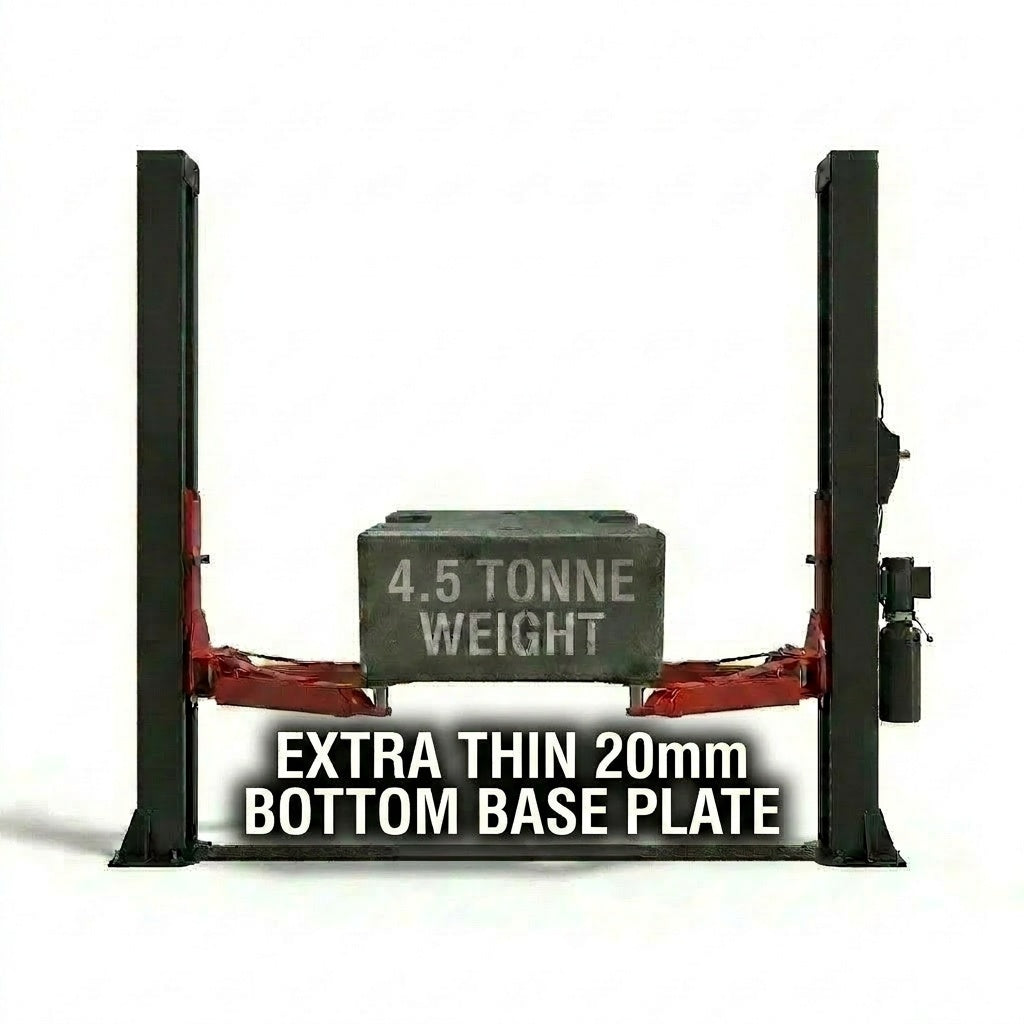

• Low-profile steel base plate cover and internal hydraulic line links
• 240 V single-phase hydraulic power unit and integrated fluid reservoir
• Adjustable screw pads and high-clearance pad height extenders
• Heavy-duty 9 mm steel equalisation cables and concrete anchor bolts

Please note that AW46 grade hydraulic oil is sold separately.

To configure an efficient mechanical workspace, consider pairing this low-ceiling hoist with our space-saving tyre changers, commercial wheel balancers, and high-tech wheel alignment machines. Contact our technical team for spatial layout advice or advice regarding alternative three-phase power unit configurations.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation
