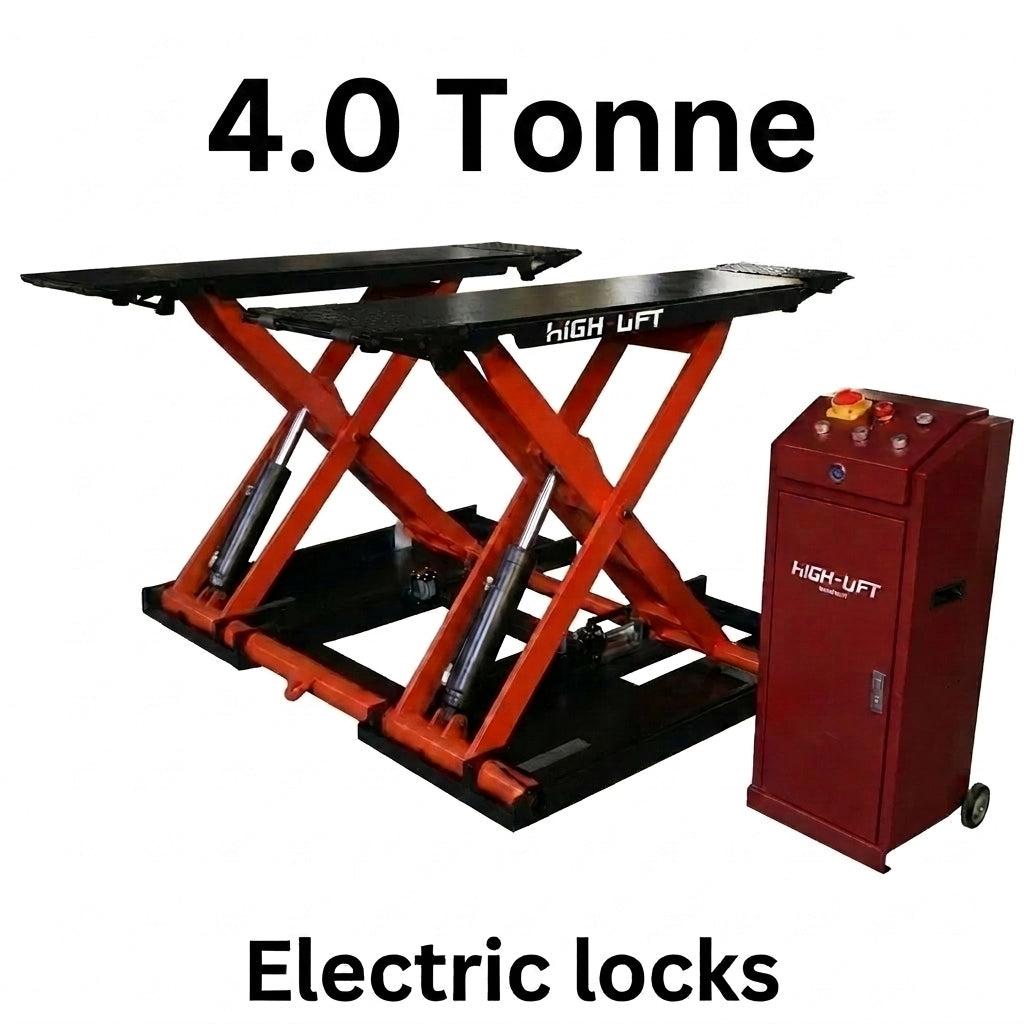

Highlift YL640BE CAR SCISSOR LIFT Max Lift Capacity 4 Tonne, Electric Locks Wheel Kit & Rubber Pads

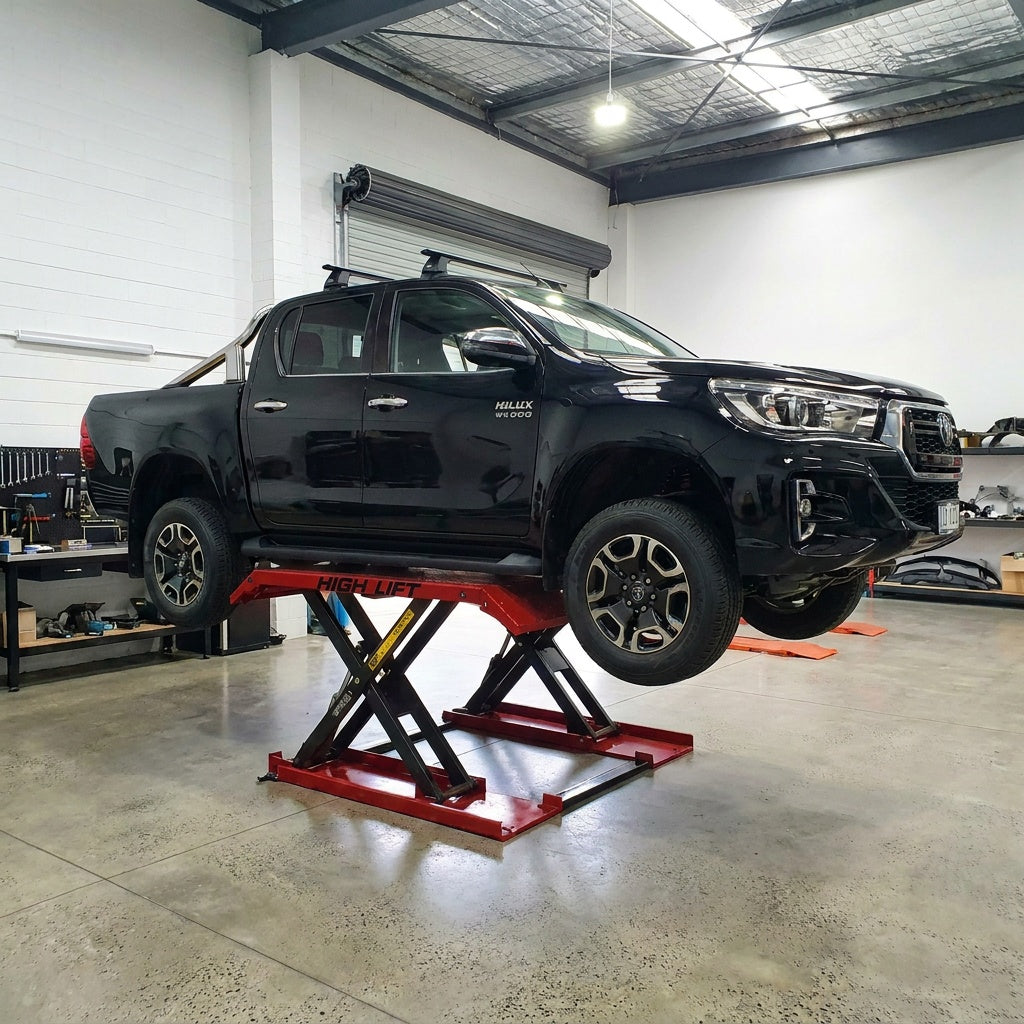

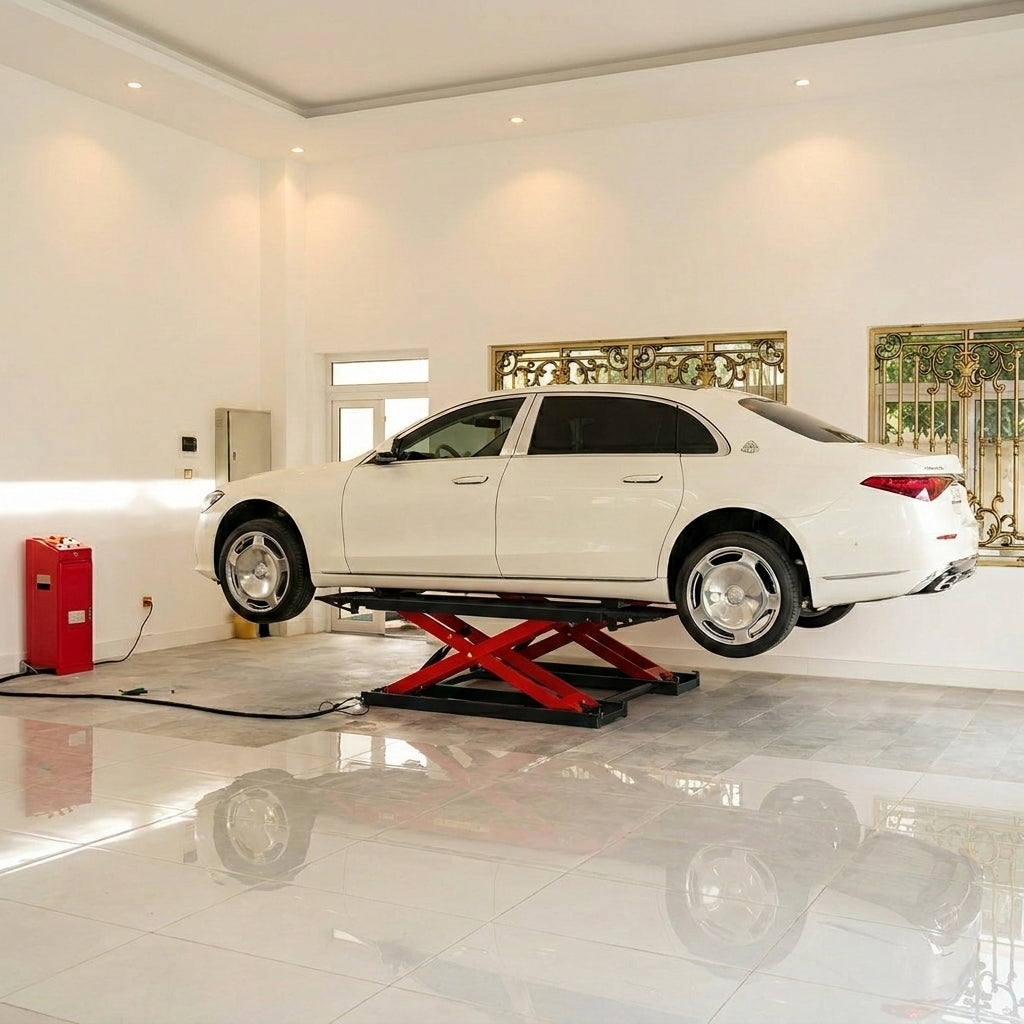

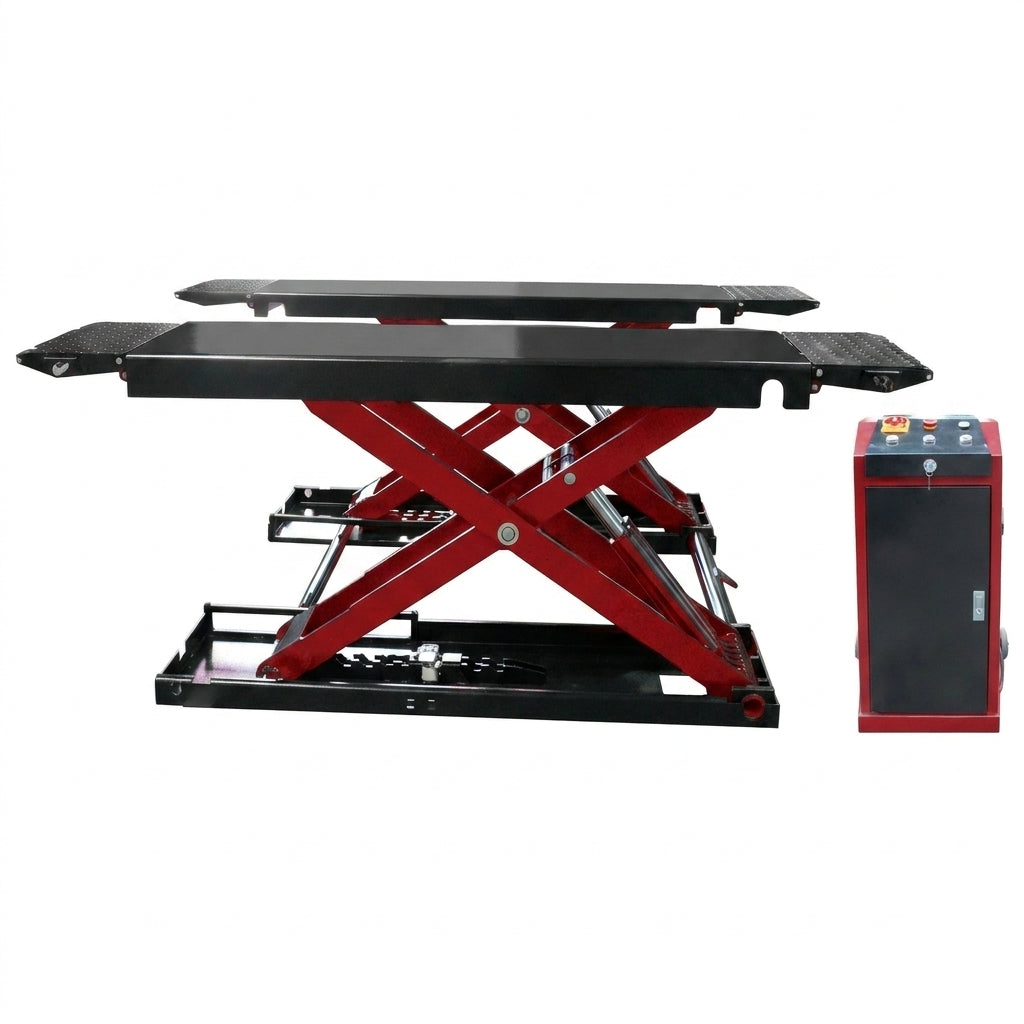

The High-Lift Twin Ram YL-640BE Mid Rise Car Scissor Lift offers a 4000kg capacity, making it a great fit for compact spaces like narrow workshops and low-ceiling areas. It comes with electronic controls, an aluminium power unit, and platform extensions that lock securely into place.

Key Features

• Dual Hydraulic Rams — Advanced master-slave hydraulic cylinder circuits ensure perfectly balanced and synchronized level platform travel throughout both ascent and descent cycles.

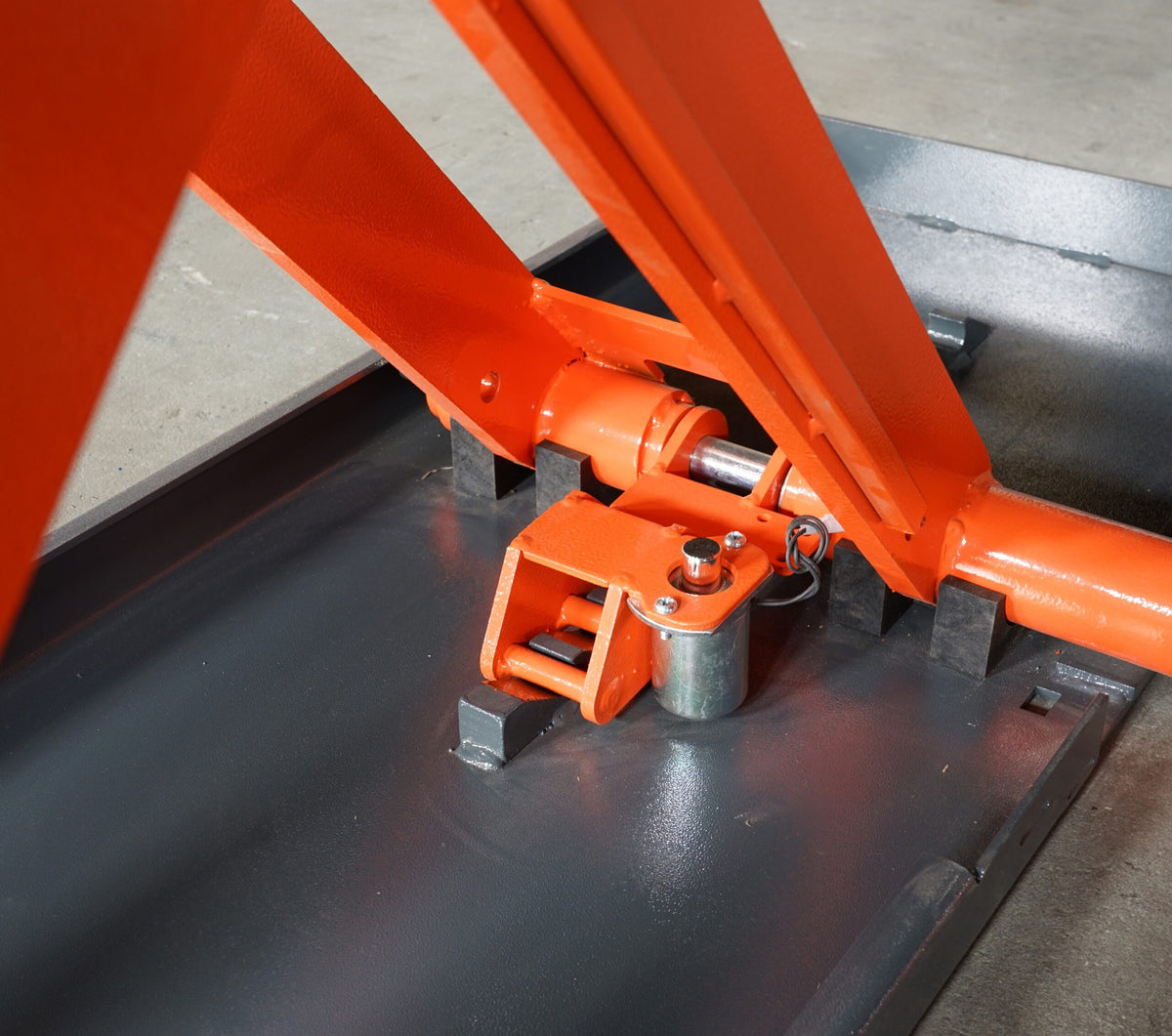

• Automated Mechanical Safety Locks — Heavy-duty mechanical safety lock teeth engage automatically as the lift rises, securing the load firmly independent of the hydraulic system line pressure.
• Heavy Rubber Lifting Pads — Included industrial-grade solid rubber pads shield the vehicle factory chassis weld seams and rocker panels from metal-on-metal contact.

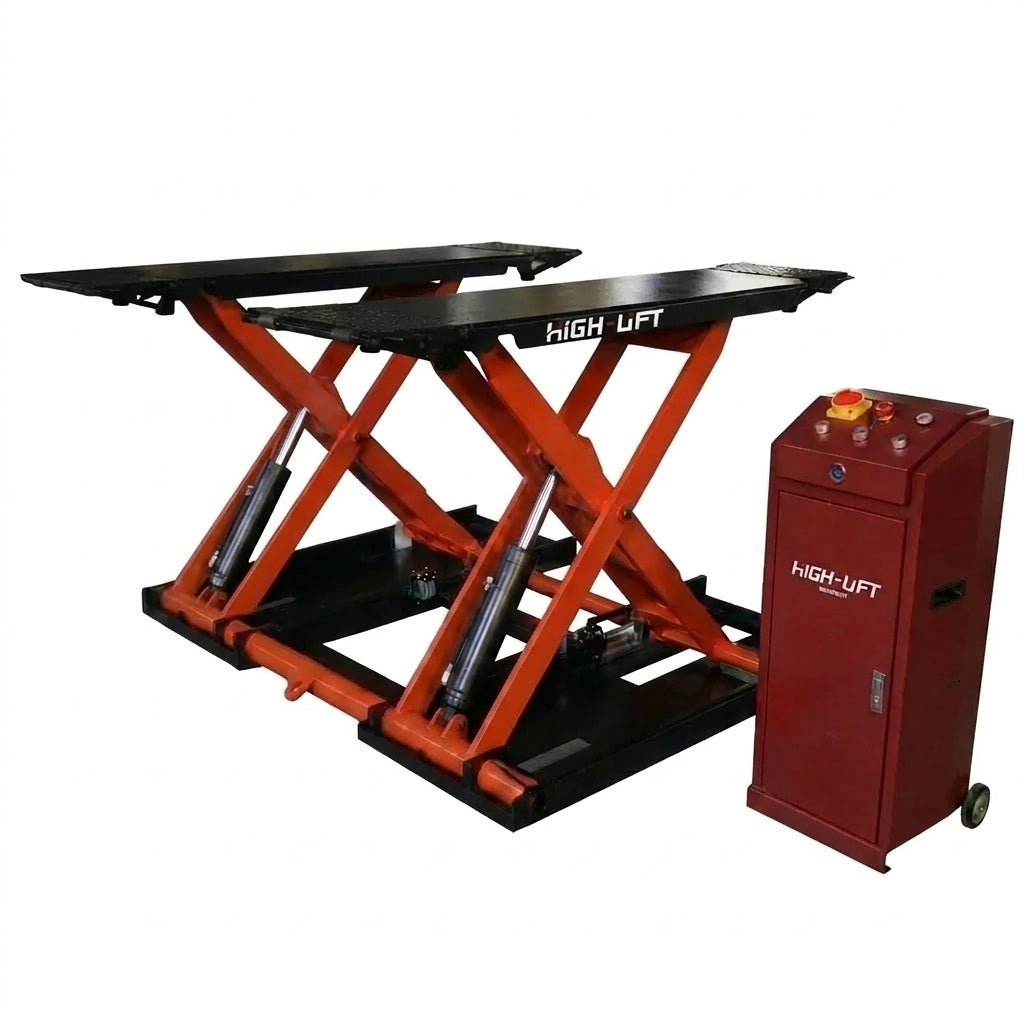

• Independent Control Console — A centralized commercial-grade 240 V electronic control box houses the push-button operation switches and hydraulic fluid reservoir safely away from the lifting mechanism.

Before You Order

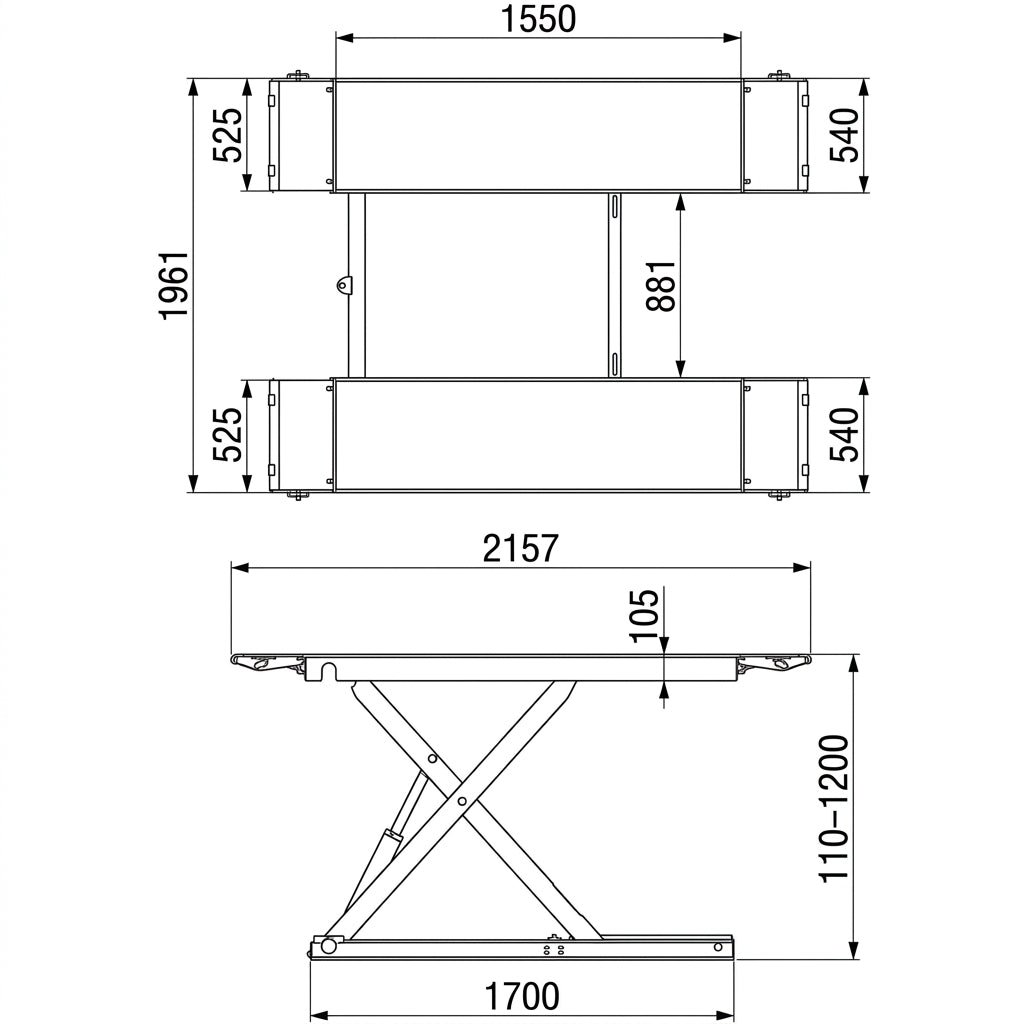

Installation or stationary use requires a level, fully cured concrete slab with a minimum thickness of 100 mm and a compressive strength rating of 32 Mpa. The electro-hydraulic power unit is configured for a standard 240 V single-phase electrical supply requiring a dedicated 20 A circuit breaker, which must be connected directly by a licensed commercial electrician. Ensure your service bay layout provides enough length for the platform layout and approach space, keeping a safe vertical margin from any overhead hanging lights or automated garage doors.

What's Included

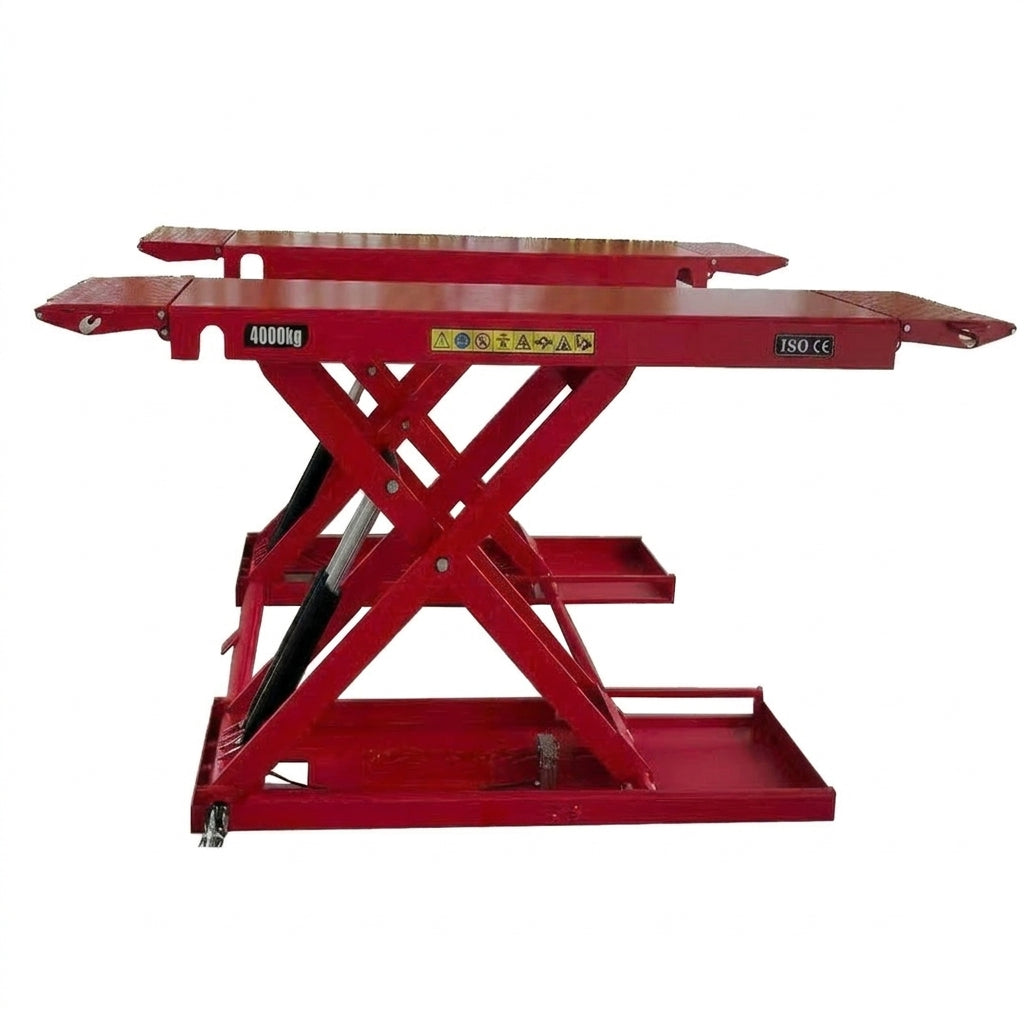

• Two heavy-duty 4000 kg structural steel lifting scissor platforms

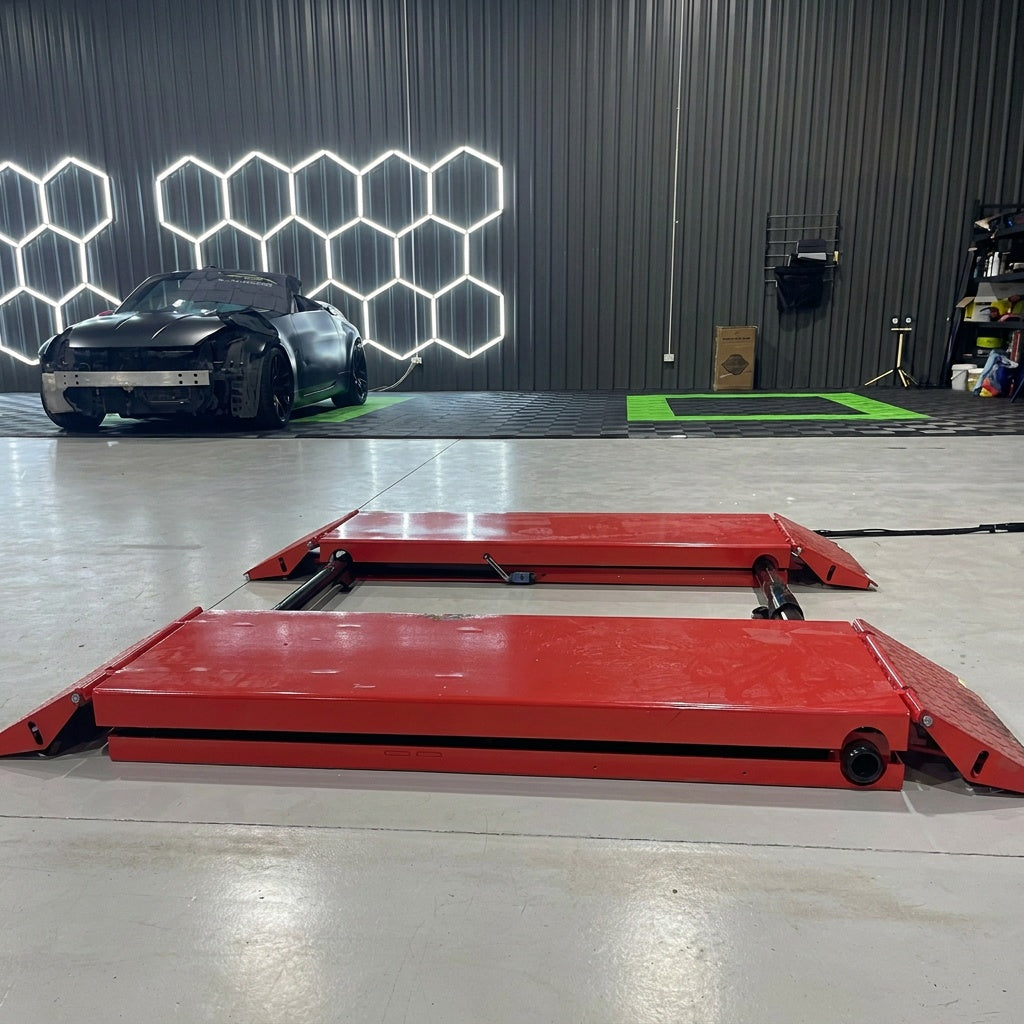

• Four lockable drive-on approach ramps that extend the platform workspace
• One heavy-duty mobile workshop caster wheel kit for hoist transposition
• Four durable heavy-rubber vehicle lifting blocks to shield chassis weld seams
• One standalone 240 V electronic control panel console with integrated hydraulic pump
• Complete set of heavy-duty hydraulic lines and internal synchronization wiring packs
• Commercial concrete floor anchoring bolts for optional permanent mounting

Please note that AW46 grade hydraulic oil is sold separately.

To maximize the operational output of your rapid-service bay, consider pairing this mobile scissor lifting system with our professional tyre changers, wheel balancers, or mobile tool storage cabinets. Contact our sales desk for trade package configurations and transport logistics to your business site.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation
