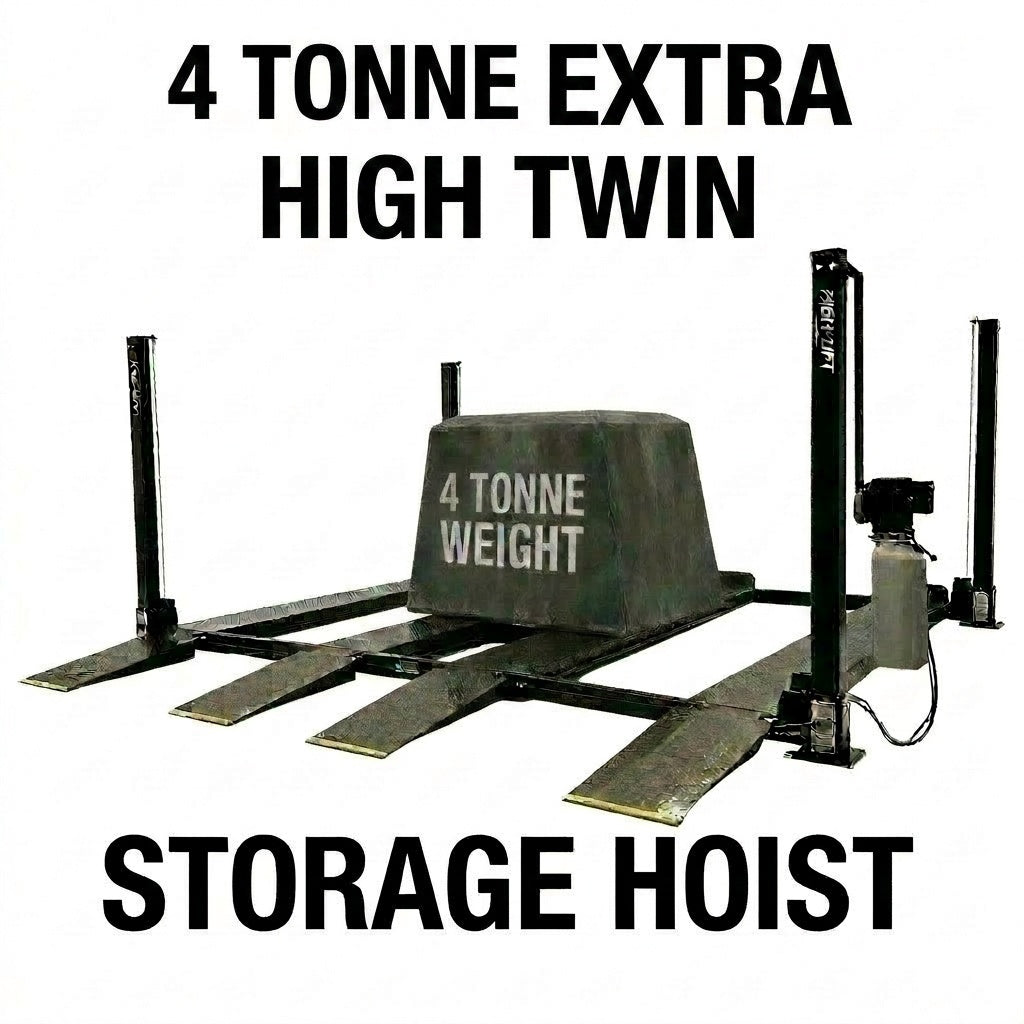

Highlift YL-9FW Twin Parking Storage Hoist 4 Tonne Twin Storage Car Hoist Extra High Lift 2200mm

$8,100.00
$8,300.00

In stock

The High-Lift YL-9FW Extra-High Twin Storage Hoist is ideal for storing vehicles, boats, and more. The centre runways can be filled in to create one large platform, adding extra flexibility to suit your storage needs.

Built for efficient vehicle storage in garages and workshops, the YL-9FW is a versatile extra-high twin platform 4-post parking hoist with a 4-tonne capacity. It offers a 4000kg Safe Working Load (2000kg per platform), simple manual lock release, and runs without a compressor — making it a practical, dependable choice for parking and maintenance alike.

  • Extra-High Stacking Profile — The expanded vertical travel limits create maximum ground headroom beneath the elevated platforms to accommodate tall off-road vehicles underneath.
  • Multi-Position Mechanical Locks — Automatic safety locking ladders built directly into each column engage reliably at multiple height intervals to secure the structural load independently of the hydraulics.
Features
  • 4 x your parking space
  • Perfect for storing/working on most vehicles
  • Diamond plated platforms
  • Powder coated finished

Options:

  • Sliding Jacks - RJ-3500 or RJQ-3500
  • Oil Drip Trays
  • Aluminium Approach Ramps

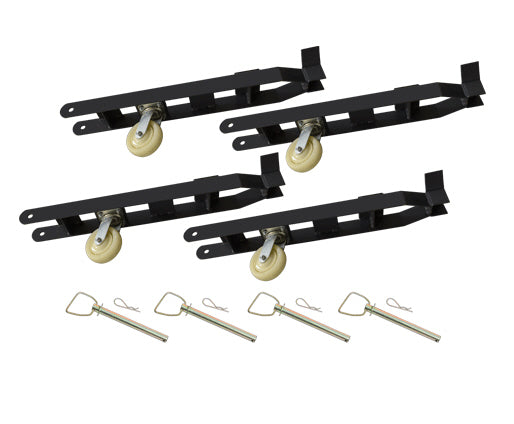

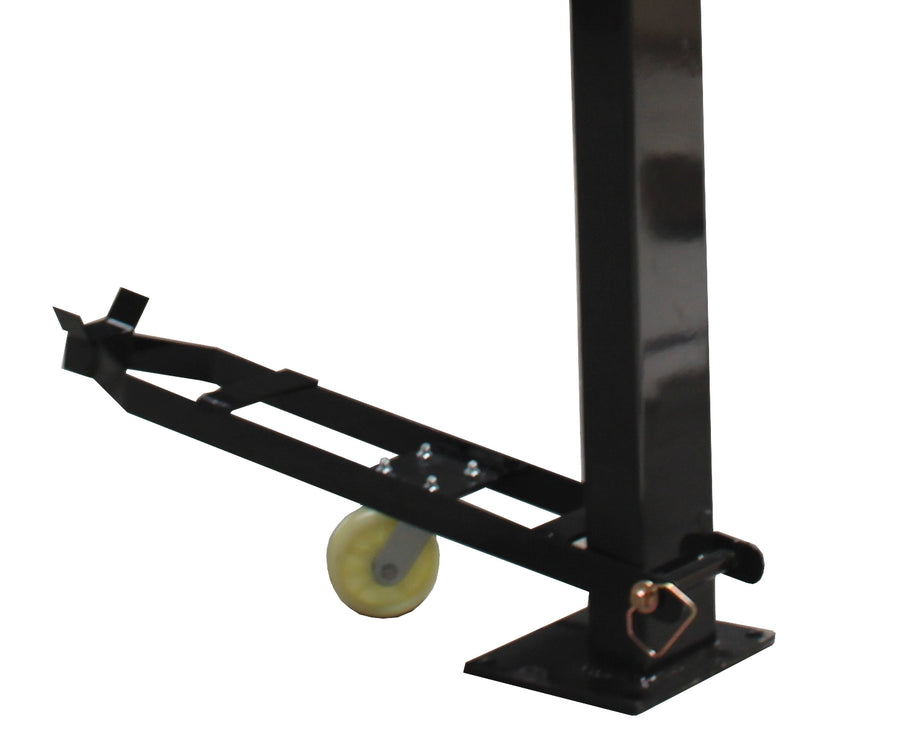

  • Caster Wheel Kit
  • Steel Tool Tray
  • Steel In-Fill Kit

Safety:

  • Mechanically locks each (170mm) interval
  • Anti-surge valve
  • Cable slack locks

Installation Manual

Workcover Registration

Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview


The High-Lift YL-9FW Extra-High Twin Storage Hoist is ideal for storing vehicles, boats, and more. The centre runways can be filled in to create one large platform, adding extra flexibility to suit your storage needs.

Key Features

  • Optimised Shared-Column Footprint — The integrated multi-post frame eliminates redundant structural pillars between platforms, preserving precious drive-through clearance and ease of door opening.
  • High-Tensile Balancing Ropes — Heavy-duty internal steel synchronisation cables combine with large-diameter pulley blocks to ensure uniform, level, and synchronous vertical carriage movement.
  • Industrial Powder Finish — The commercial-grade exterior powder coating provides exceptional resistance against oil spills, brake fluids, moisture, and severe mechanical abrasions.
  • Slack Cable Safety Interlocks — Secondary mechanical safety links engage instantly within each post assembly if any cable loses tension, preventing accidental carriage descent.

Before You Order

Installation requires a flat, level, fully cured concrete slab with a minimum thickness of 100 mm and a compressive strength rating of 32Mpa. The electro-hydraulic power pack operates via a standard 240 V single-phase electrical supply paired with a dedicated 20 A circuit breaker, which must be hardwired directly by a licensed electrician. Verify that your property provides adequate ceiling height to clear the tall column architecture plus the combined vertical height profiles of both upper and lower vehicles.

What's Included

  • Four structural steel runways featuring non-slip textured surfaces (configured as two twin bays)
  • Heavy-duty structural steel support columns with internal mechanical locking ladders
  • High-traction drive-on approach ramps with stamped non-slip patterns
  • Complete set of high-tensile steel synchronisation cables and heavy-duty sheaves
  • 240 V single-phase hydraulic power unit and integrated push-button controls

Please note that hydraulic fluid, plastic fluid drip trays, and rolling caster mobility kits are sold separately.

To establish a premium multi-vehicle storage facility or workshop service bay, consider combining this twin parking hoist with our space-saving tyre changers, electronic wheel balancers, or high-tech wheel alignment machines. Contact our sales desk for custom delivery logistics and warehouse collection options.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
