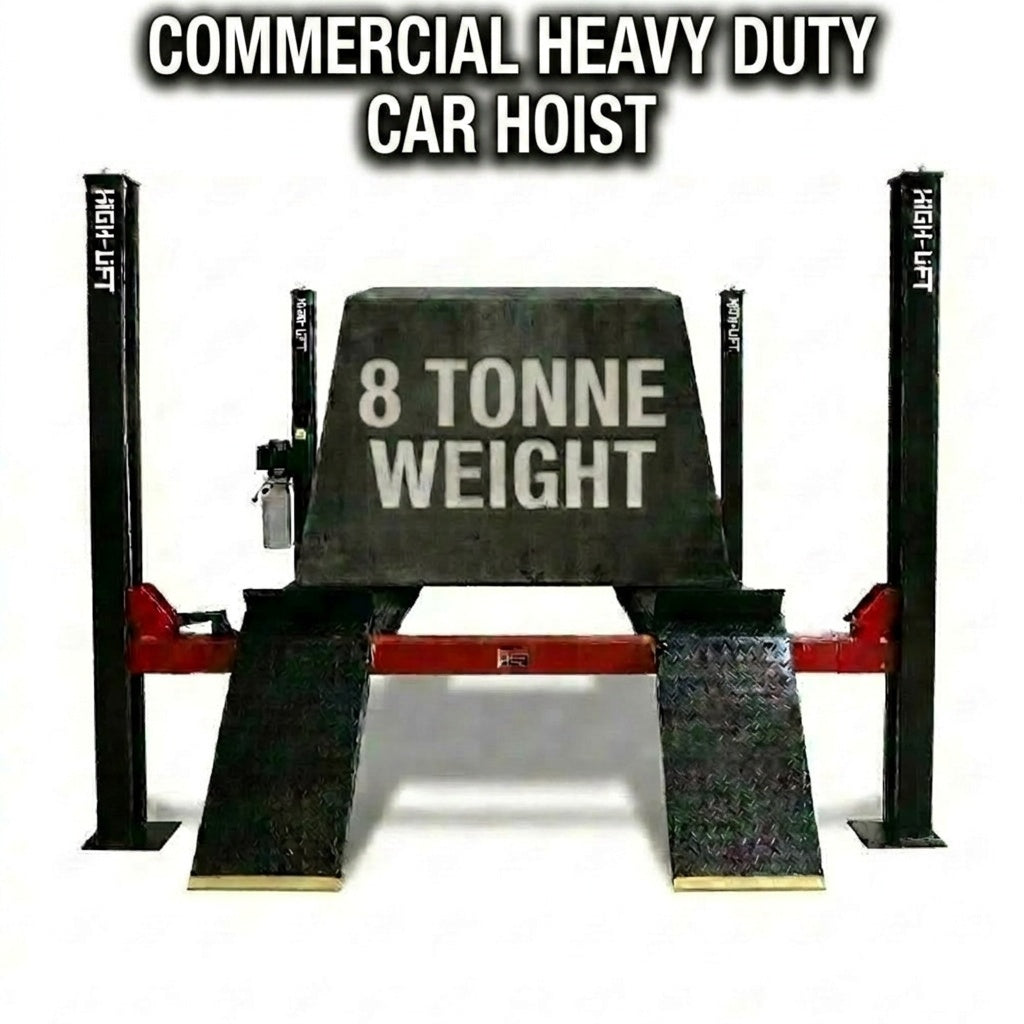

Highlift YL-8000 8 Tonne 4 Post Truck, Car Commercial Use Hoist with Air Safety Locks

The High-Lift YL-8000 8 Tonne 4-Post Hoist is a robust, reliable solution built specifically designed for working on ight to medium rigid trucks. Its durable powder-coated finish adds versatility for a range of maintenance tasks, while a strong focus on safety and performance ensures your hoist will run efficiently and securely every time.

Key Features

• 8000kg Lifting Capacity — Delivers heavy-duty structural overhead to safely elevate fully loaded utility trucks, fleet vans, and light commercial vehicles.
• Twin Hydraulic Ram System — Dual under-runway hydraulic cylinders distribute heavy structural loads uniformly to reduce cable fatigue and maintain completely level lifting tracking.
• Air Safety Lock Mechanism — Employs a pneumatic release system in all four columns to securely engage automatic safety locks at any height, lowering the hoist quickly and safely via workshop air.
• Extra-Thick Steel Columns — Robust structural column architecture minimizes mechanical flexing and sway under maximum weight loads to ensure total technician confidence.
• Diamond-Plate Tracks and Ramps — High-traction steel patterns prevent wheel slippage on the 797mm approach ramps and runways during wet or greasy vehicle loading.
• Safety Limit Cut-Off Switch — Automatically cuts power to the 2.2kW motor upon reaching maximum lifting height to prevent top-travel over-extension and hydraulic system stress.

Before You Order

• Power Configuration — Supplied with a standard single-phase 240V 2.2kW motor setup. If your workshop requires a commercial 415V three-phase power motor configuration, please select this option or specify before dispatch.
• Compressed Air Requirement — This unit features pneumatic post locks and requires an active workshop air compressor connection to operationalize the safety lock release mechanisms.
• Concrete Foundation Standards — Ensure your workshop slab thickness and reinforcement comply with 8-tonne heavy vehicle machinery mounting requirements prior to installation.
• Ceiling Clearance — Verify your workshop roof structure accommodates the 2120mm overall column height plus the total vehicle height profile when raised to full extension.

What's Included

• 8-Tonne Four Post Hoist Structure — Full structural columns, cross beams, and integrated runway assemblies.
• Drive-On Approach Ramps — Two heavy-duty 797mm diamond-plate steel drive-on ramps.
• 2.2kW Hydraulic Power Pack — Complete motor and pump unit assembly with air safety release linkages.
• Safety Limit Switch — Electrical maximum height protection cut-off switch unit.

Expand your capabilities and secondary lifting options by pairing this unit with matching pneumatic rolling jacks and heavy-duty front turntables, which are sold separately to complete your commercial bay setup.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
