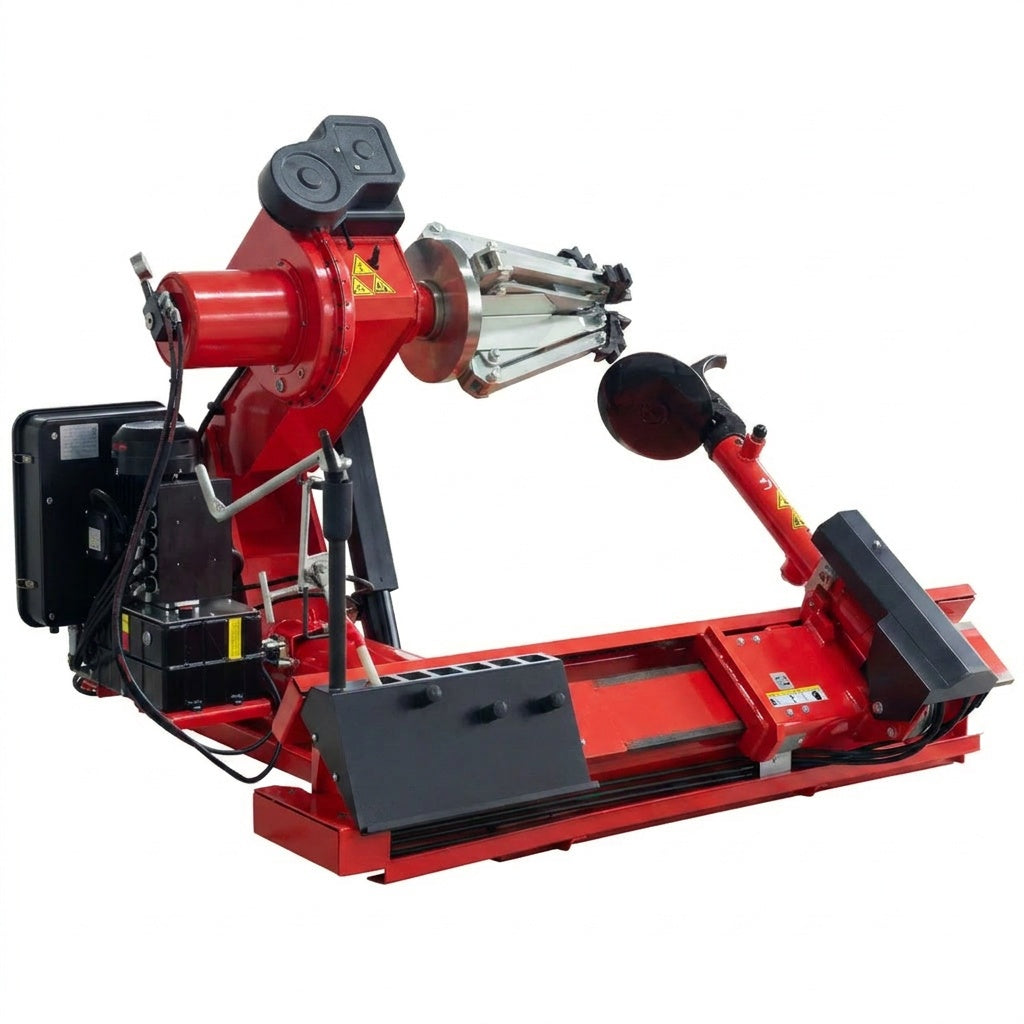

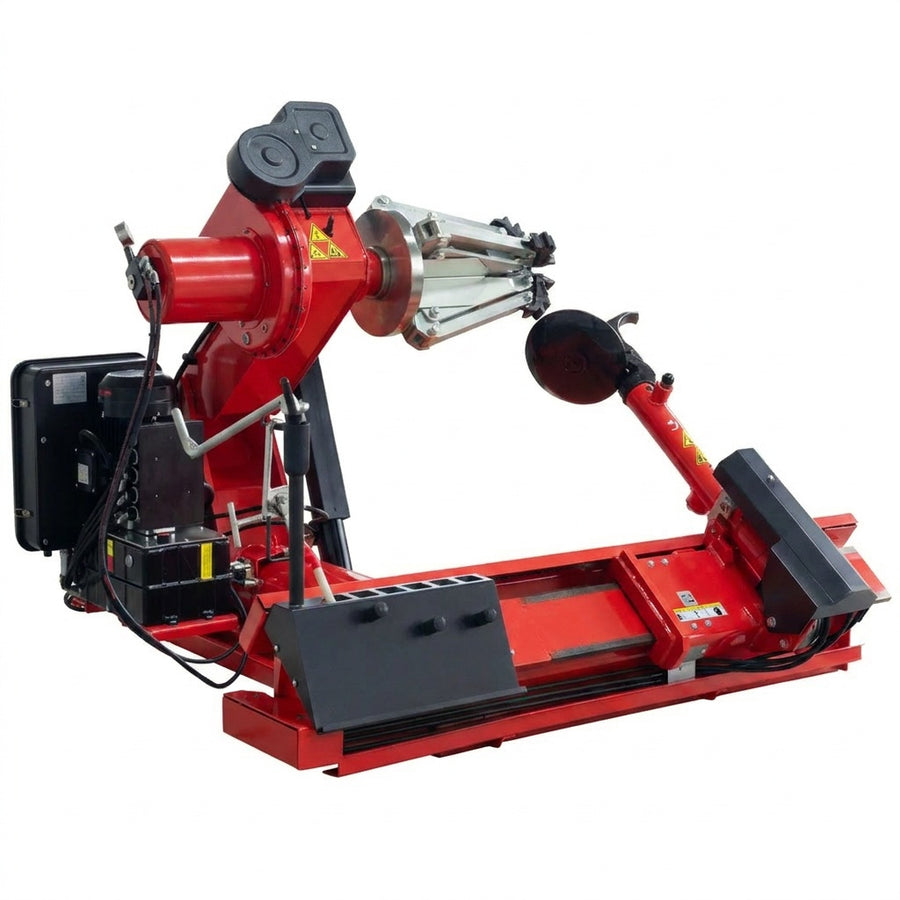

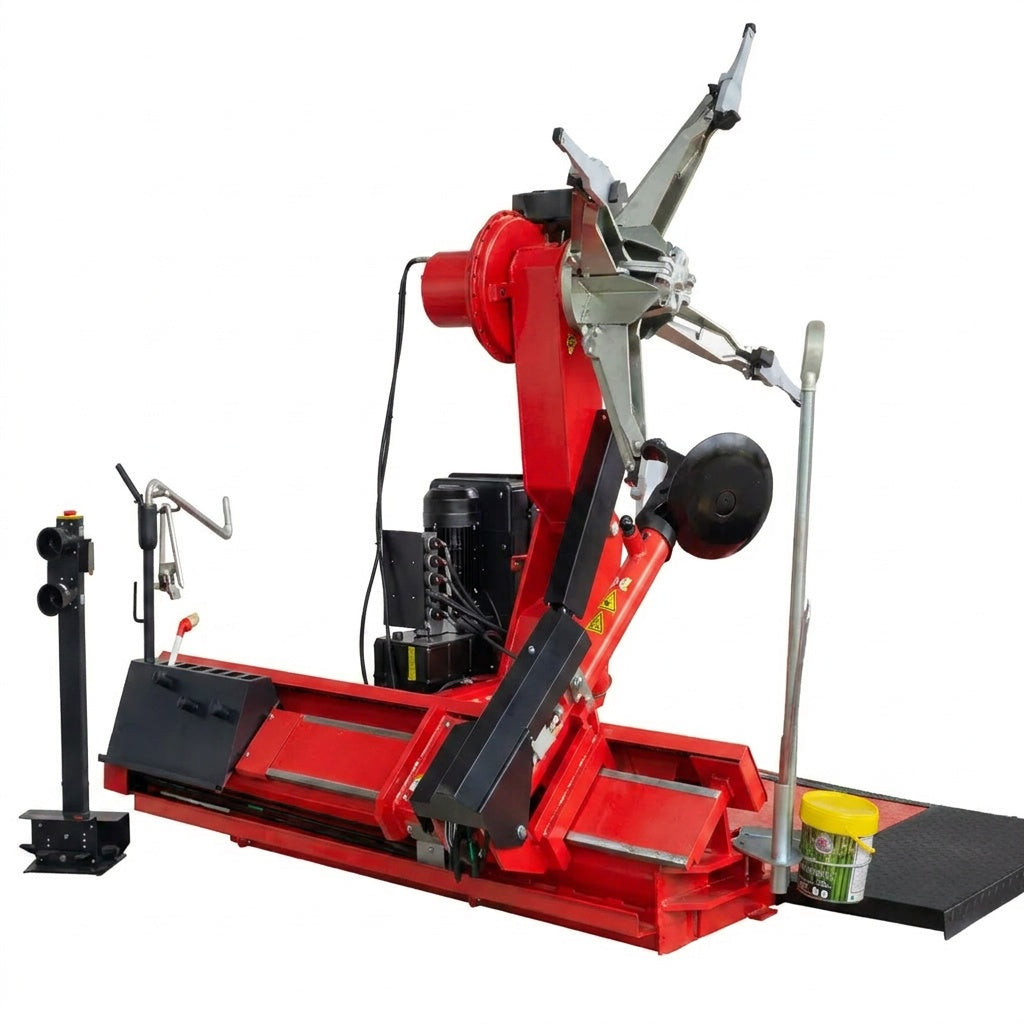

Truck Tractor Tyre Changer DS-906A3 Suitable For 56"

$10,200.00

In stock

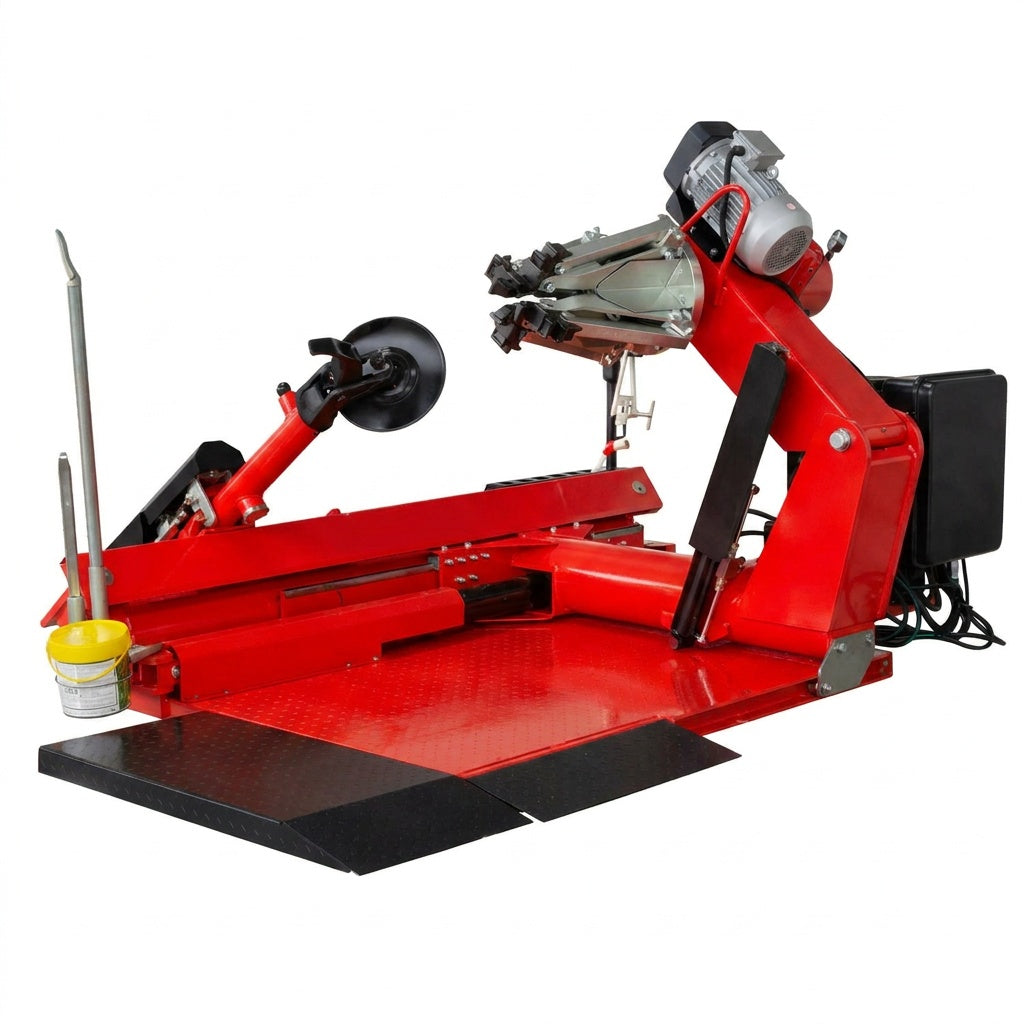

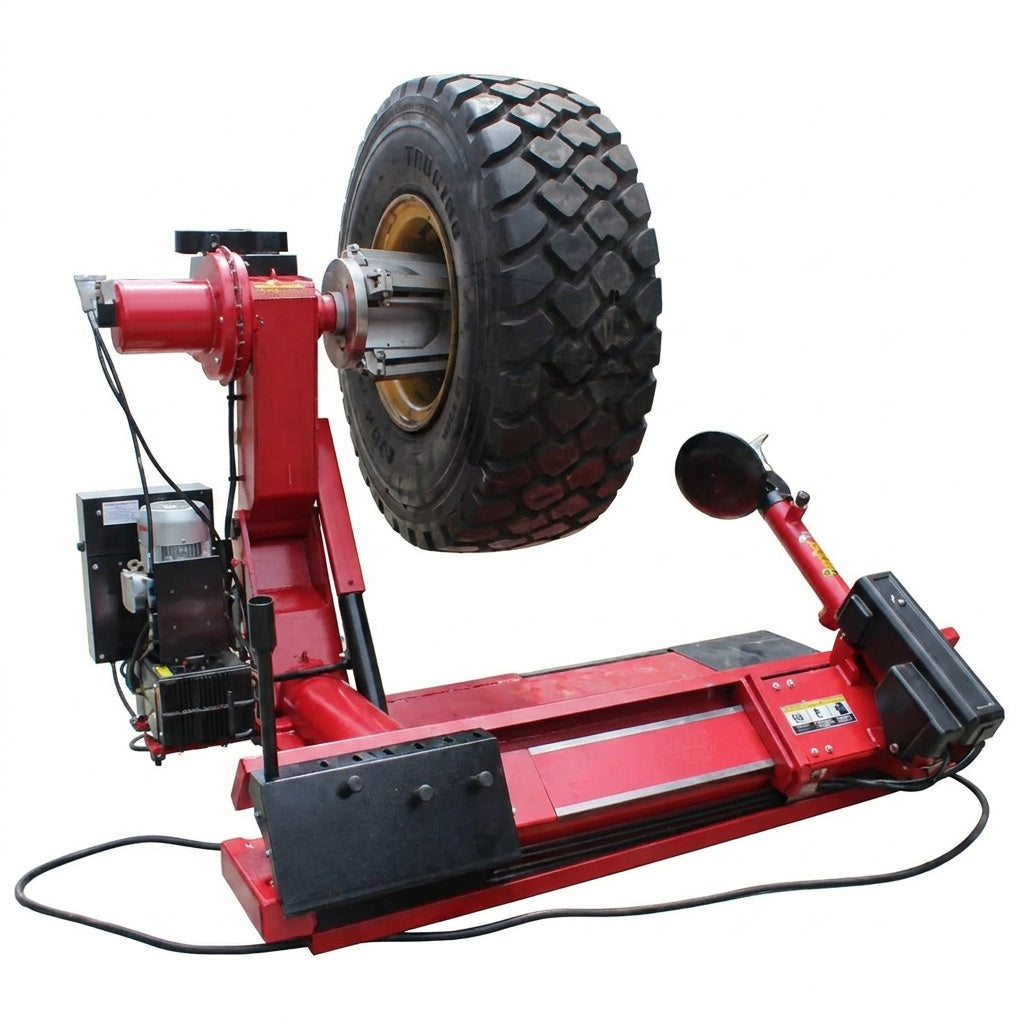

This Highlift heavy-duty commercial truck and tractor tyre changer delivers a high-capacity electro-hydraulic service platform engineered explicitly for oversized transport wheels, municipal transit buses, and heavy agricultural machinery. Featuring a versatile baseline clamping range that expands up to 56 inches with extensions. The DS-906A3 Truck Tire Changer can easily accommodate tires with a maximum width of up to 42in. This Atlas DS-906A3 truck tire changer is designed for high volume truck tire shops that demand dependability and durability in their equipment. The DS906A3 handles off-road tires, agricultural tires, super single tires, and skidder tires with ease. The Highlift DS906A3 truck tire changer is the perfect choice for the large truck tire center that does high volume truck tire work on standard over the road wheel assemblies and demands the capabilities to change agricultural and off road wheel assemblies.

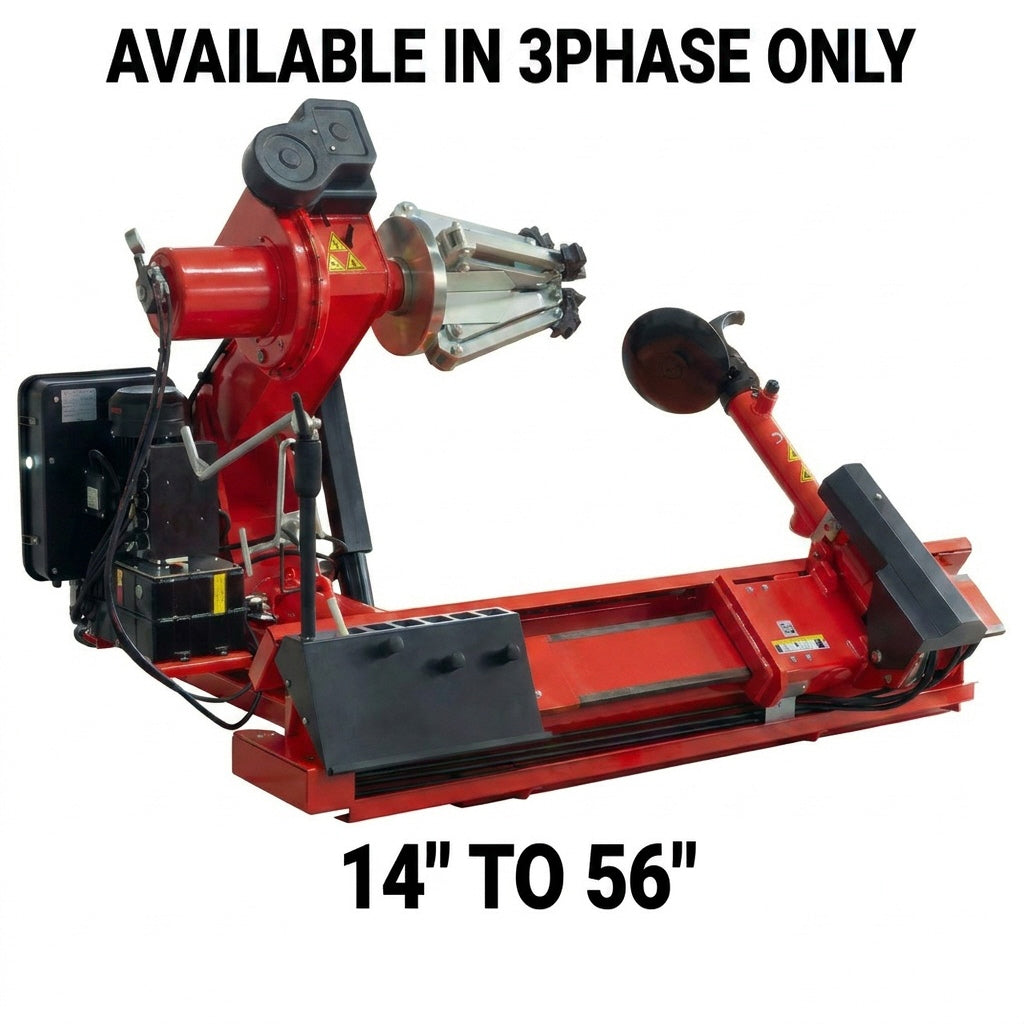

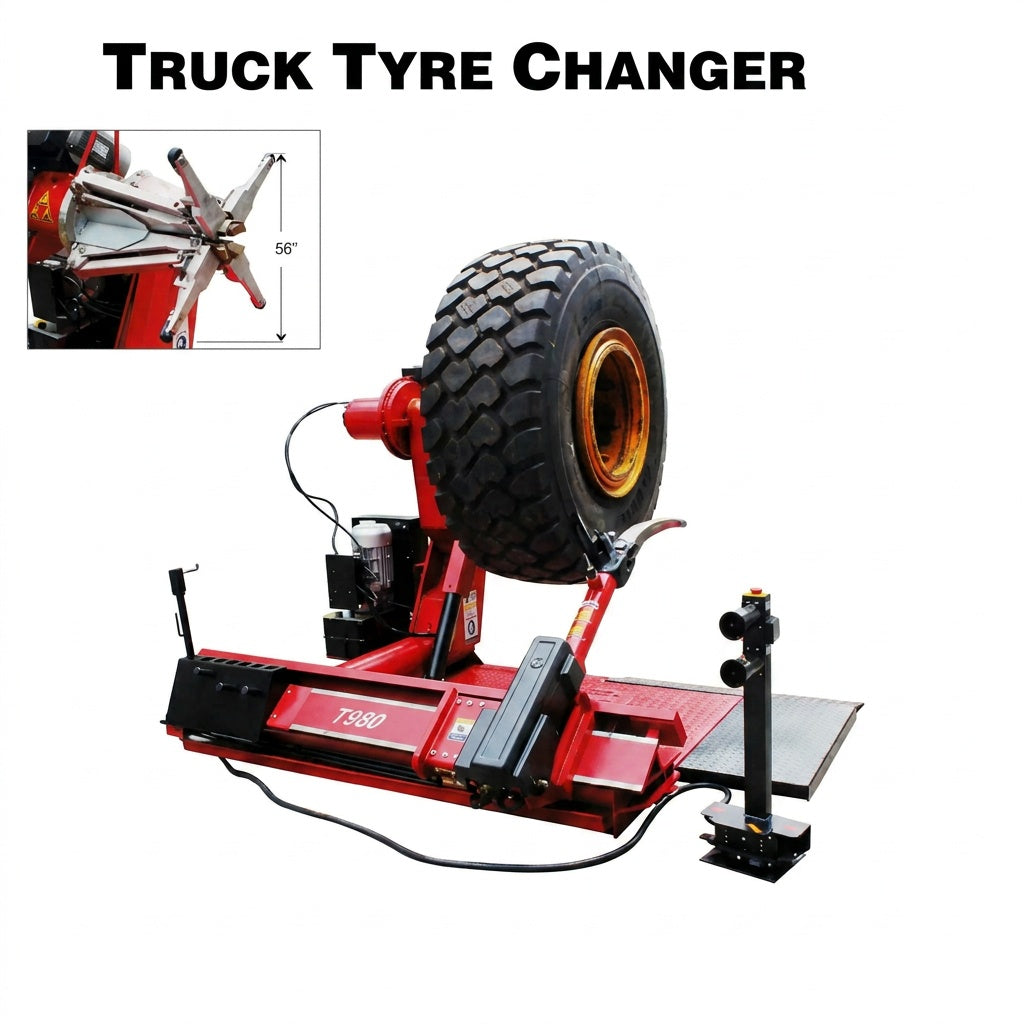

  • Up to 56" Rim Expansion — Accommodates massive heavy-duty vehicle wheels from 14 to 46 inches, expanding seamlessly to a 56-inch capability using the included extension jaw set.
  • 2000 kg Maximum Wheel Load — Over-engineered structural steel lifting arms and heavy-duty chassis components safely support and position massive multi-ply commercial wheels.
  • Mobile 24V Remote Control — Completely isolated standalone joystick control panel operates via safe low-voltage 24V wiring to keep high-voltage power cables off the wet workshop floor.
  • Integrated Hydraulic Operation — The high-torque tool bracket, heavy-duty lifting arms, and central four-jaw gripper assembly are fully driven by high-pressure hydraulics for maximum mechanical leverage.
Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

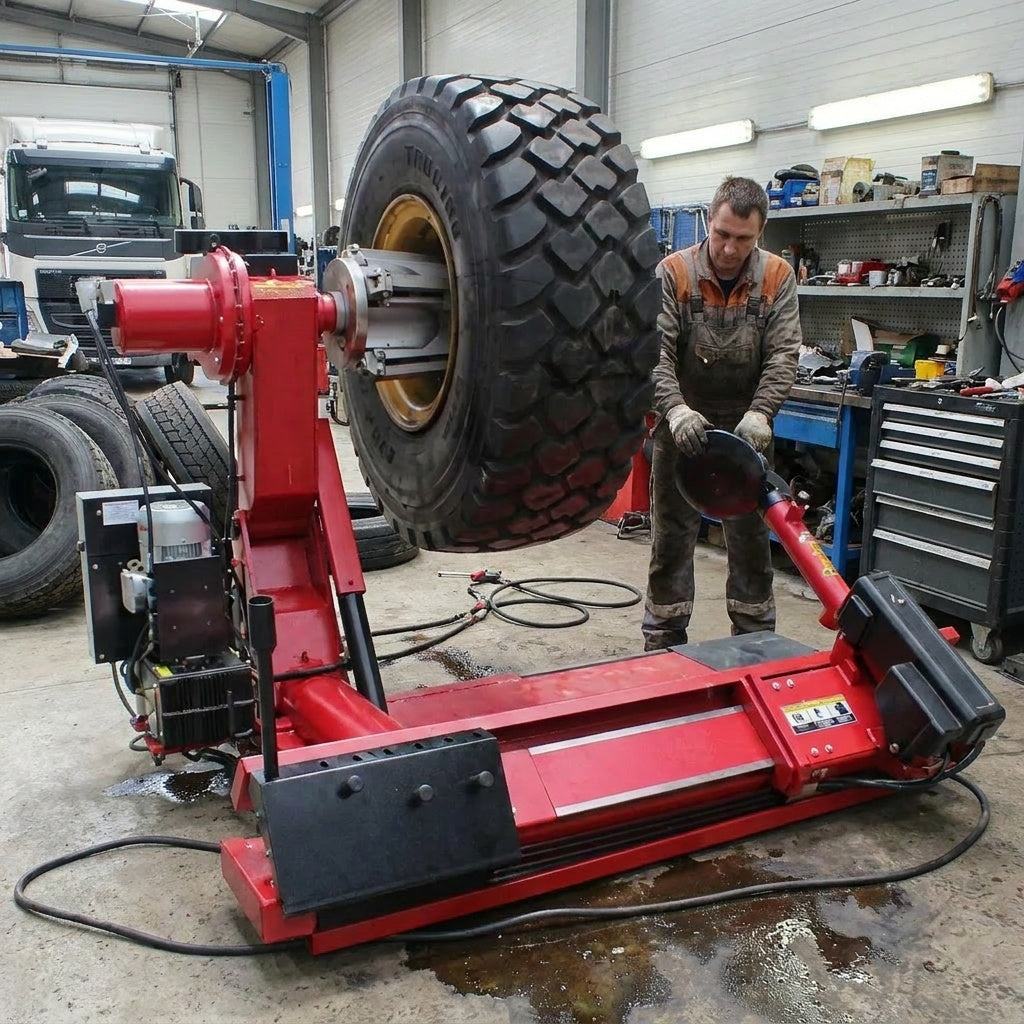

Unlike standard light-commercial or passenger vehicle tyre changers that lack the chassis mass, lifting clearance, and clamping power required to process thick, stiff, high-ply sidewalls, this industrial truck and tractor machine provides massive electro-hydraulic leverage. It is engineered explicitly for high-volume commercial transport repair centers, municipal bus depots, agricultural machinery dealerships, and heavy earthmoving equipment workshops, meaning it is not suited to standard light passenger automotive service garages where space is at a premium and wheel loads do not justify an industrial 415V platform.

Key Features

  • Integrated Hydraulic Sled Carriage — The horizontal tool holding assembly and lifting arm travel along a precision-machined guide rail system, engineered to prevent flex and binding during severe bead breaking cycles.

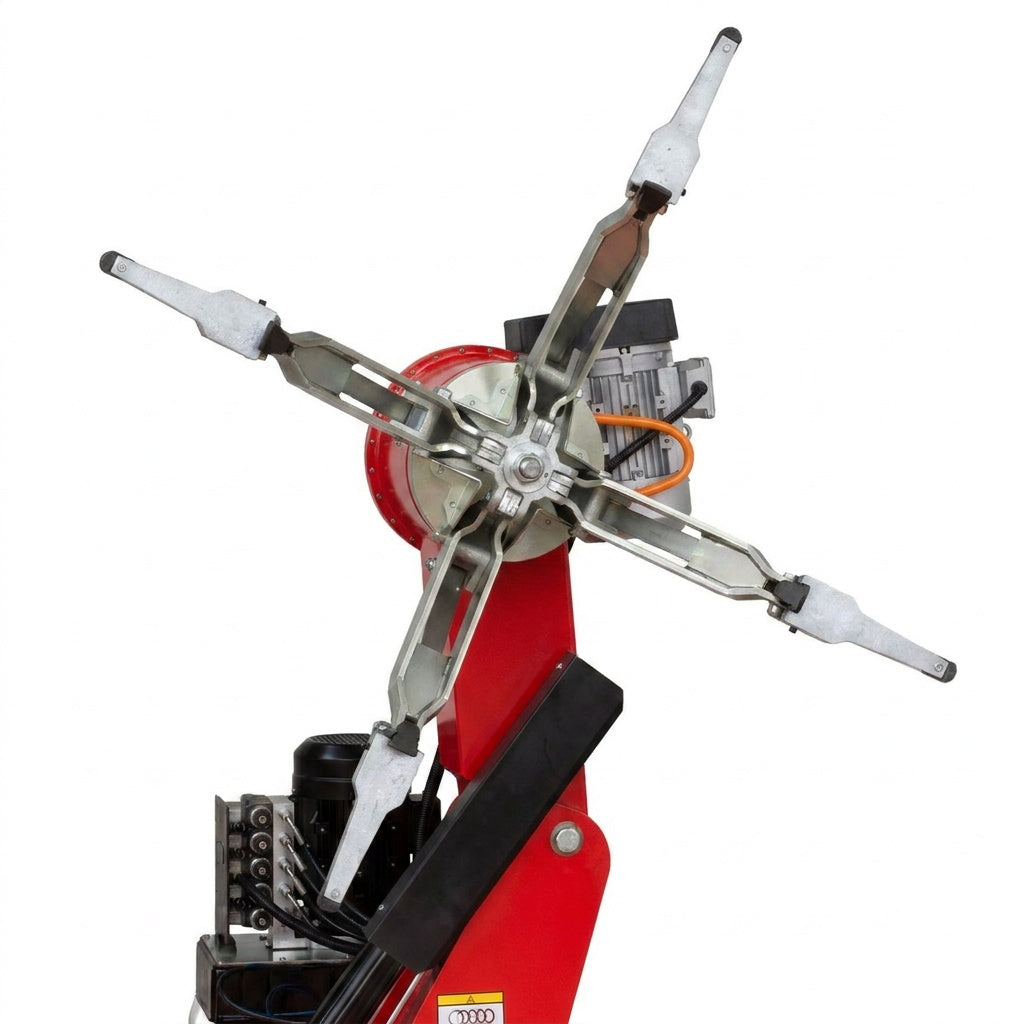

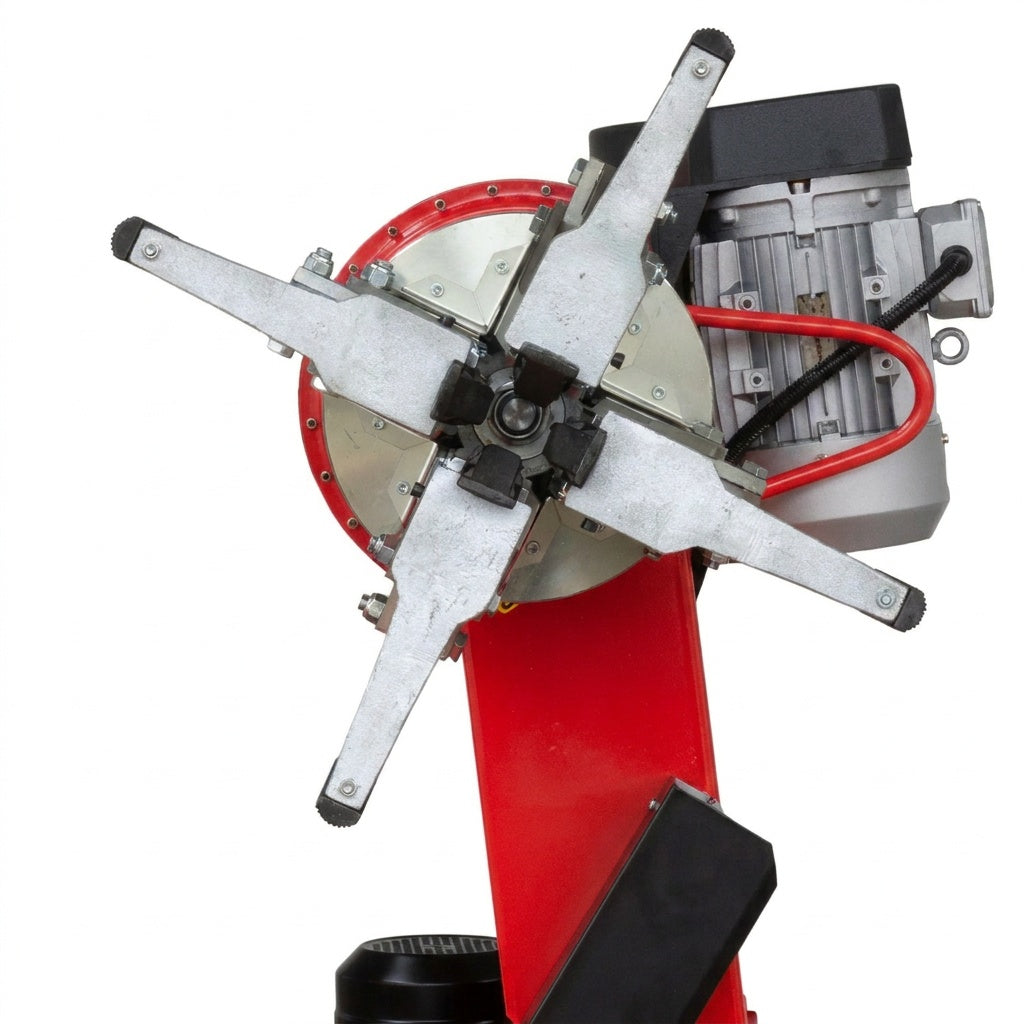

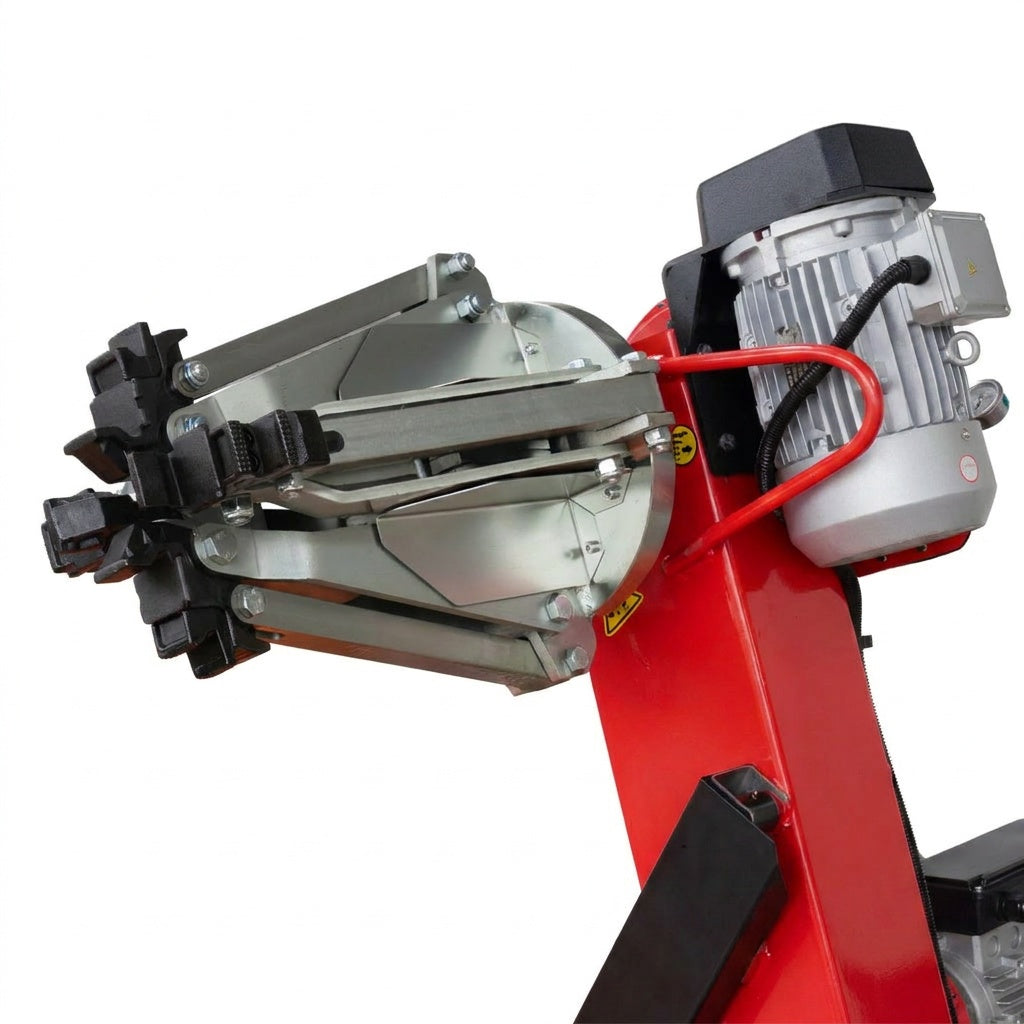

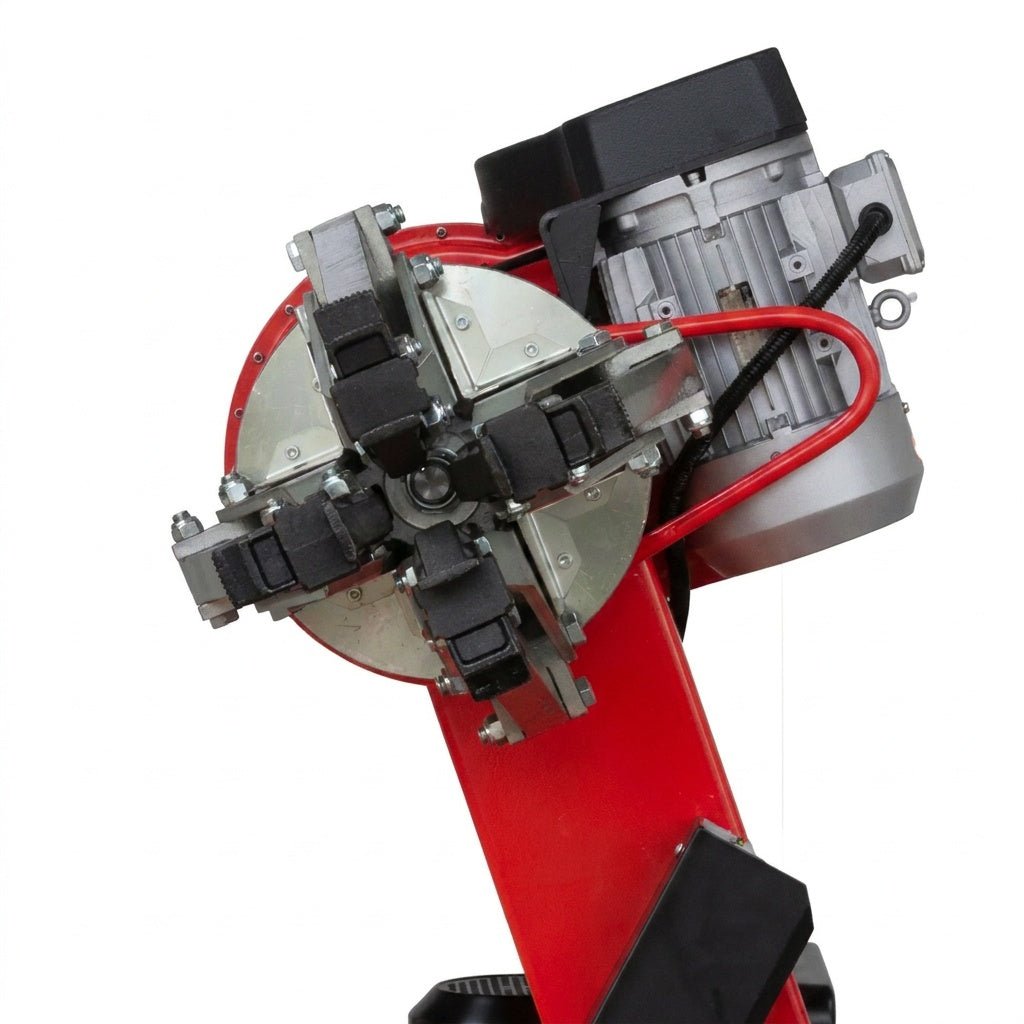

  • Four-Jaw Self-Centering Gripper — The universal hydraulic spreader jaws provide a multi-point mechanical grip on the wheel hub or inner rim face, ensuring perfect alignment and zero slippage under massive rotational resistance.
  • Dual-Direction High-Torque Gearbox — Backed by a powerful dual-speed electrical motor, the heavy-duty drive spindle delivers consistent, uniform rotational force to strip or mount stiff beads without stalling.

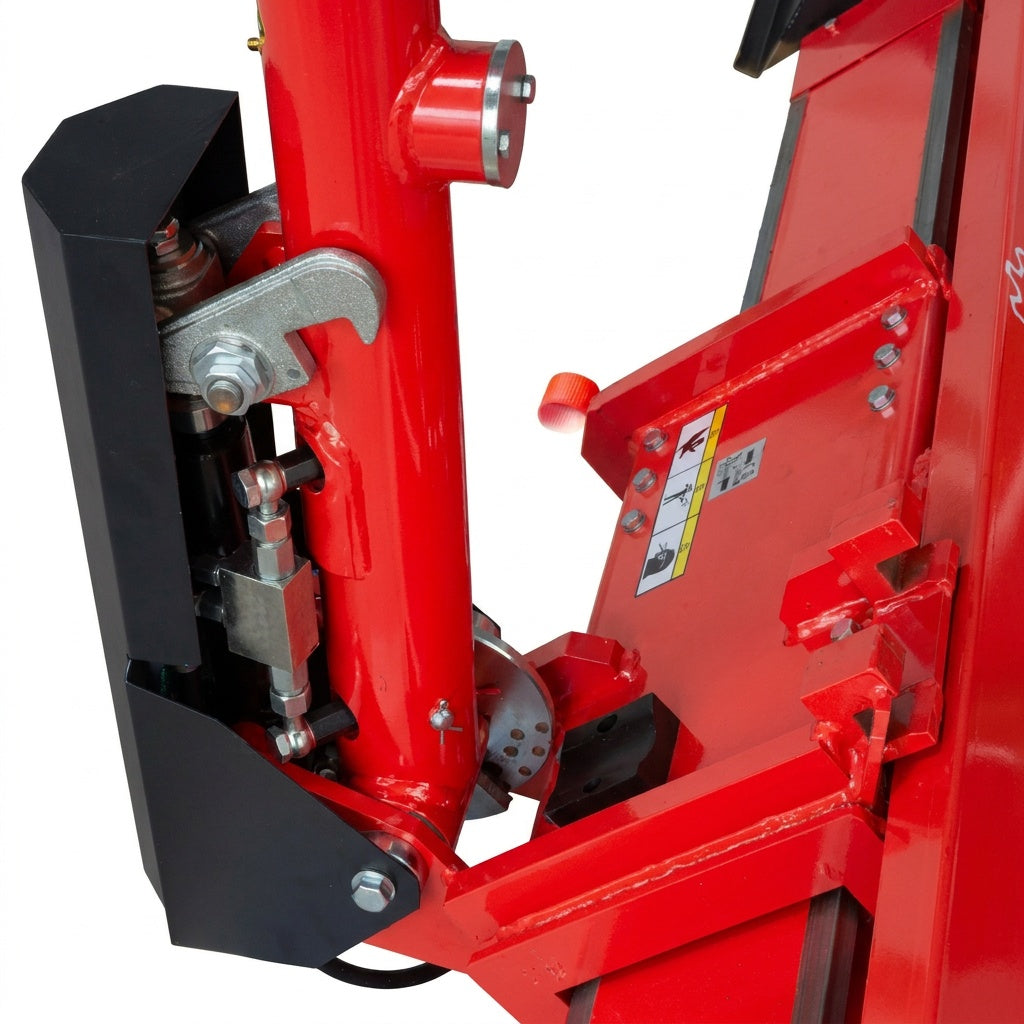

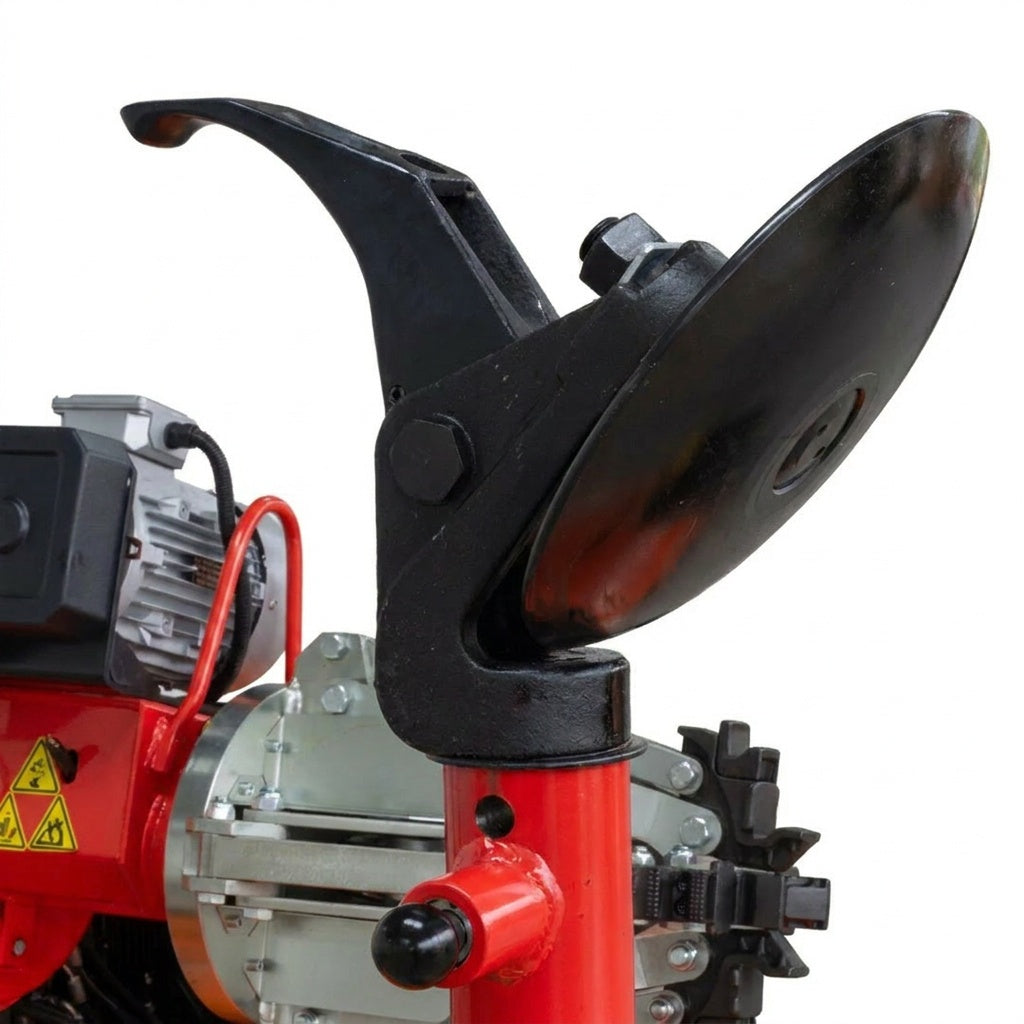

  • Multi-Functional Tool Bracket — The rotatable assembly arm features a synchronized pendular bead-loosening disc alongside a heavy-duty mounting hook to accelerate turnaround times between different wheel configurations.

Before You Order

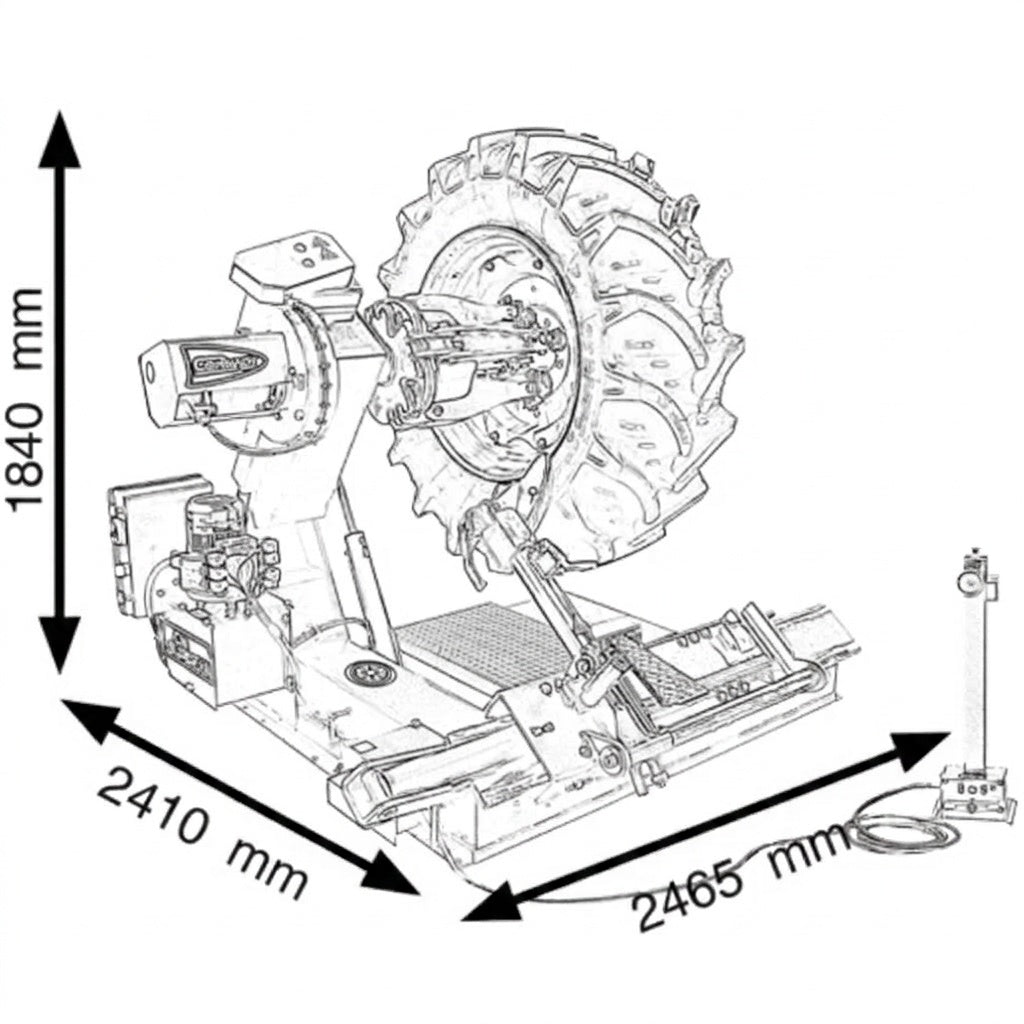

Installation requires a flat, fully cured reinforced concrete floor layout with a minimum thickness of 150 mm to accommodate a stable footprint under maximum wheel loading. The dual electro-hydraulic and mechanical drive systems operate via an industrial 415V three-phase electrical supply, requiring direct wiring by a licensed commercial electrician. Ensure your workshop layout provides enough clearance for the expanded horizontal working range and a safe perimeter around the heavy mobile control console.

What's Included

  • One industrial electro-hydraulic truck and tractor tyre changer assembly (DS-906A3)
  • Mobile standalone low-voltage 24V joystick control console unit
  • Complete set of heavy-duty clamp extension adapters to reach 56-inch capacity
  • Heavy-duty commercial tire lever bar for structural bead assistance

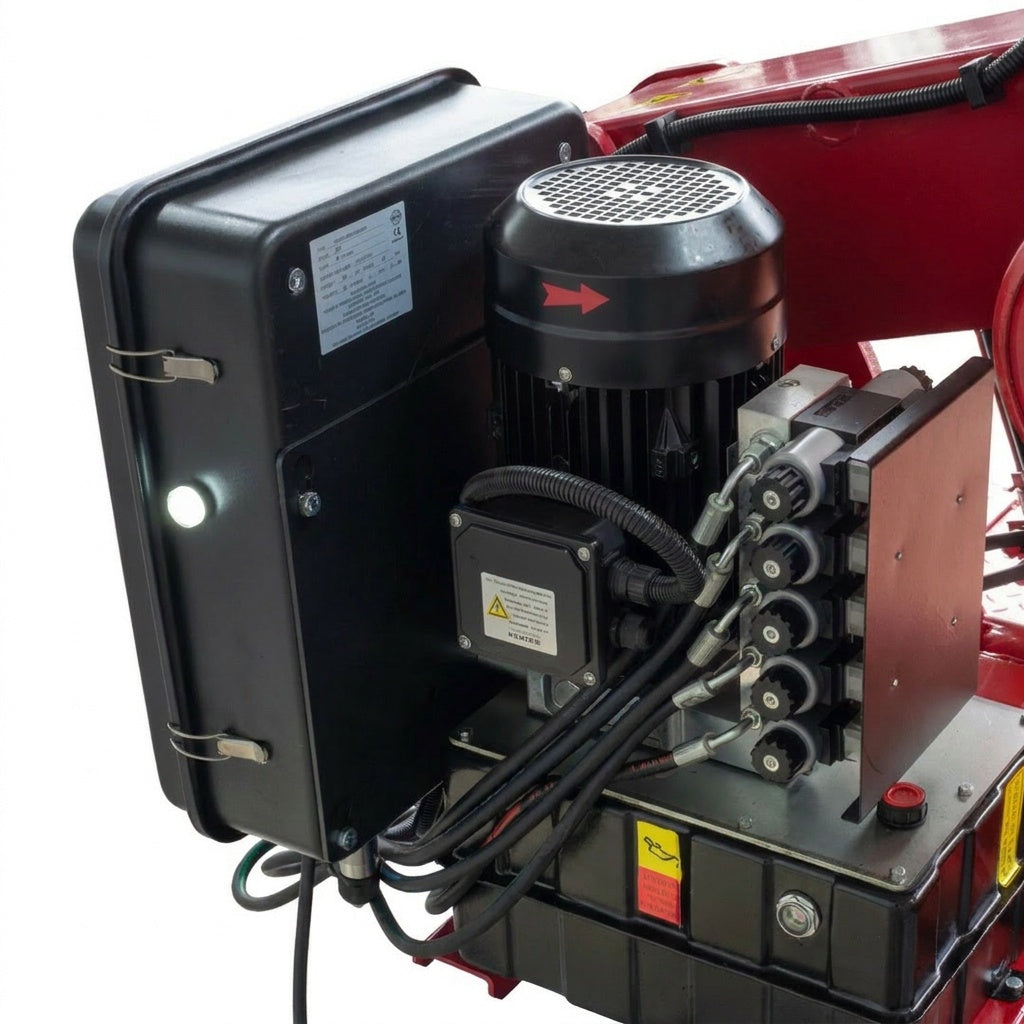

  • Integrated industrial hydraulic pump and multi-stage pressure line assembly

Please note that industrial tyre lubricant paste, specialized protective alloy rim sleeves, and hydraulic fluid are sold separately.

To establish a fully comprehensive heavy-vehicle wheel service bay, consider pairing this 56-inch truck tyre changer with our high-capacity commercial truck wheel balancers, heavy four-post truck hoists, or mobile truck column lifts. Contact our technical sales desk for tailored fleet packages, freight logistics, and trade collection arrangements.

3-year warranty. In stock and shipped from Wendouree, Victoria.

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
