Highlift Triple Stacker Car Parking Storage Hoist 4.5Tonne

$15,000.00

In stock

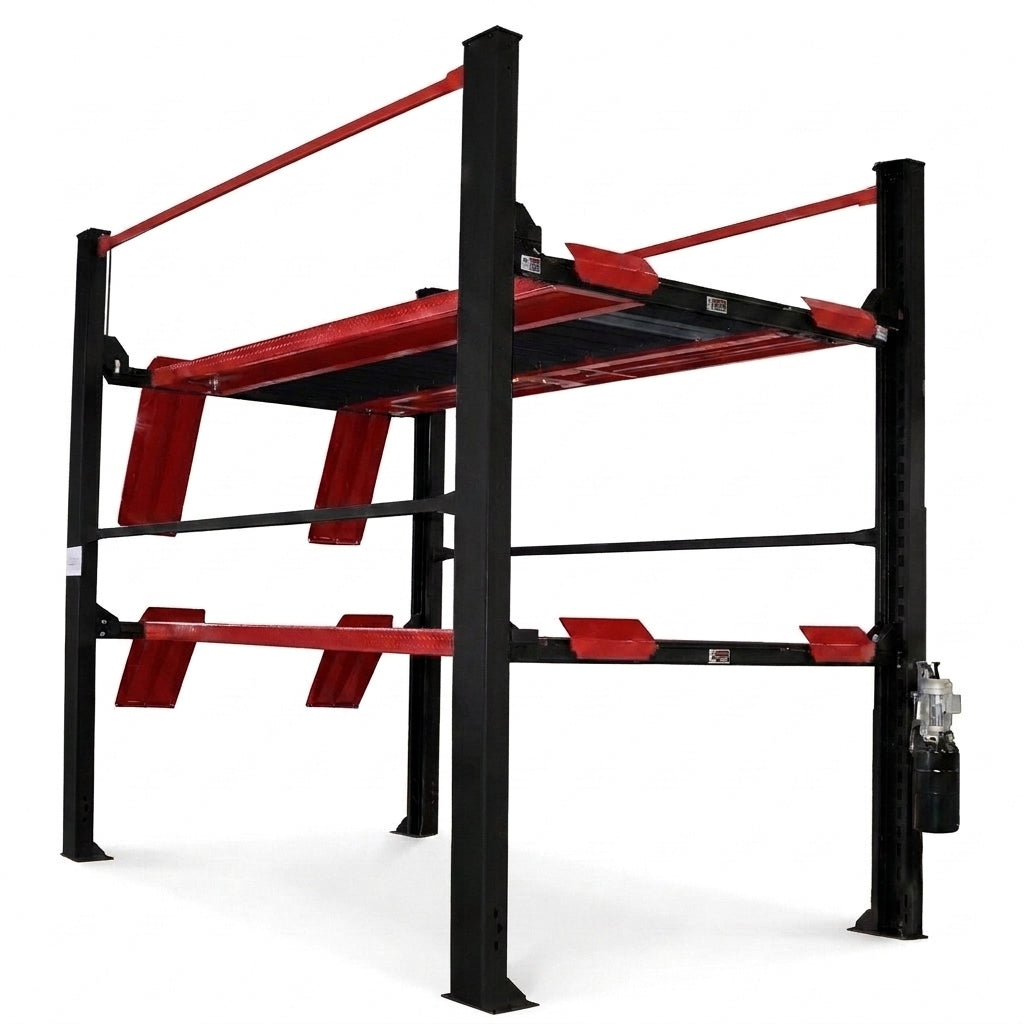

 YL-17WH Car Hoist Maximizes Your Space

Having the room to store vehicles and make the most of your space is essential — especially for commercial garages and residential buildings with secure private parking.

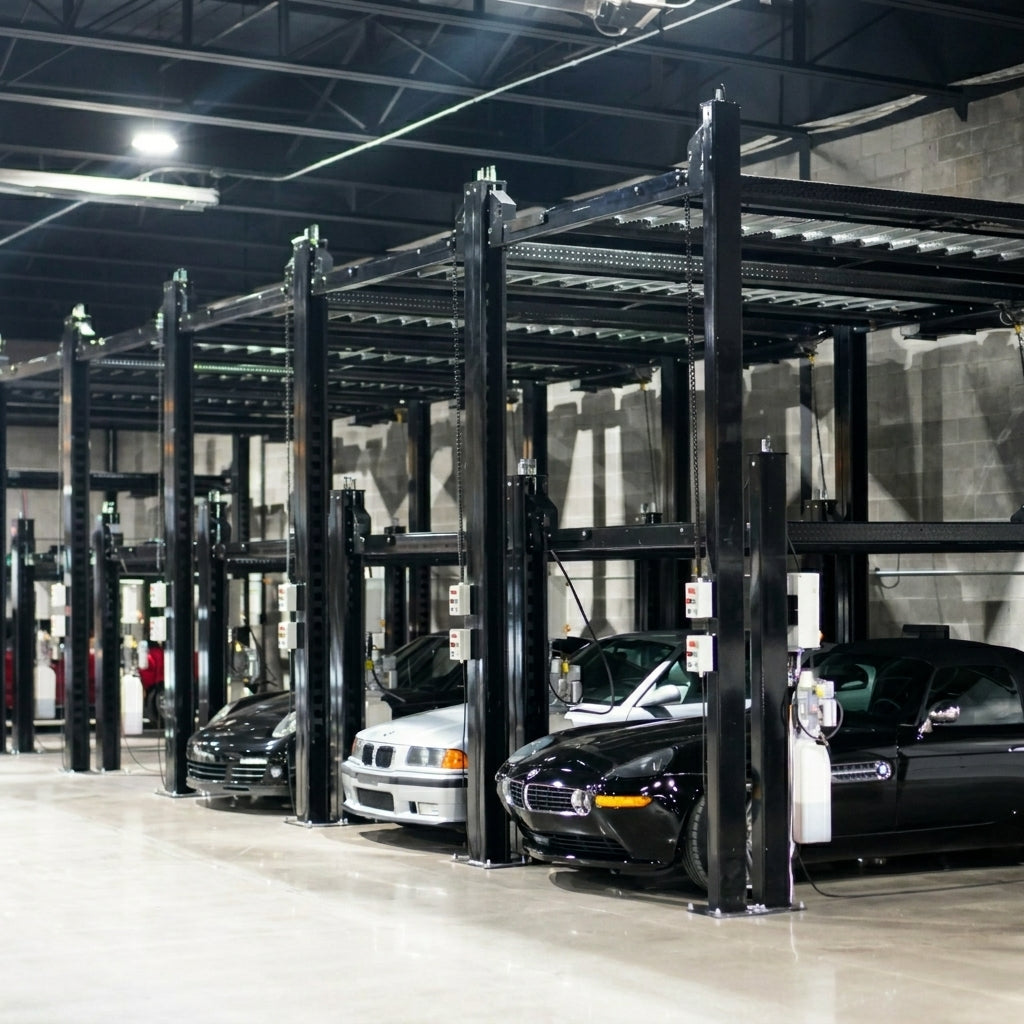

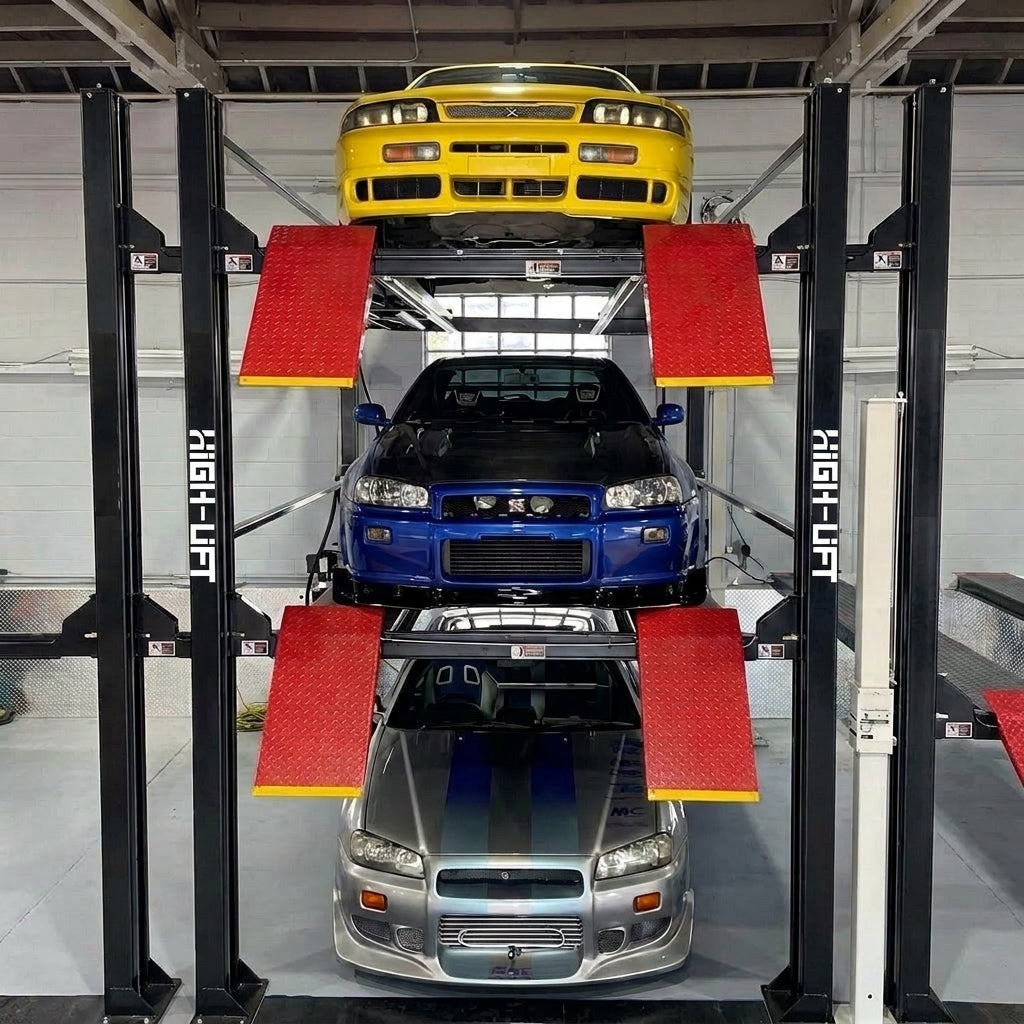

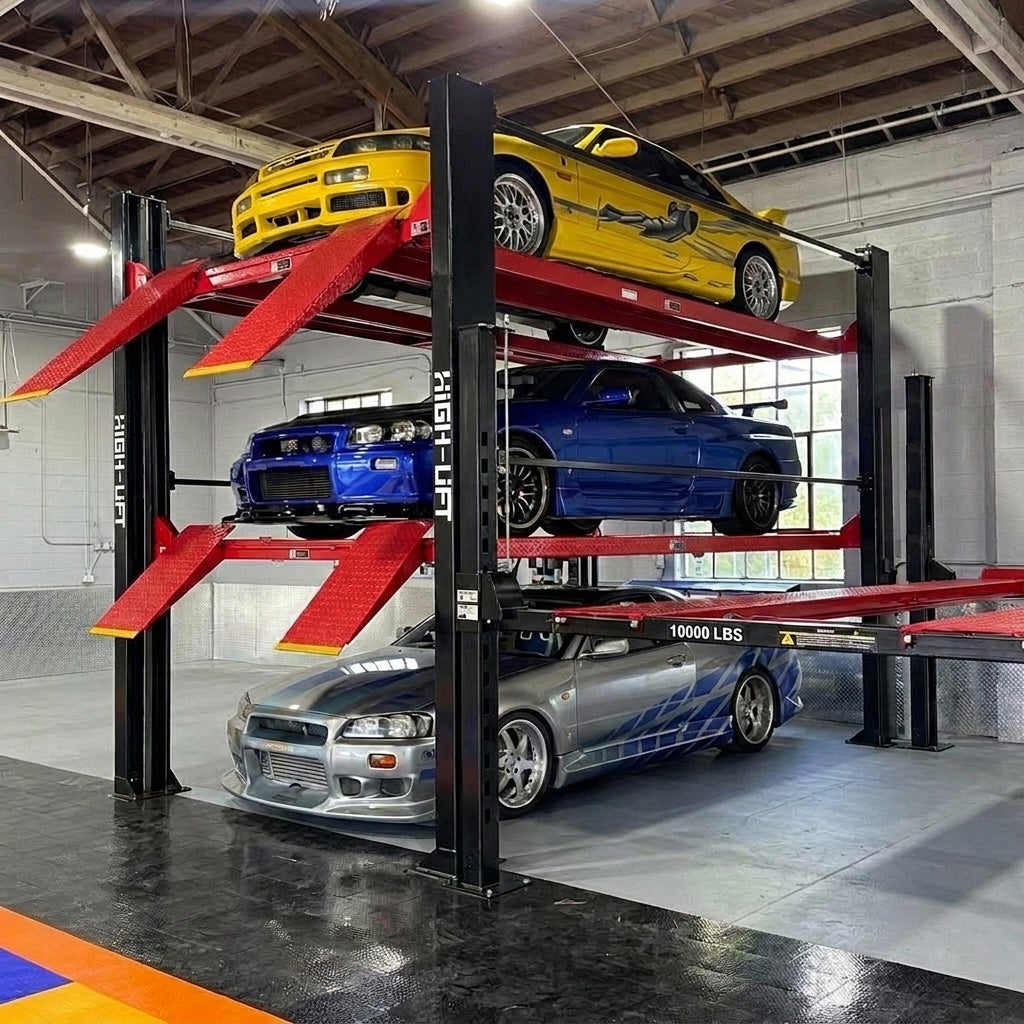

A 3-tier car storage lift offers a practical solution for densely populated areas, allowing three vehicles to park in the footprint of one and significantly increasing your parking capacity.

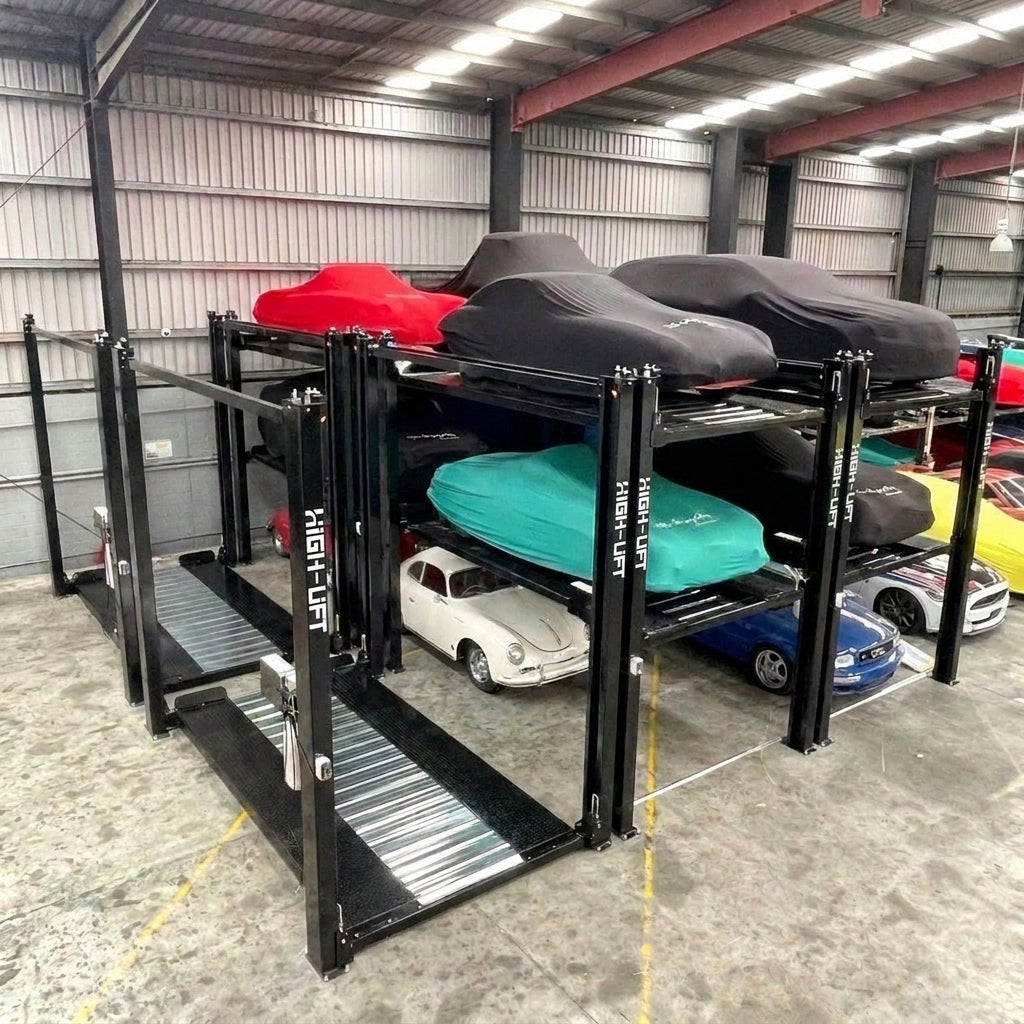

This innovative hoist doesn't just enable vertical stacking of vehicles — it can also stack two cars while leaving space underneath for your daily driver or most frequently used vehicle. This versatility makes it ideal for mechanics, car dealerships, showrooms, private collections, and car rental agencies alike.




Delivery Information

Delivery time varies by location and stock availability. Contact us if you need freight pricing or lead time before ordering.

Warranty & Returns

Warranty and returns depend on the product and manufacturer terms. Check the product details or contact us before purchase if you need clarification.

Overview

Power-Side Platform

The power-side platform and its supporting column sit on the same side as the power unit. Underneath this platform you'll find the drive hydraulic cylinders, steel cables, and rotating wheels. The transmission cables for the upper and lower power platforms differ from one another.

Non-Power-Side Platform

No hydraulic cylinder or steel cable is fitted underneath this platform, and the upper and lower platforms are identical in design.

Intermediate Drip-Proof Plates

Fitted between the two runways on both upper and lower platforms to stop fluid from dripping onto vehicles below. Each level contains nine plates, with iron as standard and aluminium plates available on request.

Safety Limit Stop Bar

Positioned beneath the upper platform to prevent the lift from rising too far. If a vehicle on the lower platform contacts the safety stop bar, the lift will stop immediately to keep operation safe.

Front and Rear Cross Beams

Add extra structural strength to the lift, with two beams connecting to the power-side support column and two connecting to the non-power-side column.

Drive-On Ramps

The upper platform features longer, foldable ramps, while the lower platform uses shorter ones — both allowing vehicles to drive on and off with ease. Each platform comes with two ramps.

Wheel Stops

Fitted at the front of the lift to stop front wheels rolling forward, with rubber wedges securing the rear wheels — four wedges supplied per platform.

Safety Locks

Once activated, these prevent the platform from descending in the event of a power failure or hydraulic leak. Each support column has a row of safety locking ladders with locking holes spaced 100mm apart, allowing the platform to lock at various heights throughout its lifting range. An optional slack-cable safety system is also available, and the lift must be fully lowered or locked before the operator steps away from the equipment.

Hydraulic Selector Valve

Controls the vertical movement of the upper and lower platforms — only one platform can be raised or lowered at a time.

Air-Actuated Unlocking Valve

Raises the selected platform roughly 60mm to release the safety lock block inside the cross beam from the locking ladder hole in the support column. The unlocking air valve is then switched off during descent, allowing the platform to lower safely.

Warranty-
Every Car Hoist we sell is backed by a 3-year warranty*, so you can lift with complete peace of mind.

Aussie Car Hoists offers 3 years parts only warranty on all Car/Truck Hoists. Warranty claims do not cover incorrect use or installation

Questions? Call 1300 090 266, Monday–Friday 8am–3pm AEST.
