YL-6500 & Wheel Aligner Bundle

Product Status: In Stock

Original price was: $15,300.00.Current price is: $14,000.00.

Calculate shipping



YL-6500 4 Post Wheel Alignment Hoist



Features:
  • Suitable for working on larger vehicles
  • Comes with slip plates to allow for wheel alignments
  • Fully Powder coated finish
  • Integrated rear slip plates
  • Recessed areas in runways for turntables for wheel alignment kit
  • Air release locks
  • Hydraulic Motor – uses AW46 grade hydraulic fluid 12Litres, not included.

Safety

  • Mechanically locks at each interval
  • Anti-surge valve
  • Cable slack locks in case of failure

Specifications-

Capacity 6500kg
Lock Release single point
Power Come with 240v standard, or can request 3 phase
Column Height 2254mm
Lifting Height 1950mm
Clearance Under Runways 1737mm
Overall Width (excl. motor) 3311mm
Overall Width (incl. motor) 3595mm
Overall Length (incl. ramps) 7373mm
Overall Length (excl. ramps) 6029mm
Platform Width 508mm
Width Between Platforms 1080mm to 1180 (adjustable)
Platform Length 5769mm
Drive Through Clearance 2911mm
Freight Dimensions L 595cm W 57cm H 88cm     Weight 1800KG

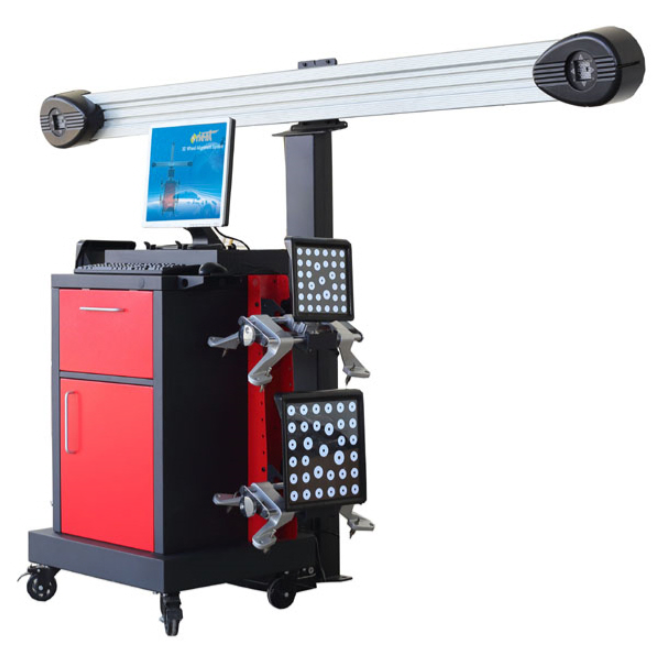

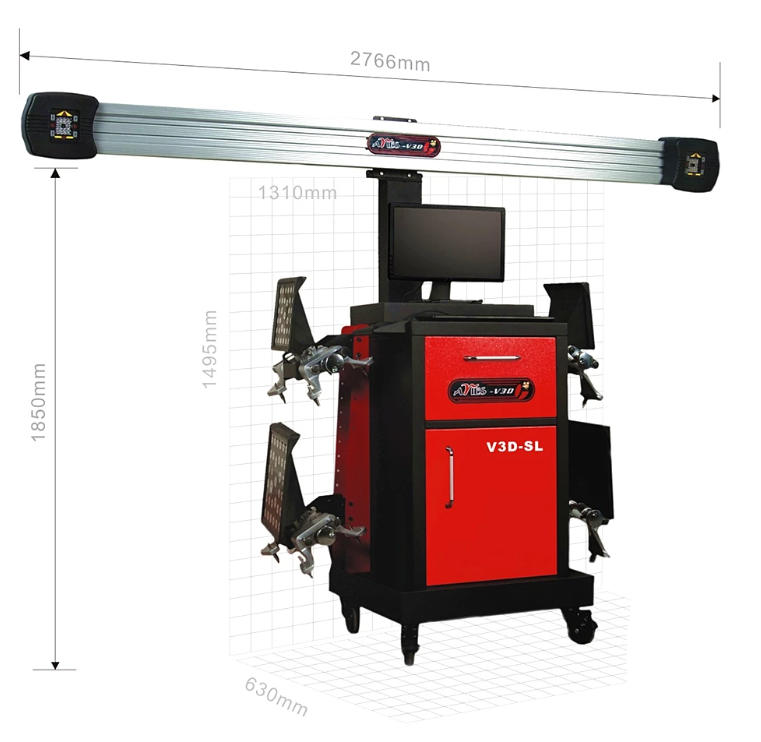

Wheel Aligner

Features-

  • 3D Imaging Alignment System
  • 2 Cameras with 4Pcs Targets
  • No Cables Required For Targets
  • Only 1 Calibration After Installation Easy To Install
  • Advanced Software Get Measurement In Under 2 Minutes
  • High Precision & Reliability
  • Comes with bonus alloyed iron turntable plates

Specifications-

  • Display Precision                                         .1mm/.01
  • Total Toe                                                        .01 Deg
  • Camber                                                           .01 Deg
  • Caster                                                             .02 Deg
  • S.A.I                                                                .02 Deg
  • Thrust                                                            .01 Deg
  • Set Back                                                         .01 Deg
  • Max Steering                                                .02 Deg
  • Track Width                                                 +-2mm          1219 to 2438mm
  • Wheel Base                                                   +-2mm          2006 to 4572mm





Optional Extras Available For Hoist below

 Rolling Jacks          Jacking Plate           Oil Drip Tray
