YL-15, 15 Ton 4 Post Truck Hoist Extra Long 7.5Meters

3 Year Structual Warranty

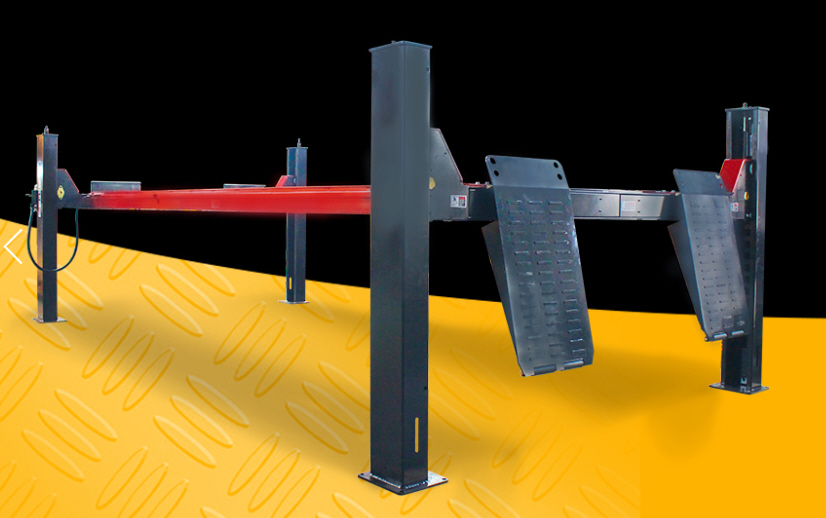

Extra Long Hydraulic 4 Post Truck Lift

Optional Wheel Alignment Slip Plates Available For This Hoist

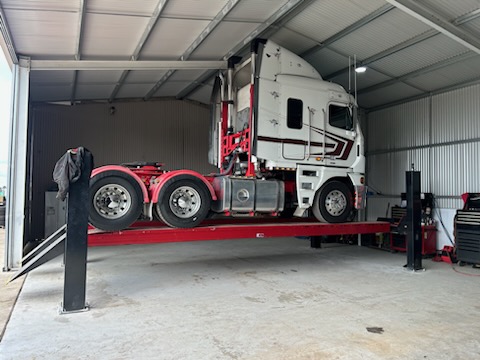

The YL-15  is a great extra long, standard height 4 post truck lift has a lift capacity of up to 15 ton . With no special foundation required, installation is quick and easy .

Features are:

•  Hydraulic 4 post truck lift
•  Safety device in case of cable breakage
• Overload safety valve
• Descent control valve
• Pipe burst safety valve
• 24V, low tension dead man controls
• Electrical controlled fall safety
• Automatic release of safety locking devices
• Automatic descent control
• Requires 3 Phase Power

Specifications-

• Runway Length                    7.5 Meters
• Lifting Height                       1890mm
• Total Length                          8742mm
• Column Height                     2365mm
• Runway Height                     280mm
• Runway width                       610mm
• Width Between Runways   1240mm
• Width Between Columns    3530mm
• Total Width                           3890mm

Packaging

• 1. 7800mm x 650mm x 860mm (H) , 4460kg
• 2. 2500mm x 430mm x 1420mm (H) , 449 kg
• Total gross weight = 5259kg

Warranty

• 3 Year Structual warranty
• 12 Months On Hydraulic & Electrical

Click On Above For Installation Manual
