YL-250 and Transmission Jack – Bundle

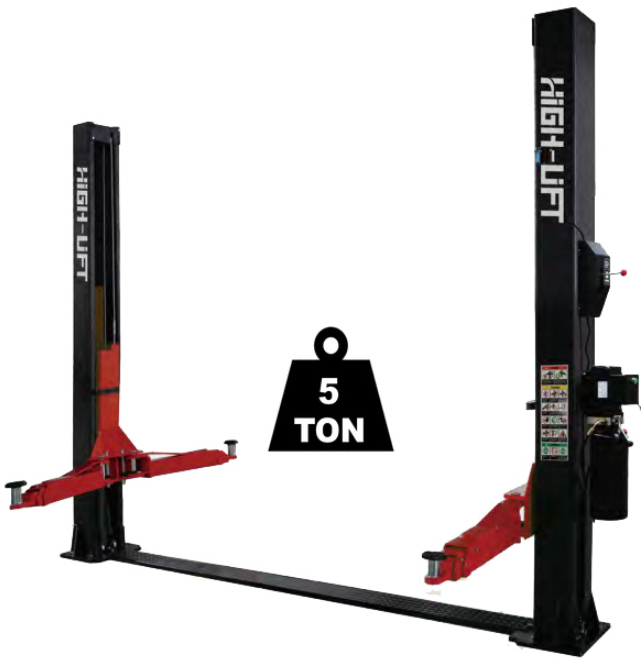

The YL-250 Car Hoist Is  Rated At 5500kg, It Is Suitable For Garages Or Sheds With Low Ceiling Height

Heavy duty two post car lift is with extra thick columns, heavy-duty inside carriage and 3 arm extension arm design. This Aussie Car Hoist comes with twin Hydraulic + chain drive system, single lock release system, comes with heavy-duty  steel cable.

Features:

• Suitable For Garages or workshops with low ceiling height
• Extra Thick Columns
• Comes with double hydraulic rams with control equalization cables for double the safety
• Low cable cover plate design, convenient for driving in and out.
• Dual-cylinder lifting system, more stable and faster. Cable-equalization system
• Chain-driven system, faster lifting speed.
• Single lock release system, safe and reliable.
• Wear-resistant, heat-resistant and high strength macro molecular polyethylene slide blocks
• Pass 120% capacity dynamic load test and 150% capacity static load test.
• Aussie Car Hoists Are Manufactured & Designed To Aust Standards EN1493-2010, BS EN
• Aussie Car Hoists Are Work Safe Approved
• Adjustable high quality screw type lift pads
• Also Comes With Bonus Pad Height Extenders
• 50mm high base plate

Specifications:

• Hydraulic fluid required for hoist is standard AW46 grade
• Powder Coated Finish
• Available In Both 3 Phase & Single Phase Will come Standard With Single Phase Pump Unless Otherwise Stating You Want 3 Phase
• Power : 240V OR 415V
• Lifting capacity : 5000kg
• Maximum lifting height : 1800mm
• Minimum Pad Height : 100mm
• Clearance between posts : 2920mm
• Drive through clearance : 2650mm
• Overall height : 2760mm
• Overall width : 3480mm
• Long arm maximum length : 1300mm
• Long arm minimum length : 790mm
• Lifting time : less than or equal to 60 sec
• Oil tank capacity : 10L
• Lock : Manual single
• Hydraulic fluid required for hoist is standard AW46 grade
• Elevating system : Chain type
• Minimum concrete thickness is 5 inches, if you don”t have this you will need to add a large plate under uprights (suggest 10mm x 800 x 800mm)
• Must be minimum of 6 inches away from edge of concrete

* Item is subject to minor modification on appearance and specifications, for improvement of product, without prior notice.  Please check before order.

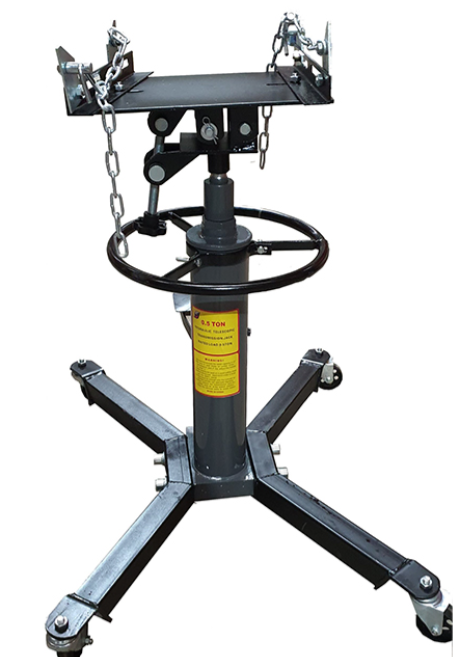

Extra High 2 Stage Transmission Jack

• 1100lb (500kg) Capacity
• 2 Stage Hydraulic Ram
• Lift range: 850mm to 1800mm
• Foot Operated Twin cylinder Fast Action Pump & Release Valve
• Fully adjustable Saddle – 10 degrees Tilt & 25mm Skew
• Saddle Corner Brackets
• Heavy duty solid steel construction
• 4 legs with heavy duty cast iron swivel casters for easy movement
• Wide Base for stability and balance
• Use both hands to position and align transmissions
• Includes safety chains
• Excellent for car or truck transmissions
• Distance from wheel to wheel 800mm and 700mm approx
