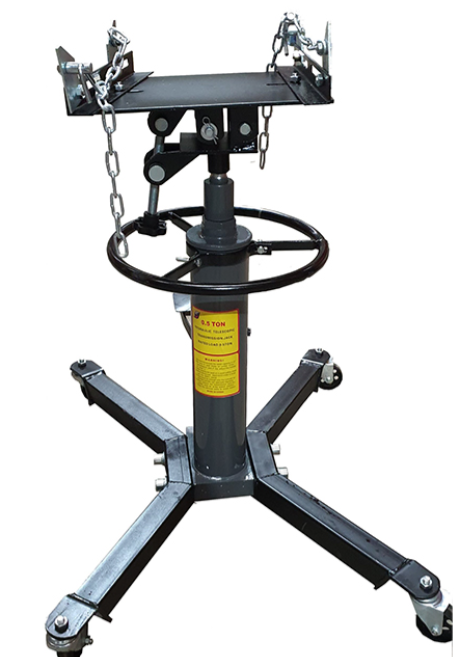

YL-350 and Transmission Jack – Bundle

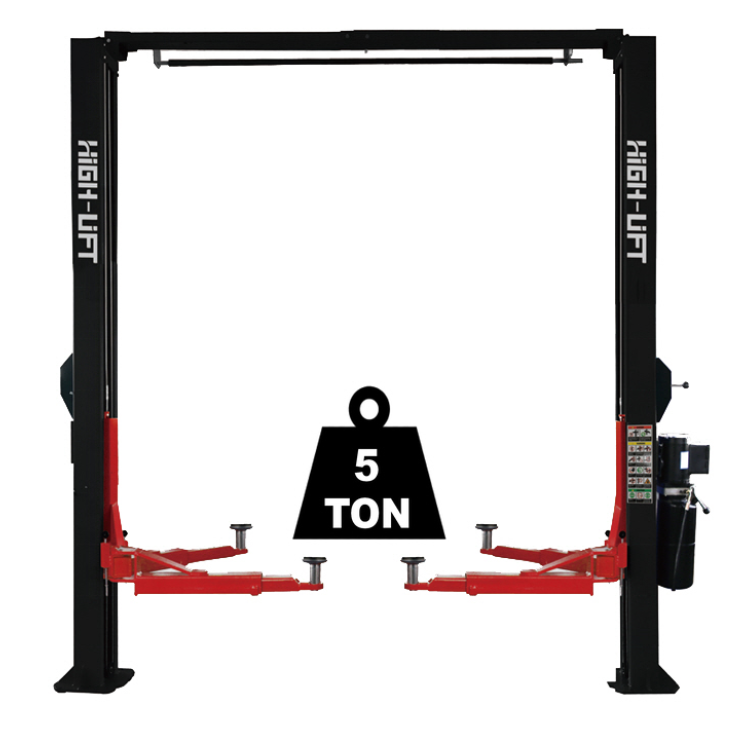

YL-350 two post 5 Ton Hoist

We Only Sell Brand Name Hoists, If you are buying a hoist there are 2 main factors to look for

1. Make sure your hoists name is that of the manufacturer eg if you are buying a Bendpak hoist then it is made buy Bendpak, A PowerRex is made by PowerRex, a Molner Hoist is Made by Molner etc etc, the reason that this is important is that if you ever need parts then parts are easily obtainable, there are to many re-branded hoists on the market our Hoists are called High-Lift and are manufactured by Highlift
2. The easiest way to tell the quality of a hoist is by the weight of a hoist eg our 5 Tonne 2 post hoists weigh over 900kg there are many 2 post hoists on the market that weight 500kg or less so with less steel used in the manufacturing of the hoist they are cheaper to make but are more prone to flexing.

This Car Hoist Has Double Arms & Is Rated At 5000kg

Heavy duty two post car lift is with extra thick columns, heavy duty inside carriage and 3 arm extension arm design. This Aussie Car Hoist comes with twin Hydraulic+chain drive system, single lock release system, comes with heavy duty steel cable.

Features:

• 3 Stage Extension Arms
• Extra Thick Columns
• Comes with double hydraulic rams with control equalization cables for double the safety
• Dual-cylinder lifting system, more stable and faster. Cable-equalization system
• Chain-driven system, faster lifting speed.
• Single lock release system, safe and reliable.
• Wear-resistant, heat-resistant and high strength macro molecular polyethylene slide blocks
• Pass 120% capacity dynamic load test and 150% capacity static load test.
• Aussie Car Hoists Are Manufactured & Designed To Australian Standards EN1493-2010, BS EN
• Aussie Car Hoists Are Work Safe Approved- Work safe Approval Number- V122429
• Adjustable high quality screw type lift pads
• Also Comes With Bonus Pad Height Extenders
• Wider Width Between Posts To Allow You To Access Car Easier
• Driven by double hydraulic cylinders
• Chain type elevating system.
• With the stabilization system of high grade steel wire cable, it ascends and descends smoothly .
• Single side manual safety lock release system.
• Powder coated finish.
• Adjustable high quality screw type lift pads

TECHNICAL SPECIFICATIONS

• Hydraulic fluid required for hoist is standard AW46 grade
• Power : 240V
• Lifting capacity : 5000kg
• Maximum lifting height : 1800mm
• Minimum Pad Height : 100mm
• Clearance between posts : 2930mm
• Drive through clearance : 2750mm
• Overall height : 3850mm
• Overall width : 3480mm
• Long arm maximum length : 1300mm
• Long arm minimum length : 790mm
• Lifting time : less than or equal to 60 sec
• Oil tank capacity : 10L
• Lock : Manual single
• Elevating system : Chain type
• Minimum concrete thickness is 5 inches, if you don’t have this you will need to add a large plate under uprights.
• Must be minimum of 6 inches away from edge of concrete
