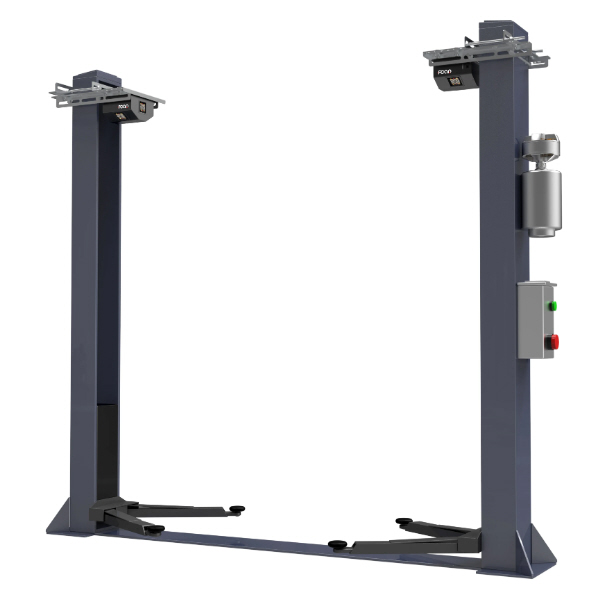

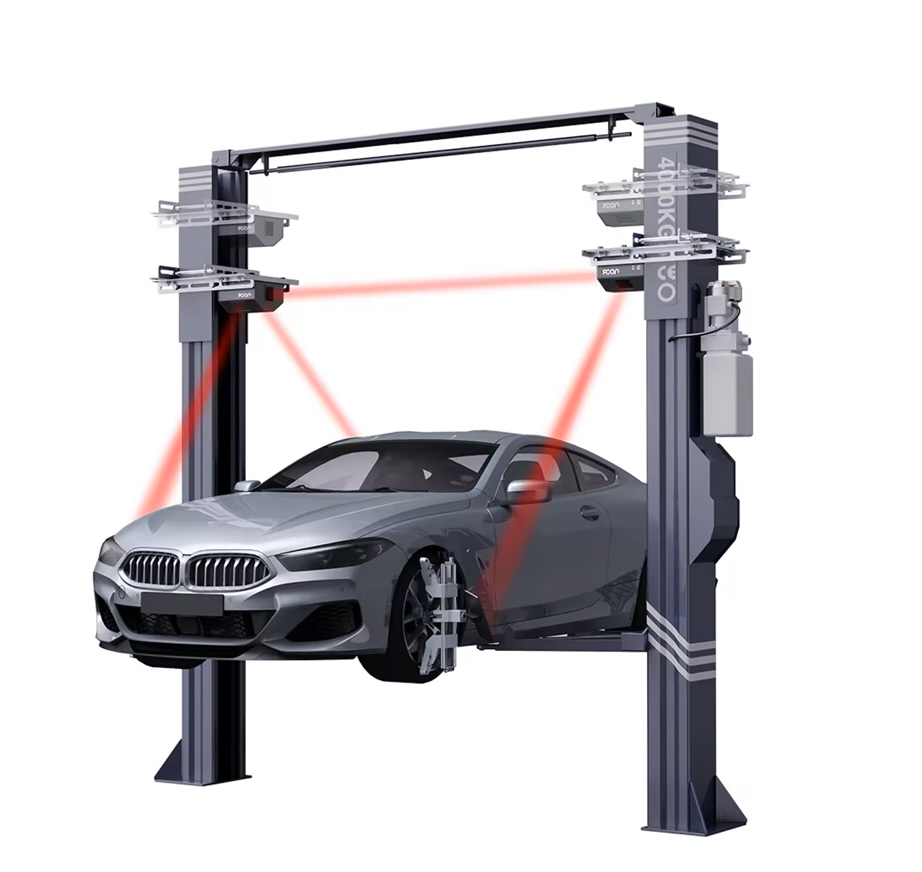

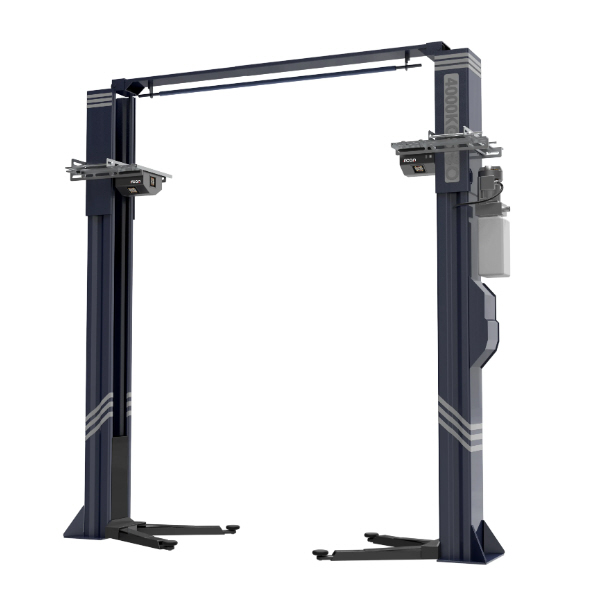

Suspended 5D Car Wheel Aligner, Laser Wheel Alignment Machine Suitable For 2 Post Car Hoist









OPERATION VIDEO                                    INSTALATION VIDEO                                        CAR DATA BASE



Diagnostic Tablet Specifications

  •  System:  Android

  •  CPU:  Quad-core architecture processor

  •  Screen:  10.1” IPS display 1280*800

  •  Memory:  2GB RAM+32GB ROM

  •  Connectivity:  WiFi, Bluetooth

  •  Camera:  5MP auto focus

  •  Connecting Port:  RJ45, HDMI, USB, TF card slot (max 32GB), 3.5mm headphone jack

  •  Battery:  3.7V/10000mAh Li-polymer

  •  Language:  English, Czech, Germany, French, Polish, Portuguese, Russian, Spanish

---

Packing List

  •  Dimension:  45*40*31cm*1carton; 95*47*56cm*1carton

  •  Weight:  65kgs

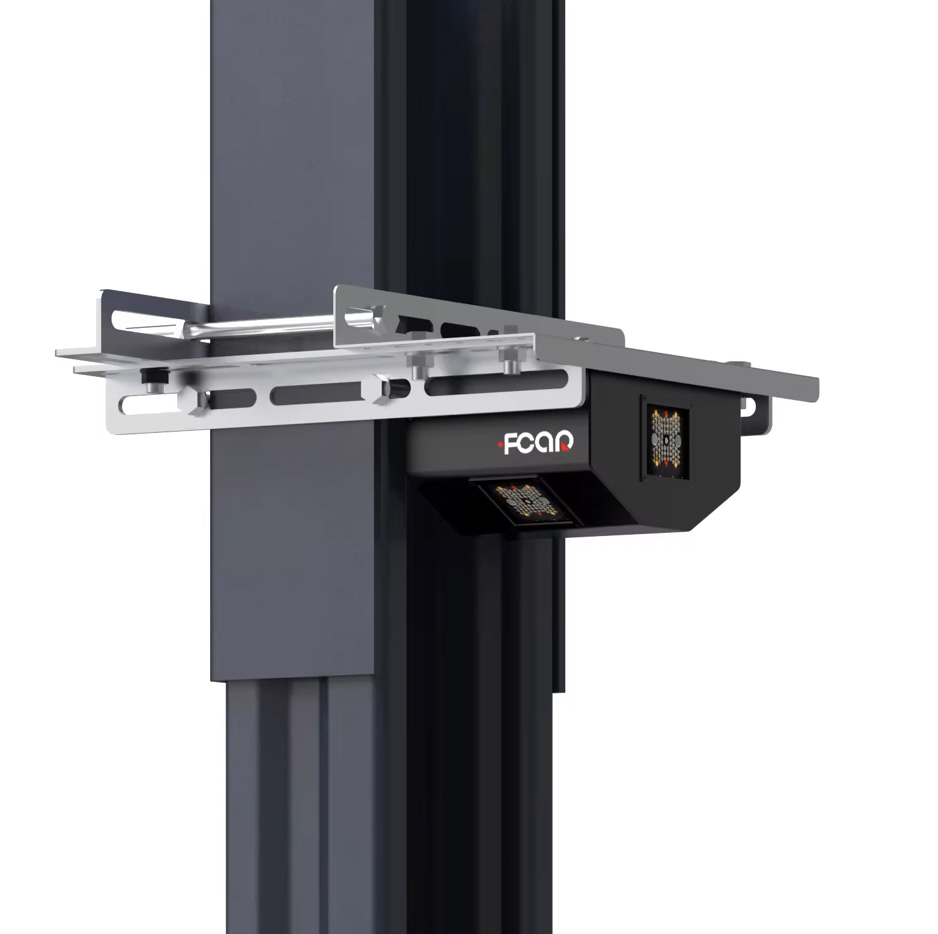

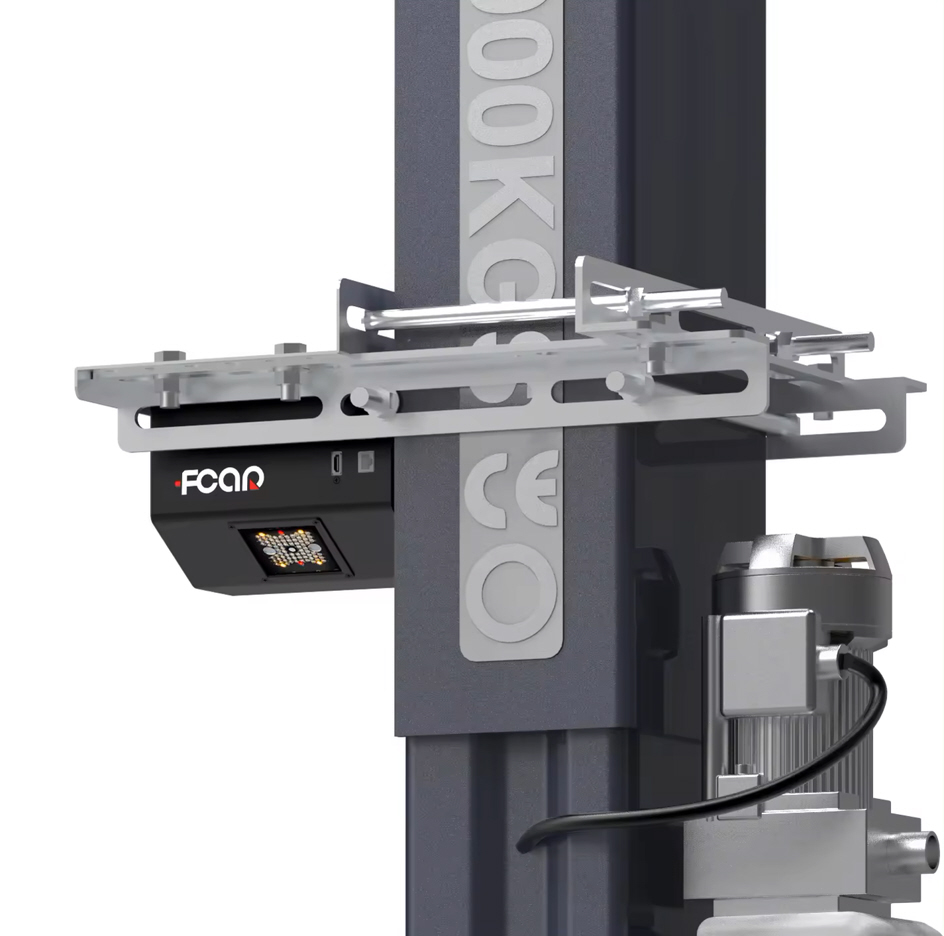

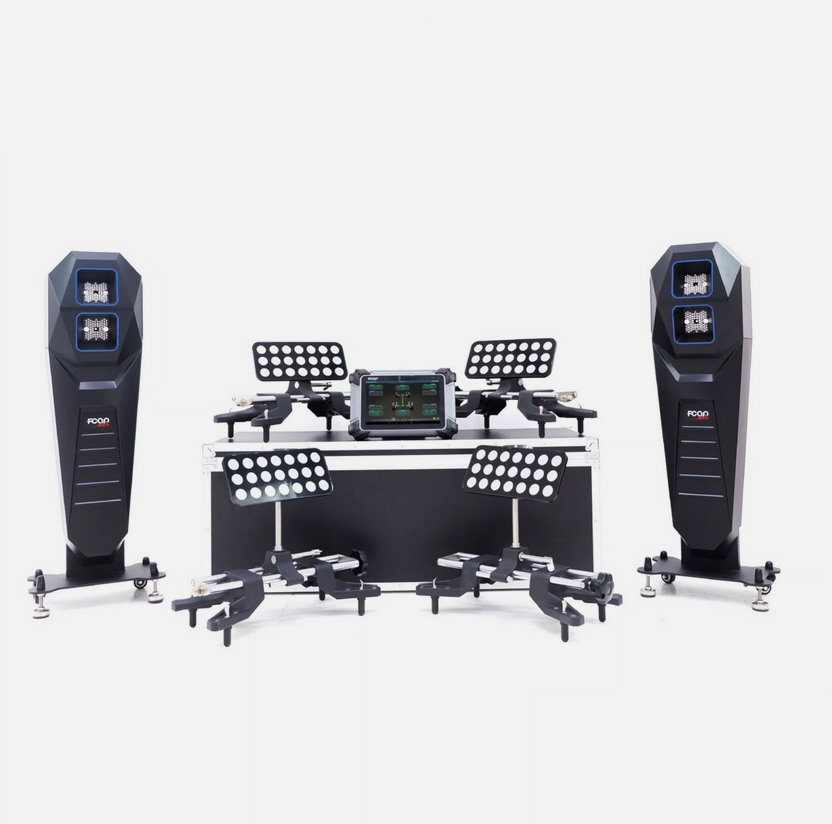

Aligner unit	F7S tablet	Four-jaw clamp	Steering wheel holder	Brake holder
Holder set	Spirit level	DC power adaptor	12V power adaptor	Target (square)

---

Technical Information

Ground Test		FD-505S
Basic Functions	Camber	√
	Caster	√
	KPI	√
	Toe	√
	Setback	√
	Thrust	√
Extensive Functions	Rear axle yaw	√
	Wheel deviation	√
	Axis deviation	√

Lift Test		FD-505S
Basic Functions	Camber	√
	Caster	√
	KPI	√
	Toe	√
	Setback	√
	Thrust	√

Technical Parameters	Precision	Variable
Toe	±2’	±20°
Camber	±2’	±10°
Caster	±6’	±20°
KPI	±6’	±20°
Setback	±2’	±5°
Thrust	±2’	±5°
Track width difference	±2mm
Axle distance	±2mm
