Fully Automatic Wheel Balancer LCD Display
-
With Laser Alligning
-

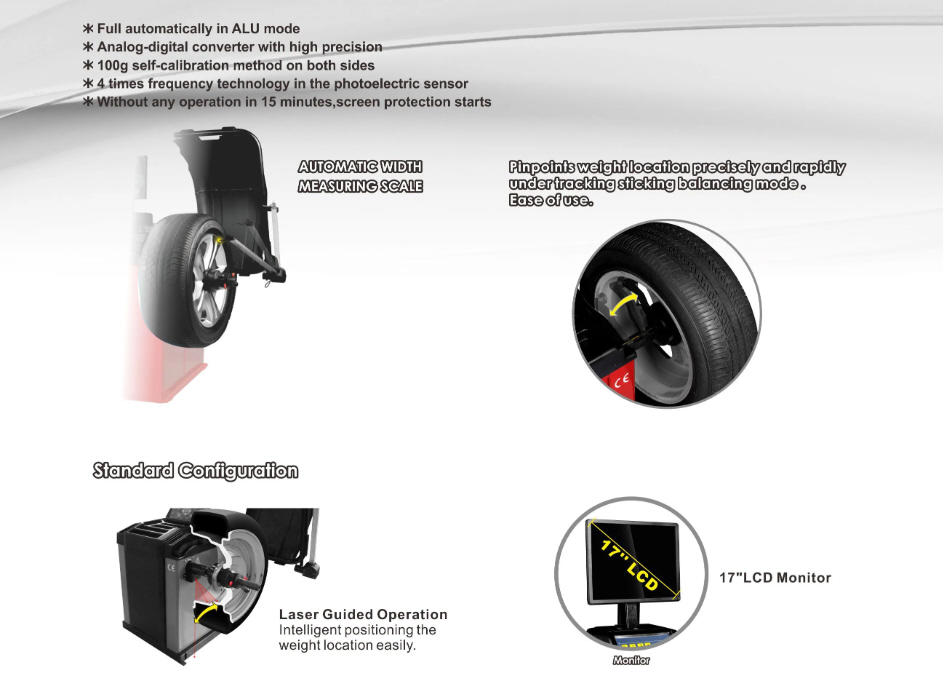

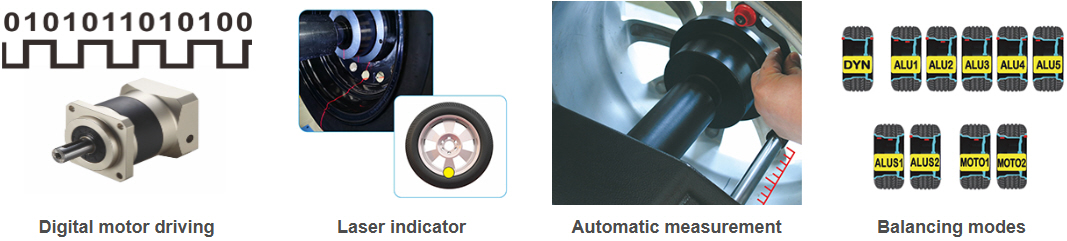

1. ABD automatic input
-
2. unbalancing position-automatic tracing
-

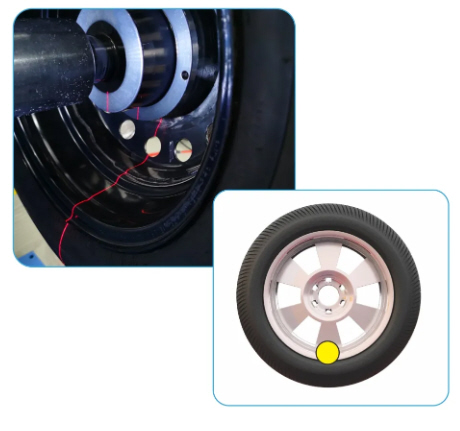

3. laser indication
-
Automatic Distance, Diameter & Width Input
♦ Electronic microprocessor controlled wheel balancer for balancing car, motorcycle and light industrial vehicle wheels.

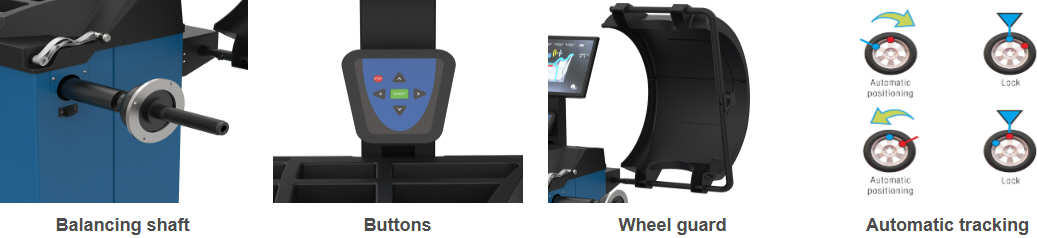

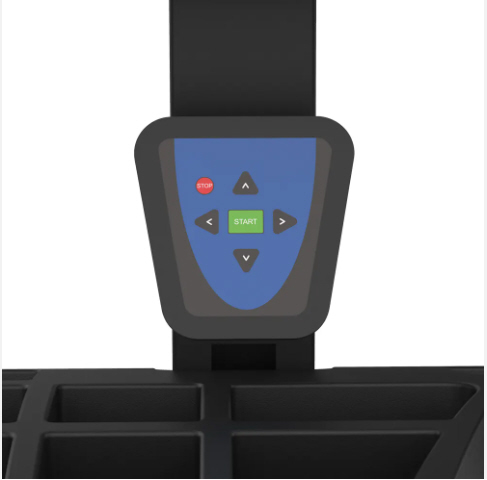

♦ Control panel with backlit graphic LCD display and durable key buttons.
♦ Automatic distance and diameter data entry.

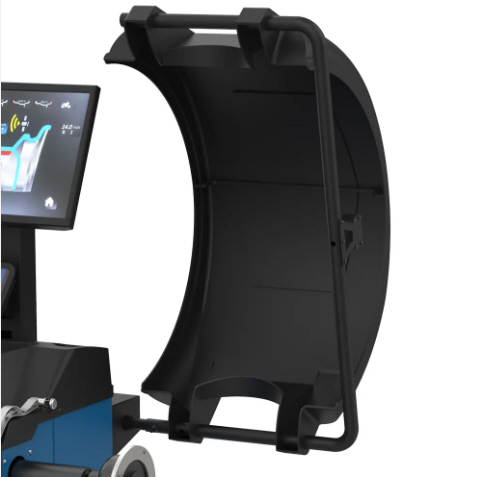

♦ Automatic start by lowering wheel guard.
♦ Automatic braking of the wheel after measurement.

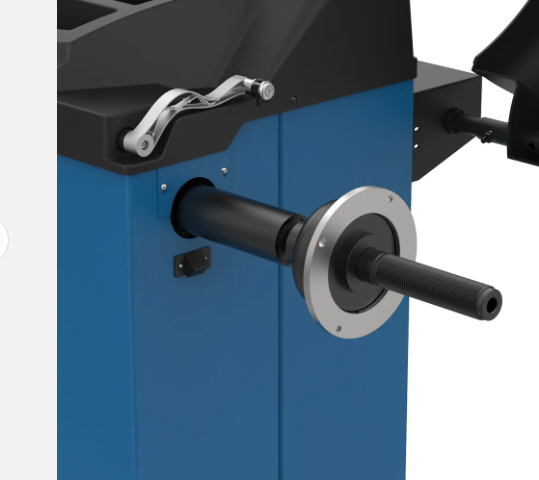

♦ Wheel locking with quickfit nut.
♦ Self-calibration and self-diagnosis programs.
♦ Wheel dimensions shown in inches or millimeters.
♦ Indication of unbalance in grams or ounces.
♦ Alu programs and motorcycle programs.
♦ Optimization mode for rim/tyre matching.
♦ Hidden weight program.
Technical Parameters
-
Rim diameter:10″-24″
-
Max. tire weight:70kg
-
Max. tire diameter: 1000mm
-
Tire width:1.5″-16″
-
Balance precision: ±1g
-
Motor: 240V 250W
-
Spindle speed: 200rpm
-
Machine weight: 90kg
Machine functions :
- The HW-9860 comes with automatic dynamic balancing & static balancing of both alloy & steel rims.
- The hw-9860 is high precision ±1g.
Packaging
Dimensions:- 99cm x 72cm x 113cm
Weight:- 90kg

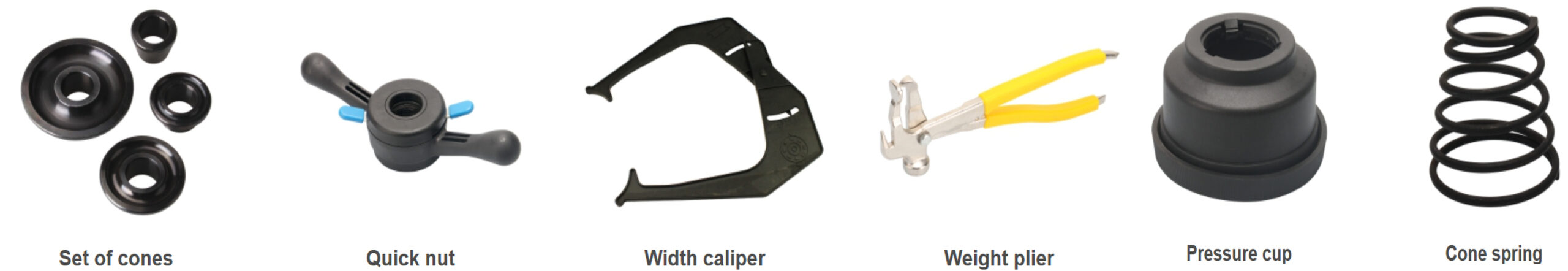

Comes With The Following

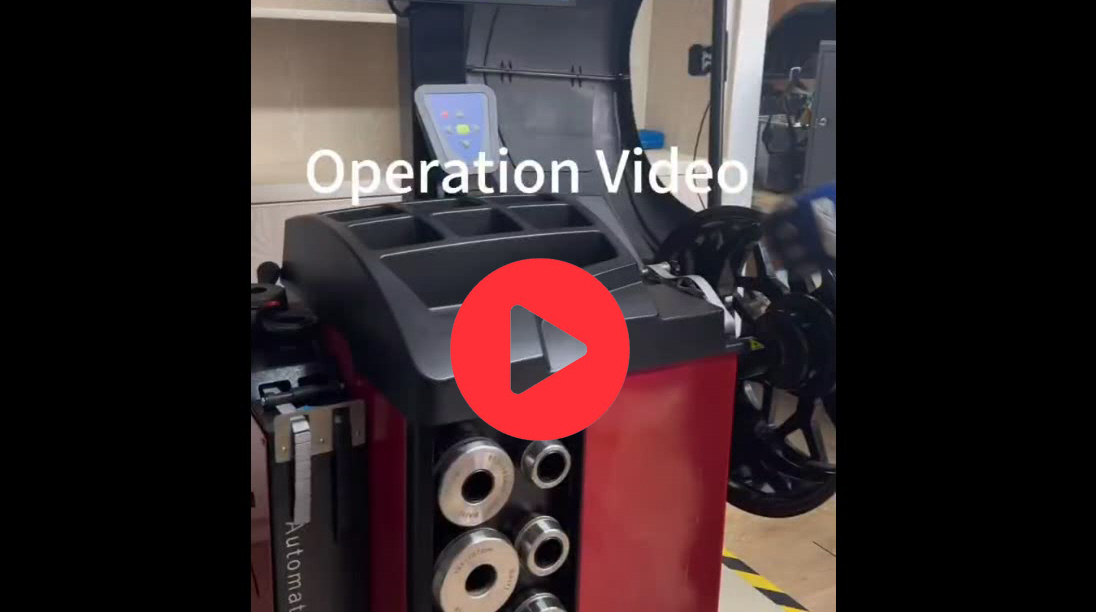

OPERATIONAL VIDEO

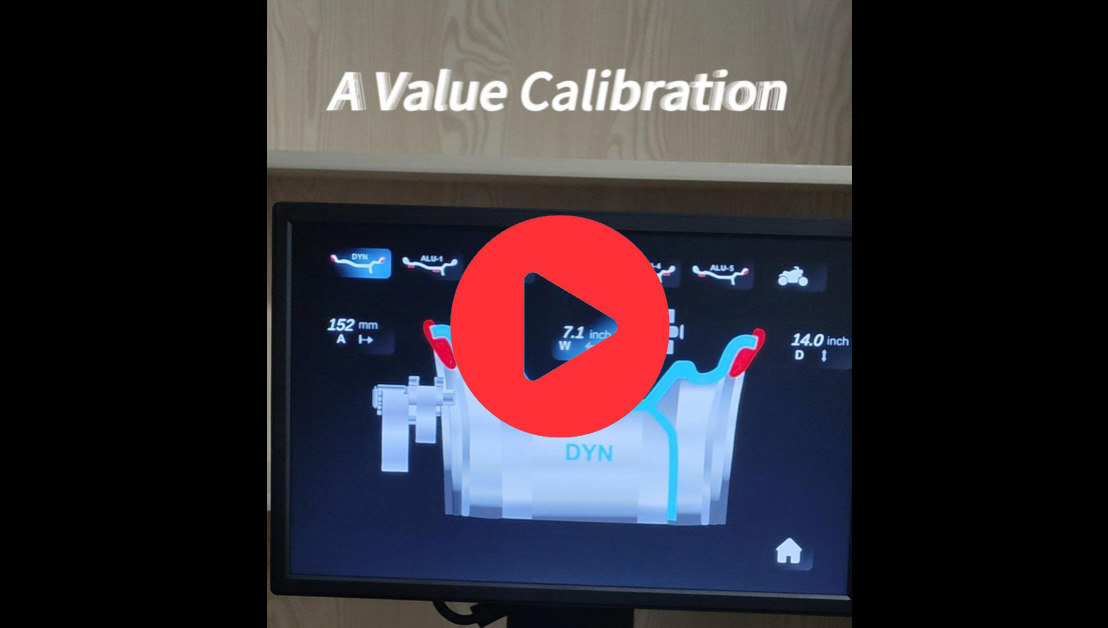

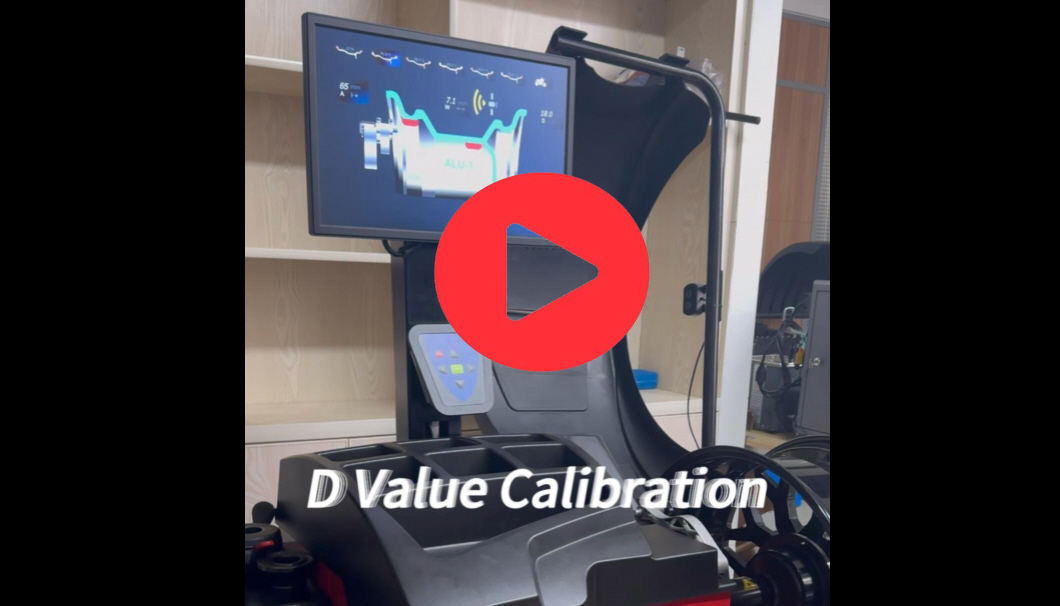

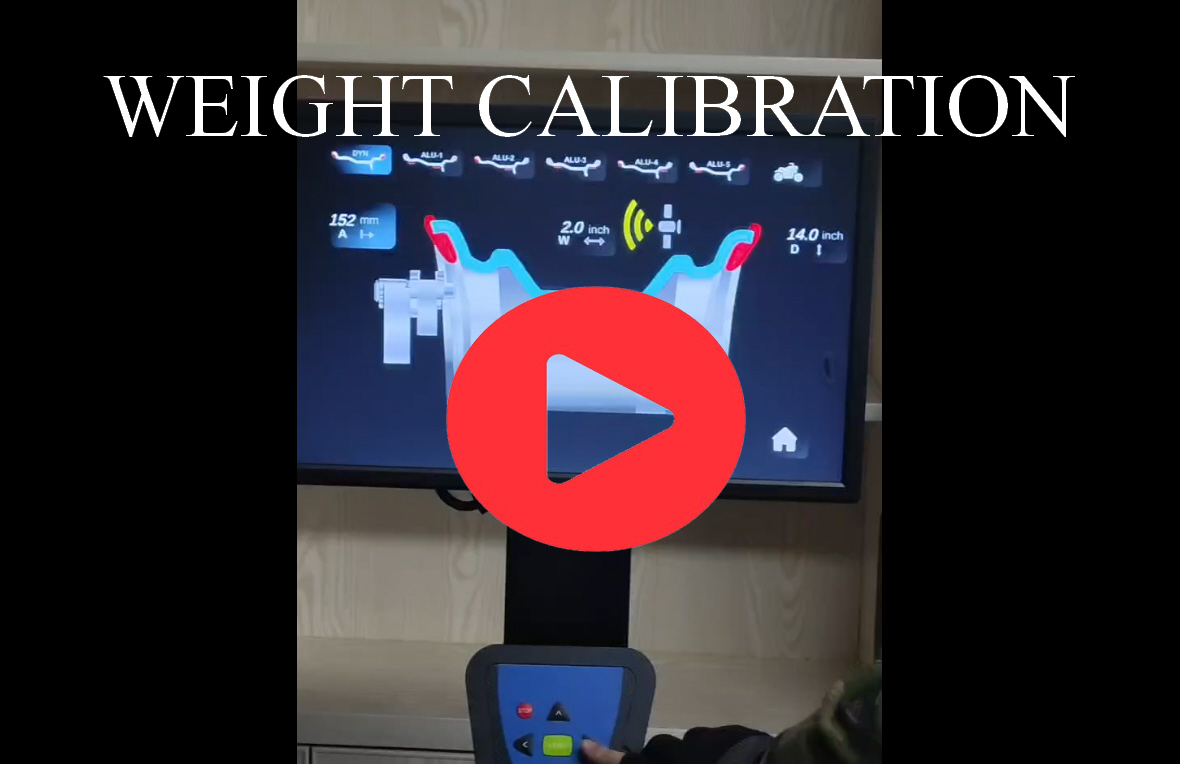

CALIBRATION VIDEOS
CLICK ON ABOVE FOR USER MANUAL
