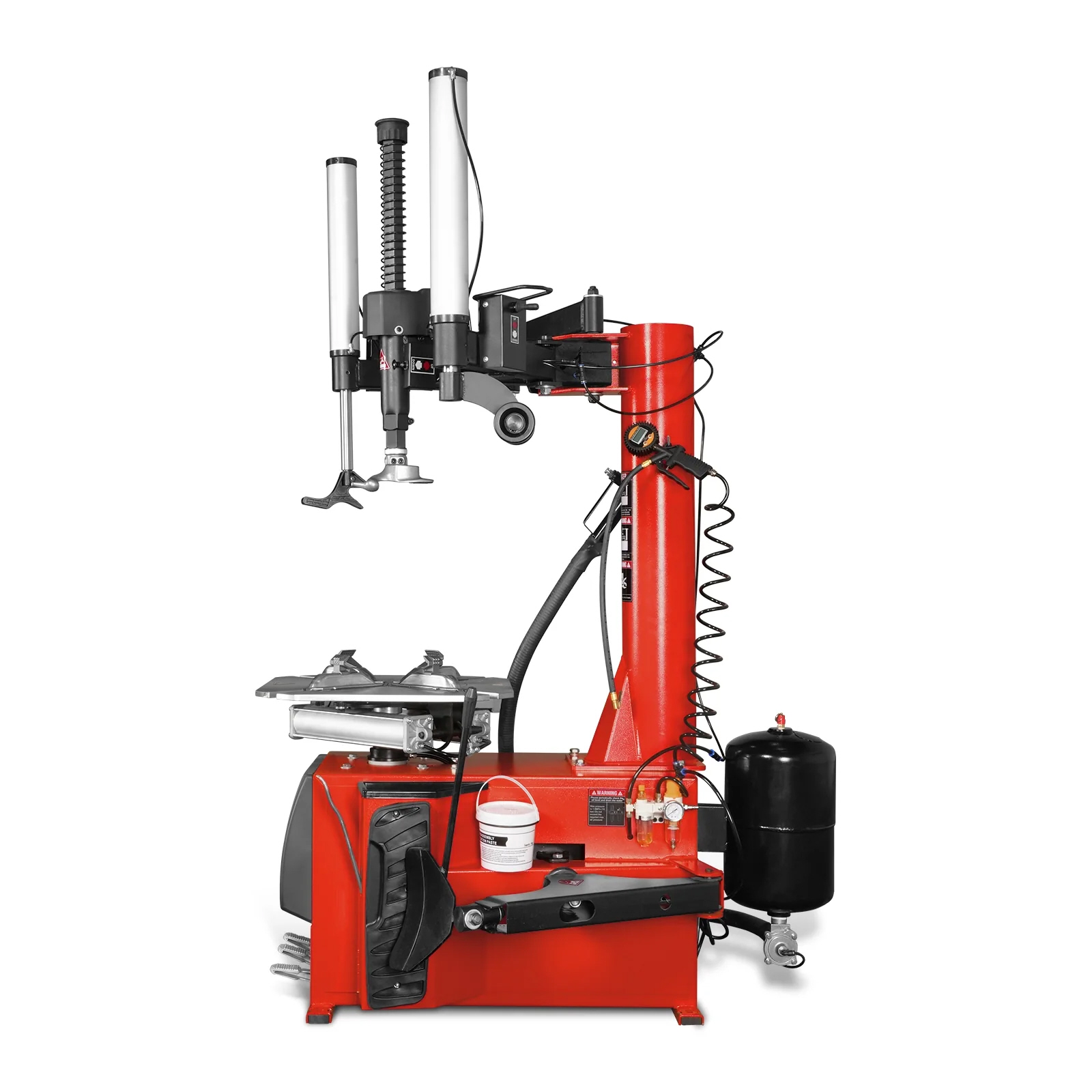

DS-706C3 24″ Rim Assist Arm Tyre Changer Swing Arm Wheel Changer

Product Status: [ascet_product_status]

Original price was: $2,600.00.Current price is: $2,400.00.

Calculate shipping

Product Overview

  • Reliable and Efficient: This Highlift DS-706C3 tyre changer is a fundamental machine for your small to medium-sized tire shop or general automotive service department. It performs rapid wheel service on most types of passenger wheels, as well as spare tyres and trailer tyres. Ideal for small personal operations, car enthusiasts, roadside tyre shops, small businesses, race shops, or as a backup for more specialized tire machines.

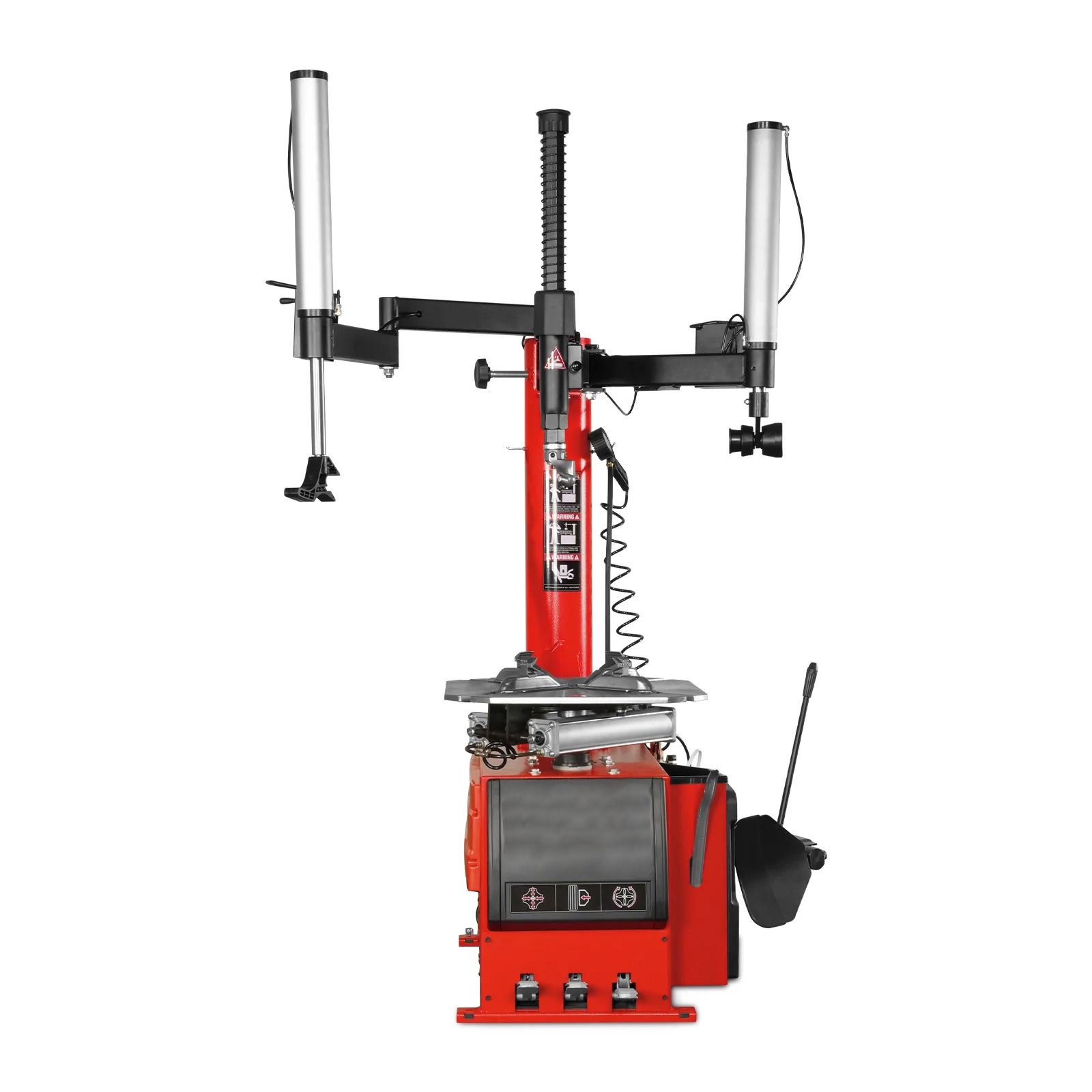

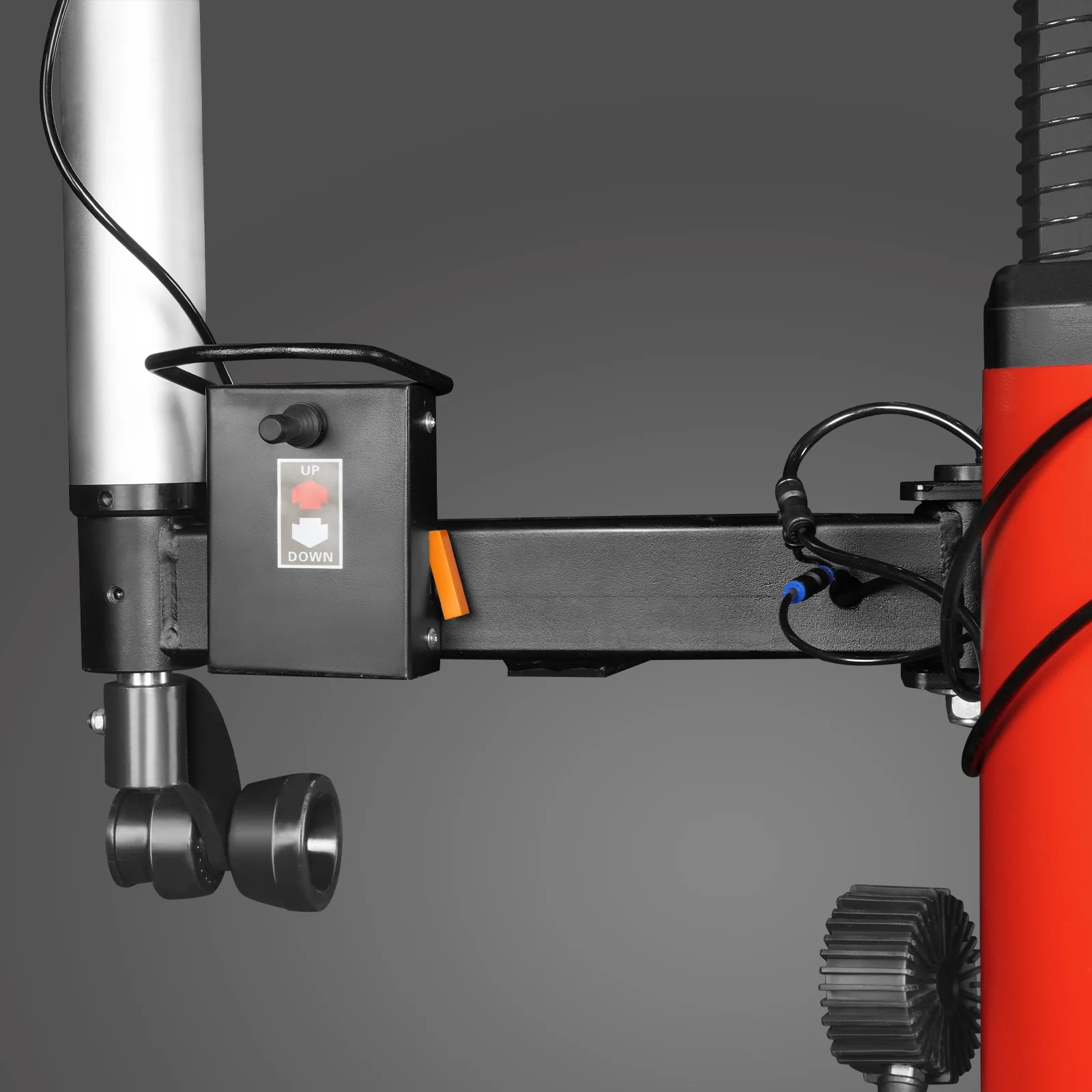

  • Double Assist Arm for Tough Tires: The classic double assist arm design provides additional power when mounting difficult tires by preventing the bead from rolling back over the mount tool. Each assist arm can work independently, and tyre pressure can be adjusted individually, which is accurate and fast, saving time and effort. It comes with a drop-center cone, which holds the bead in the drop-center, further helping protect the tire during external clamping procedures.

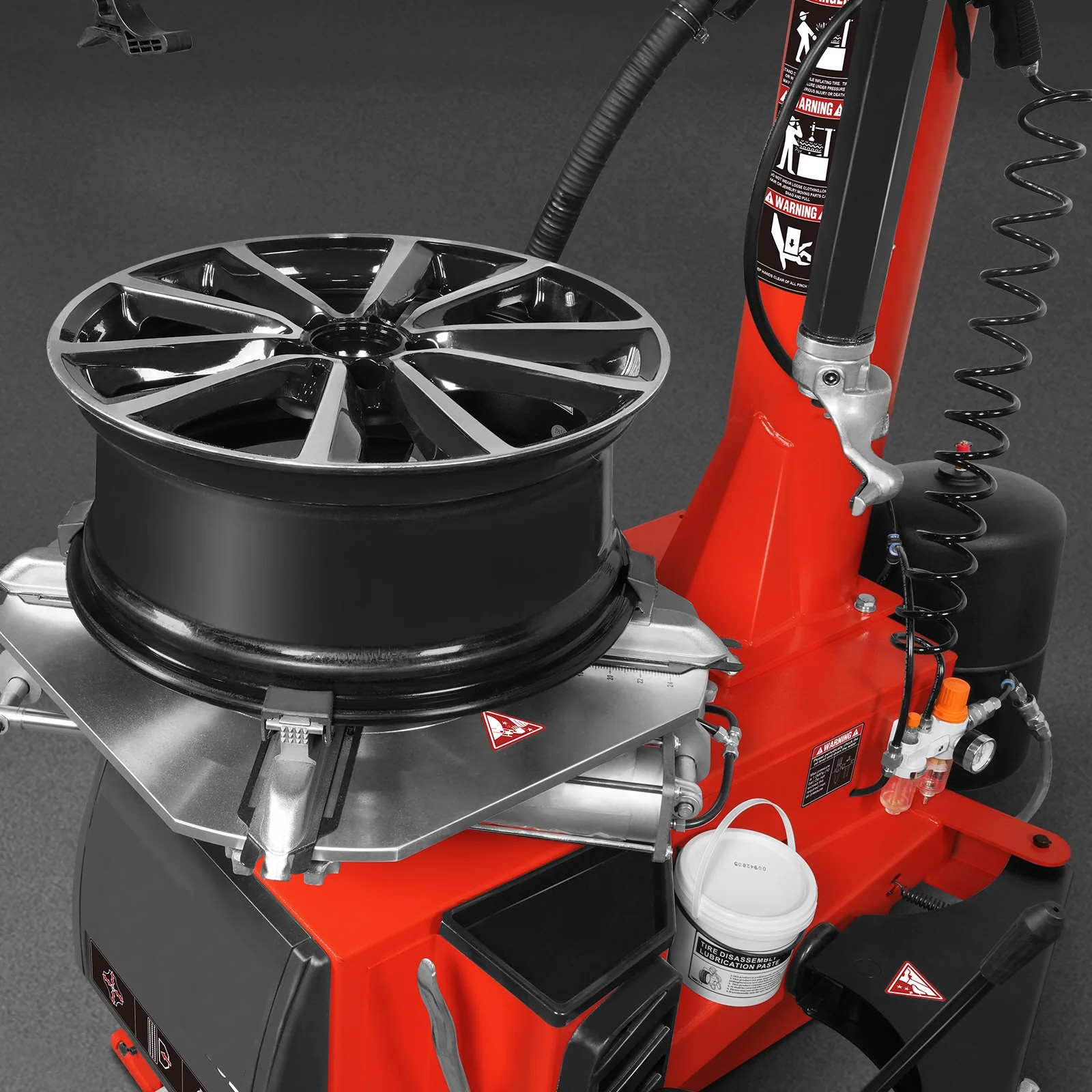

  • Quick and Damage-Free Tire Handling: The swing-arm design offers the ability to quickly and easily mount and dismount tires on most steel or alloy wheels without causing any damage. The powerful motor and maintenance-free gearbox ensure easy tire removal and installation.
  • Optional Motorcycle Adapter: When equipped with a motorcycle adapter (sold separately), this tyre changer can also handle motorcycle tires.

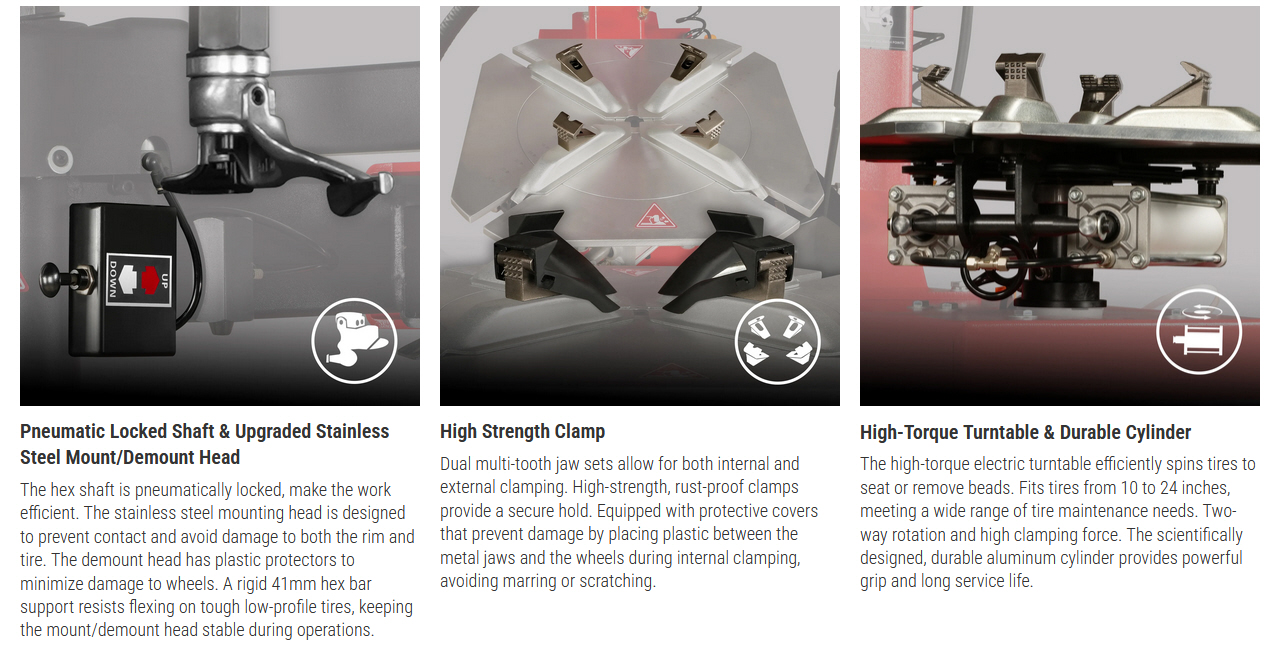

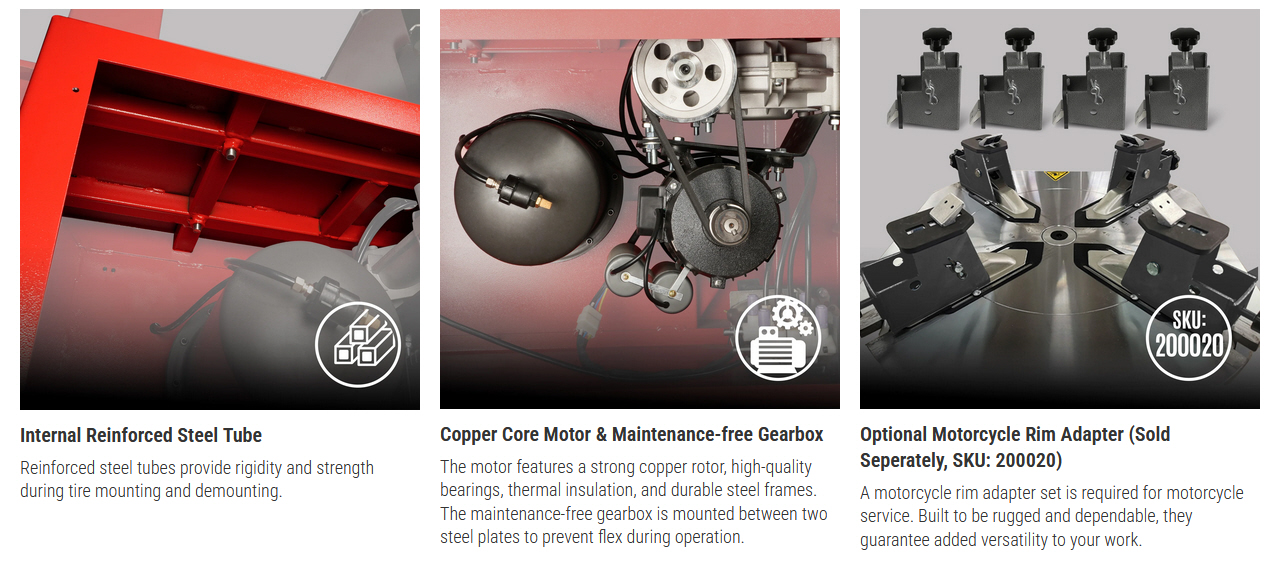

Product Features

Specifications



Voltage 240v / 50hz / 1 phase Help Arm Double Assist Arms
Motor Power 1.5 HP

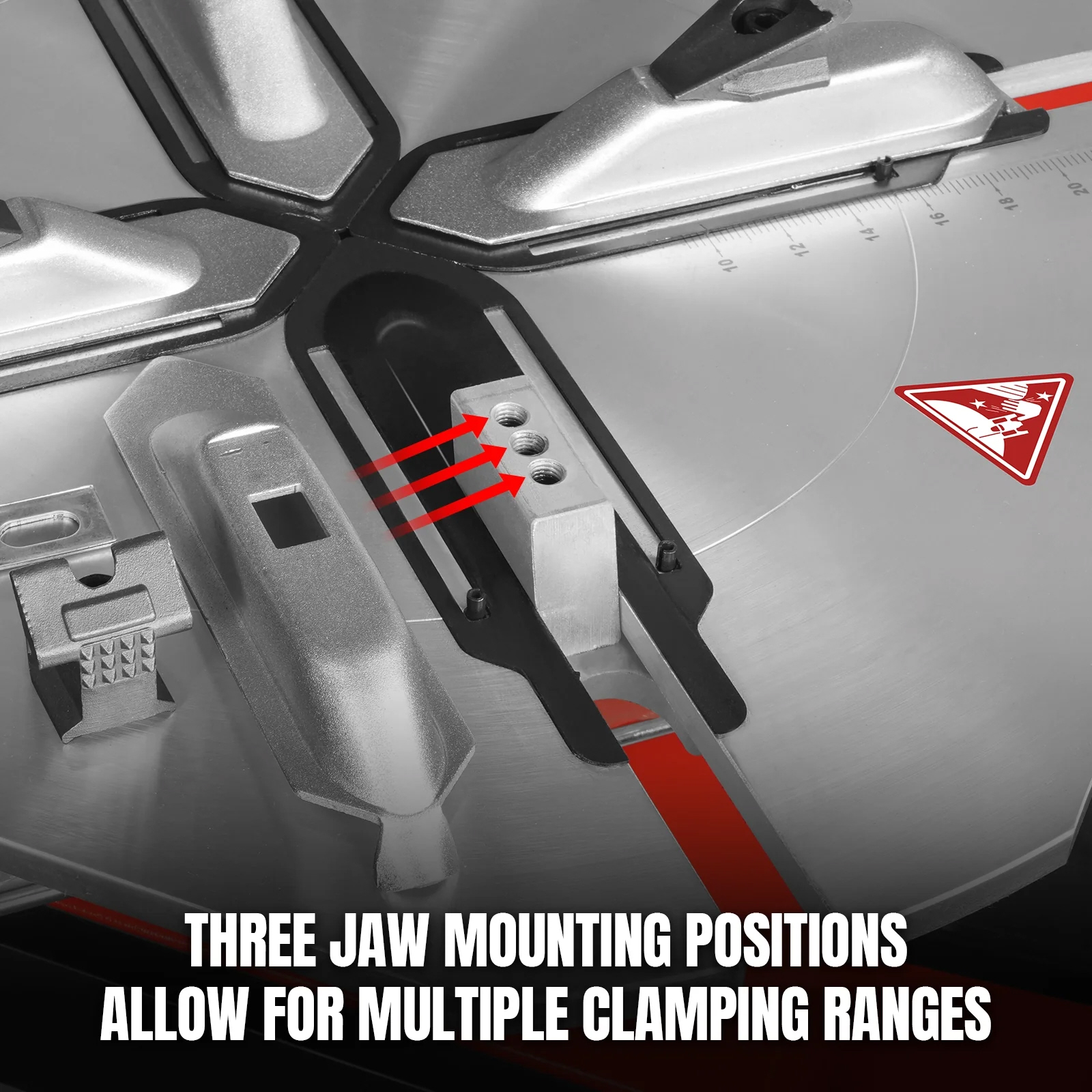

Inside Rim Clamp Range 12-24 in Hex Shaft Locked Type Pneumatic
Outside Rim Clamp Range 10-22 in Mount Head Stainless Steel & Plastic
Max Tire Diameter 41 in Inflator Handheld
Rim Width 3-15 in Motorcycle Adapter Sold Separately
Working Pressure 117-145 psi (8-10 bar) Packing Plywood case
Type Swing Arm Weight (N.W/G.W.) 270Kg
