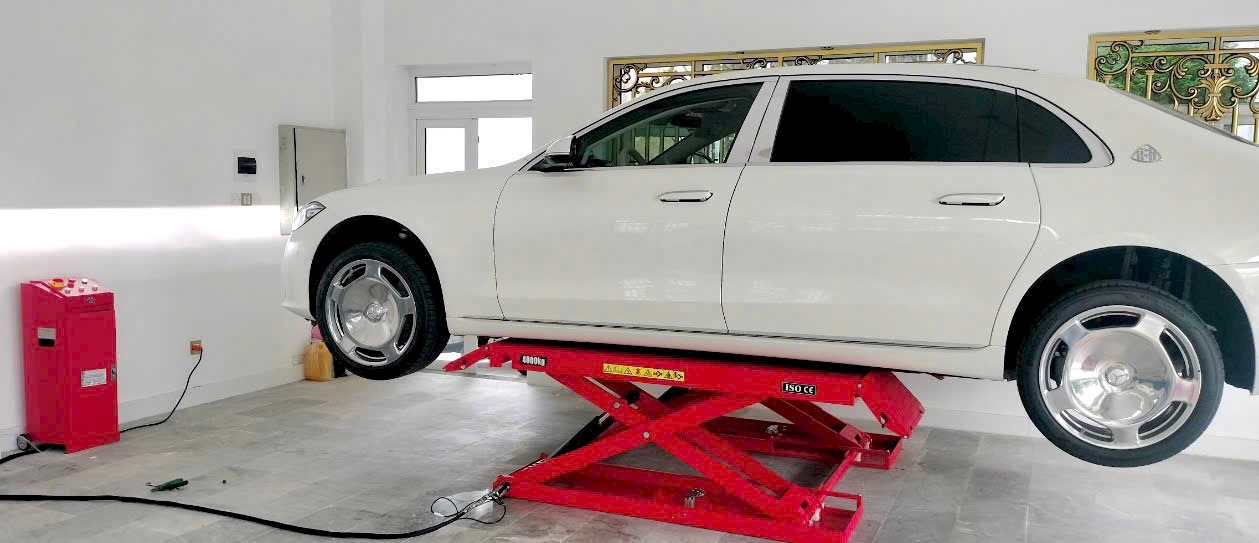

YL640BE CAR SCISSOR LIFT Max Lift Capacity 4 Tonne With Electric Locks Twin Rams, Wheel Kit & Rubber Pads

All Our Car Hoists Come With 3 Year warranty

Features:

PLEASE NOTE; IF ORDERING STOCK WILL BE DUE APPROXIMATELY START OF SEPTEMBER.

No need to fix scissor lift to floor, it can be moved for use in different areas of the workshop.

Comes with electric solenoid locks.

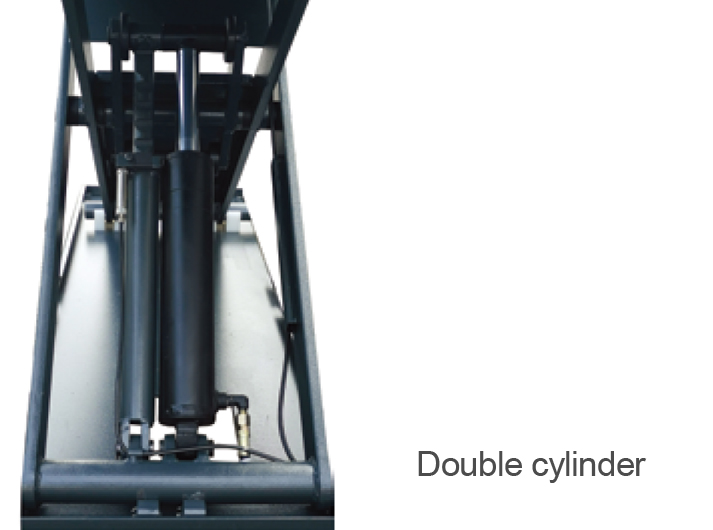

Twin Rams

Comes With Wheel Kit to be able to move scissor lift

2 Sets Of lifting rubbers 1 set 120x120mm x 50mm high other set 120 x120mm x 20mm high

1 x handle for moving scissor lift

Excellent for use in panel shops or similar

Suitable for fast repair for Tyres, change engine oil etc.

Connection shaft keeps synchronization of both platforms.

Extendable lifting platform.

120% capacity dynamic load test and 150% capacity static load test

• Max Lifting capacity: 4000kg
• Lifting height: 1200mm
• Min. Height: 105mm
• Lifting time: 35sec
• Lowering time 40sec

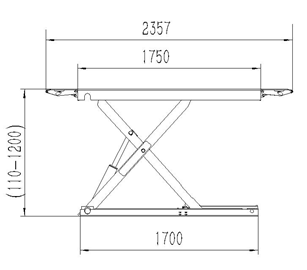

• Platform Length: 1570 – 2175mm
• Platform width: 530mm
• Overall Length 2175mm
• Overall Width 1950mm
• Motor power: 1.5KW
• Voltage: 240V Single Phase or  3Phase (optional)
• 24V Control System
• Hydraulic Fluid 46grade
• Rated oil pressure: 18Mpa
• Colour of scissor may be fully black or fully red, or black scissor and red platform.

Packaging

• 1. 2020mm x 1920mm x 220mm (H) 590kg
• 2. 480mm x 390mm x 1060mm  60 kg
• Total gross weight = 650kg

CLICK ON ABOVE FOR USER MANUAL
