YL635FW Car Scissor Lift 3Tonne Full Lift Height 1850mm

Product Status: In Stock

$4,500.00

Calculate shipping

All Our Car Hoists Come With 3 Year warranty

Features:

Full Lift Scissor Lift with Twin Rams

No connection Points Between Scissor Lifts So Can Be Used for Caravans Etc

Extendable lifting platform.

120% capacity dynamic load test and 150% capacity static load test

  • Lifting capacity: 3000kg

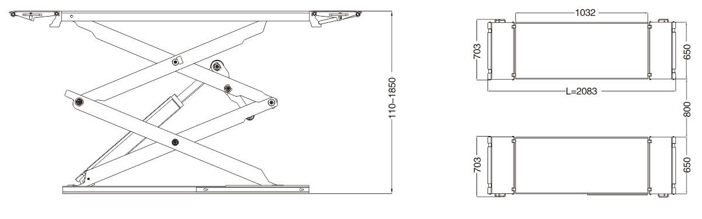

  • Lifting height: 1850mm
  • Min. Height: 125mm  Lifting time: 60sec
  • Overall width: 1910mm
  • Platform width: Any Width
  • Motor power: 2.2KW
    Voltage: 240V Single Phase 15amp plug,  3Phase (optional)
  • Rated oil pressure: 18Mpa
  • Hydraulic Fluid Required- 46 Grade
  • Ramp Angle – 19.7 degrees in lowered position

    Packaging

    • 1. 1620mm x 780mm x 410mm (H) 893kg
    • 2. 500mm x 560mm x 1120mm  65 kg
    • Total gross weight = 958kg

CLICK ON ABOVE FOR USER MANUAL
