Sale!

Mobile Truck, Bus, Forklift Column Lift Hoist 7.5Tonne Per Column 30Ton, 3phase AA-4C

Product Status: In Stock

$5,900.00

Calculate shipping

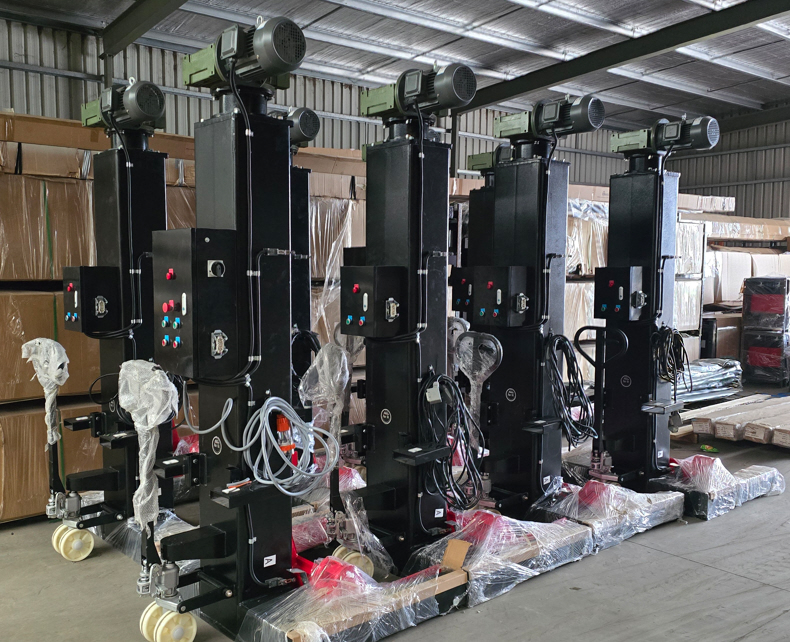

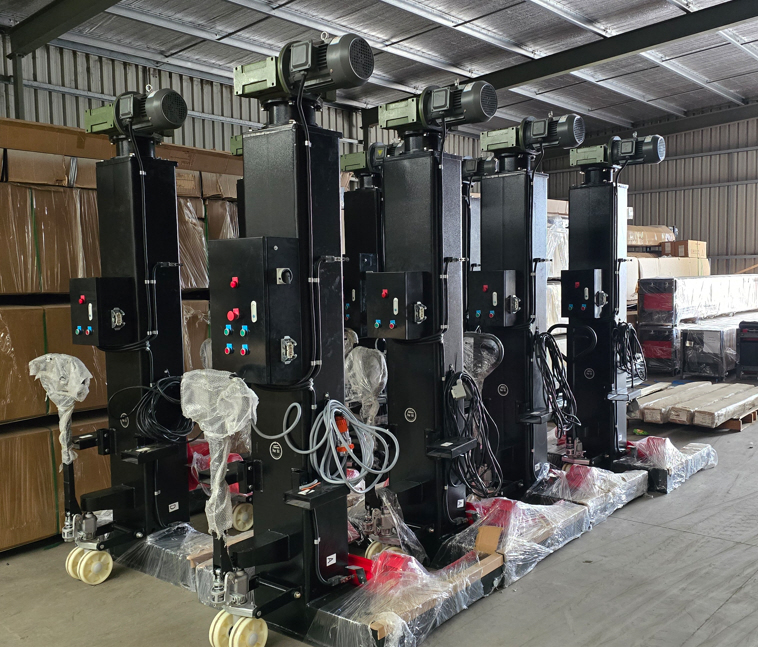

3 PHASE 30 TONNE SCREW DRIVEN TRUCK COLUMN LIFT 7.5ton PER COLUMN



Please Note- This Price Is For 1 Column Only



Features:
1.     Distance between each post could be adjusted, easy to move with dolly
2.     Each post could be raised/descended individually from control cabinet. Each post has individual control button. 1# post/ 2# post/3# post/4# post
3.     Control cabinet can control all posts simultaneously.
4.     Extra column lfts can be added
5.     Besides the working screw, Each post equipped with spare safety screw  to  ensure safety.

Lifting height: 1.5M(Floor to the bottom of tire)
Output speed: 50r/min
Raise speed:    600mm/Min
Motor power: 3kw x 4pcs   (30T)
Motor voltage:    415V/50HZ,3PH
Overal size:     1400*1160*2900mm
