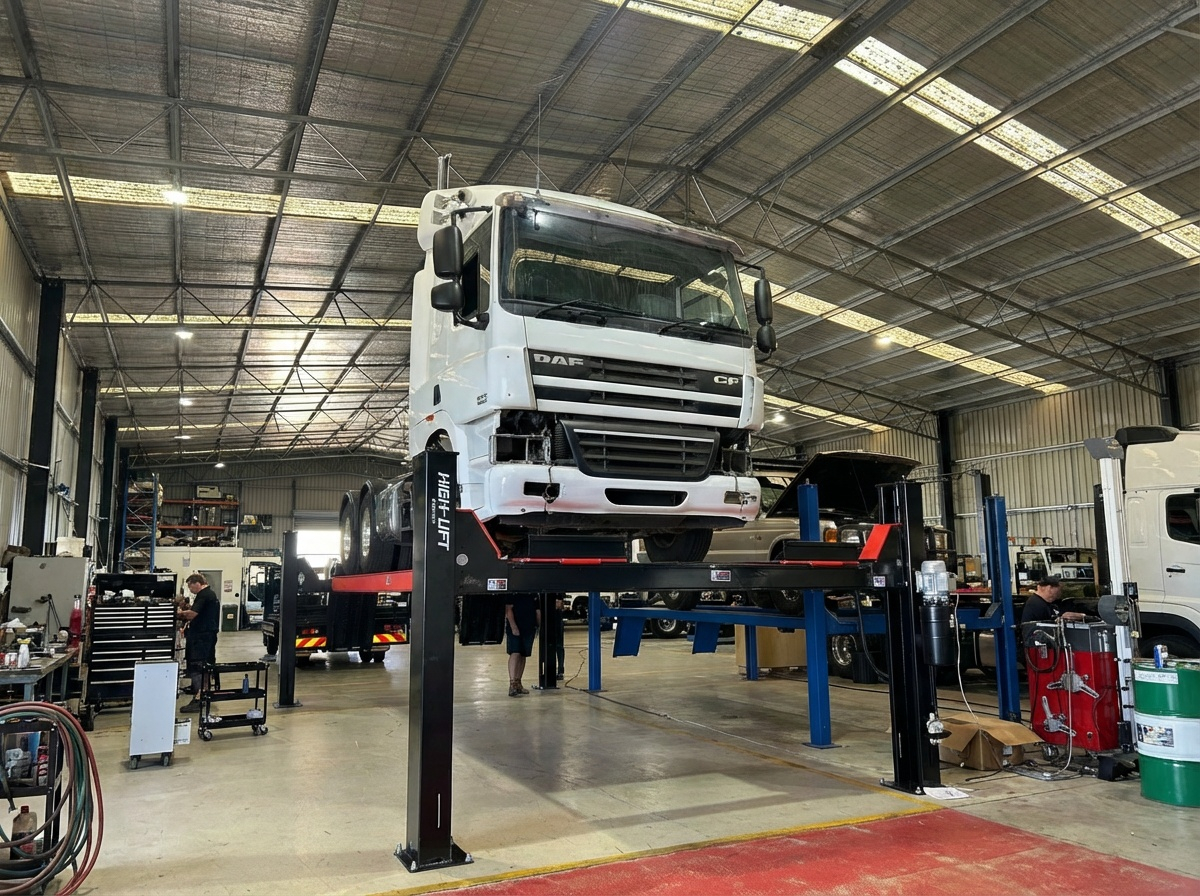

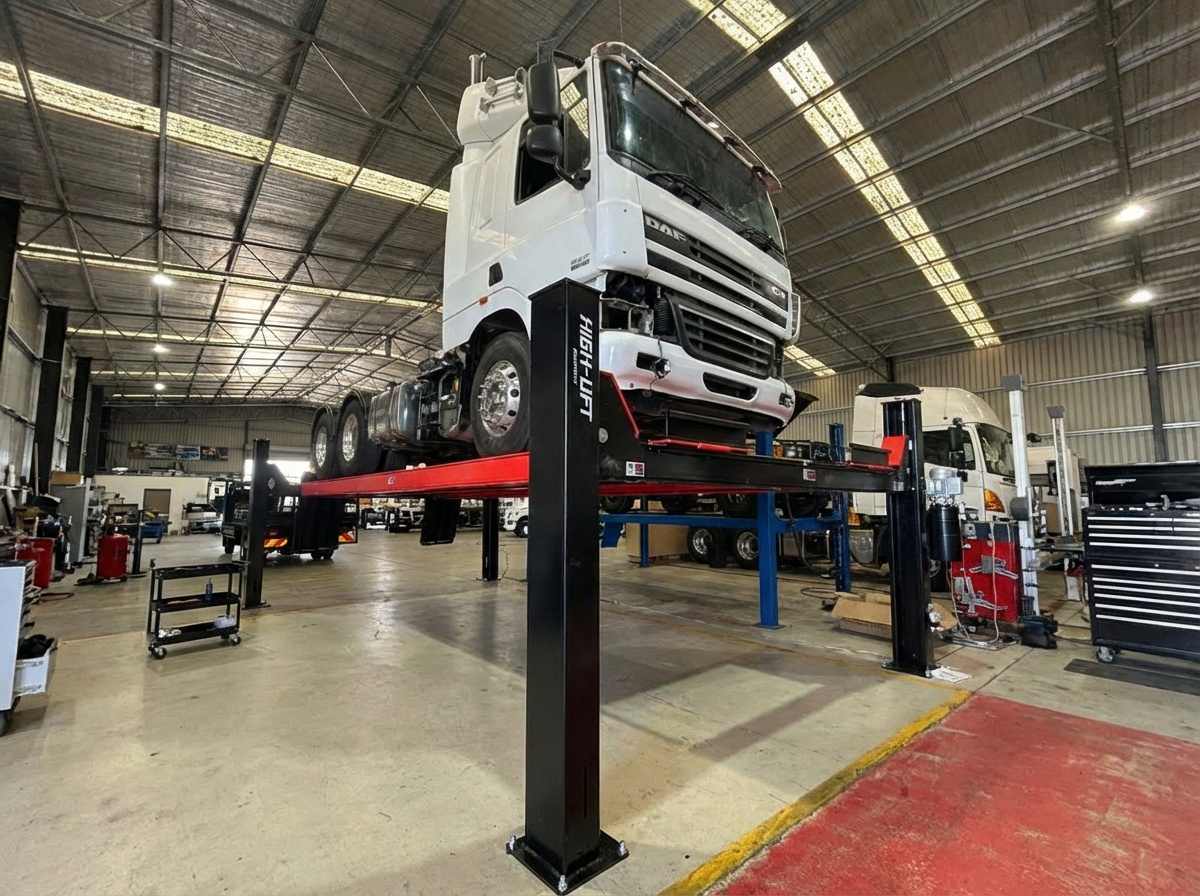

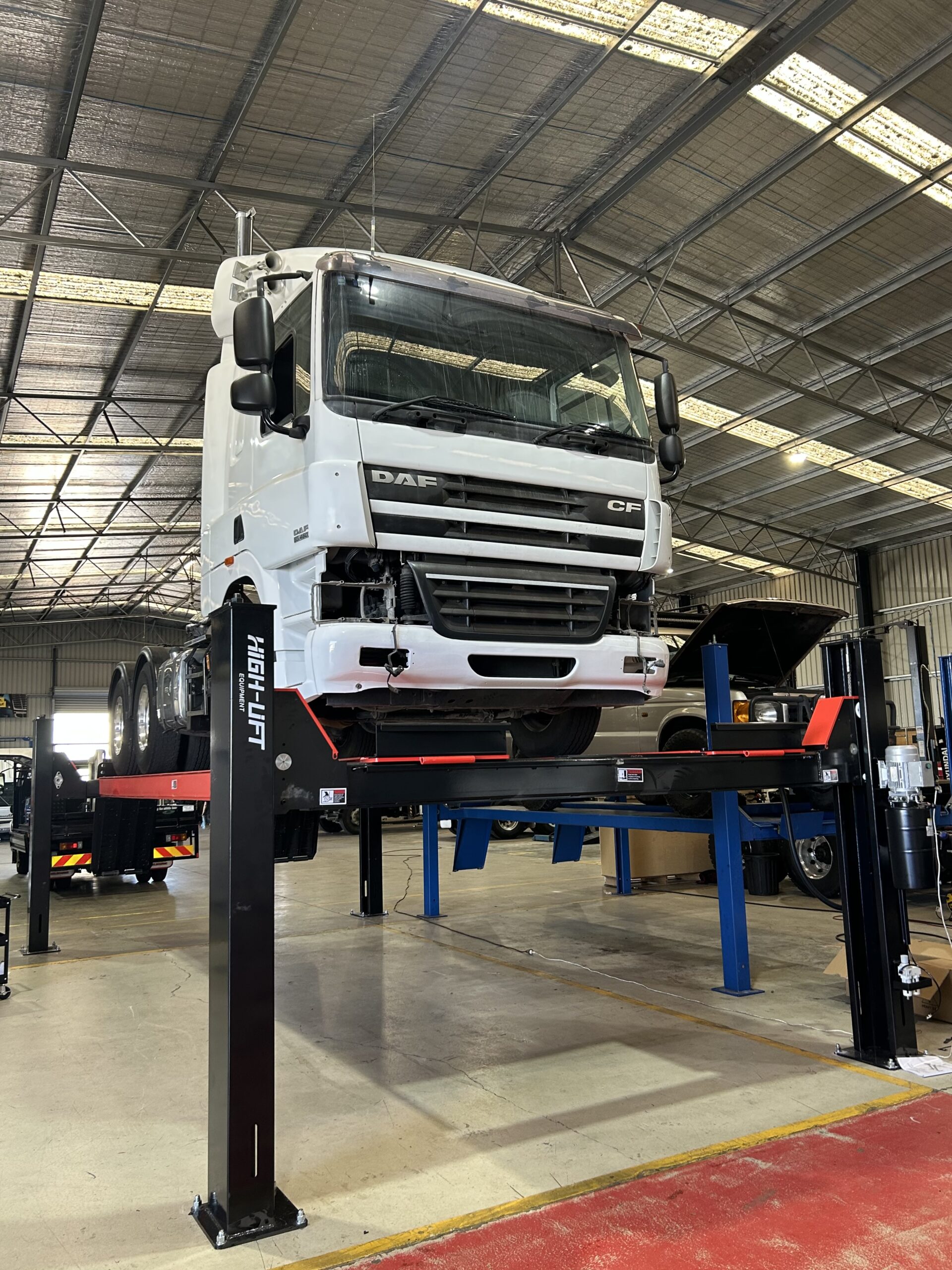

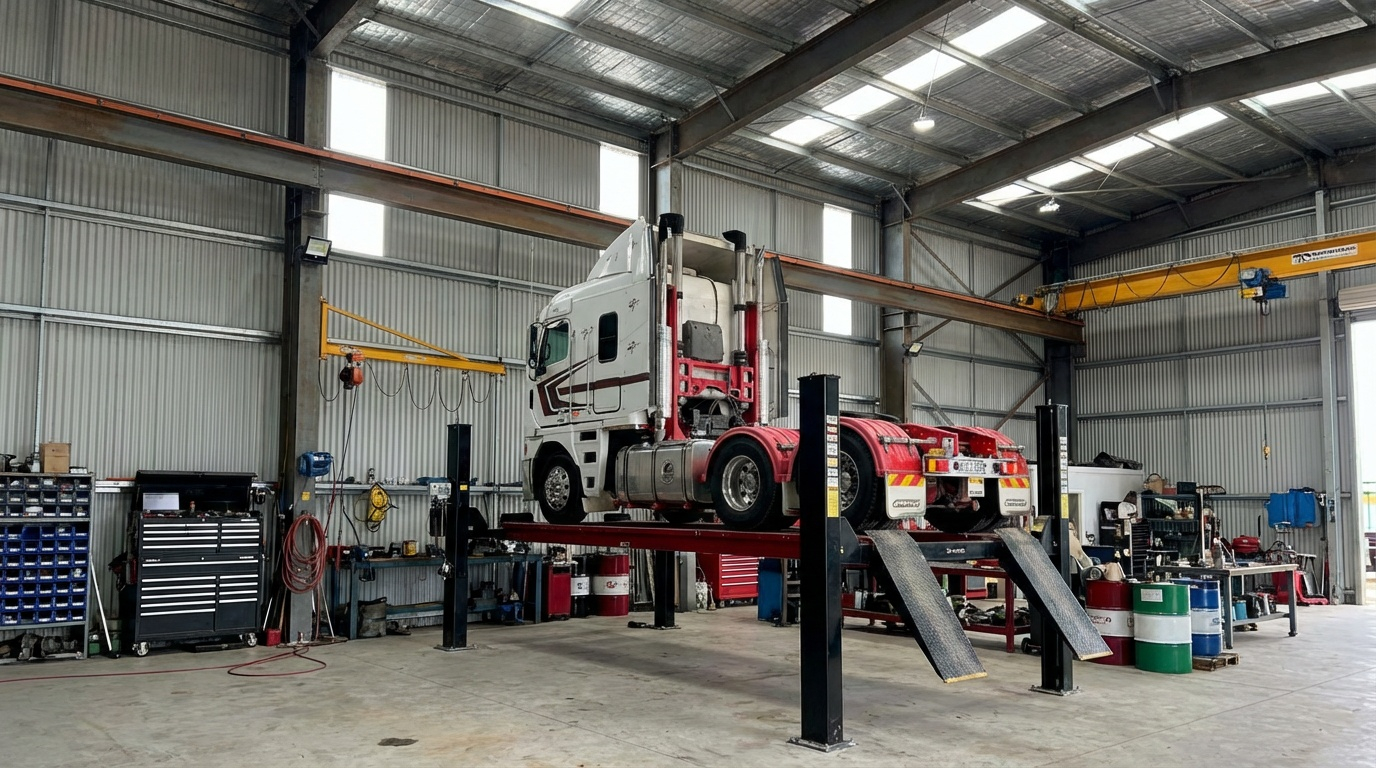

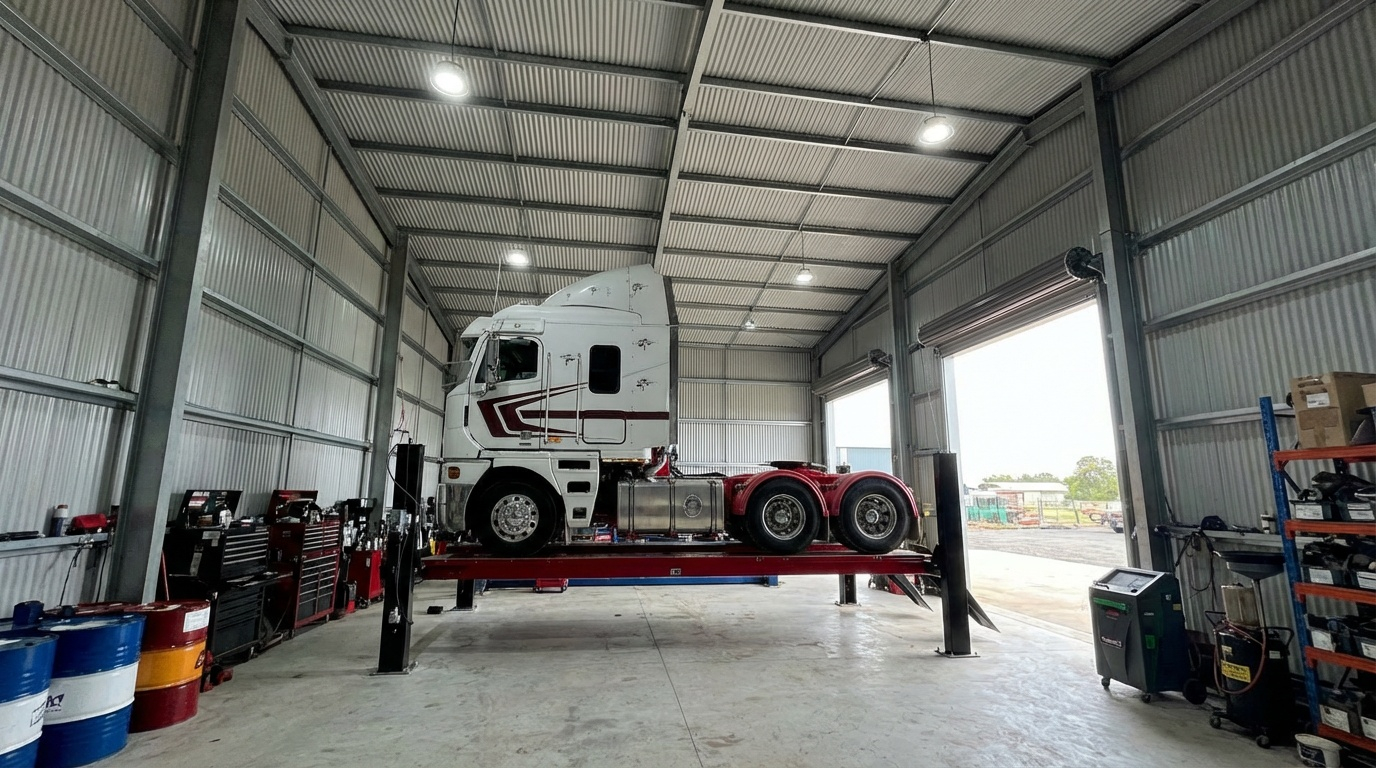

YL-12 (7550MM) 12 Ton 4 Post Truck Lift Wheel Alignment Hoist Extra Long 7.5M


Calculate shipping
Extra Long Hydraulic 4 Post Truck Lift With Wheel Alignment Plates

The YL-12  is a great extra long, standard height 4 post truck lift with wheel alignment slip plates fitted & has a lift capacity of up to 12 ton . With no special foundation required, installation is quick and easy .

Features are:
• Hydraulic 4 post truck lift
• Safety device in case of cable breakage
• Overload safety valve
• Descent control valve
• Pipe burst safety valve
• 24V, low tension dead man controls
• Electrical controlled fall safety
• Automatic release of safety locking devices
• Automatic descent control

Available in Both 3 Phase & Single Phase

  • Runway Length                    7.5 Meters
  • Lifting Height                       1830mm
  • Total Length                          8753mm
  • Column Height                     2365mm
  • Runway Height                     230mm
  • Runway width                       610mm
  • Width Between Runways   1126mm
  • Width Between Columns    3538mm
  • Total Width                           4 Meters


  • 1. 78000mm x 650mm x 860mm (H) , 4260kg
  • 2. 2500mm x 430mm x 1420mm (H) , 399 kg
  • Total gross weight = 4659kg

Click Above For Dimensional Drawings

Click On Above For Installation Manual
